Diamond FL01 LED Flood Light

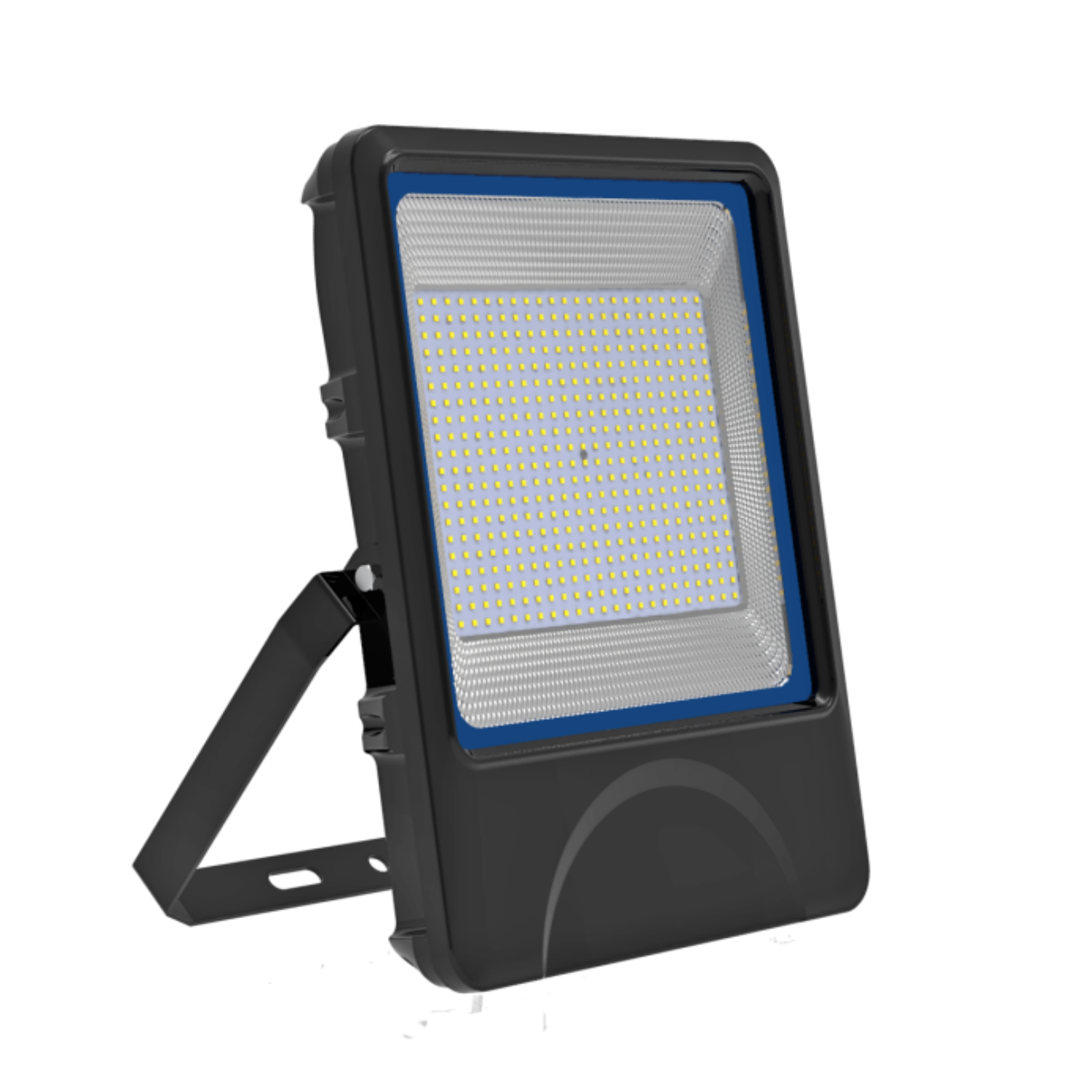

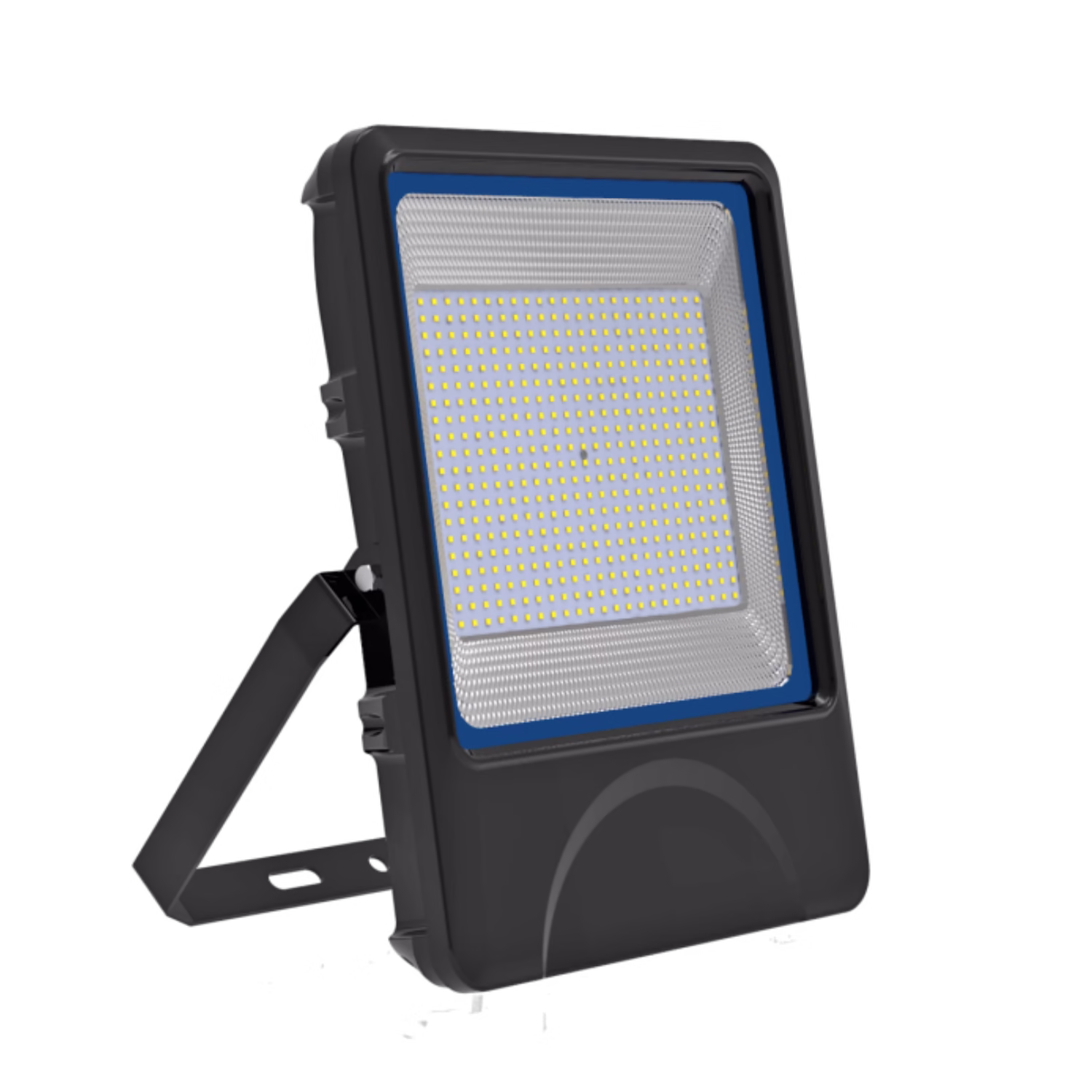

Diamond FL01 Flood Light
- Power Range: 10W – 200W
- Light Efficacy: 110-120lm/W
- IP66 & IK08
- Warranty: 3/ 5 Years

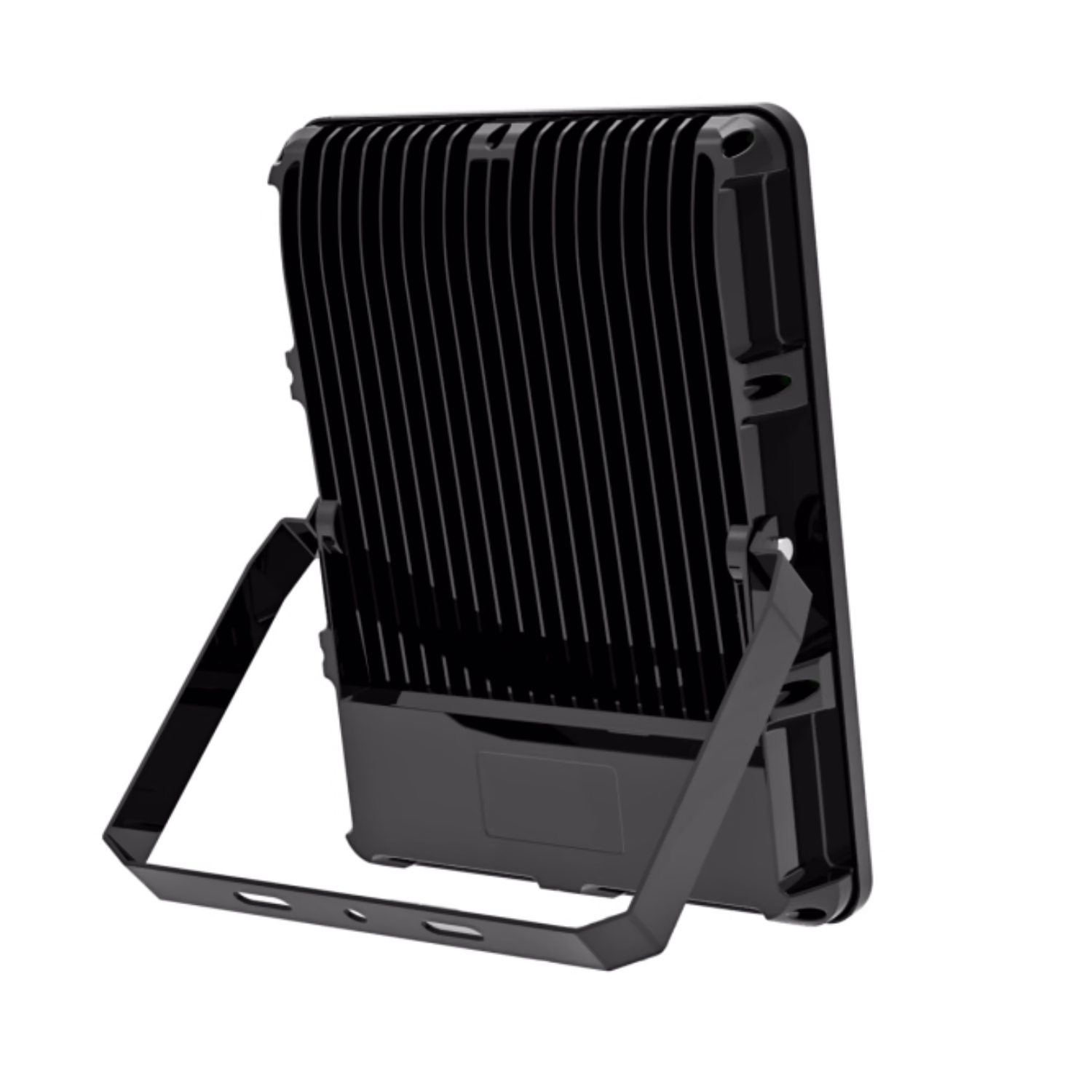

- Thermal Management: ADC12 die-casting for superior heat dissipation
- Durability: Tempered glass & breather valve for balanced temperature and humidity
- Adjustable Installation: Offset bracket design, ±120° angle adjustment for precise lighting
- Flood lights are ideal for industrial and commercial settings, including warehouses, manufacturing plants, and construction sites. They provide intense, widespread illumination to ensure safety and operational efficiency in well-lit working conditions.
Technical Specification
| Model No. | ISL-XTGD-10W | ISL-XTGD-20W | ISL-XTGD-30W | ISL-XTGD-50W | ISL-XTGD-100W | ISL-XTGD-150W | ISL-XTGD-200W |
| Power | 10W | 20W | 30W | 50W | 100W | 150W | 200W |
| Dimmension | 129*99*44mm | 175*135*44mm | 215*175*47mm | 275*225*48mm | 325*275*53mm | 385*305*58mm | 435*335*65mm |
| Light Efficiency (±5%) | 110lm/W | 120lm/W | |||||
| Beam Angle | 120° | 120°/ 15° / 30°/ 60°/ 90°/ 70*150° | |||||
| Input Voltage | 100-277VAC, 50/60Hz | ||||||
| CCT | 3000K/ 4000K/ 5000K/ 5700K/ 6500K | ||||||
| CRI | 80 | ||||||
| LED | Lumileds/ San’an | ||||||
| Driver | Philips/ Sosen/ ZH | ||||||
| Housing | Die-casting technology by ADC12 | ||||||
| IP Rating | IP66 | ||||||
| IK Rating | IK08 | ||||||
| Operation Temperature | ﹣25°C- +50°C | ||||||
| Lifespan | 50,000H | ||||||
| Warranty | 3/ 5Years | ||||||

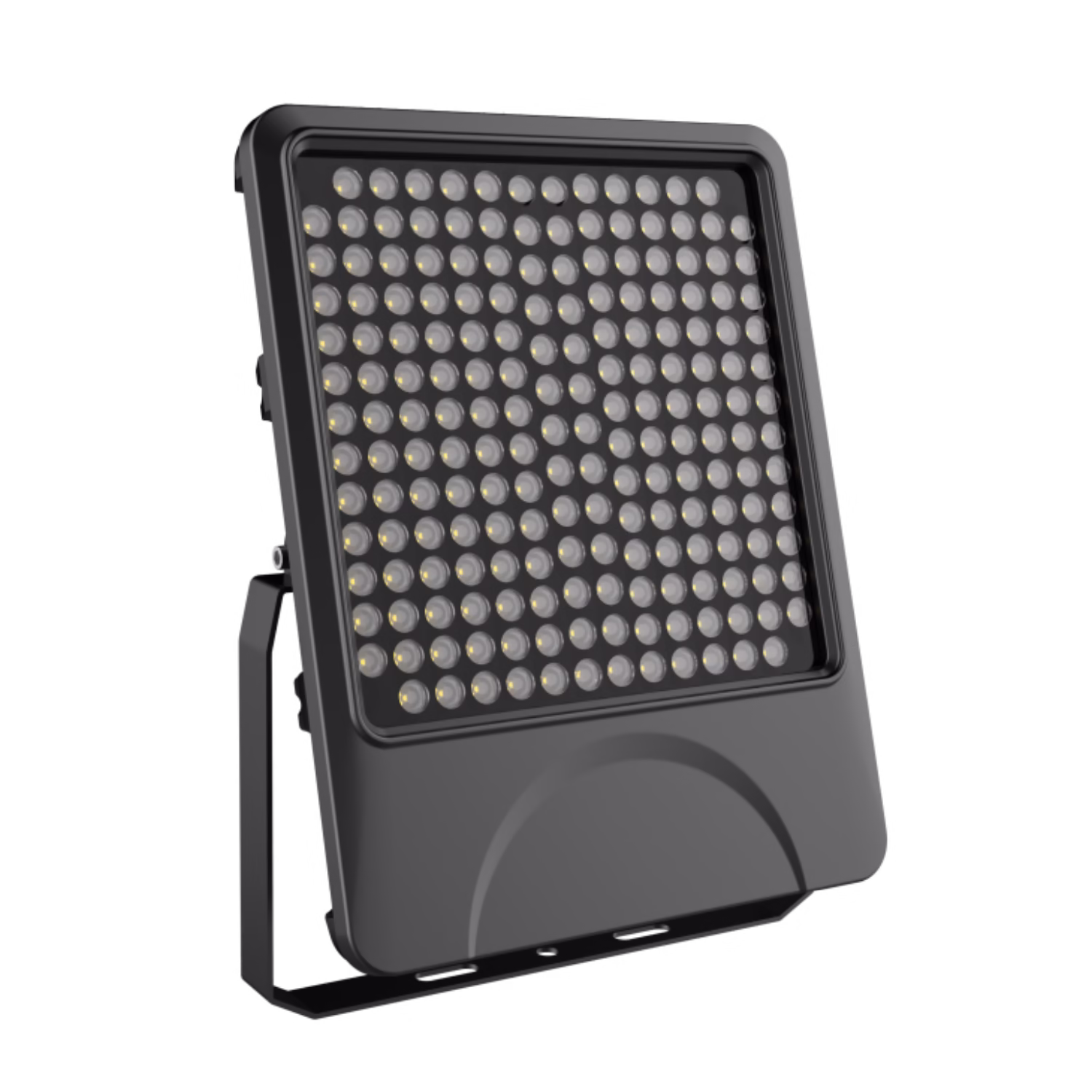

Diamond FL01 Flood Light - Narrow Beam Angle
- Power Range: 10W – 200W
- Light Efficacy: 80-100lm/W
- IP66 & IK08
- Warranty: 3/ 5 Years
- Die-Casting Technology: Utilizes ADC12 die-casting for excellent thermal management.
- Durable Design: Tempered glass and integrated breather valve balance internal and external temperature and humidity to enhance reliability.
- Adjustable Installation: ±120° racking angle for precise positioning and installation.
- Flood Lights are used in museums, galleries, and for architectural details; in commercial displays and sports fields; in industrial areas and landscapes; and in indoor spaces, parking lots, and large outdoor areas.
Technical Specification
| Model No. | ISL-XTGD-10W | ISL-XTGD-20W | ISL-XTGD-30W | ISL-XTGD-50W | ISL-XTGD-100W | ISL-XTGD-150W | ISL-XTGD-200W |
| Power | 10W | 20W | 30W | 50W | 100W | 150W | 200W |
| Dimmension | 129*99*44mm | 175*135*44mm | 215*175*47mm | 275*225*48mm | 325*275*53mm | 385*305*58mm | 435*335*65mm |
| Light Efficiency (±5%) | 80lm/W | 100lm/W | |||||
| Beam Angle | 10°/ 25°/ 45°/ 60° | ||||||
| Input Voltage | 100-277VAC, 50/60Hz | ||||||
| CCT | 3000K/ 4000K/ 5000K/ 5700K/ 6500K | ||||||
| CRI | 80 | ||||||
| LED | San’an | ||||||
| Driver | Sosen/ ZH | ||||||
| Housing | Die-casting technology by ADC12 | ||||||
| IP Rating | IP66 | ||||||
| IK Rating | IK08 | ||||||
| Operation Temperature | ﹣25°C- +50°C | ||||||
| Lifespan | 50,000H | ||||||
| Warranty | 3/ 5Years | ||||||
