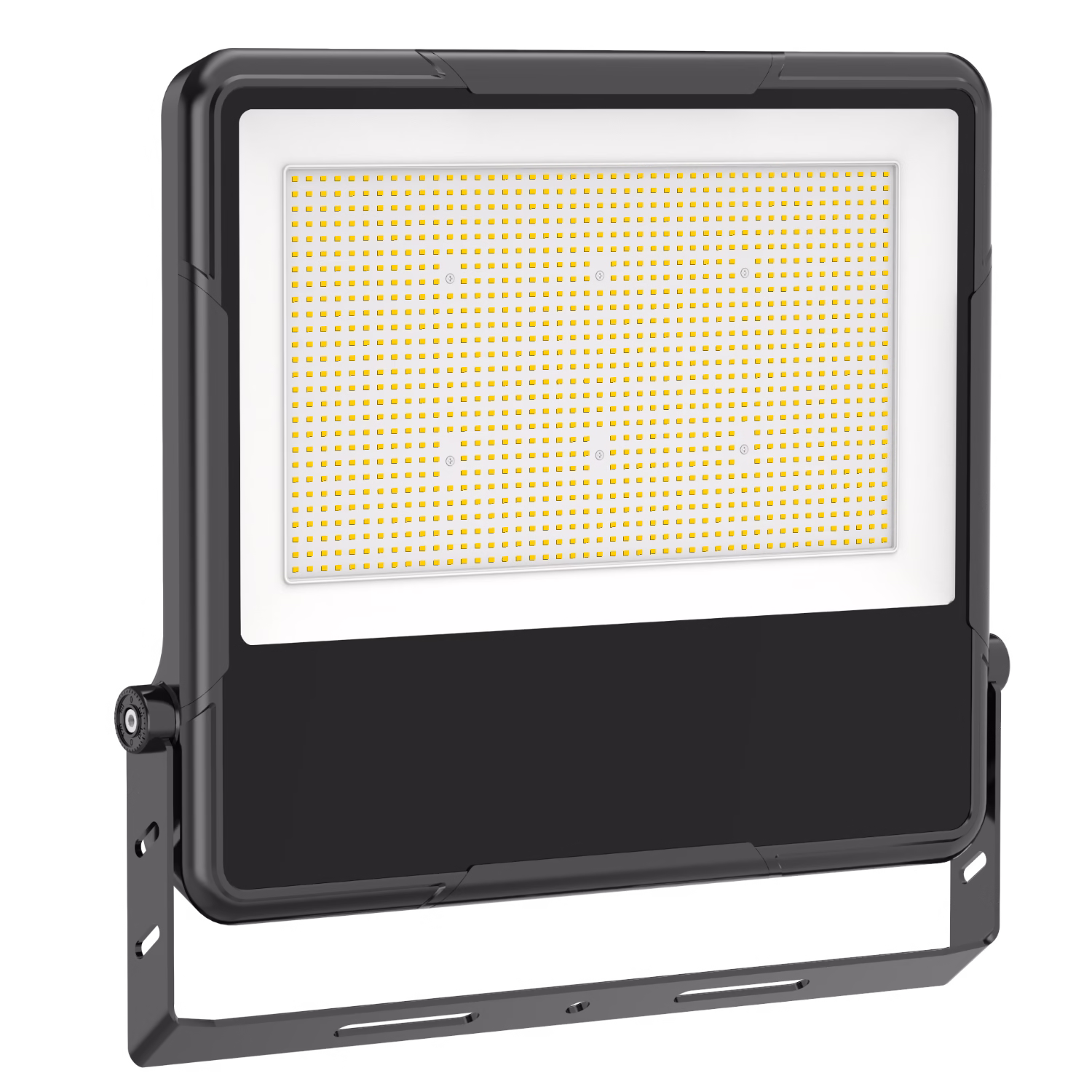

Diamond FL03 LED Flood Light
FL03 Flood Light
- Power Range: 30W – 500W
- Light Efficacy: 150lm/W
- IP66 & IK08
- Warranty: 3/ 5 Years
- Thermal Management: ADC12 die-casting for superior heat dissipation
- Durability: Tempered glass & breather valve for balanced temperature and humidity
- Adjustable Installation: Offset bracket design, ±120° angle adjustment for precise lighting
- Available in a range of wattages from 30W to 500W, floodlights are ideal for a wide variety of applications. From low power accent lighting to high power lighting of large outdoor areas for all your commercial and industrial needs.
Technical Specification
| Model No. | ISL-FL03-30W | ISL-FL03-50W | ISL-FL03-100W | ISL-FL03-150W | ISL-FL03-200W | ISL-FL03-250W | ISL-FL03-300W | ISL-FL03-400W | ISL-FL03-500W |
| Power | 30W | 50W | 100W | 150W | 200W | 250W | 300W | 400W | 500W |
| Dimmension | 217*212*38mm | 254*239*38mm | 302*314*49mm | 358*364*49mm | 386*414*51mm | 460*480*54mm | 460*480*54mm | 550*589*56mm | 550*589*56mm |
| Light Efficiency (±5%) | 150lm/W | ||||||||
| Beam Angle | 120°/ 30°/ 45°/ 60°/ 90°/ 70*150° | ||||||||
| Input Voltage | 100-277VAC, 50/60Hz | ||||||||
| CCT | 3000K/ 4000K/ 5000K/ 5700K/ 6500K | ||||||||
| CRI | 80 | ||||||||
| LED | Lumileds | ||||||||
| Driver | Meanwell/ Sosen/ iShineLux | ||||||||
| Housing | Die-casting technology by ADC12 | ||||||||
| IP Rating | IP66 | ||||||||
| IK Rating | IK08 | ||||||||
| Operation Temperature | ﹣25°C- +50°C | ||||||||
| Lifespan | 50,000H | ||||||||
| Warranty | 3/ 5Years | ||||||||
FL03 Flood Light - 3CCT& 3Power Adjustable
- Power Range: 50W – 500W
- Light Efficacy: 140lm/W
- 3CCT & 3-Power Options: Easily stock one model that covers three color temperatures and three power levels.
- IP66 & IK08
- Warranty: 5 Years
- The Flood Light integrates three power levels and three color temperature options, all adjustable via convenient DIP switches. Its versatile, all-in-one design streamlines inventory by reducing the need for multiple SKUs, making stocking and logistics more efficient. Ideal for diverse applications, it allows on-site customization to meet varying lighting requirements with ease.
Technical Specification
| Model No. | ISL-FL03-50W | ISL-FL03-100W | ISL-FL03-150W | ISL-FL03-200W | ISL-FL03-250W | ISL-FL03-300W | ISL-FL03-500W |
| 3-Power | 50W-40W-30W | 100W-80W-60W | 150W-120W-90W | 200W-160W-120W | 240W-200W-150W | 300W-240W-180W | 500W-400W-300W |
| 3-CCT | 3000K-4000K-5700K | ||||||
| Dimmension | 254*239*38mm | 302*314*49mm | 358*364*49mm | 386*414*51mm | 460*480*54mm | 460*480*54mm | 550*589*56mm |
| Light Efficiency (±5%) | 140lm/W | ||||||
| Beam Angle | 120°/ 30°/ 45°/ 60°/ 90°/ 70*150° | ||||||
| Input Voltage | 100-277VAC, 50/60Hz | ||||||
| CRI | 80 | ||||||
| LED | Lumileds | ||||||
| Driver | Sosen | ||||||
| Housing | Die-casting technology by ADC12 | ||||||
| IP Rating | IP66 | ||||||
| IK Rating | IK08 | ||||||
| Operation Temperature | ﹣25°C- +50°C | ||||||
| Lifespan | 50,000H | ||||||
| Warranty | 5Years | ||||||
