Diamond FL04 LED Flood Light

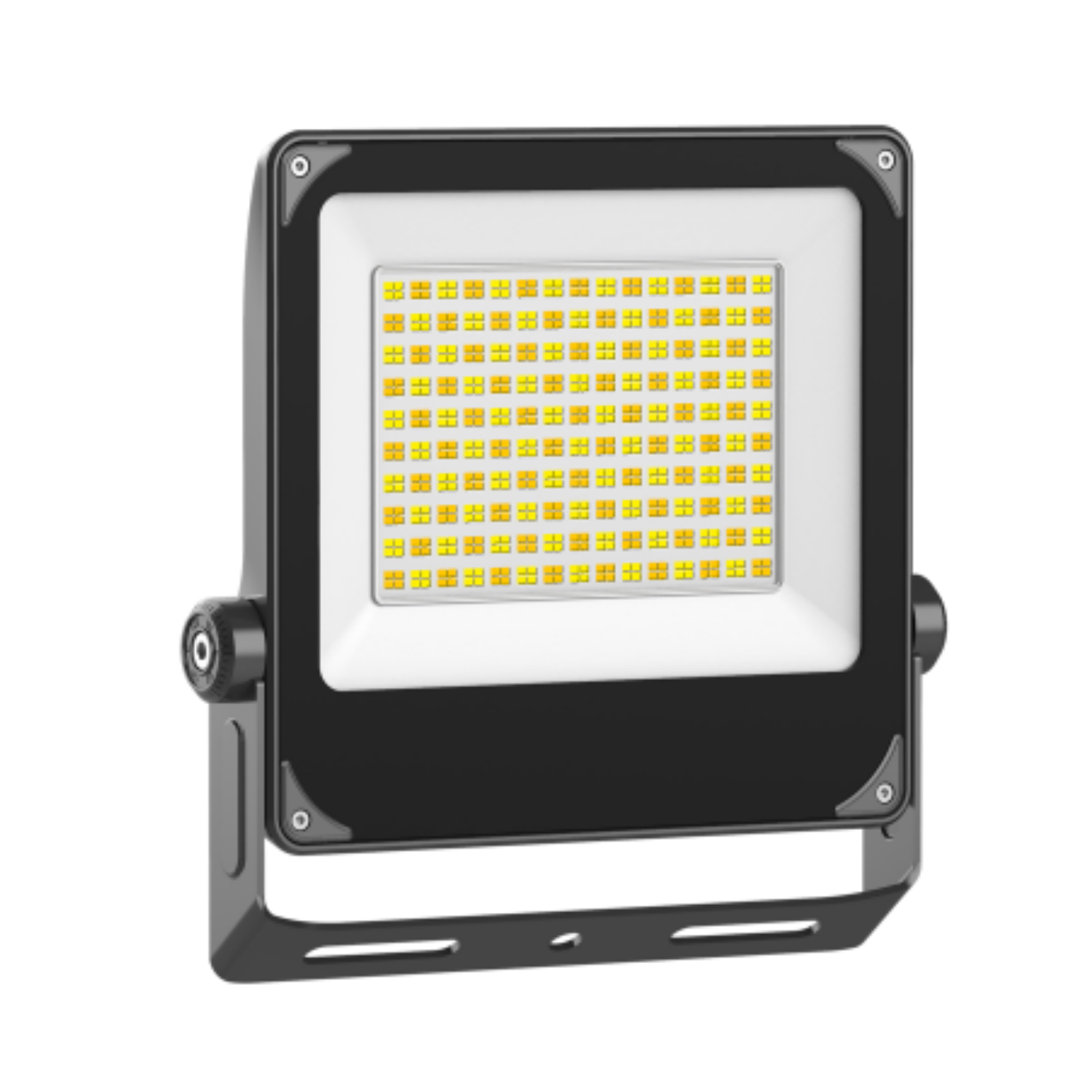

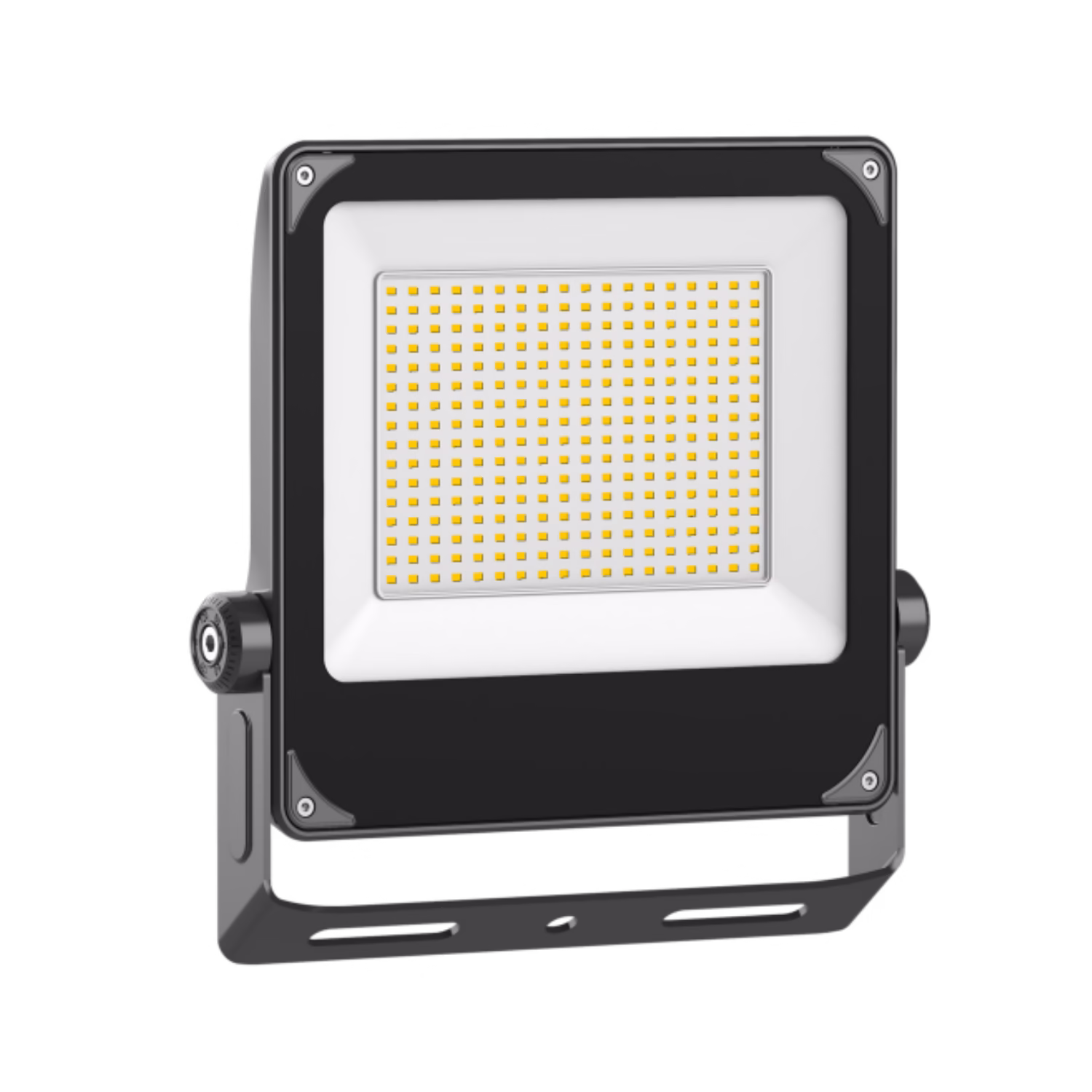

FL04 Flood Light
- Power Range: 30W – 300W
- Light Efficacy: 120lm/W, 150lm/W
- IP66 & IK08
- Warranty: 3/ 5 Years

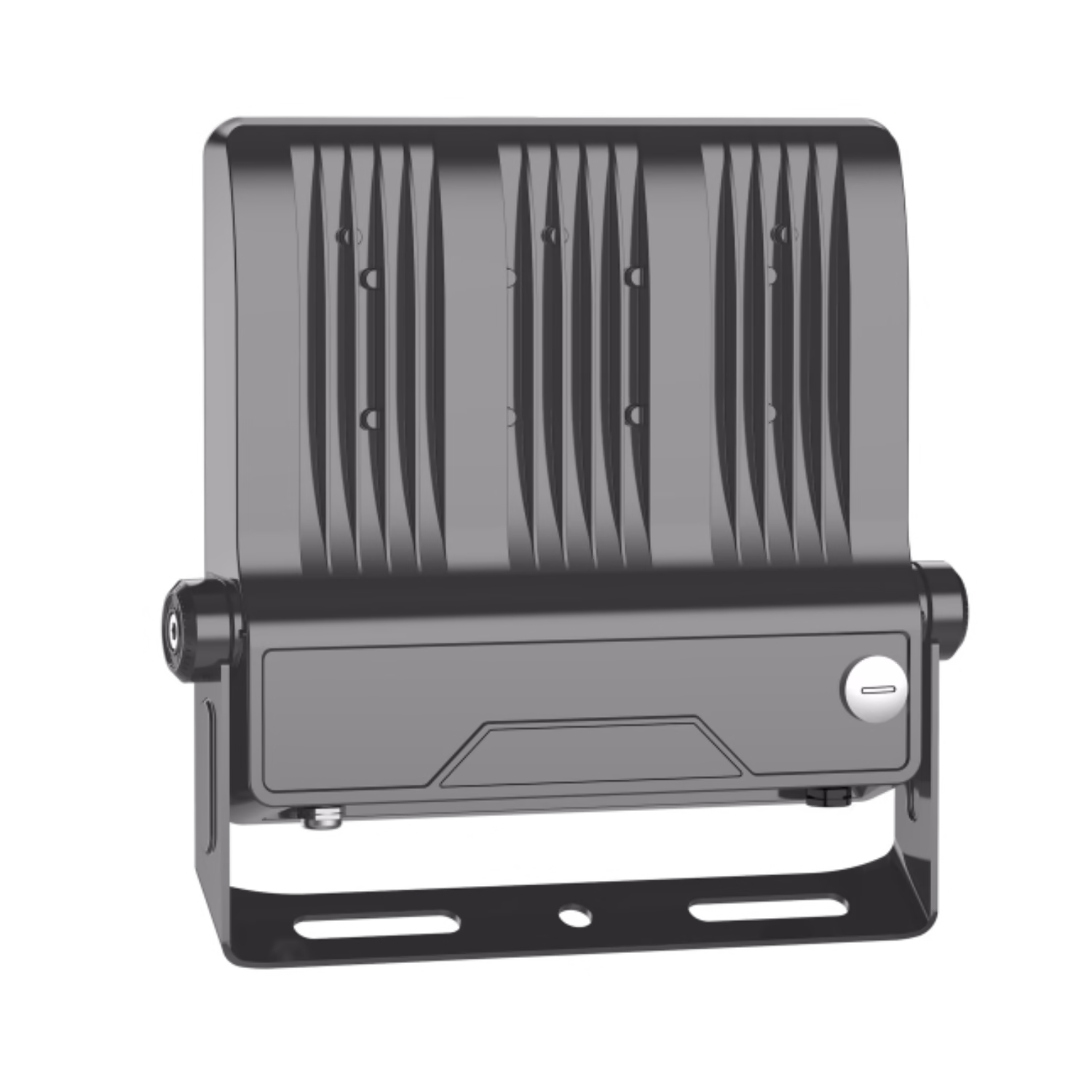

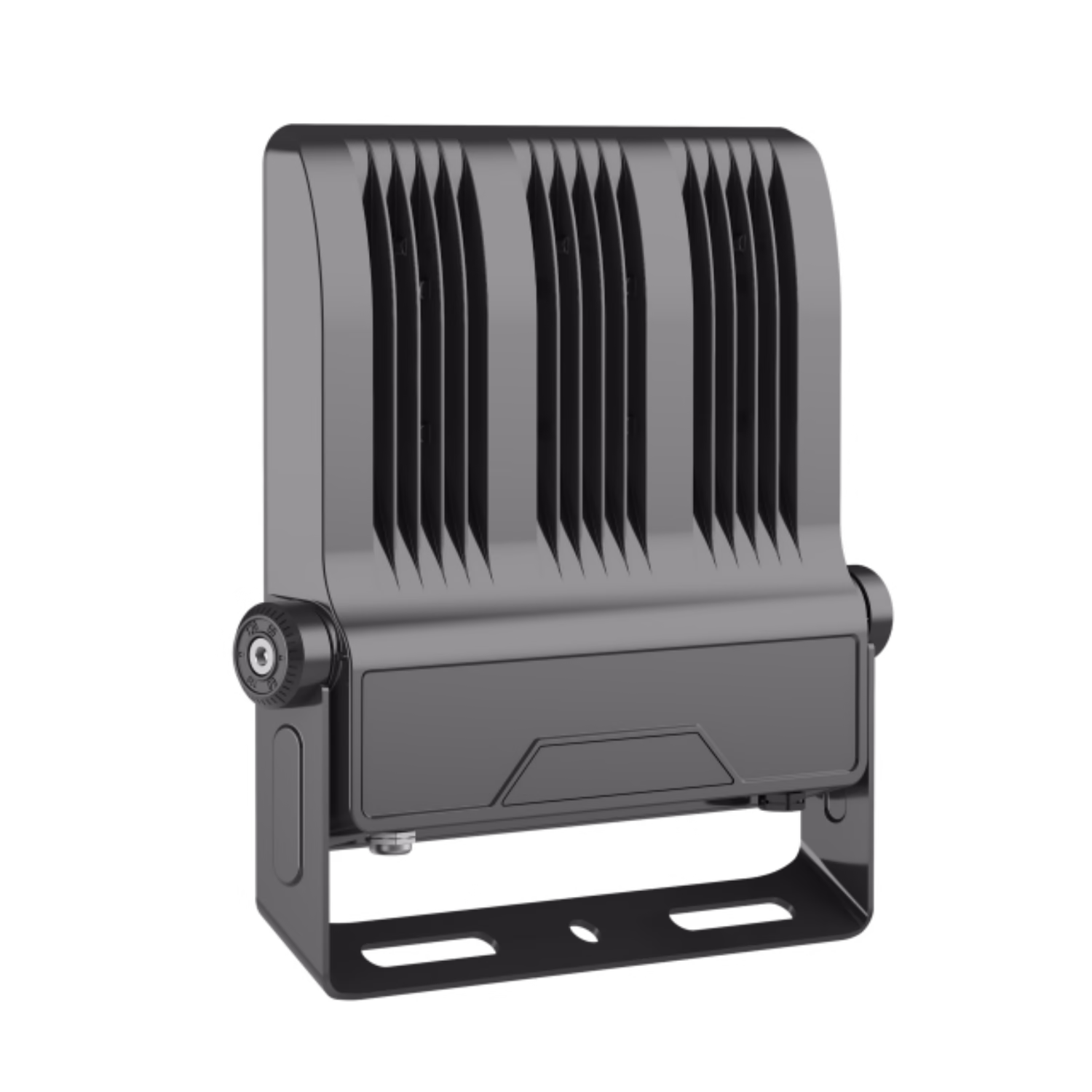

- Thermal Management: ADC12 die-casting for superior heat dissipation
- Durability: Tempered glass & breather valve for balanced temperature and humidity
- Adjustable Installation: Offset bracket design, ±120° angle adjustment for precise lighting
- Flood lights are widely used in construction sites, high-altitude work vehicles, squares, parks, art venues, factory workshops, stadiums, shops, subway platforms, gas stations, buildings, sculptures, warehouses, production workshops, commercial signs, roads, railway tunnels, and bridges , etc.
Technical Specification
| Model No. | ISL-FL04-30W | ISL-FL04-50W | ISL-FL04-100W | ISL-FL04-150W | ISL-FL04-200W | ISL-FL04-250W | ISL-FL04-300W |
| Power | 30W | 50W | 100W | 150W | 200W | 250W | 300W |
| Dimmension | 192*178*38mm | 292*198*38mm | 299*256*42mm | 299*301*42mm | 349*308*44mm | 420*379*44mm | 420*379*44mm |
| Light Efficiency (±5%) | 120lm/W, 150lm/W | ||||||
| Beam Angle | 120°/ 30°/ 60°/ 90°/ 70*150° | ||||||
| Input Voltage | 100-277VAC, 50/60Hz | ||||||
| CCT | 3000K/ 4000K/ 5000K/ 5700K/ 6500K | ||||||
| CRI | 80 | ||||||
| LED | Lumileds/ San’an | ||||||
| Driver | Sosen/ ZH/ iShineLux | ||||||
| Housing | Die-casting technology by ADC12 | ||||||
| IP Rating | IP66 | ||||||
| IK Rating | IK08 | ||||||
| Operation Temperature | ﹣25°C- +50°C | ||||||
| Lifespan | 50,000H | ||||||
| Warranty | 3/ 5Years | ||||||
FL04 Flood Light - 3CCT& 3Power Adjustable
- Power Range: 50W – 300W
- Light Efficacy: 140lm/W
- 3-CCT & 3-Power Options: Easily stock one model that covers three color temperatures and three power levels.
- IP66 & IK08
- Warranty: 5 Years

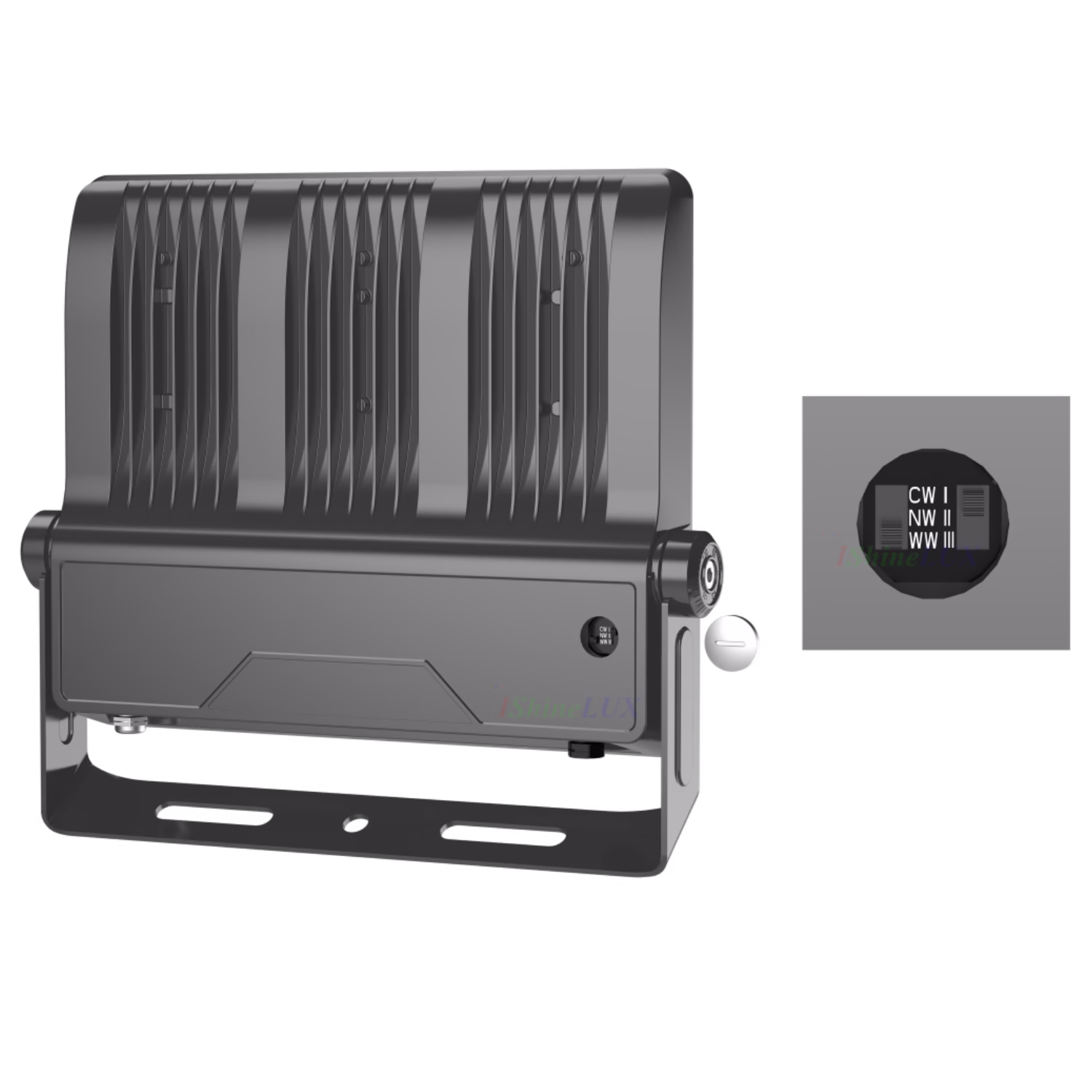

- The Flood Light integrates three power levels and three color temperature options, all adjustable via convenient DIP switches. Its versatile, all-in-one design streamlines inventory by reducing the need for multiple SKUs, making stocking and logistics more efficient. Ideal for diverse applications, it allows on-site customization to meet varying lighting requirements with ease.
Technical Specification
| Model No. | ISL-FL04-50W | ISL-FL04-100W | ISL-FL04-150W | ISL-FL04-200W | ISL-FL04-250W | ISL-FL04-300W |
| 3-Power | 50W-40W-30W | 100W-80W-60W | 150W-120W-90W | 200W-160W-120W | 240W-200W-150W | 300W-240W-180W |
| 3-CCT | 3000K-4000K-5700K | |||||
| Dimmension | 292*198*38mm | 299*256*42mm | 299*301*42mm | 349*308*44mm | 420*379*44mm | 420*379*44mm |
| Light Efficiency (±5%) | 140lm/W | |||||
| Beam Angle | 120° | |||||
| Input Voltage | 100-277VAC, 50/60Hz | |||||
| CRI | 80 | |||||
| LED | Lumileds | |||||
| Driver | Sosen | |||||
| Housing | Die-casting technology by ADC12 | |||||
| IP Rating | IP66 | |||||
| IK Rating | IK08 | |||||
| Operation Temperature | ﹣25°C- +50°C | |||||
| Lifespan | 50,000H | |||||
| Warranty | 5Years | |||||
