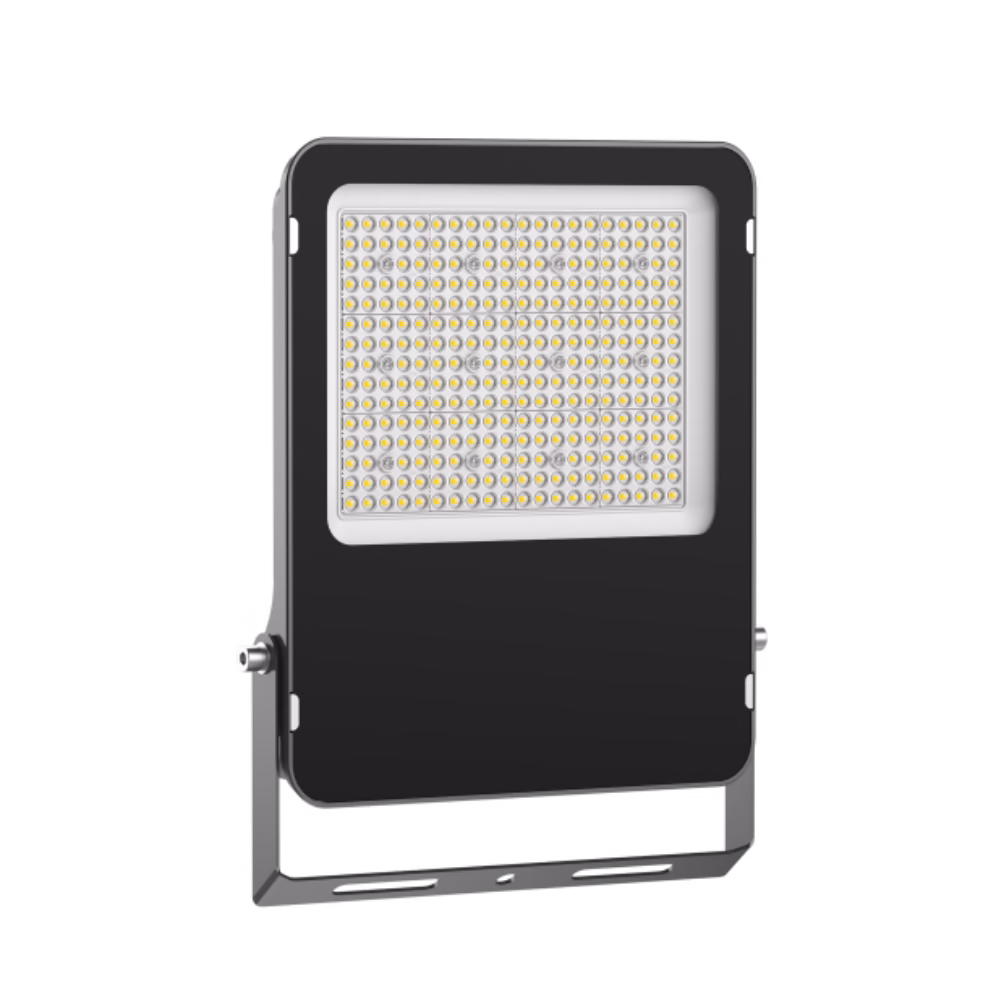

Diamond FL05 LED Flood Light
FL05 Flood Light with Tri‑Power, Tri-CCT options & optional Motion Sensor
FL05 LED Flood Light for Outdoor Industrial & Commercial Projects
High Output · Rugged Build · Perfect for Bulk Supply
Designed for Long-Term Outdoor Use
iShineLux LED Flood Light is your go-to solution for large-scale industrial, commercial, and sports lighting needs. From warehouses and factory perimeters to sports fields and building exteriors, it delivers reliable performance and flexible configurations, making it ideal for wholesale inventory or B2B engineering projects.
🔧 Key Features
High Light Efficiency
Up to 140 lm/W — maximize brightness while lowering energy consumption.Multiple Beam Angles
Choose from 30°, 45°, 60°, 90°, 120°, 70×150° to match any site layout.Rugged, Outdoor-Ready Design
Die-cast ADC12 aluminum, IP66 waterproof — made for harsh outdoor use.Customizable Control Options
Available with Tri-Power + Single CCT or Tri-Power & Tri-CCT (4000K/5000K/5700K); optional motion sensor for smart control.Breather Valve
Prevents condensation, improves lifespan — critical for bulk storage or humid environments.Wide Operating Temperature
Stable performance from -25°C to +40°C, across climates.
📩 Ready to Wholesale LED Flood Lights or Quote for a Project? — Contact iShineLux Today.
Power & CCT Adjustable via DIP Switch – Reduce SKUs, Adapt to Any LED Flood Light Project Easily

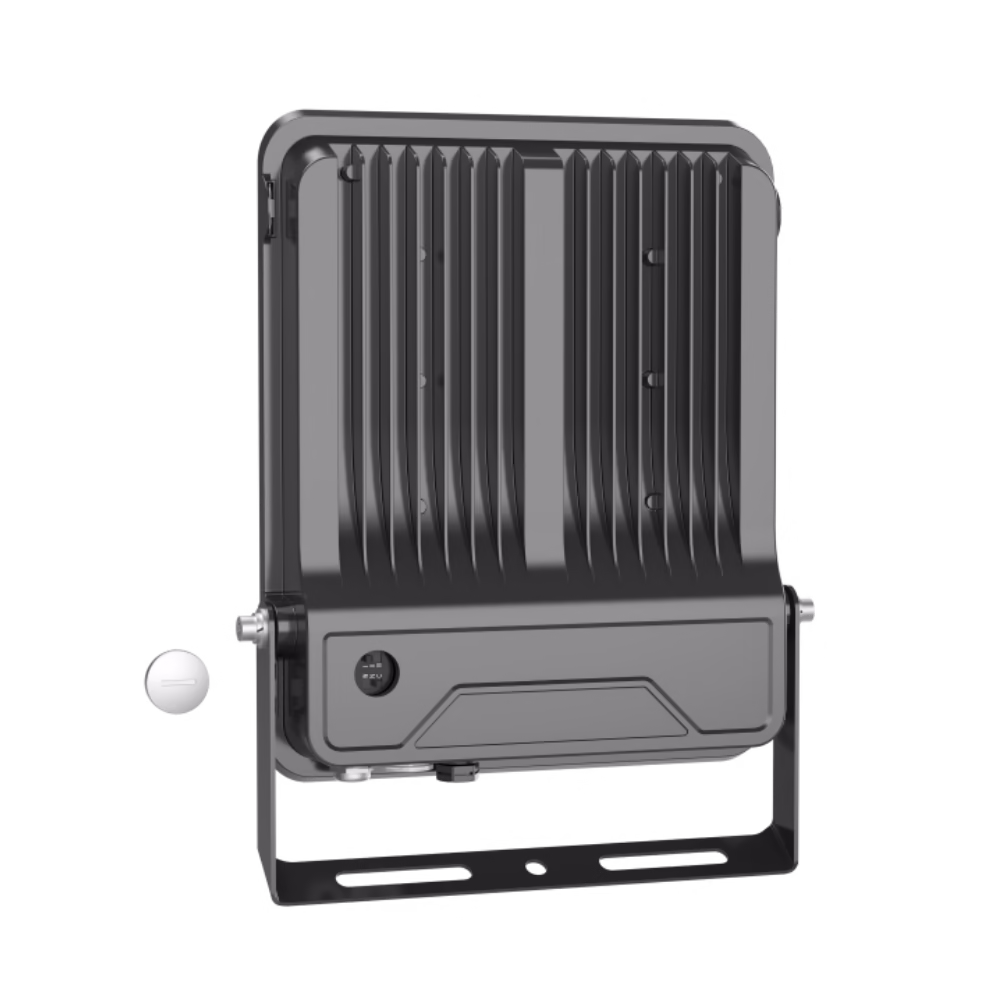

Optional Motion Sensor for Smart, Energy-Saving Control
| No. | Options | Version One | Version Two | Version Three | Version Four |
| 1 | SMD | Single Power+Single CCT | Tri-Powers+Single CCT | Tri-Powers&CCTs | Extra build-in sensor |
| 2 | PC Lens | Single Power+Single CCT | Tri-Powers+Single CCT | No available | Extra build-in sensor |
⚙️ Why Choose iShineLux for Bulk LED Flood Light Supply?
✅ Factory-Direct Pricing
No middlemen. Save more with direct-from-manufacturer wholesale rates.
✅ OEM Branding Support
Customized logos and packaging to help distributors grow their brand.
✅ Fast Production & Delivery
800,000 units/year capacity. Ship within 15–20 days for most orders.
✅ Reliable Quality Assurance
All floodlights backed by a 5-year warranty for long-term performance.
⚙️ How We Offer Quality at Competitive Prices
🔧 Optimized Design Structure
Streamlined heat sink design balances performance and cost.
🔗 Integrated Supply Chain
Full control from die-cast housing to LED chips and drivers ensures pricing and consistency.
🤖 Automated Production Line
Maximizes output, reduces labor cost, and enhances production accuracy.
Technical Specification
| Model No. | ISL-FL05-30W | ISL-FL05-50W | ISL-FL05-100W | ISL-FL05-150W | ISL-FL05-200W | ISL-FL05-250W | ISL-FL05-300W |
| Power | 30W | 50W | 100W | 150W | 200W | 250W | 300W |
| Dimmension | 198*172*36mm | 224*180*36mm | 276*228*39mm | 314*245*42mm | 384*305*43mm | 457*366*44mm | 457*366*44mm |
| Light Efficiency (±5%) | 140lm/W | ||||||
| Beam Angle | SMD:120° ; PC Lens:30°/45°/60°/90°/70*150° | ||||||
| Input Voltage | 120-277VAC, 50/60Hz | ||||||
| CCT | 3000K/ 4000K/ 5000K/ 5700K/ 6500K | ||||||
| CRI | 70 | ||||||
| LED | Lumileds/ San’an | ||||||
| Driver | iShineLux | ||||||
| Housing | Die-casting technology by ADC12 | ||||||
| IP Rating | IP66 | ||||||
| IK Rating | IK08 | ||||||
| Operation Temperature | ﹣25°C- +40°C | ||||||
| Lifespan | 50,000H | ||||||
| Warranty | 3/ 5Years | ||||||
Technical Specification - 3CCT& 3Power Adjustable
| Model No. | ISL-FL05-50W | ISL-FL05-100W | ISL-FL05-150W | ISL-FL05-200W | ISL-FL05-250W | ISL-FL05-300W | |
| Dimmension | 224*180*36mm | 276*228*39mm | 314*245*42mm | 384*305*43mm | 457*366*44mm | 457*366*44mm | |
| 3-Power& 3-CCT | 3-Power | 50W-40W-30W | 100W-80W-60W | 150W-120W-90W | 200W-160W-120W | 240W-200W-150W | 300W-240W-180W |
| 3-CCT | 4000K-5000K-5700K | ||||||
| Beam Angle | SMD:120° | ||||||
| 3-Power& single CCT | 3-Power | 50W-40W-30W | 100W-80W-60W | 150W-120W-90W | 200W-160W-120W | 240W-200W-150W | 300W-240W-180W |
| CCT | 3000K/ 4000K/ 5000K/ 5700K/ 6500K | ||||||
| Beam Angle | SMD:120° ; PC Lens:30°/45°/60°/90°/70*150° | ||||||
| Light Efficiency (±5%) | 140lm/W | ||||||
| Input Voltage | 100-277VAC, 50/60Hz | ||||||
| CRI | 70 | ||||||
| LED | Lumileds | ||||||
| Driver | iShineLux | ||||||
| Housing | Die-casting technology by ADC12 | ||||||
| IP Rating | IP66 | ||||||
| IK Rating | IK08 | ||||||
| Operation Temperature | ﹣25°C- +40°C | ||||||
| Lifespan | 50,000H | ||||||
| Warranty | 5Years | ||||||
