Elegant HB10 LED High Bay Light

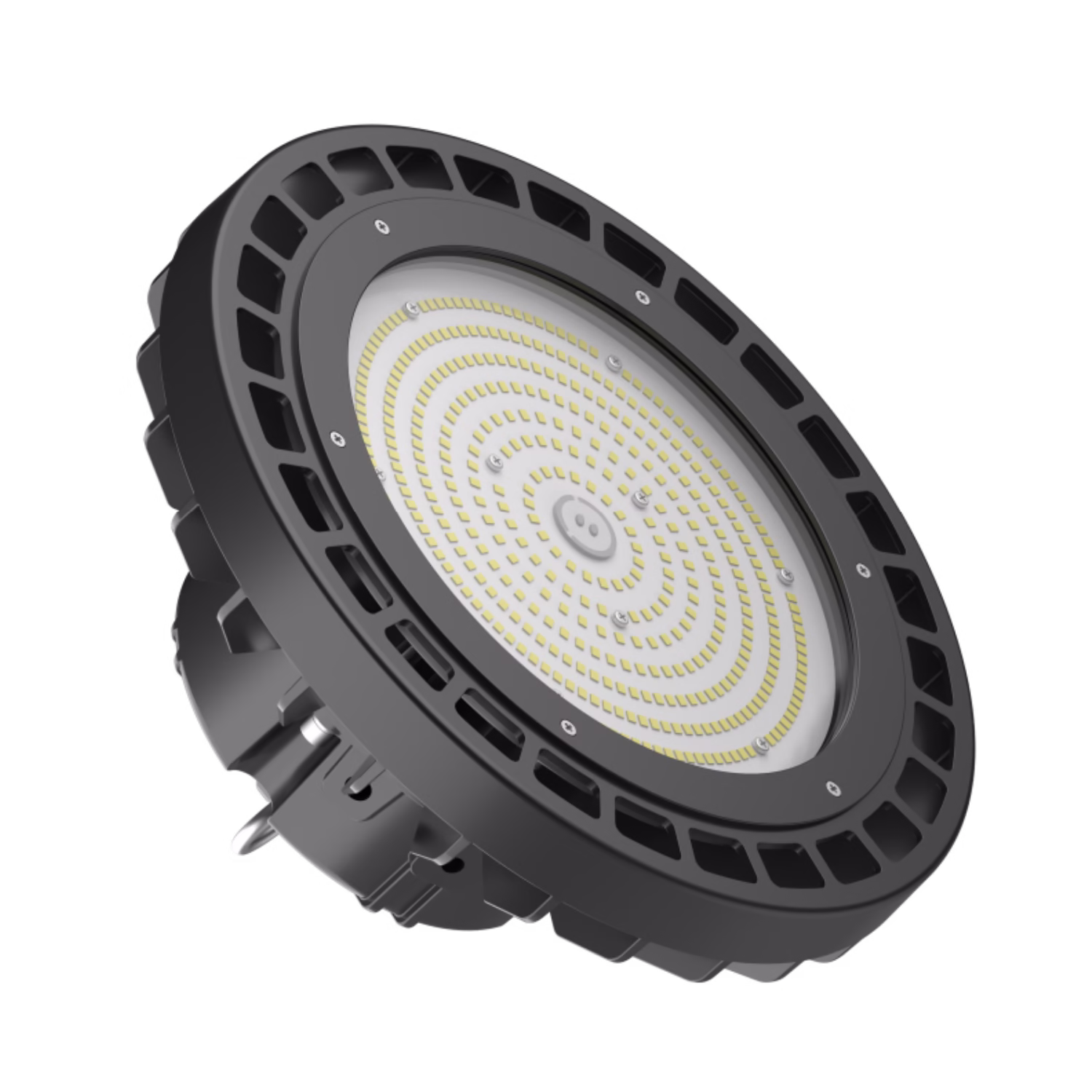

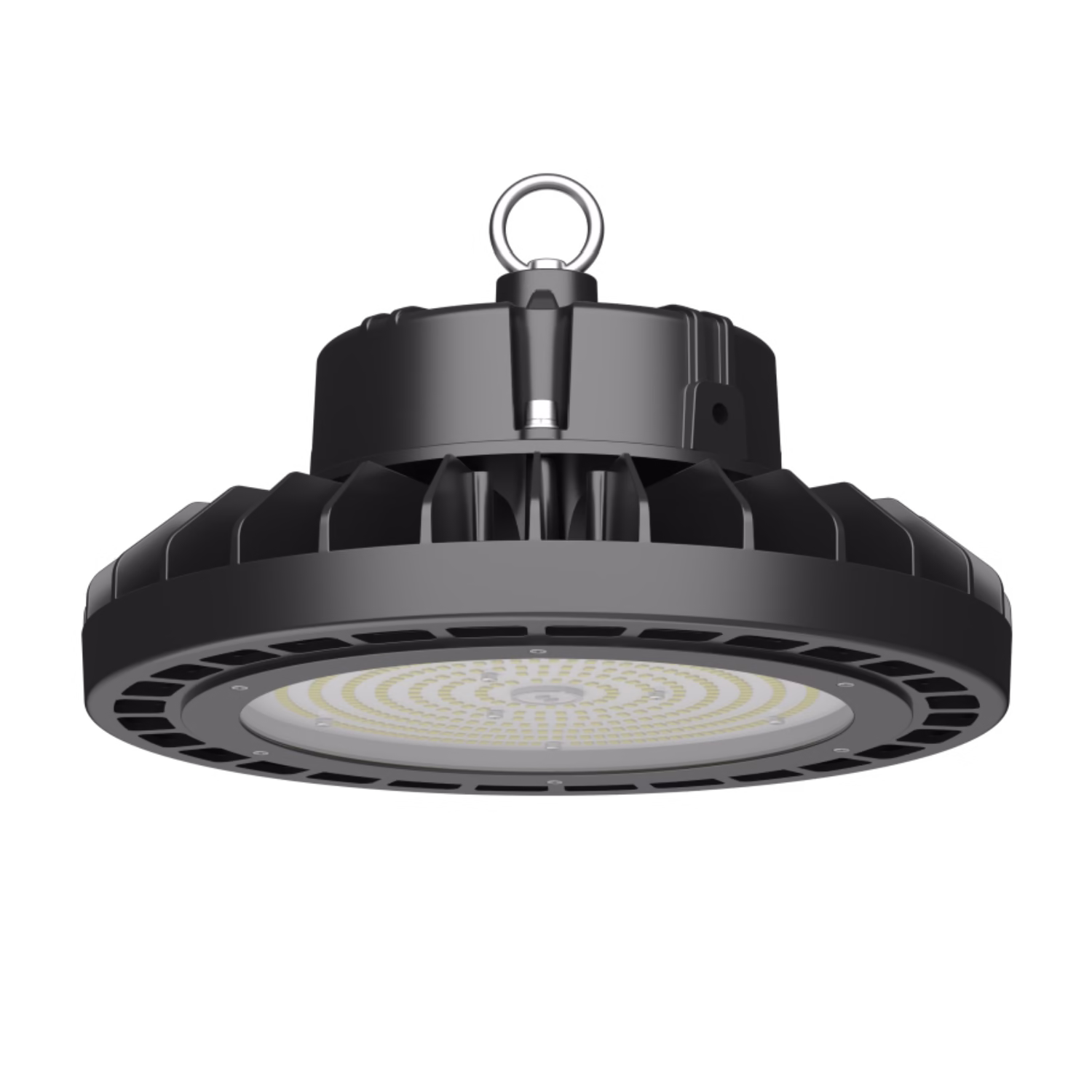

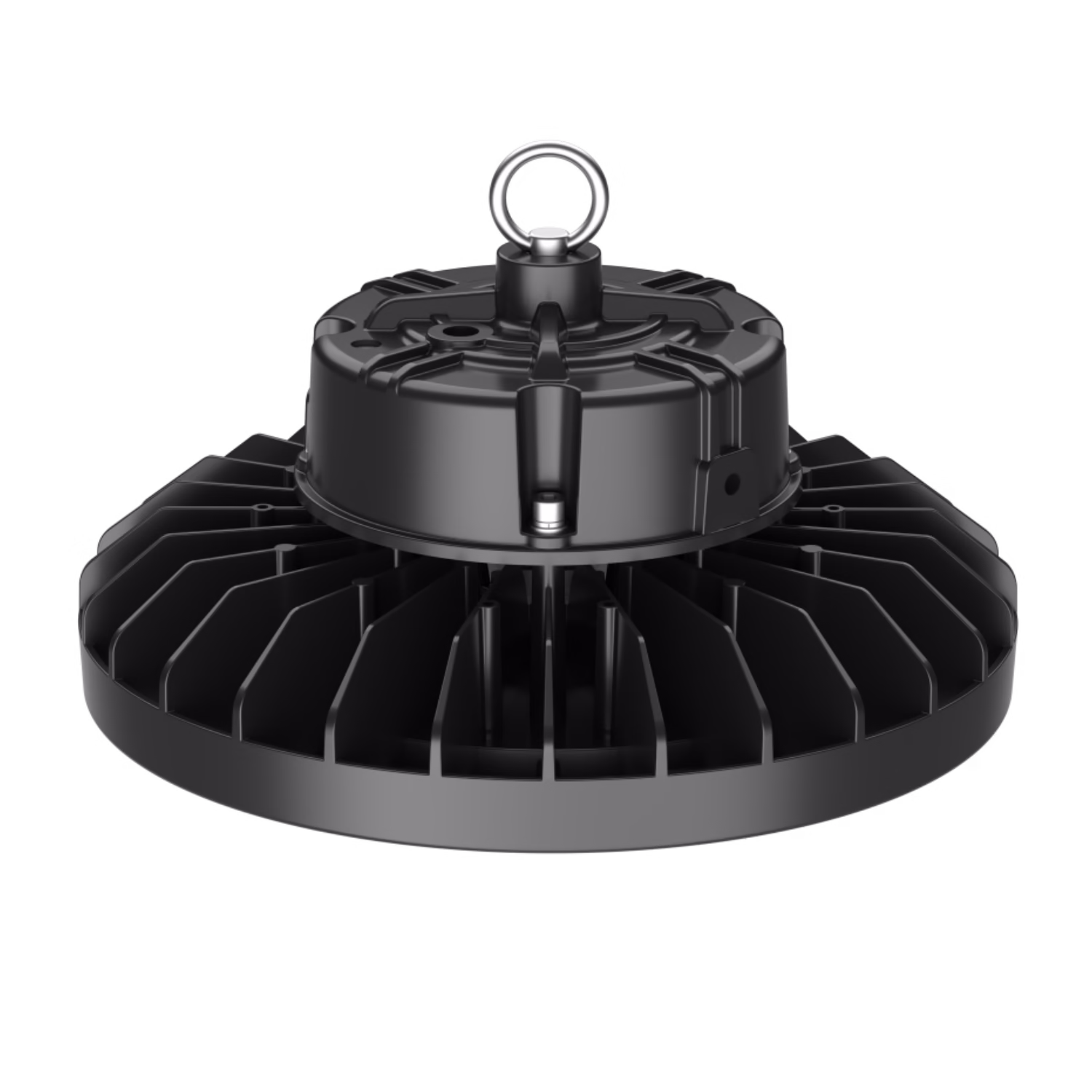

HB10 High Bay Light
- Power Range: 100W – 240W
- Light Efficacy: 150lm/W
- Adjustable Power
- 1-10V Dimming
- A 4mm tempered glass cover boasting 94% light transmittance ensures optimal illumination while providing robust protection.
- IP65 & IK08 Rated
- 5 Years Warranty
- Versatile Applications: This High Bay Light is ideal for a wide range of large indoor spaces, including industrial factories, commercial buildings, warehouses, and sports arenas
Technical Specification
| Model No. | ISL-HB10-100W | ISL-HB11-150W | ISL-HB11-200W | ISL-HB11-240W |
| Power | 100W | 150W | 200W | 240W |
| Adjustable Power | 100W-80W-60W | 150W-120W-90W | 200W-160W-120W | 240W-200W-150W |
| Dimmension | ø280*136mm | ø280*136mm | ø280*136mm | ø320*136mm |
| Input Voltage | 100-277VAC, 50/60Hz | |||
| Light Efficiency (±5%) | 150lm/W | |||
| Color Temperature | 3000K/ 4000K/ 5000K/ 5700K/ 6500K | |||
| CRI | 80 | |||
| Beam Angle | 120° | |||
| LED | Lumileds | |||
| Driver | Sosen/ ZH | |||
| Housing | Die-casting technology by ADC12 | |||
| IP Rating | IP65 | |||
| IK Rating | IK08 | |||
| Operation Temperature | ﹣35°C- +50°C | |||
| Lifespan | 50,000H | |||
| Warranty | 5Years | |||
