Elegant HB11 LED High Bay Light

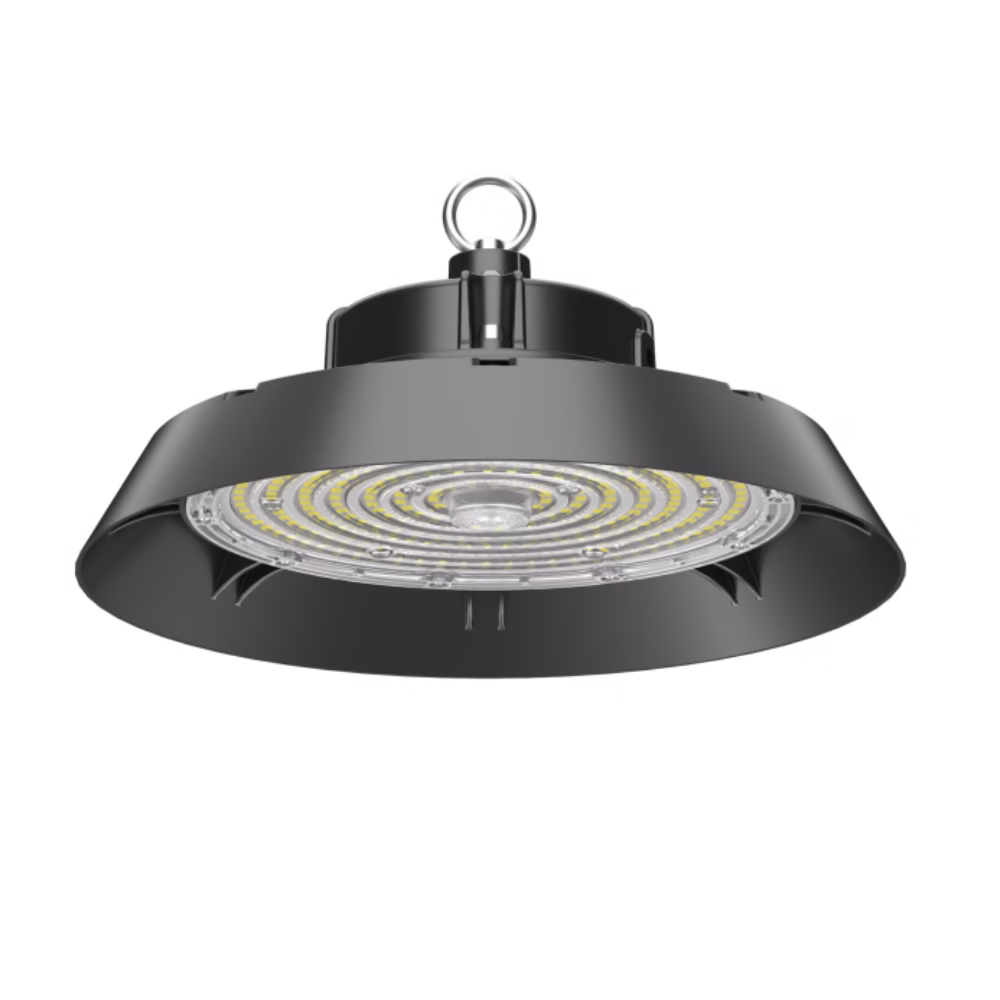

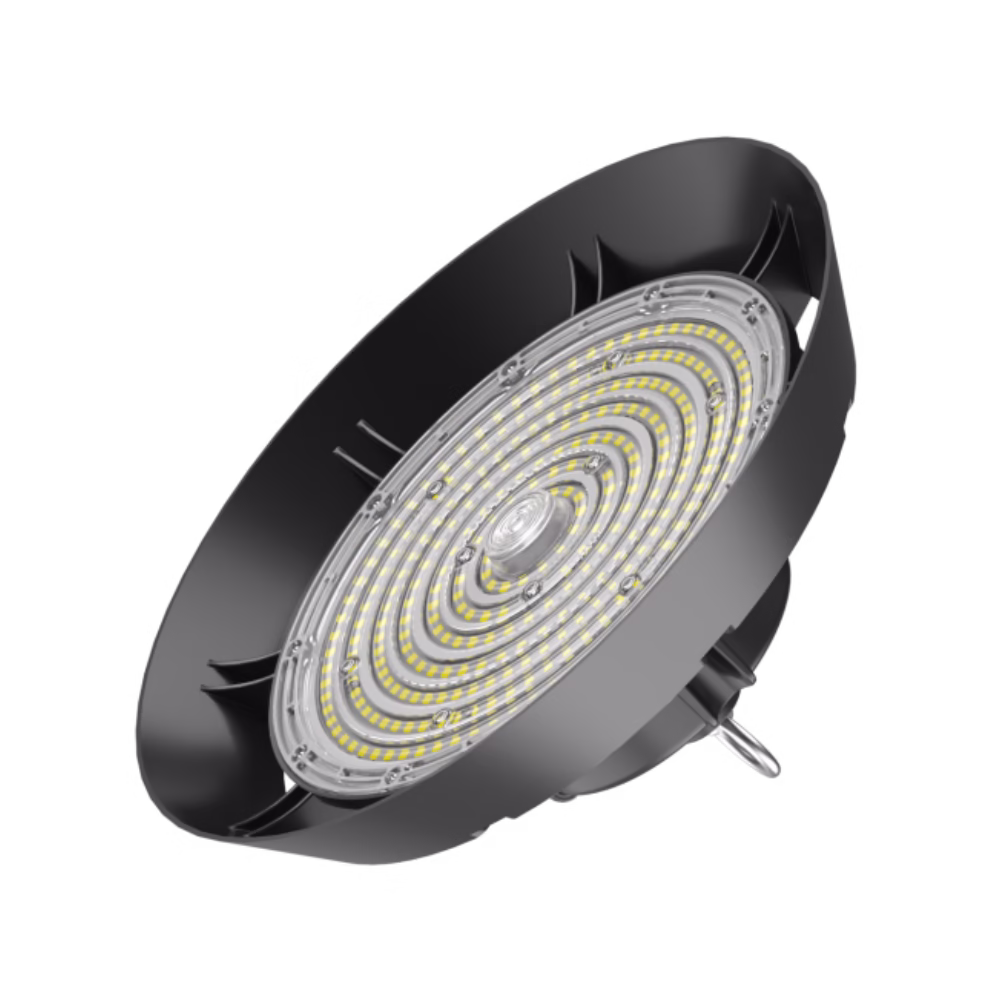

HB11 High Bay Light

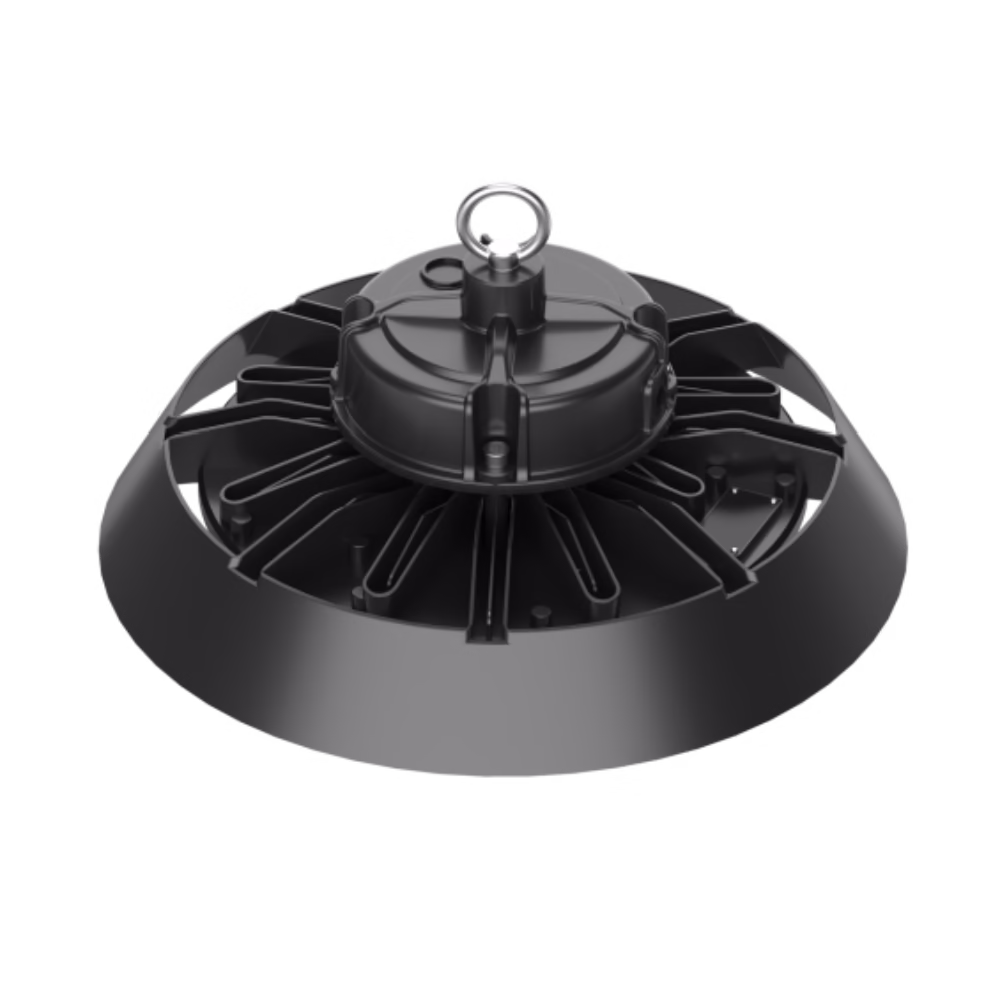

This High Bay Light features a deep cap on its housing, which acts as a built-in mini-diffuser, enhancing light distribution and reducing glare. This design not only improves visual comfort but also ensures more uniform illumination across the space.
- Power Range: 100W – 300W
- Light Efficacy: 150lm/W, 170lm/W, 190lm/W
- Adjustable Power
- 1-10V Dimming
- IP65 & IK08 Rated
- 5 Years Warranty
- Versatile Applications: This High Bay Light is ideal for a wide range of large indoor spaces, including industrial factories, commercial buildings, warehouses, and sports arenas
HB11 High Bay Light - 3CCT& 3Power Adjustable
- 3CCT & 3-Power Options: Easily stock one model that covers three color temperatures and power levels.
- Power Range: 100W – 300W
- Light Efficacy: 150lm/W
- IP65 & IK08 rated
- Warranty: 5 years
Our High Bay Light offers three power options (150W- 120W-90W) and three color temperatures (3000K, 4000K, 5000K) to meet diverse lighting needs. This versatile design simplifies inventory management, as one product can adapt to various settings. Whether you need warm light for a cozy atmosphere or cool light for high-visibility tasks, our High Bay Light can be easily adjusted to suit your specific requirements
Optional Accessories
Aluminum Beflector
Universal Bracket
Emergency Kit
Safey Steel Rope
Technical Specification
| Model No. | ISL-HB11-100W | ISL-HB11-150W | ISL-HB11-200W | ISL-HB11-240W | ISL-HB11-300W |
| Power | 100W | 150W | 200W | 240W | 300W |
| Adjustable Power | 100W-80W-60W | 150W-120W-90W | 200W-160W-120W | 240W-200W-150W | 300W-240W-180W |
| Dimmension | ø260*111mm | ø306*122mm | ø362*127mm | ø362*127mm | ø408*132mm |
| Input Voltage | 100-277VAC, 50/60Hz | ||||
| Light Efficiency (±5%) | 150lm/W, 170lm/W, 190lm/W | ||||
| Color Temperature | 3000K/ 4000K/ 5000K/ 5700K/ 6500K, 3CCT(4000K-5000K-5700K) ADJ | ||||
| CRI | 80 | ||||
| Beam Angle | 60°/ 90°/ 120° | ||||
| LED | Lumileds/ San’an | ||||
| Driver | Philips/ Sosen/ ZH | ||||
| Housing | Die-casting technology by ADC12 | ||||
| IP Rating | IP65 | ||||
| IK Rating | IK08 | ||||
| Operation Temperature | ﹣35°C- +50°C | ||||
| Lifespan | 50,000H | ||||
| Warranty | 5Years | ||||
