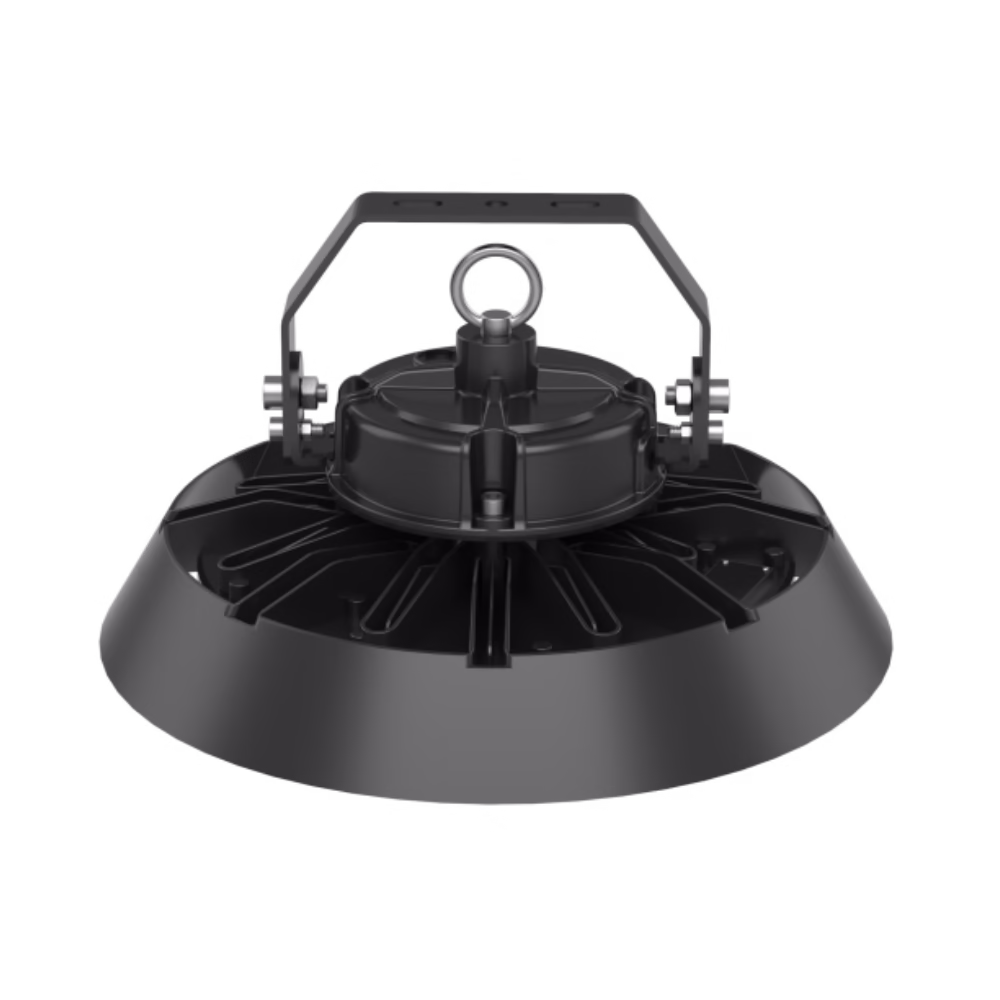

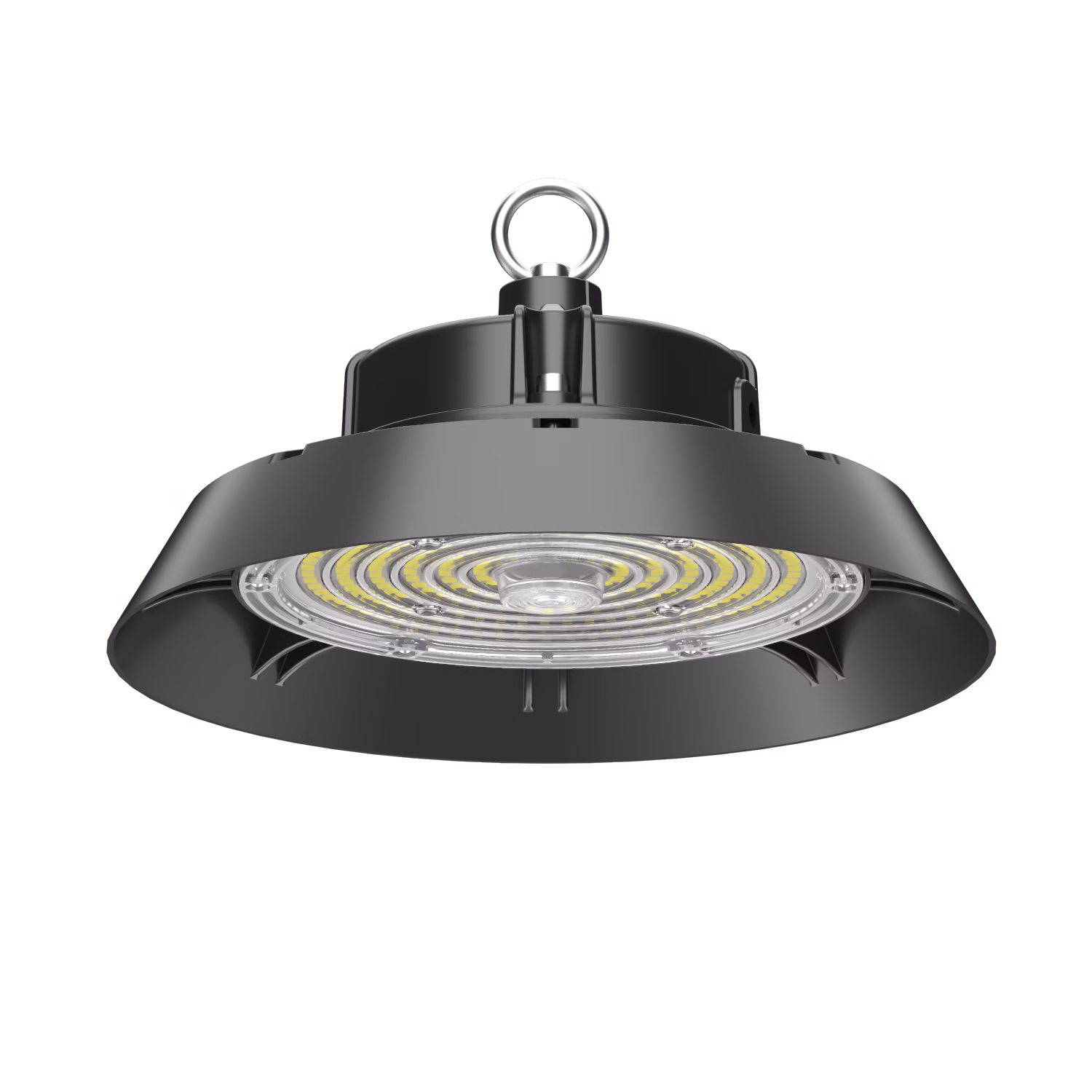

Elegant HB15 LED High Bay Light
HB15 High Bay Light
- Power Range: 100W – 300W
- Light Efficacy: 150lm/W, 170lm/W, 190lm/W
- Adjustable Power
- 1-10V Dimming
- IP65 & IK08 Rated
- Warranty: 5 years
- Economical: Cost-effective lighting solution.
- Versatile Applications: Ideal for industrial factories, commercial buildings, warehouses, and large indoor spaces.
HB15 High Bay Light - 3CCT& 3Power Adjustable
- 3CCT & 3-Power Options: Easily stock one model that covers three color temperatures and power levels.
- Power Range: 100W – 300W
- Light Efficacy: 150lm/W
- IP65 & IK08 rated
- Warranty: 5 years
Ideal for environments needing versatile lighting, these lights simplify inventory management while offering the flexibility to adjust color temperature and brightness to suit any setting.
Optional Accessories

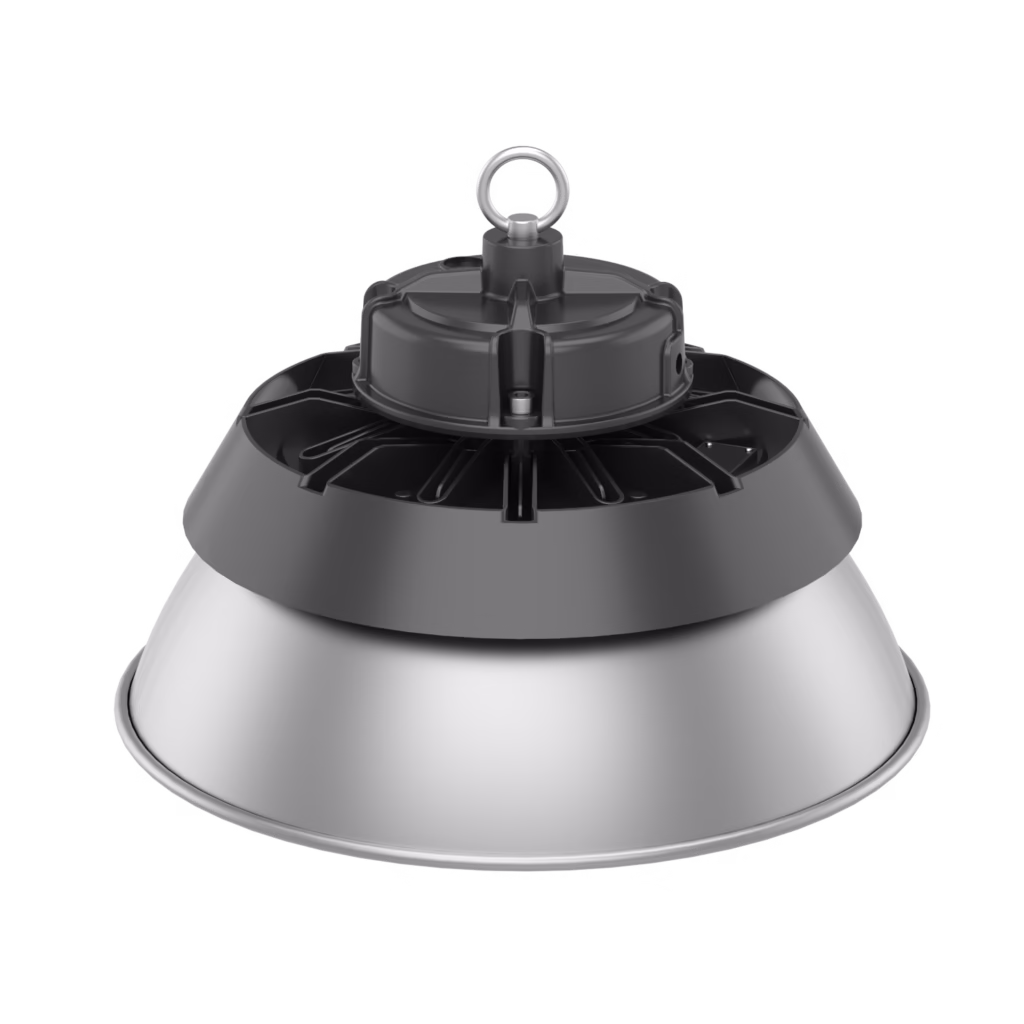

Aluminum Reflector
Universal Bracket
Safety Steel Rope
Technical Specification
| Model No. | ISL-HB15-100W | ISL-HB15-150W | ISL-HB15-200W | ISL-HB15-240W | ISL-HB15-300W |
| Power | 100W | 150W | 200W | 240W | 300W |
| Adjustable Power | 100W-80W-60W | 150W-120W-90W | 200W-160W-120W | 240W-200W-150W | 300W-240W-180W |
| Dimmension | ø237*109mm | ø260*111mm | ø306*122mm | ø362*127mm | ø408*132mm |
| Input Voltage | 100-277VAC, 50/60Hz | ||||
| Light Efficiency (±5%) | 150lm/W, 170lm/W, 190lm/W | ||||
| Color Temperature | 3000K/ 4000K/ 5000K/ 5700K/ 6500K, 3CCT(4000K-5000K-5700K) ADJ | ||||
| CRI | 80 | ||||
| Beam Angle | 60°/ 90°/ 120° | ||||
| LED | Lumileds/ San’an | ||||
| Driver | Philips/ Sosen/ ZH | ||||
| Housing | Die-casting technology by ADC12 | ||||
| IP Rating | IP65 | ||||
| IK Rating | IK08 | ||||
| Operation Temperature | ﹣35°C- +50°C | ||||
| Lifespan | 50,000H | ||||
| Warranty | 5Years | ||||
