Elegant HB16 LED High Bay Light
HB16 High Bay Light
- Power Range: 100W – 300W
- Light Efficacy: 150lm/W, 170lm/W, 190lm/W
- Adjustable Power
- 1-10V Dimming
- IP65 & IK08 Rated
- Warranty: 5 years
- Economical: Cost-effective lighting solution.
- Versatile Applications: Ideal for industrial factories, commercial buildings, warehouses, and large indoor spaces.

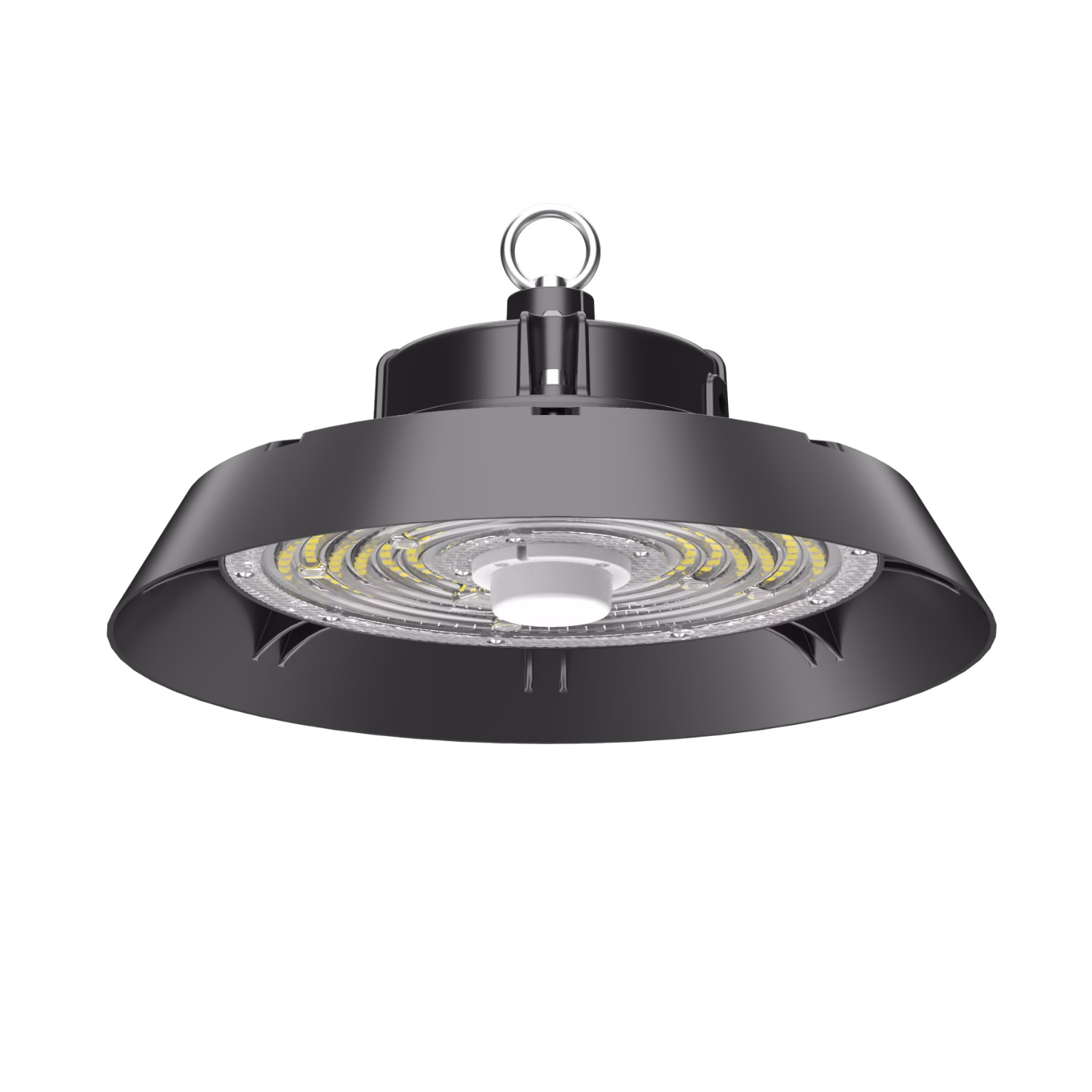

HB16 High Bay Light with Senosr
- Power Range: 100W – 300W
- Light Efficacy: 150lm/W, 170lm/W, 190lm/W
- Adjustable Power
- Motion Sensor (plug and play)
- IP65 & IK08 Rated
- Warranty: 5 years
Add a sensor to your LED High Bay Light for motion-activated lighting. Perfect for areas needing motion detection, it turns on only when needed, optimizing costs.
HB16 High Bay Light - 3CCT& 3Power Adjustable
- 3CCT & 3-Power Options: Easily stock one model that covers three color temperatures and power levels.
- Power Range: 100W – 300W
- Light Efficacy: 150lm/W
- IP65 & IK08 rated
- Warranty: 5 years
Ideal for environments needing versatile lighting, these lights simplify inventory management while offering the flexibility to adjust color temperature and brightness to suit any setting.
Optional Accessories
Aluminum Reflector
Universal Bracket
Safety Steel Rope
Technical Specification
| Model No. | ISL-HB16-100W | ISL-HB16-150W | ISL-HB16-200W | ISL-HB16-240W | ISL-HB16-300W |
| Power | 100W | 150W | 200W | 240W | 300W |
| Adjustable Power | 100W-80W-60W | 150W-120W-90W | 200W-160W-120W | 240W-200W-150W | 300W-240W-180W |
| Dimmension | ø237*109mm | ø260*111mm | ø306*122mm | ø362*127mm | ø408*132mm |
| Input Voltage | 100-277VAC, 50/60Hz | ||||
| Light Efficiency (±5%) | 150lm/W, 170lm/W, 190lm/W | ||||
| Color Temperature | 3000K/ 4000K/ 5000K/ 5700K/ 6500K, 3CCT(4000K-5000K-5700K) ADJ | ||||
| CRI | 80 | ||||
| Beam Angle | 60°/ 90°/ 120° | ||||
| LED | Lumileds/ San’an | ||||
| Driver | Philips/ Sosen/ ZH | ||||
| Options | Motion Sensor | ||||
| Housing | Die-casting technology by ADC12 | ||||
| IP Rating | IP65 | ||||
| IK Rating | IK08 | ||||
| Operation Temperature | ﹣35°C- +50°C | ||||
| Lifespan | 50,000H | ||||
| Warranty | 5Years | ||||
