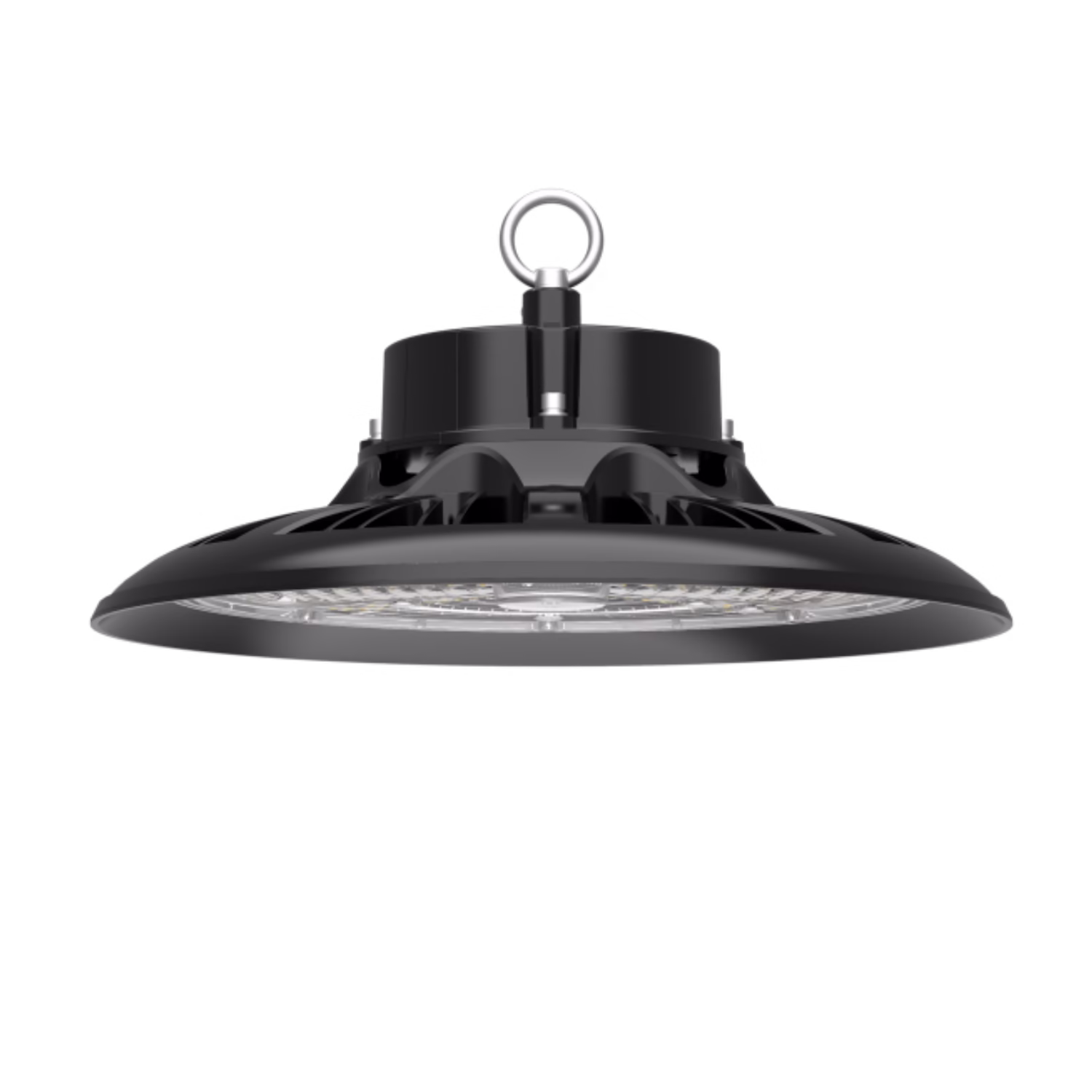

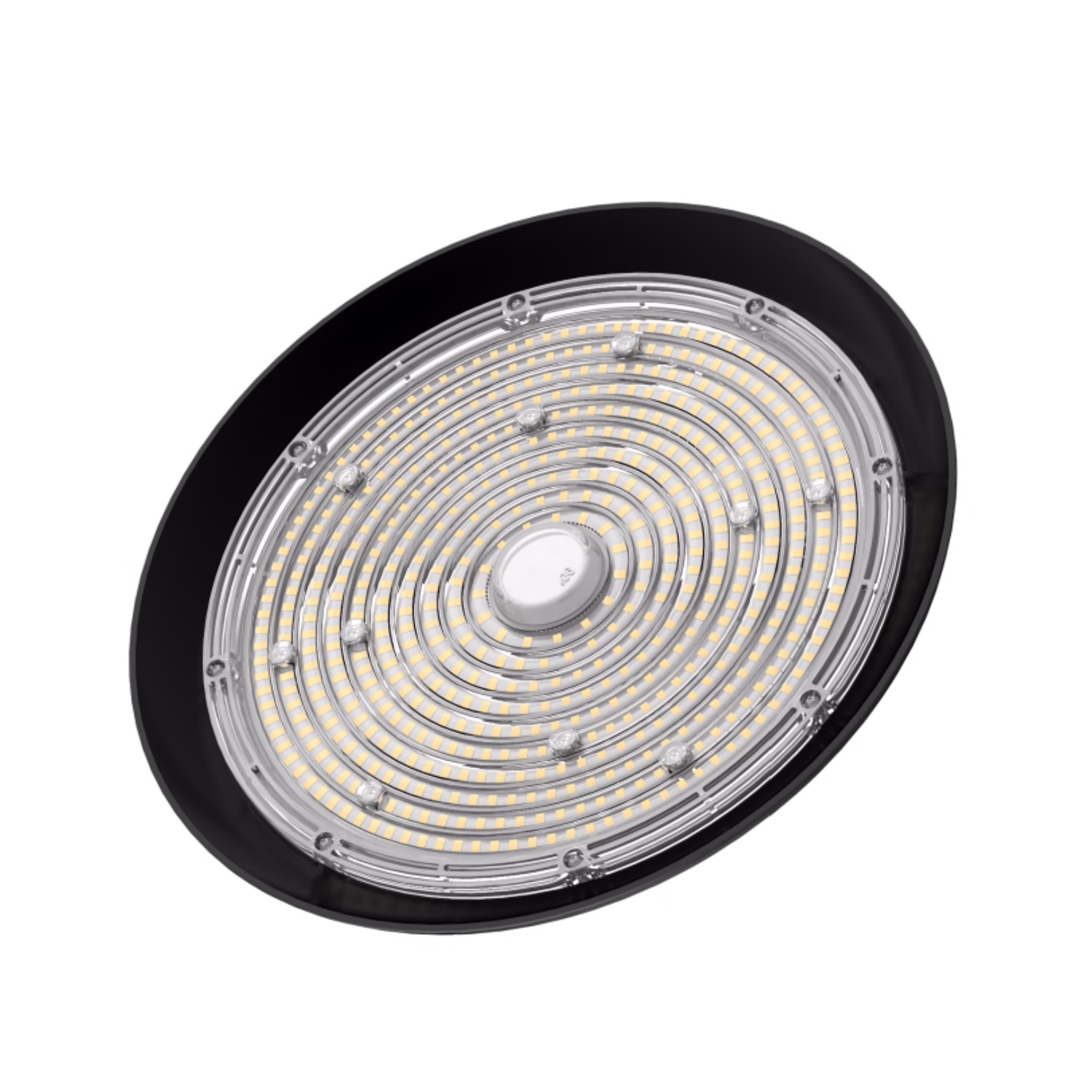

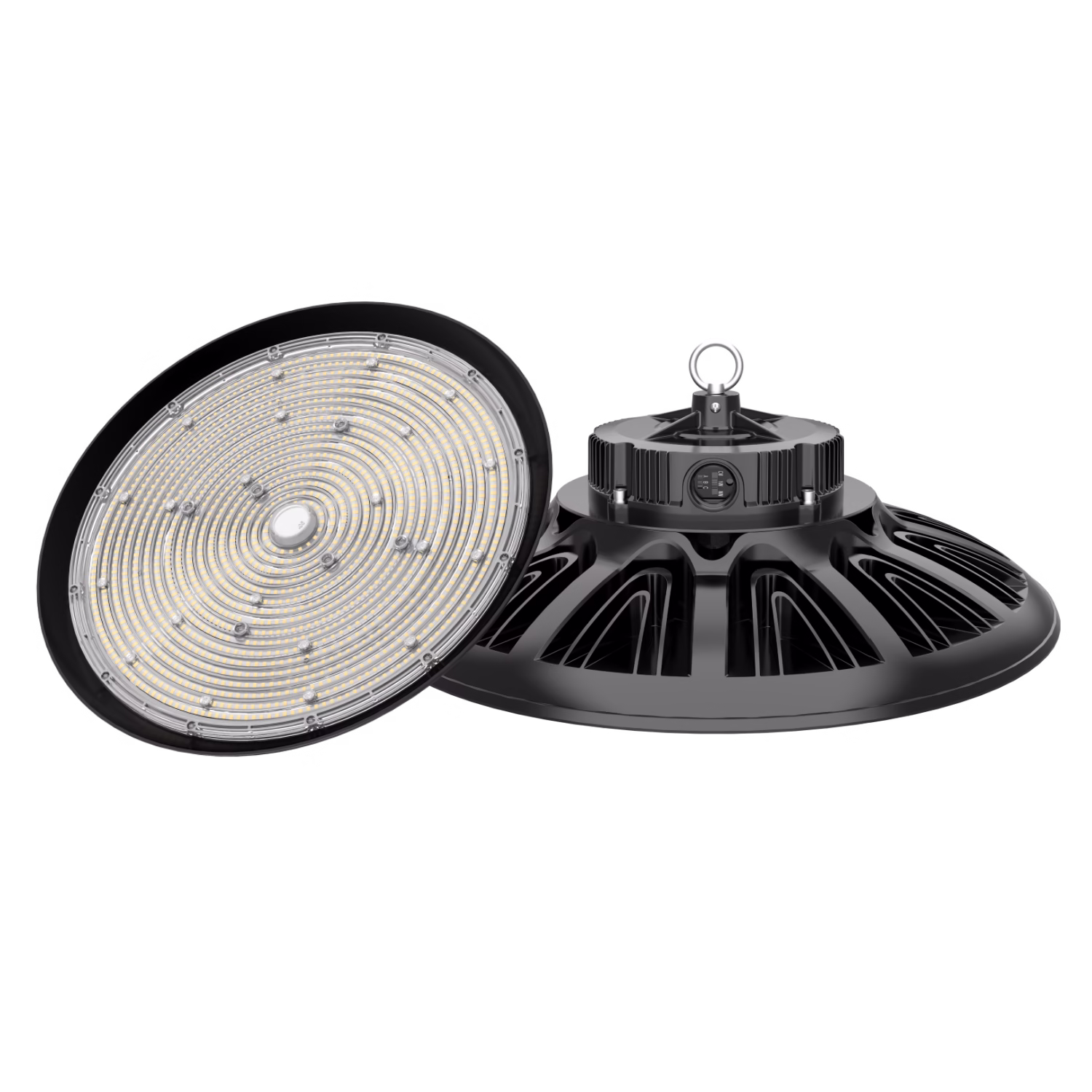

Elegant HB17 LED High Bay Light
HB17 High Bay Light
- Power Range: 60W – 500W
- Light Efficacy: 150lm/W, 170lm/W, 190lm/W
- Adjustable Power
- 1-10V Dimming
- IP65 & IK08 Rated
- Warranty: 5/ 7 years
Engineered for superior illumination, the HB17 High Bay Light delivers outstanding performance with high efficacy and durability. Designed for industrial and commercial applications, it ensures energy efficiency, longevity, and adaptability in various environments.
HB17 High Bay Light - 3CCT& 3Power Adjustable
Achieve the perfect illumination for any space with our 3CCT & 3-Power Adjustable LED High Bay Lights. Designed for maximum flexibility, these lights allow you to customize both color temperature and brightness, ensuring optimal visibility and comfort across various environments.
- Power Range: 60W – 500W
- Adjustable Color Temperature (CCT)
- Adjustable Power
- IP65 & IK08 Rated
- Warranty: 5 years
Perfect for warehouses, factories, gymnasiums, retail spaces, and more, these high bay lights provide the same energy efficiency and durability as our standard models—while giving you full control over your lighting experience.
Upgrade your lighting today and enjoy superior adaptability, efficiency, and longevity!
1. What are the benefits of 3CCT (Color Temperature Adjustable) LED High Bay Lights?
- Flexible Lighting Options: Users can switch between different color temperatures (e.g., 3000K, 4000K, 5000K) to suit various environments.
- Reduced Inventory Costs: A single fixture can serve multiple purposes, eliminating the need to stock different color temperature models.
- Enhanced Comfort & Productivity: Warm white (3000K) creates a cozy atmosphere, neutral white (4000K) is ideal for retail and office spaces, and cool white (5000K) improves visibility in warehouses and factories.
2. How does 3-Power (Wattage Adjustable) enhance energy efficiency and versatility?
- Adjustable Brightness Levels: Users can switch between different power settings (e.g., 100W, 150W, 200W), adapting to specific lighting needs.
- Energy Savings: Lowering the wattage when full brightness is unnecessary helps reduce electricity costs.
- Extended Lifespan: Operating at a lower power level decreases heat generation, improving the durability of LED chips and drivers.
By combining 3CCT and 3-Power adjustability, these LED high bay lights provide maximum flexibility, cost-effectiveness, and energy efficiency, making them an ideal solution for industrial and commercial lighting applications.
Optional Accessories
Aluminum Reflector
Universal Bracket
Safety Steel Rope
Technical Specification
| Model No. | ISL-HB17-60W | ISL-HB17-100W | ISL-HB17-150W | ISL-HB17-200W | ISL-HB17-240W | ISL-HB17-300W | ISL-HB17-400W | ISL-HB17-500W |
| Power | 60W | 100W | 150W | 200W | 240W | 300W | 400W | 500W |
| Adjustable Power | / | 100W-80W-60W | 150W-120W-90W | 200W-160W-120W | 240W-200W-150W | 300W-240W-180W | 400W-320W-240W | 500W-400W-300W |
| Dimmension | ø233*145mm | ø260*145mm | ø287*147mm | ø305*149mm | ø305*149mm | ø342*168mm | ø447*178mm | ø447*178mm |
| Beam Angle | 60°/90°/120° | 40°/60°/90° | ||||||
| Input Voltage | 100-277VAC, 50/60Hz | |||||||
| Light Efficiency (±5%) | 150lm/W, 170lm/W, 190lm/W | |||||||
| Color Temperature | 3000K/ 4000K/ 5000K/ 5700K/ 6500K, 3CCT(4000K-5000K-5700K) ADJ | |||||||
| CRI | 80 | |||||||
| LED | Lumileds/ San’an | |||||||
| Driver | Philips/ Sosen/ Moso | |||||||
| Housing | Die-casting technology by ADC12 | |||||||
| IP Rating | IP65 | |||||||
| IK Rating | IK08 | |||||||
| Operation Temperature | ﹣35°C- +50°C | |||||||
| Lifespan | 50,000H | |||||||
| Warranty | 5/ 7Years | |||||||
