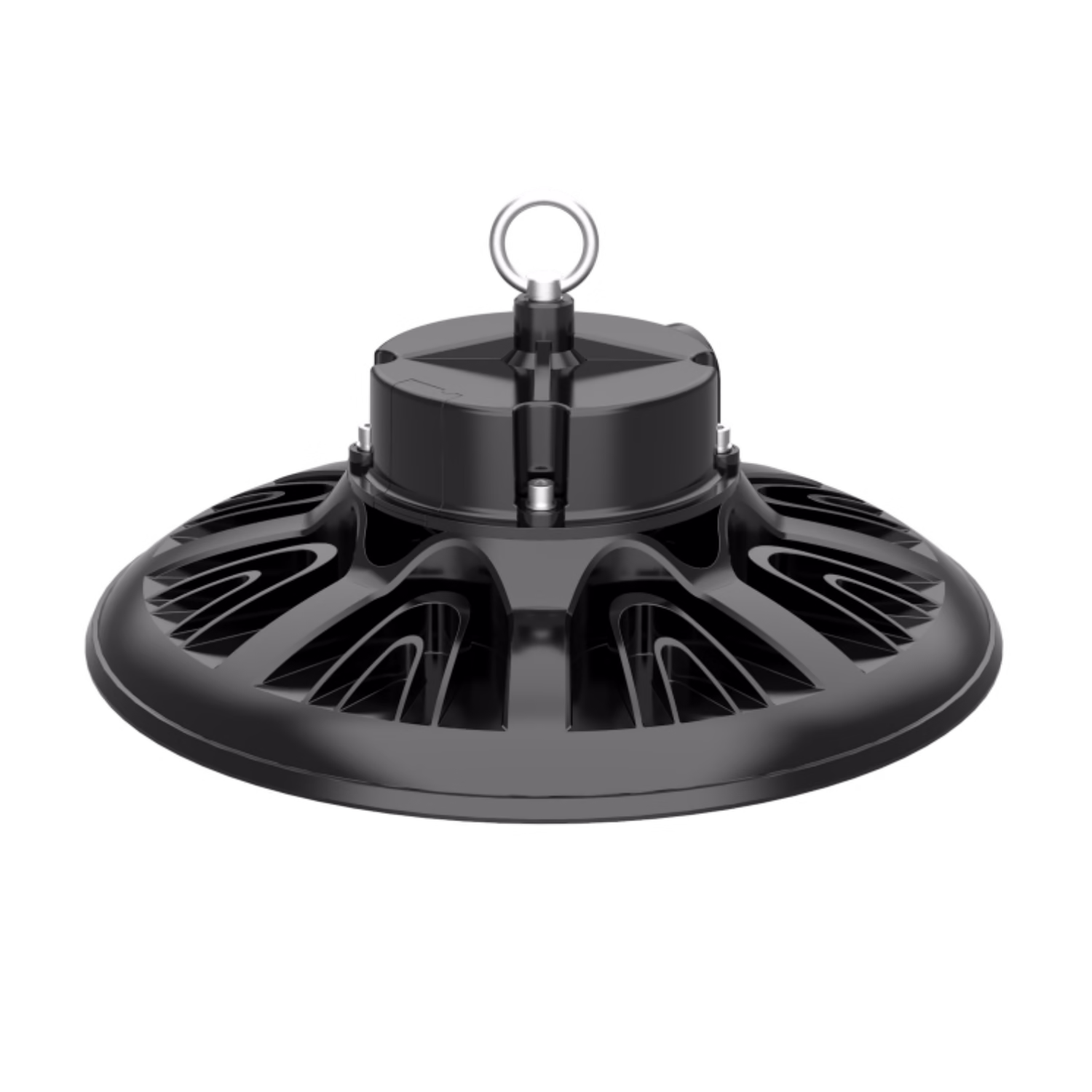

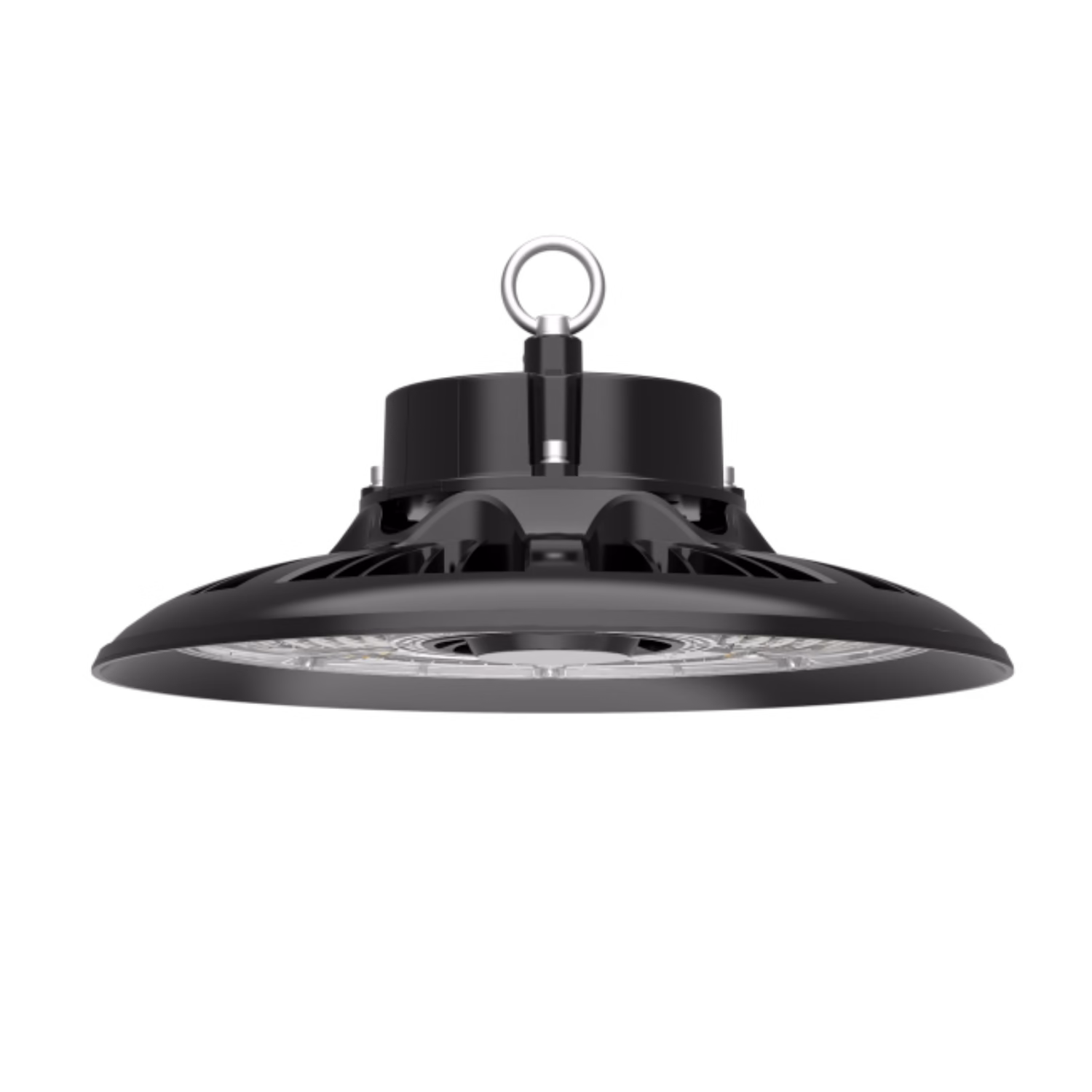

Elegant HB18 LED High Bay Light

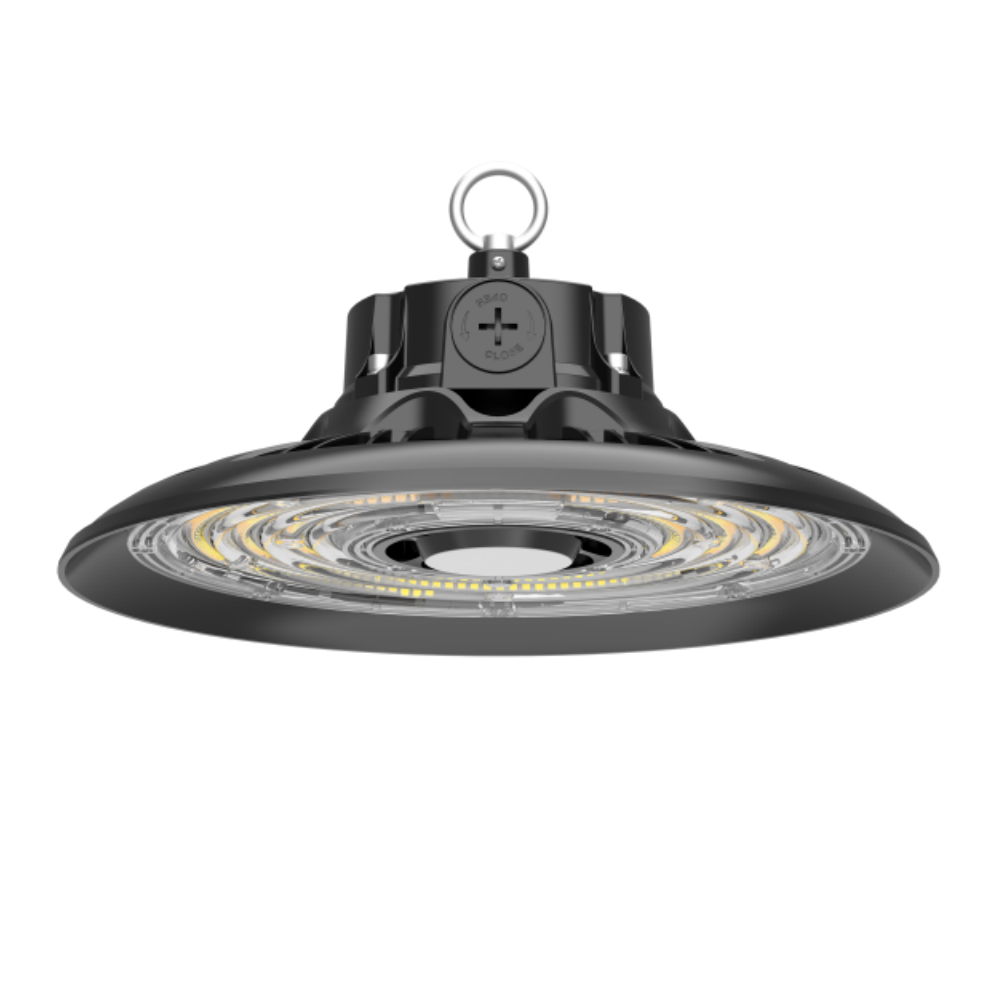

HB18 High Bay Light - Ideal for Large Spaces
- Power Range: 60W – 500W
- Light Efficacy: 150lm/W, 170lm/W, 190lm/W
- Adjustable Power
- 1-10V Dimming
- IP65 & IK08 Rated
- Warranty: 5/ 7 years
- Laser Engraved Logo: Customizable for Brand Display
Our LED High Bay Lights are engineered to provide reliable, energy-efficient lighting for even the most demanding environments. With multiple power settings and superior light output, you’ll enjoy bright, clear illumination while reducing energy consumption and maintenance costs.

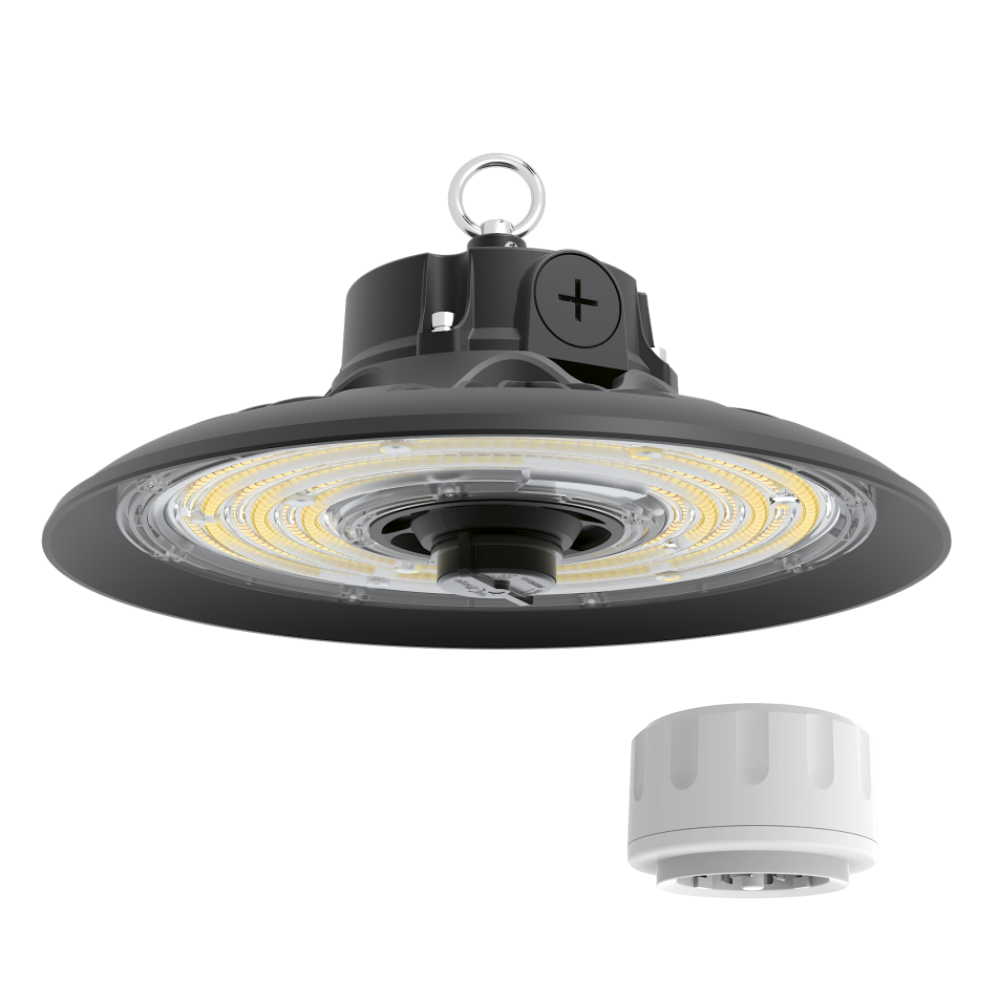

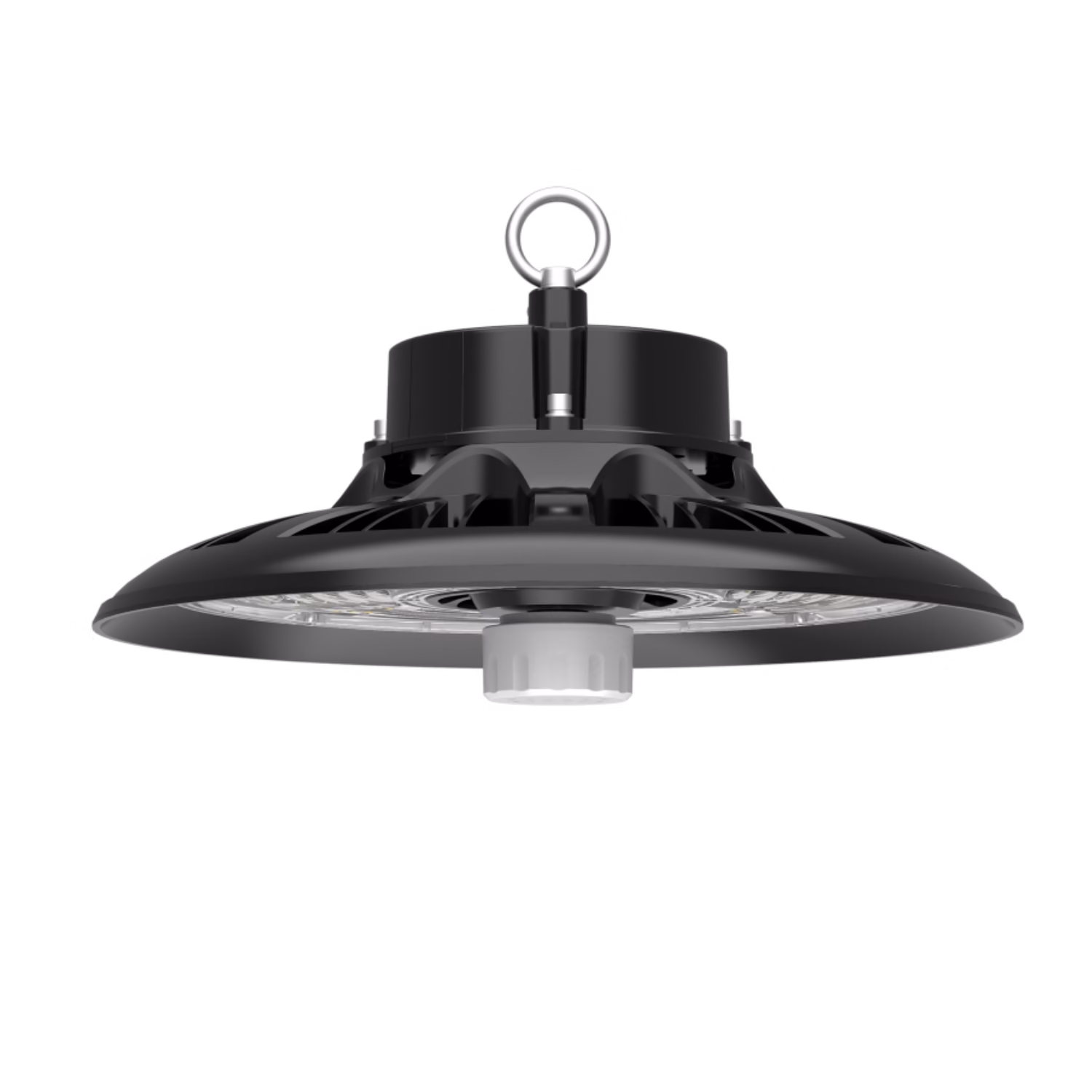

HB18 High Bay Light with Senosr
- Power Range: 60W – 500W
- Light Efficacy: 150lm/W, 170lm/W, 190lm/W
- Adjustable Power

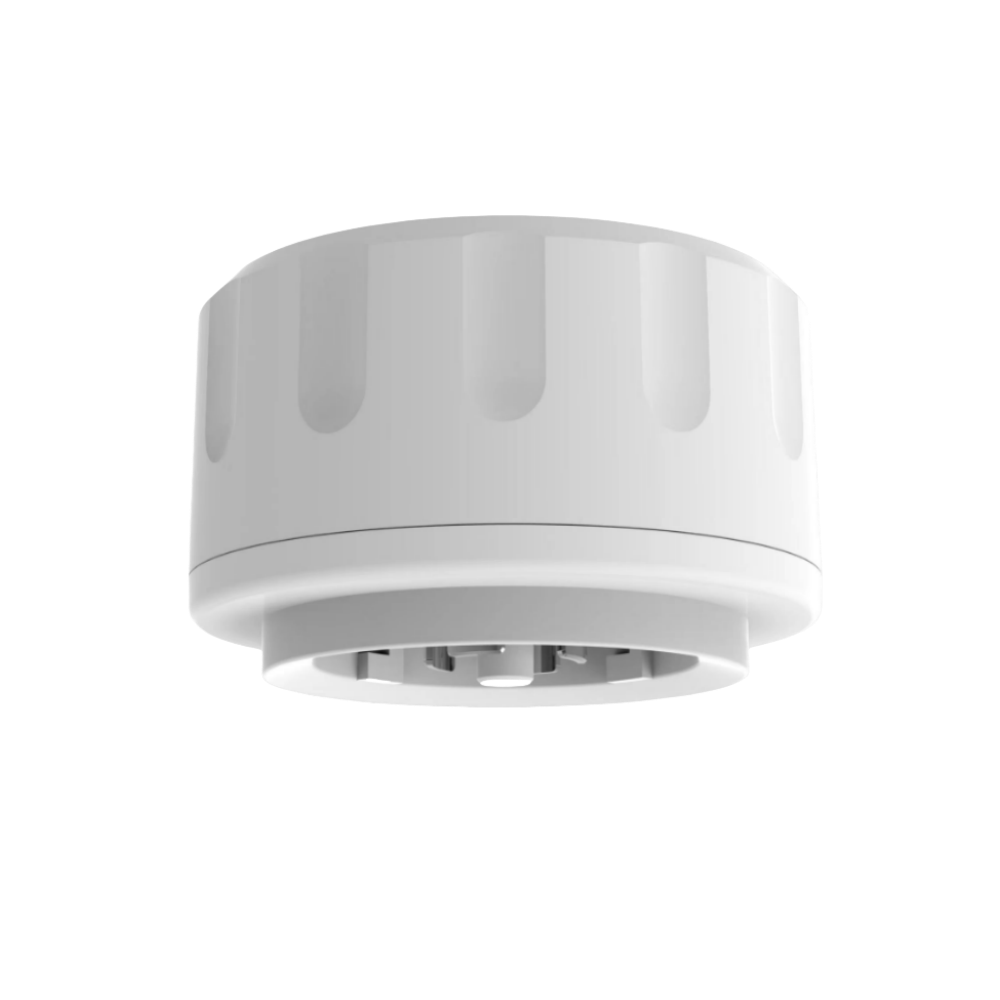

- Motion Sensor (plug and play)
- IP65 & IK08 Rated
- Warranty: 5 years
Get extra energy savings and enhanced security with the sensor option for your LED High Bay Light. Perfect for areas where motion detection is crucial, these lights turn on only when needed, further optimizing your lighting costs.

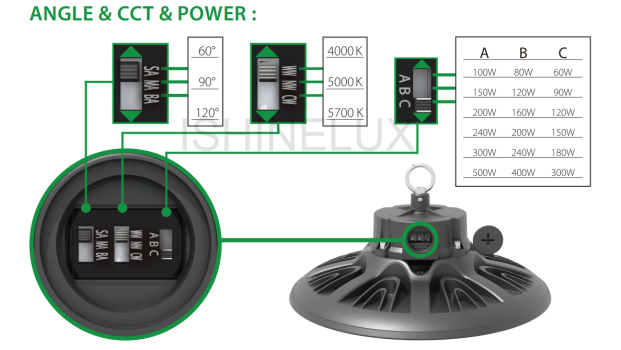

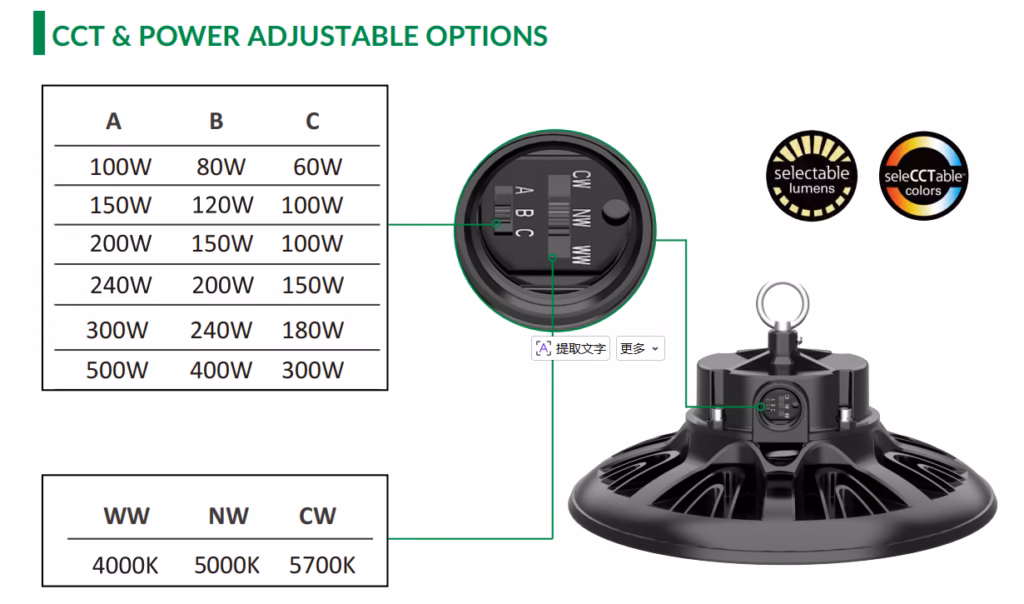

HB18 High Bay Light - 3CCT& 3Power Adjustable
Customize your lighting even further with our 3CCT & 3-Power Adjustable LED High Bay Lights. This versatile option allows you to adjust both color temperature and brightness to suit various environments and preferences.
- Power Range: 60W – 500W
- Adjustable Color Temperature (CCT)
- Adjustable Power
- IP65 & IK08 Rated
- Warranty: 5 years
Perfect for environments where lighting flexibility is key, these lights ensure the right lighting for every occasion, while also offering the same energy efficiency and durability as our standard models.
A: When using LED chips that combine two color temperatures, the light output is more evenly distributed. This is because the mixing of colors happens at the chip level, reducing the risk of creating bright spots or dark areas that can occur when using separate chips for different color temperatures. This even distribution of light is crucial for applications like warehouses, sports arenas, and industrial spaces, where consistent illumination is essential for safety and efficiency.
Optional Accessories

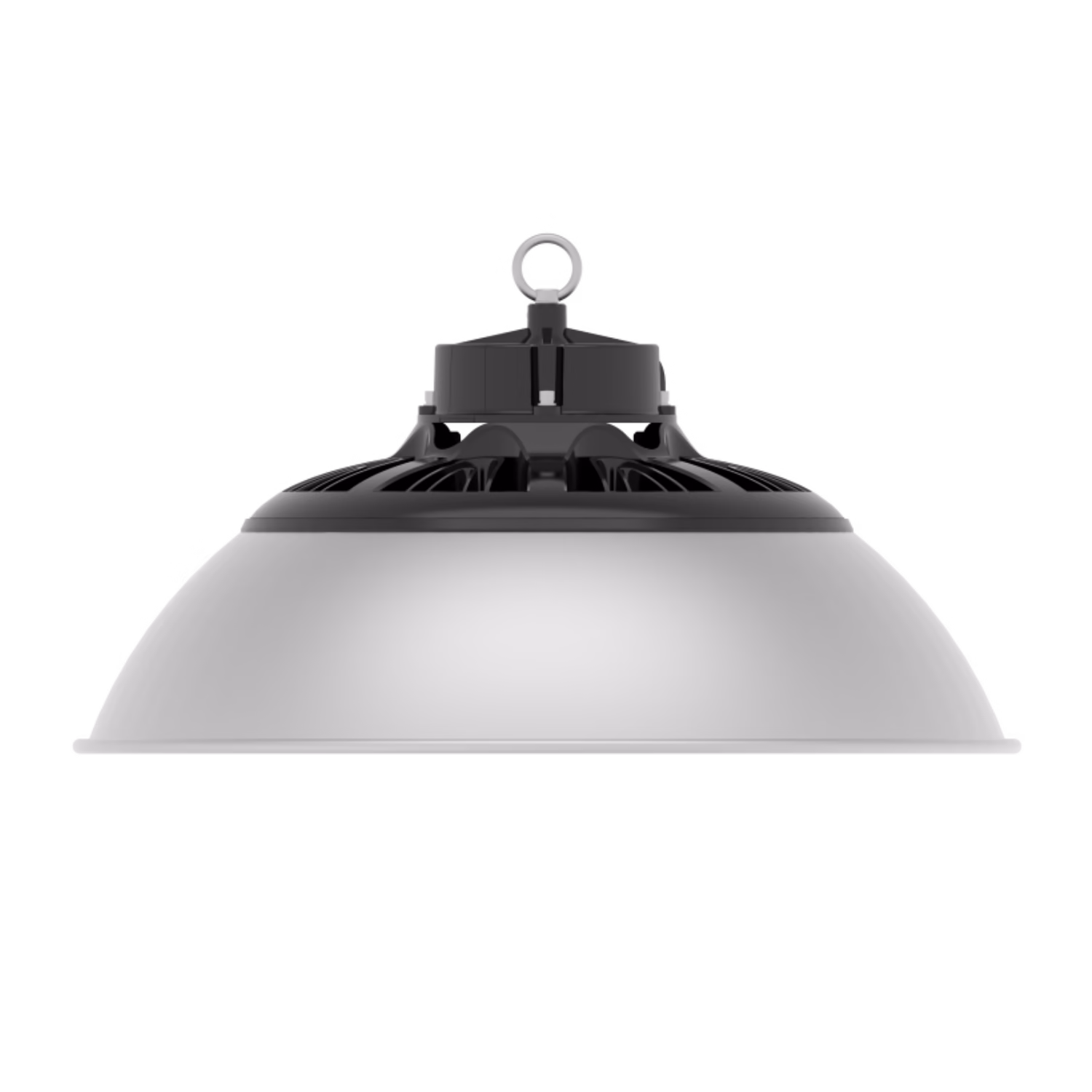

Aluminum Reflector
Universal Bracket
Safety Steel Rope
Technical Specification
| Model No. | ISL-HB18-60W | ISL-HB18-100W | ISL-HB18-150W | ISL-HB18-200W | ISL-HB18-240W | ISL-HB18-300W | ISL-HB18-400W | ISL-HB18-500W |
| Power | 60W | 100W | 150W | 200W | 240W | 300W | 400W | 500W |
| Adjustable Power | / | 100W-80W-60W | 150W-120W-90W | 200W-160W-120W | 240W-200W-150W | 300W-240W-180W | 400W-320W-240W | 500W-400W-300W |
| Dimmension | ø233*145mm | ø260*145mm | ø287*147mm | ø305*149mm | ø305*149mm | ø342*168mm | ø447*178mm | ø447*178mm |

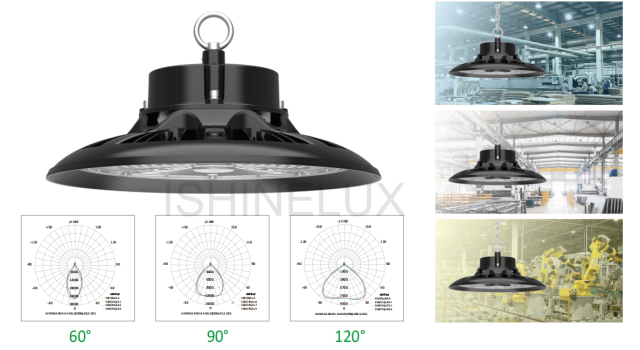

| Beam Angle | 60°/90°/120° | 40°/60°/90° | ||||||
| Input Voltage | 100-277VAC, 50/60Hz | |||||||
| Light Efficiency (±5%) | 150lm/W, 170lm/W, 190lm/W | |||||||
| Color Temperature | 3000K/ 4000K/ 5000K/ 5700K/ 6500K, 3CCT(4000K-5000K-5700K) ADJ | |||||||
| CRI | 80 | |||||||
| LED | Lumileds/ San’an | |||||||
| Driver | Philips/ Sosen/ Moso | |||||||
| Options | Motion Sensor | |||||||
| Housing | Die-casting technology by ADC12 | |||||||
| IP Rating | IP65 | |||||||
| IK Rating | IK08 | |||||||
| Operation Temperature | ﹣35°C- +50°C | |||||||
| Lifespan | 50,000H | |||||||
| Warranty | 5/ 7Years | |||||||
