Elegant HB20 LED High Bay Light

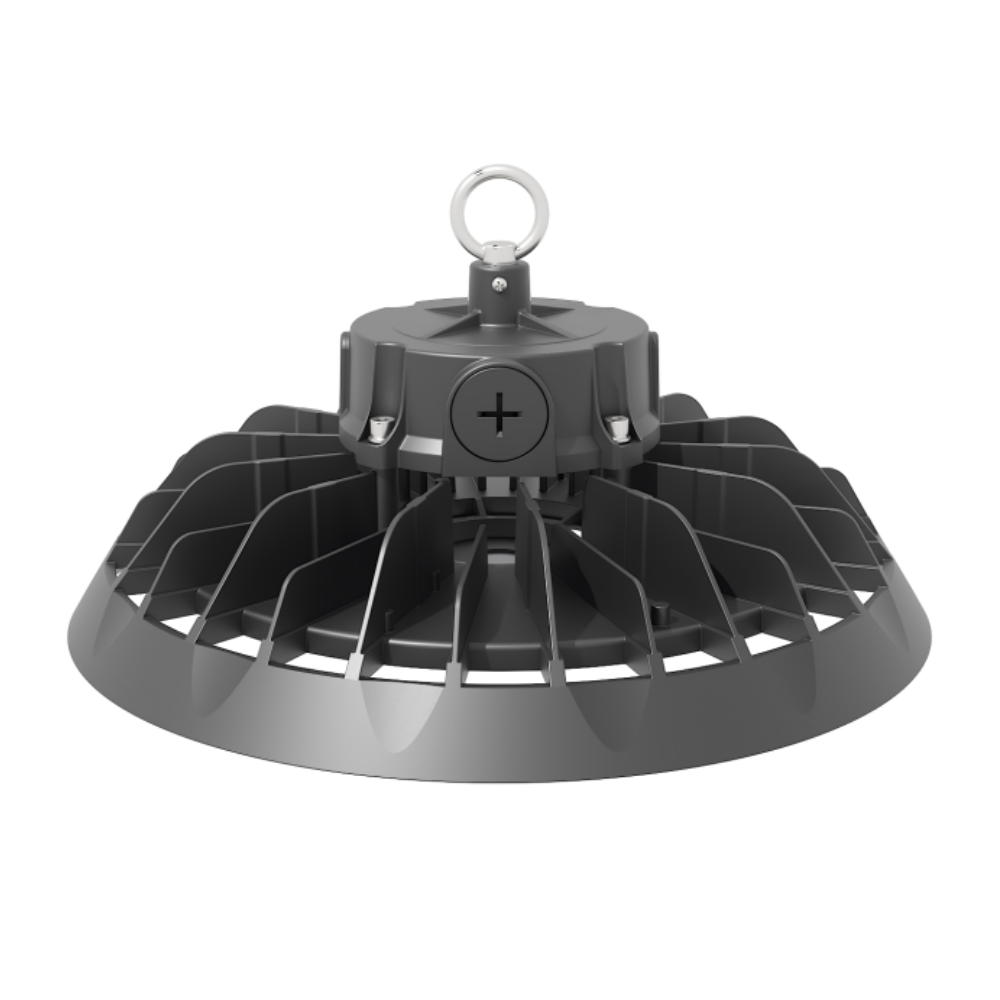

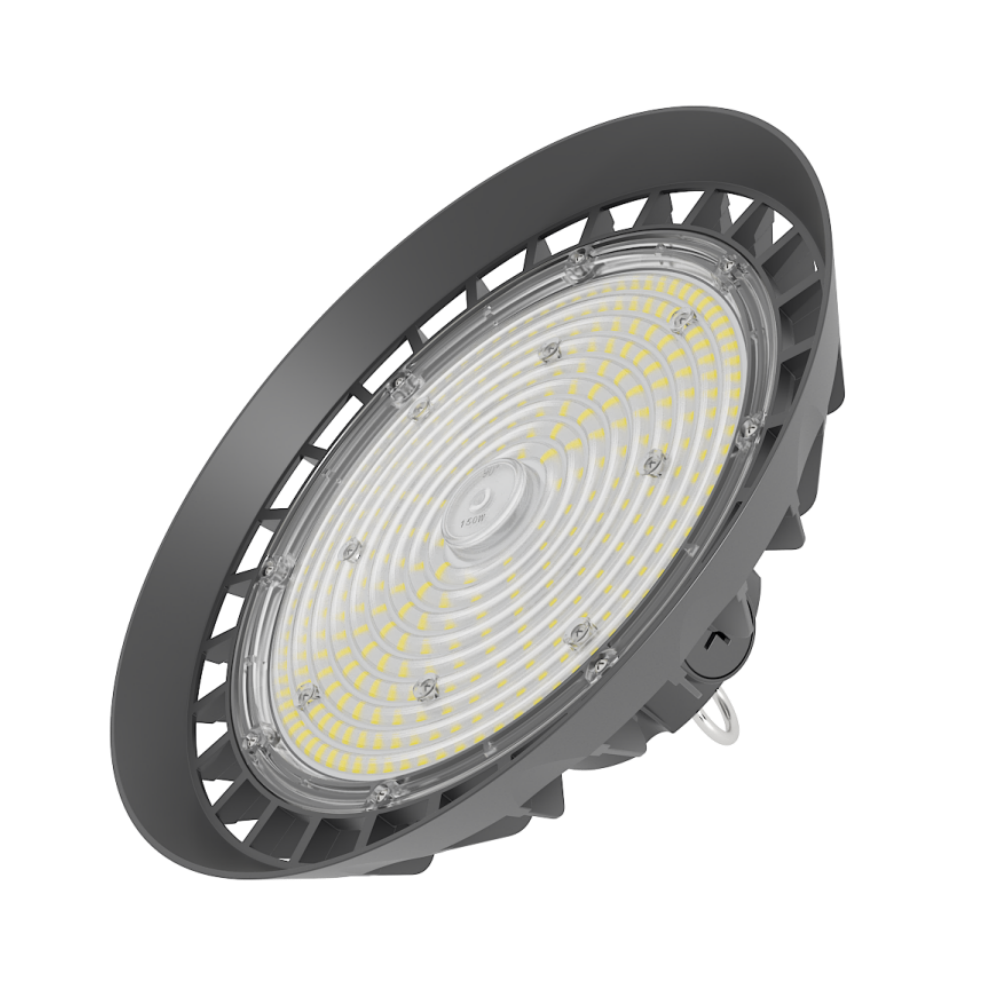

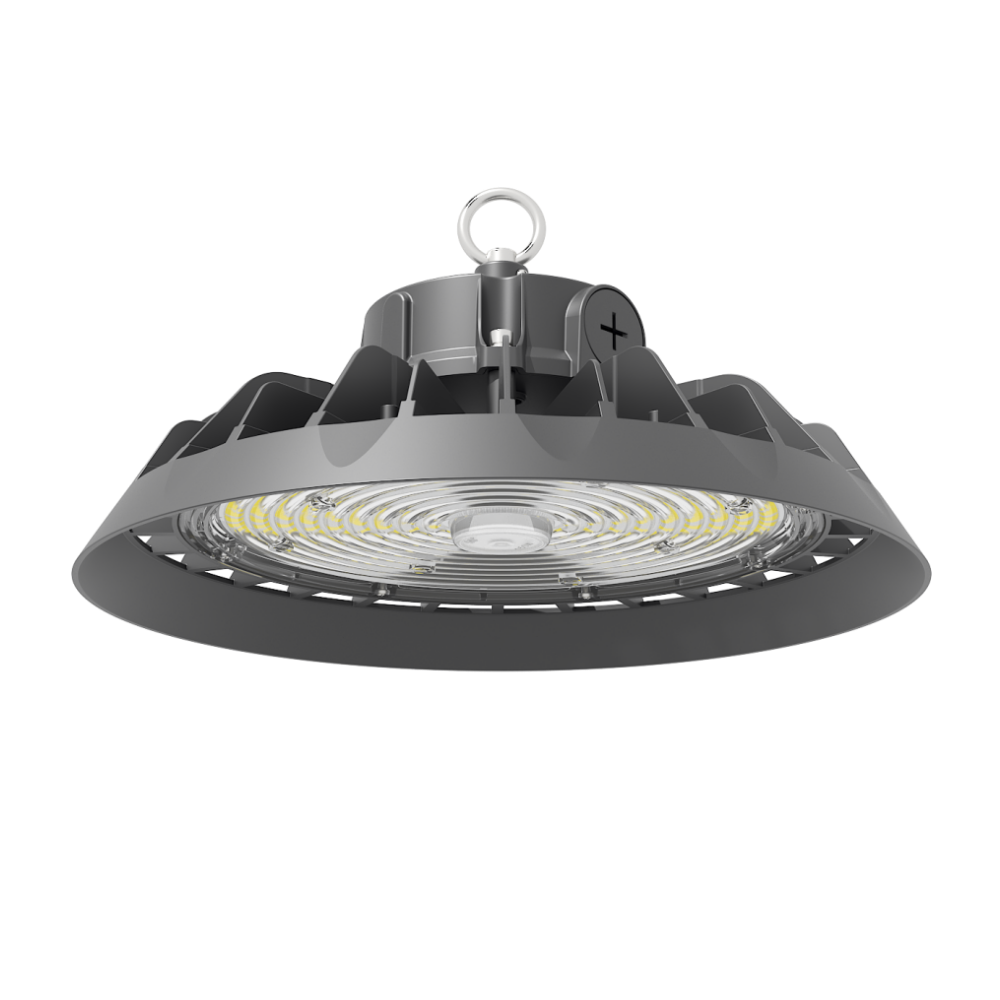

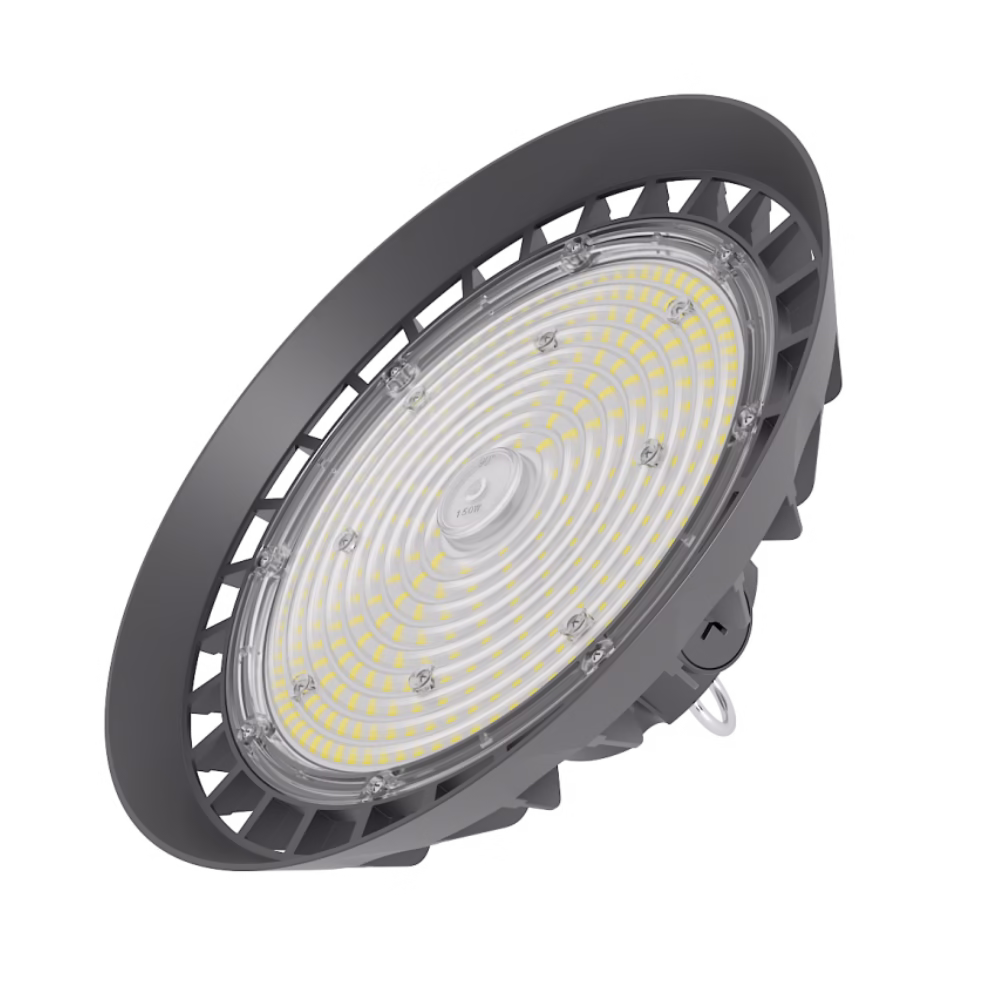

HB20 High Bay Light
- Power Range: 100W – 240W
- Light Efficacy: 150lm/W, 170lm/W, 190lm/W
- Adjustable Power
- 1-10V Dimming
- IP65 & IK08 Rated
- Warranty: 5 years
Designed for high performance, the HB20 High Bay Light delivers up to 190 lm/W with adjustable power and 1-10V dimming. Its IP65 and IK08 ratings ensure durability in demanding industrial and commercial settings, offering long-lasting, energy-efficient lighting.

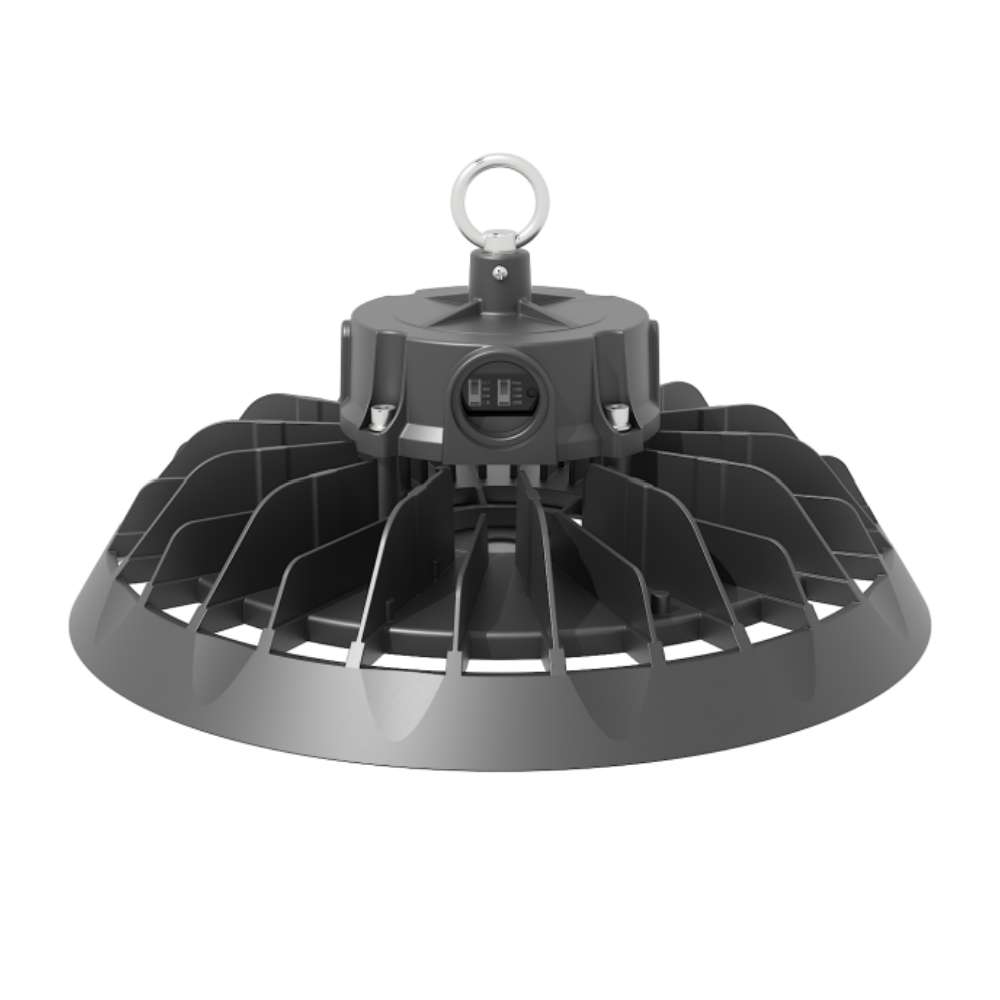

HB20 High Bay Light - 3CCT& 3Power Adjustable
- Power Range: 100W – 2400W
- Adjustable Color Temperature (CCT)
- Adjustable Power
- IP65 & IK08 Rated
- Warranty: 5 years
Simplify your inventory with one versatile solution. Our 3CCT & Power Adjustable LED High Bay Light integrates multiple color temperatures and power levels in a single fixture—reducing SKU count and streamlining stock management.
Designed for ultimate flexibility, it adapts easily to warehouses, factories, gyms, and retail spaces, delivering high efficiency, durability, and customized lighting performance.
Fewer SKUs, faster deployment, smarter lighting.
Optional Accessories

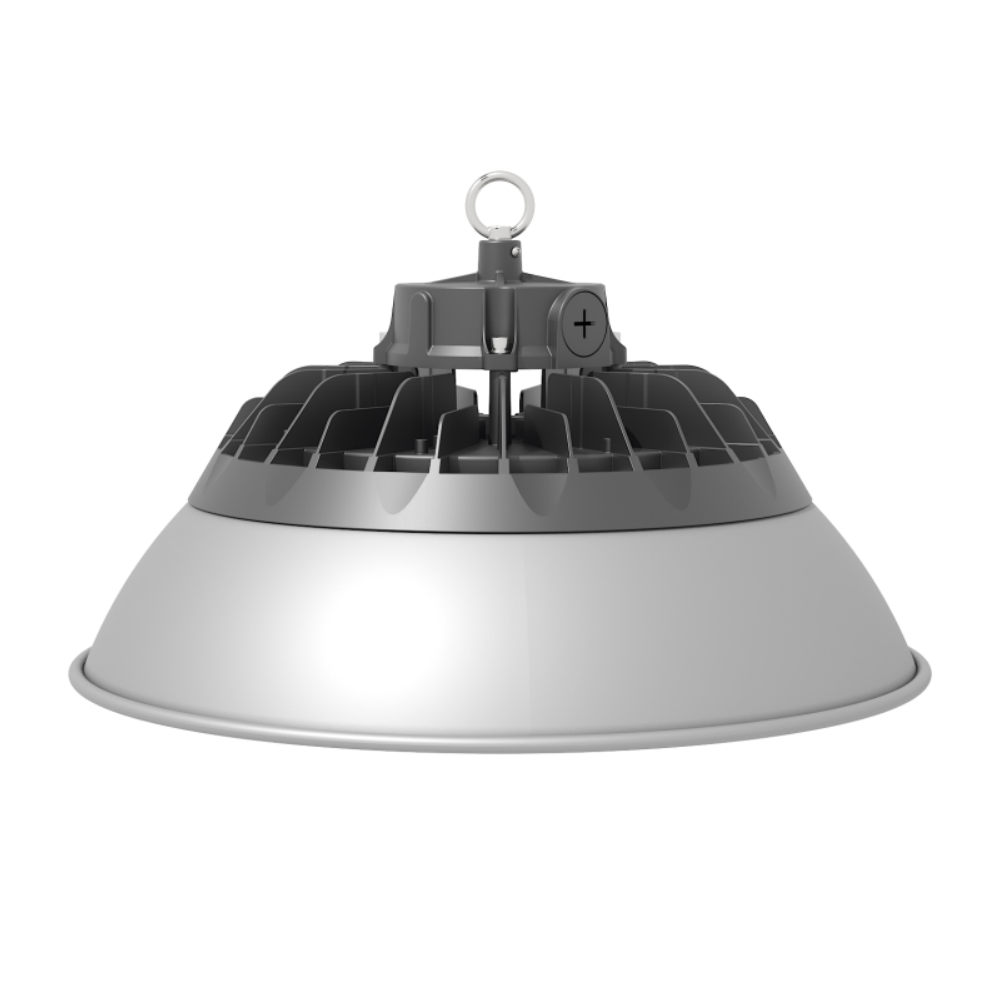

Aluminum Reflector

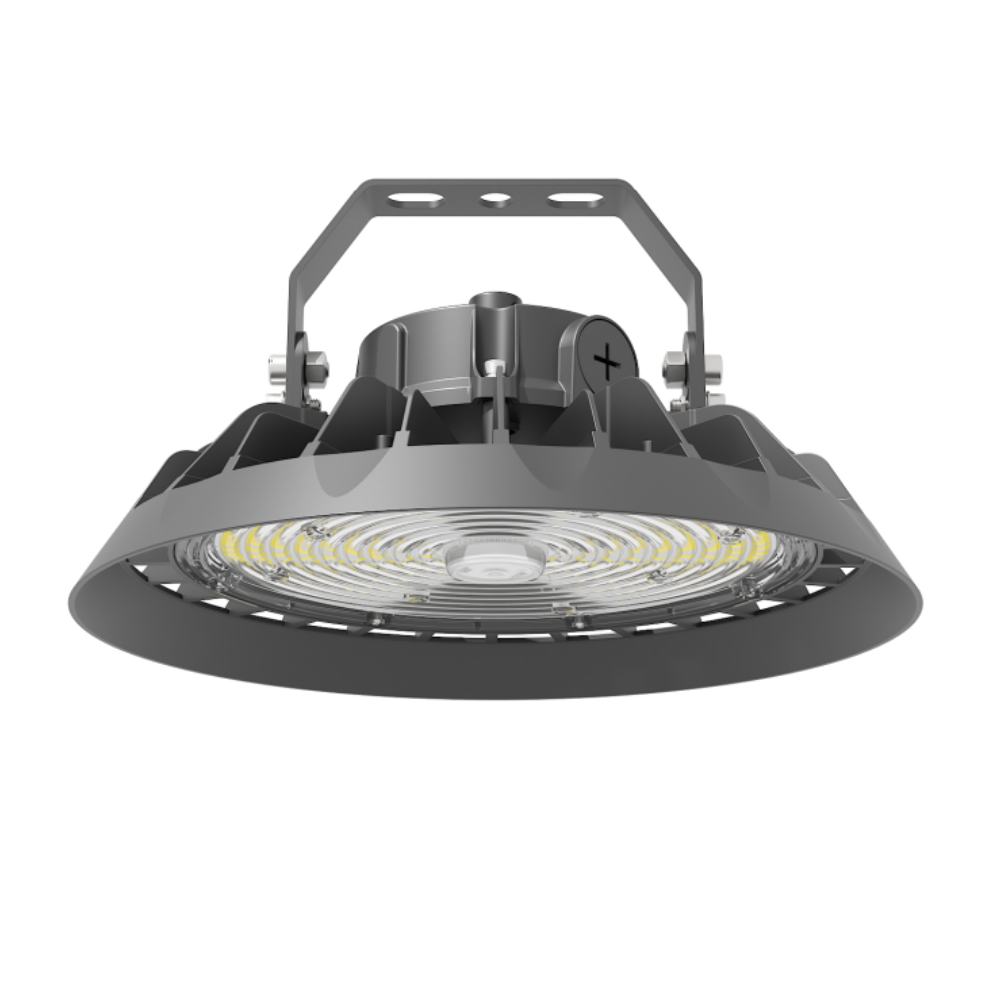

Universal Bracket
Safety Steel Rope
Technical Specification
| Model No. | ISL-HB20-100W | ISL-HB20-150W | ISL-HB20-200W | ISL-HB20-240W |
| Power | 100W | 150W | 200W | 240W |
| Adjustable Power | 100W-80W-60W | 150W-120W-90W | 200W-160W-120W | 240W-200W-150W |
| Dimmension | ø270*158mm | ø295*162mm | ø315*165mm | ø315*165mm |
| Beam Angle | 60°/90°/120° | |||
| Input Voltage | 100-277VAC, 50/60Hz | |||
| Light Efficiency (±5%) | 150lm/W, 170lm/W, 190lm/W | |||
| Color Temperature | 3000K/ 4000K/ 5000K/ 5700K/ 6500K, 3CCT(4000K-5000K-5700K) ADJ | |||
| CRI | 80 | |||
| LED | Lumileds/ San’an | |||
| Driver | Philips/ Sosen/ ZH | |||
| Options | Microwave Sensor | |||
| Housing | Die-casting technology by ADC12 | |||
| IP Rating | IP65 | |||
| IK Rating | IK08 | |||
| Operation Temperature | ﹣35°C- +50°C | |||
| Lifespan | 50,000H | |||
| Warranty | 5Years | |||
