Elegant HB21 LED High Bay Light
Tri-Power, Tri-CCT & Motion Sensor Optional

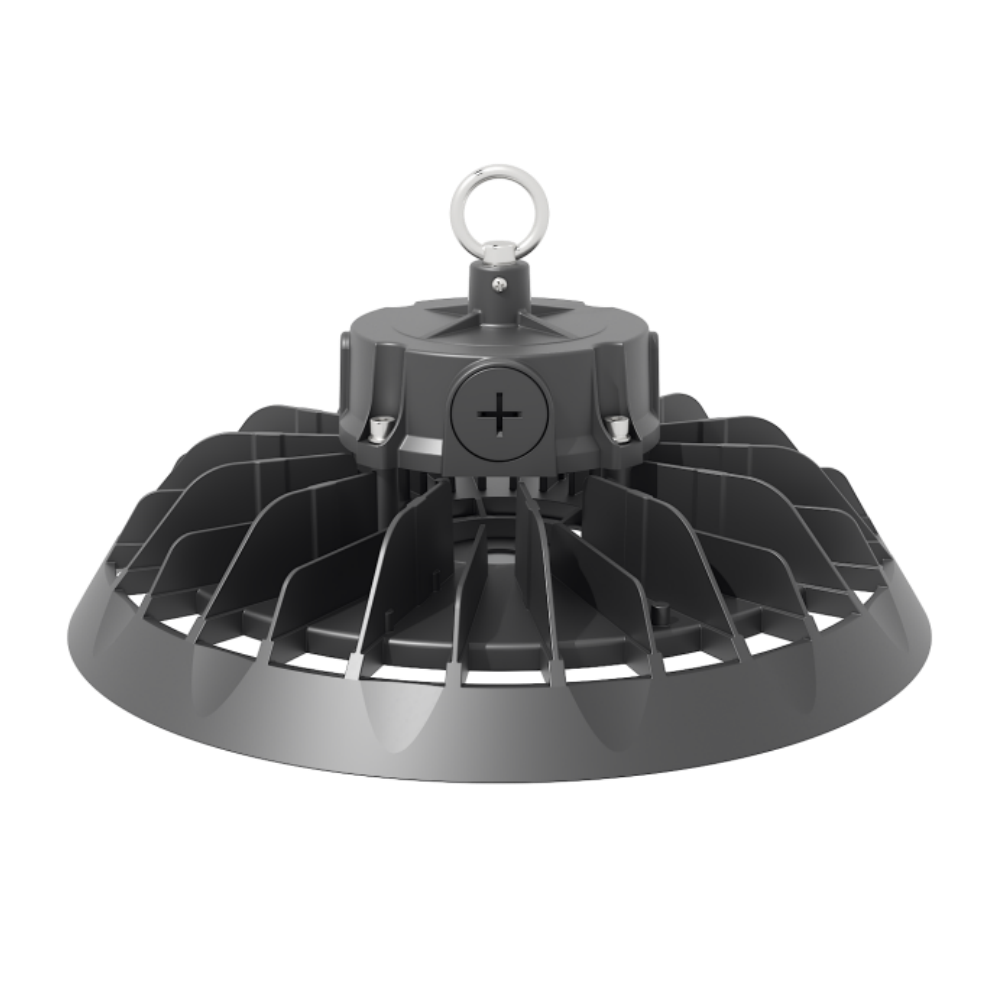

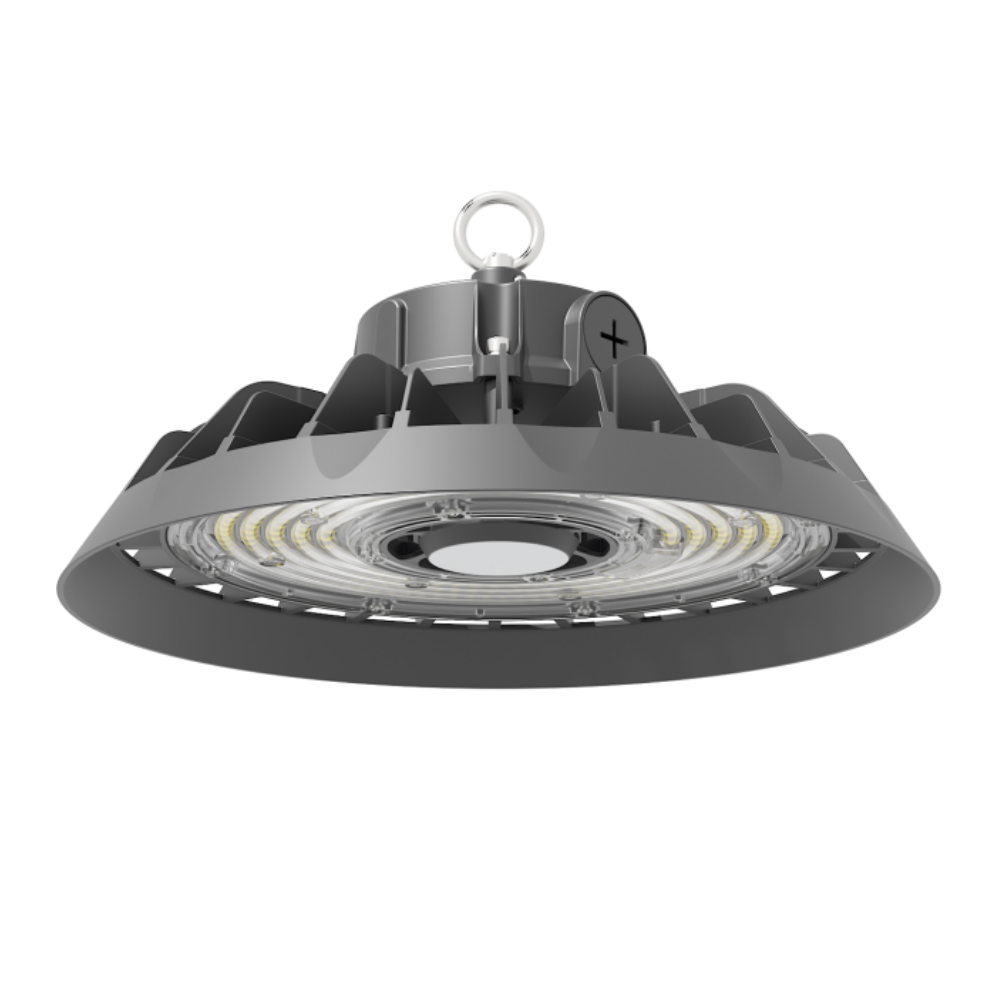

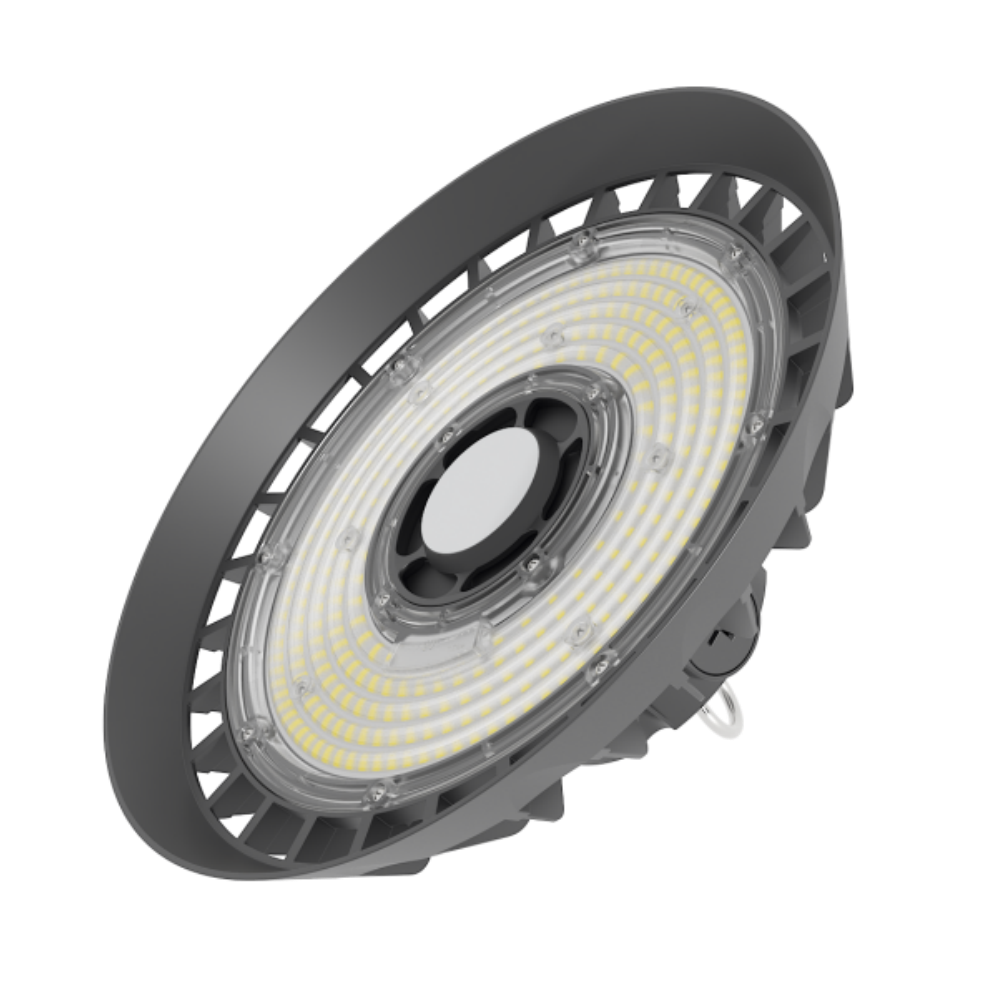

HB21 LED High Bay Light
High Efficiency Warehouse & Industrial Lighting
The HB21 LED High Bay Light is designed for warehouses, factories, workshops, logistics centers, and commercial facilities. With high-efficiency output, adjustable power settings, and durable construction, it delivers reliable lighting for industrial and commercial applications.
Built for contractors, distributors, and wholesale supply, the HB21 combines energy-saving performance with flexible configuration options for different project needs.
Key Specifications
- Power Range: 100W–240W
- Light Efficiency: 150 lm/W · 170 lm/W · 190 lm/W
- Adjustable Power Available
- 1–10V Dimming
- Protection: IP65 & IK08 Rated
- Custom Laser Logo: Brand logo engraving available
- Warranty: 5 Years
Applications
Warehouses · Factories · Workshops · Logistics Centers · Commercial Facilities

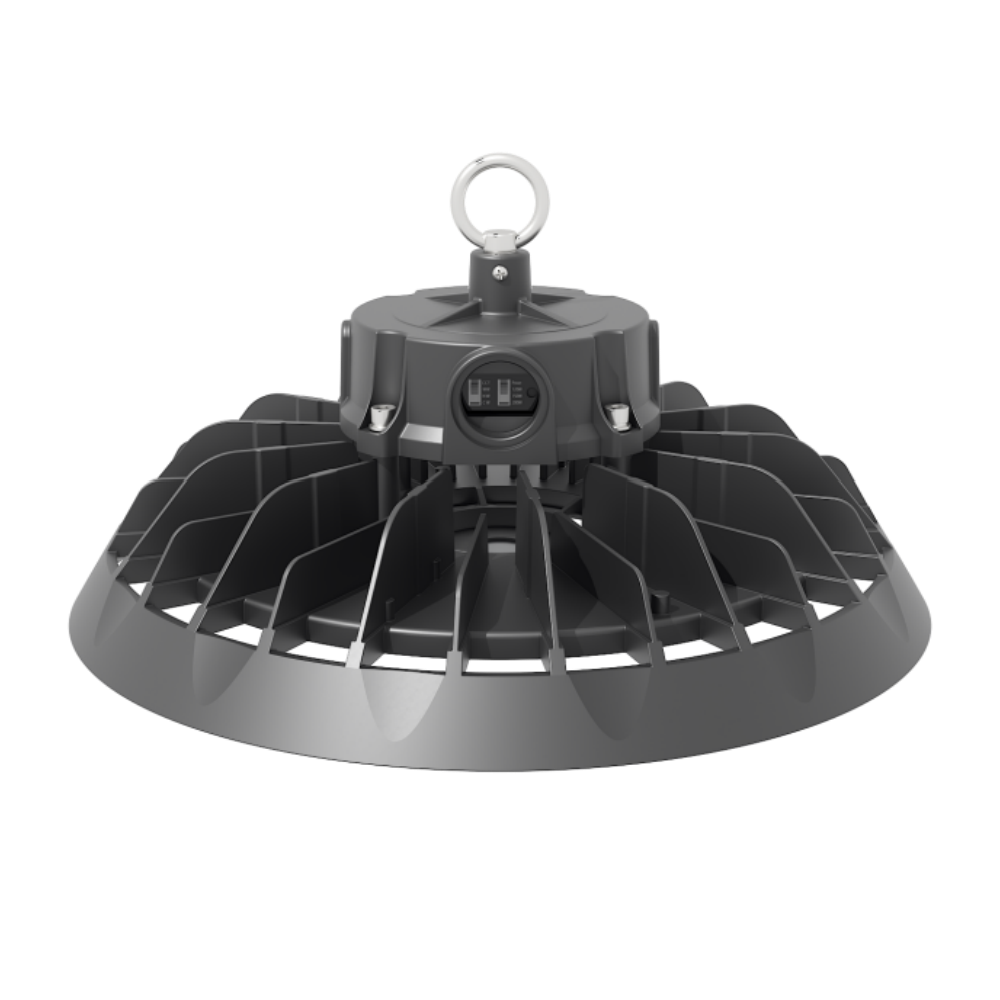

HB21 High Bay Light with Senosr
- Power Range: 100W – 240W
- Light Efficacy: 150lm/W, 170lm/W, 190lm/W
- Adjustable Power

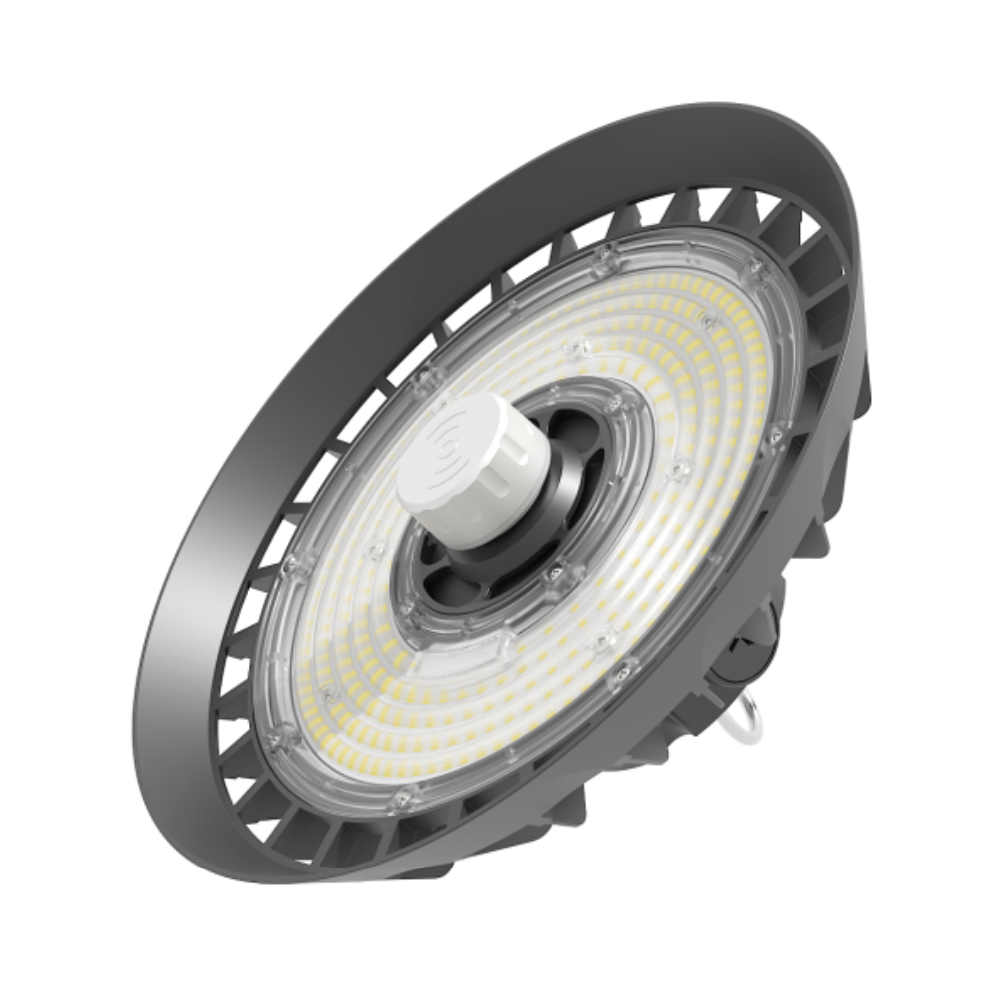

- Motion Sensor (plug and play)

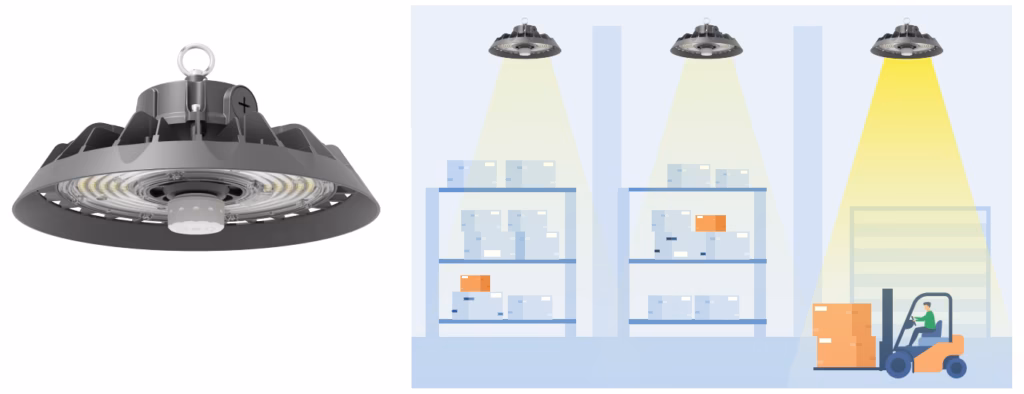

Save more energy with the optional motion sensor. The light turns on only when movement is detected, making it ideal for warehouses, storage areas, corridors, and other low-traffic spaces.
HB21 High Bay Light - 3CCT& 3Power Adjustable
- Power Range: 100W – 240W
- Adjustable Color Temperature (CCT)
- Adjustable Power
- Optional: Motion Sensor
Optional Accessories
Aluminum Reflector

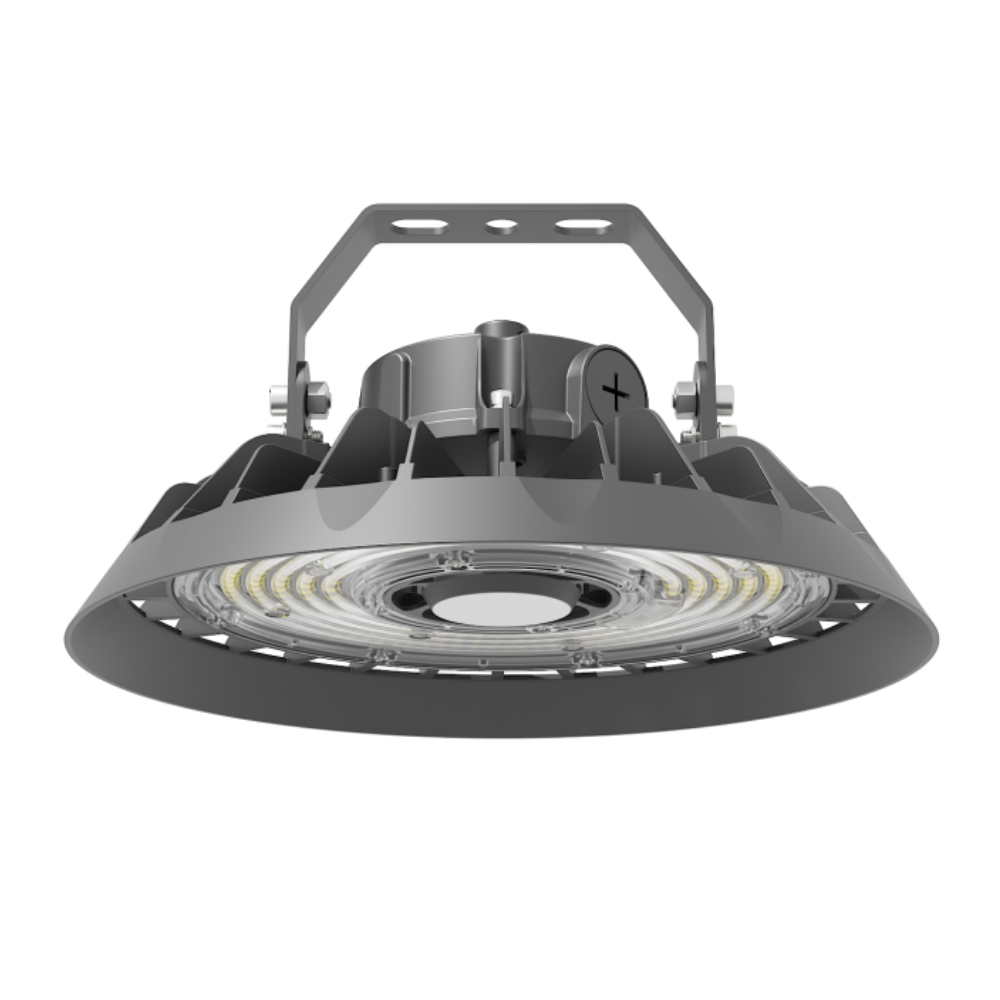

Universal Bracket
Safety Steel Rope
Technical Specification
| Model No. | ISL-HB21-100W | ISL-HB21-150W | ISL-HB21-200W | ISL-HB21-240W |
| Power | 100W | 150W | 200W | 240W |
| Adjustable Power | 100W-80W-60W | 150W-120W-90W | 200W-160W-120W | 240W-200W-150W |
| Dimmension | ø270*158mm | ø295*162mm | ø315*165mm | ø315*165mm |
| Beam Angle | 60°/90°/120° | |||
| Input Voltage | 100-277VAC, 50/60Hz | |||
| Light Efficiency (±5%) | 150lm/W, 170lm/W, 190lm/W | |||
| Color Temperature | 3000K/ 4000K/ 5000K/ 5700K/ 6500K, 3CCT(4000K-5000K-5700K) ADJ | |||
| CRI | 80 | |||
| LED | Lumileds/ San’an | |||
| Driver | Philips/ Sosen/ ZH | |||
| Options | Microwave Sensor | |||
| Housing | Die-casting technology by ADC12 | |||
| IP Rating | IP65 | |||
| IK Rating | IK08 | |||
| Operation Temperature | ﹣35°C- +50°C | |||
| Lifespan | 50,000H | |||
| Warranty | 5Years | |||
