Elegant HB21 LED High Bay Light

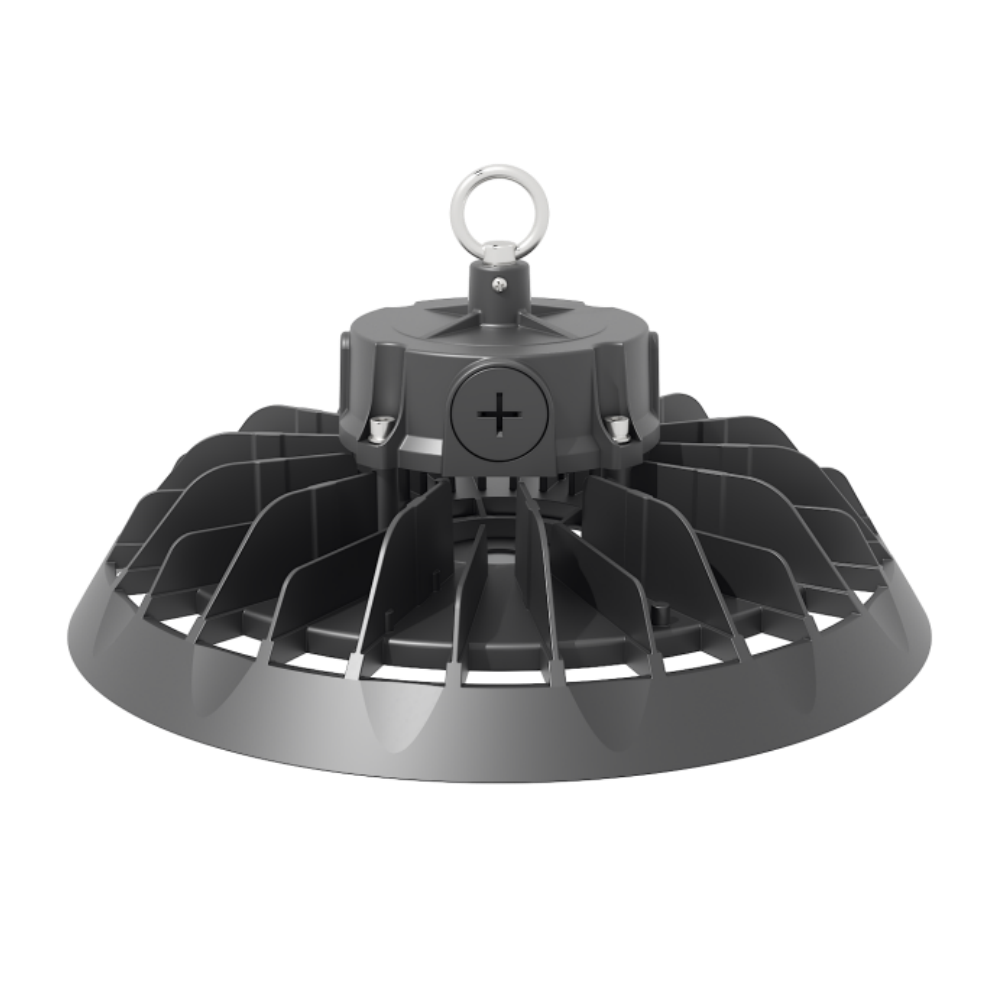

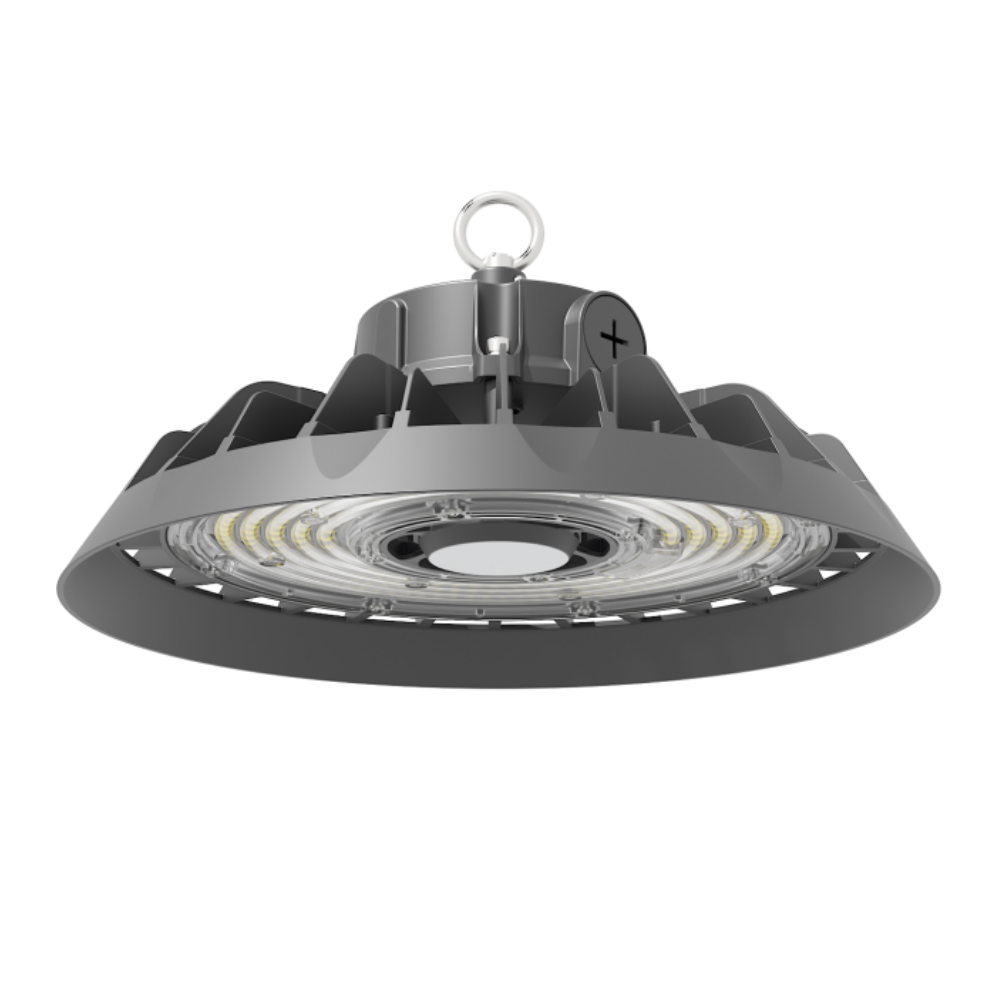

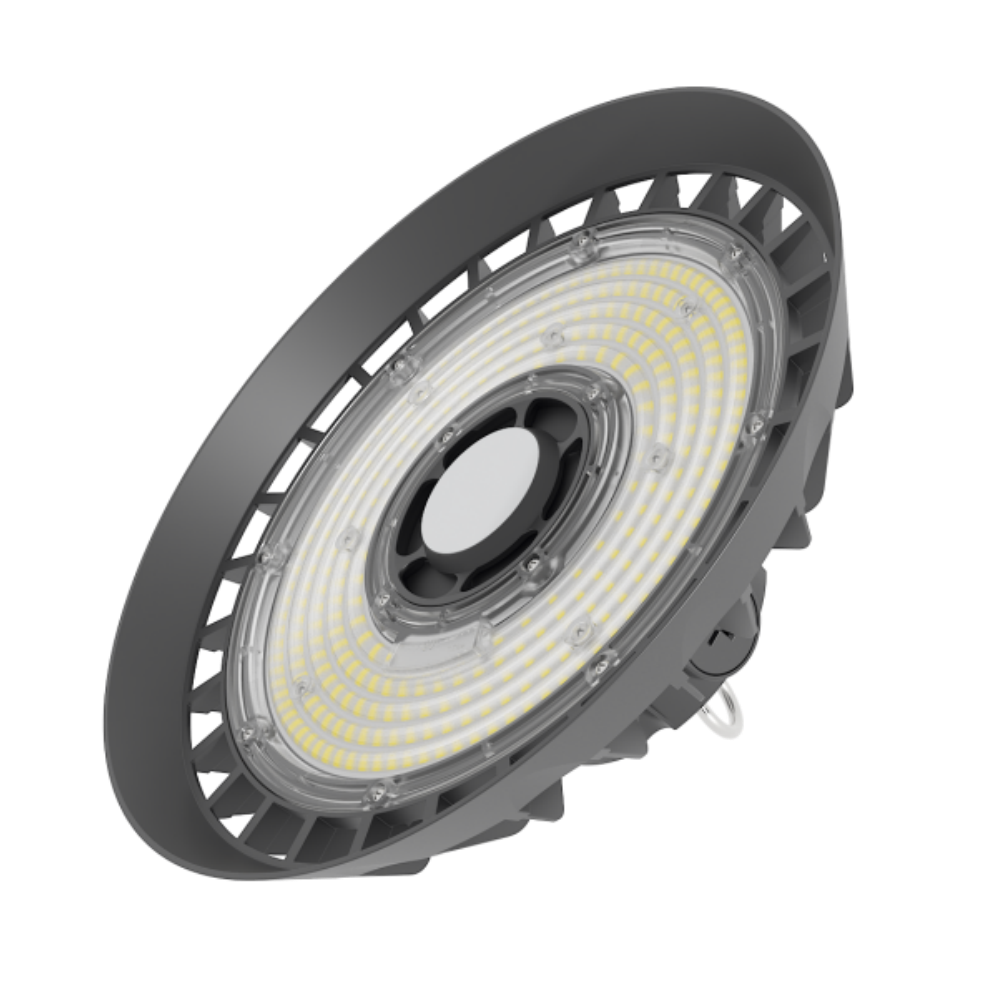

HB21 High Bay Light
- Power Range: 100W – 240W
- Light Efficacy: 150lm/W, 170lm/W, 190lm/W
- Adjustable Power
- 1-10V Dimming
- IP65 & IK08 Rated
- Warranty: 5 years
- Laser Engraved Logo: Customizable for Brand Display
The HB21 High Bay Light delivers powerful, efficient illumination for large industrial and commercial spaces. With adjustable power, and customizable laser-engraved logos, it offers flexible performance and a professional branded finish.

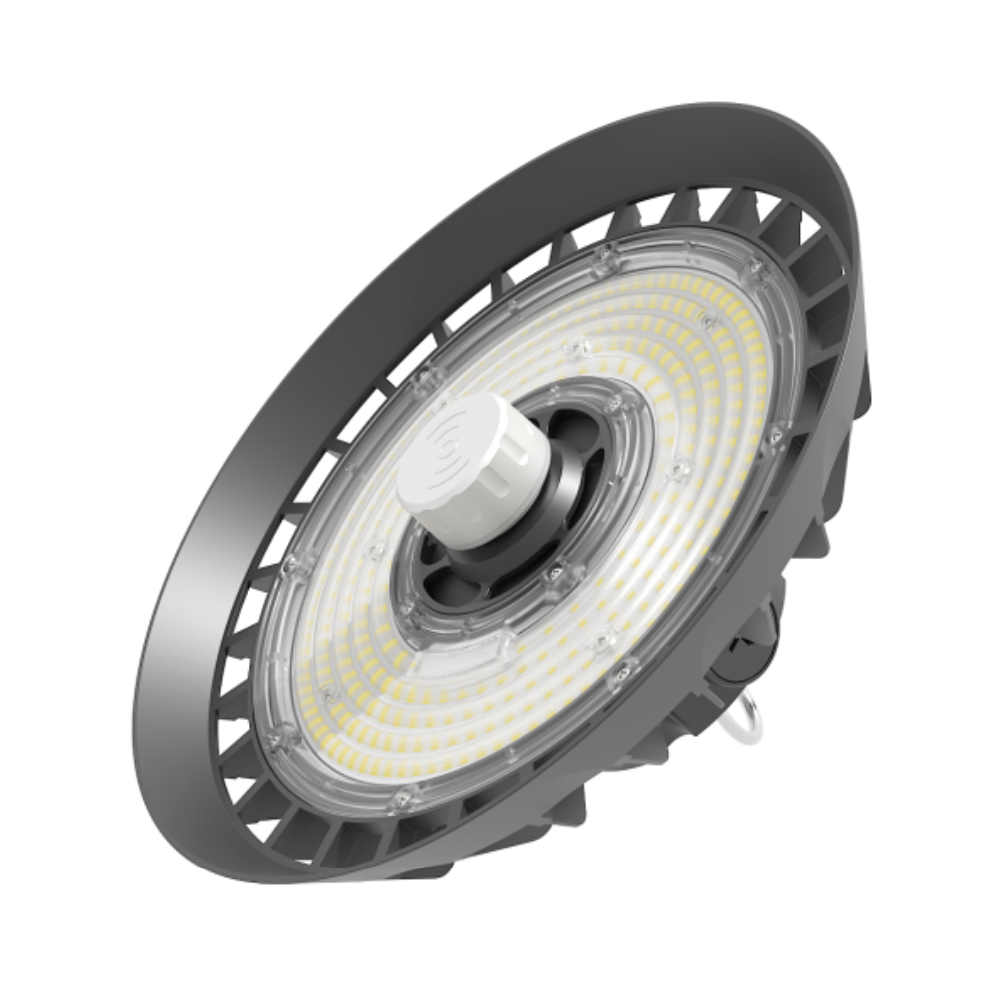

HB21 High Bay Light with Senosr
- Power Range: 100W – 240W
- Light Efficacy: 150lm/W, 170lm/W, 190lm/W
- Adjustable Power
- Motion Sensor (plug and play)
- IP65 & IK08 Rated
- Warranty: 5 years

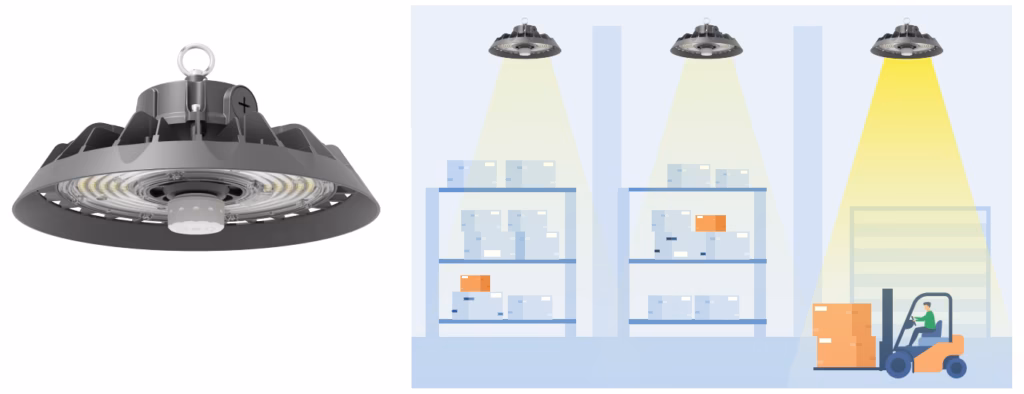

Get extra energy savings and enhanced security with the sensor option for your LED High Bay Light. Perfect for areas where motion detection is crucial, these lights turn on only when needed, further optimizing your lighting costs.

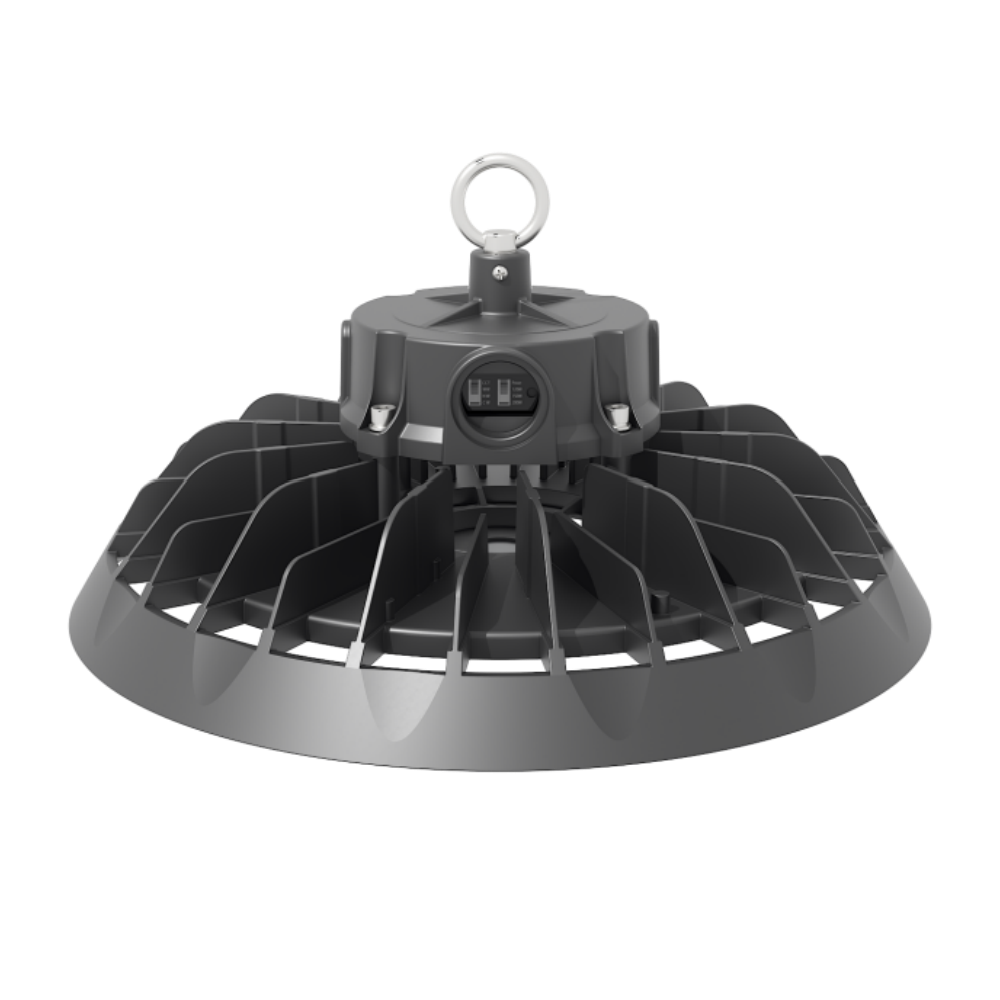

HB21 High Bay Light - 3CCT& 3Power Adjustable
- Power Range: 100W – 240W
- Adjustable Color Temperature (CCT)
- Adjustable Power
- IP65 & IK08 Rated
- Warranty: 5 years
Take lighting flexibility to the next level with the HB21 High Bay Light. Featuring adjustable color temperature and power output, it adapts seamlessly to a variety of environments and lighting needs—from warehouses to retail spaces.
Engineered for efficiency and durability, it combines high performance with versatile control, making it the ideal solution where adaptable, energy-saving lighting is essential.
One fixture. Endless possibilities.
Optional Accessories
Aluminum Reflector

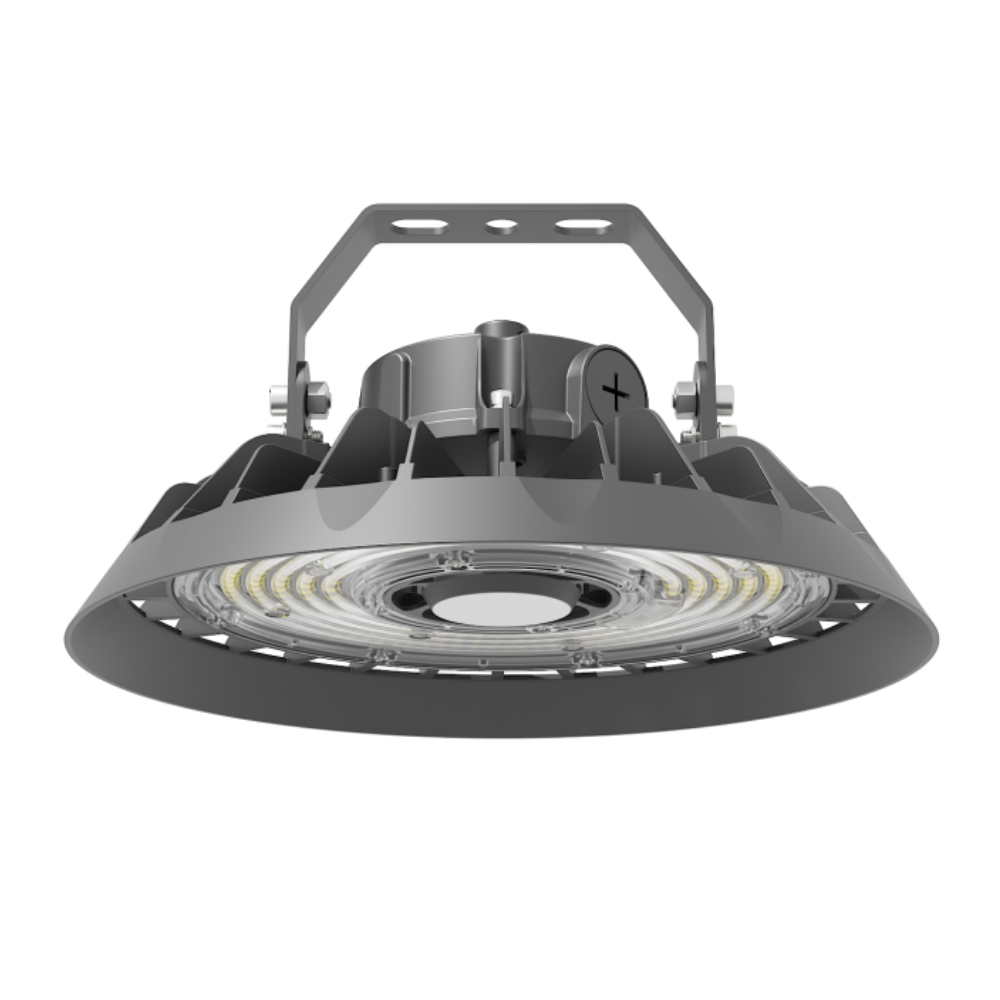

Universal Bracket
Safety Steel Rope
Technical Specification
| Model No. | ISL-HB21-100W | ISL-HB21-150W | ISL-HB21-200W | ISL-HB21-240W |
| Power | 100W | 150W | 200W | 240W |
| Adjustable Power | 100W-80W-60W | 150W-120W-90W | 200W-160W-120W | 240W-200W-150W |
| Dimmension | ø270*158mm | ø295*162mm | ø315*165mm | ø315*165mm |
| Beam Angle | 60°/90°/120° | |||
| Input Voltage | 100-277VAC, 50/60Hz | |||
| Light Efficiency (±5%) | 150lm/W, 170lm/W, 190lm/W | |||
| Color Temperature | 3000K/ 4000K/ 5000K/ 5700K/ 6500K, 3CCT(4000K-5000K-5700K) ADJ | |||
| CRI | 80 | |||
| LED | Lumileds/ San’an | |||
| Driver | Philips/ Sosen/ ZH | |||
| Housing | Die-casting technology by ADC12 | |||
| IP Rating | IP65 | |||
| IK Rating | IK08 | |||
| Operation Temperature | ﹣35°C- +50°C | |||
| Lifespan | 50,000H | |||
| Warranty | 5Years | |||
