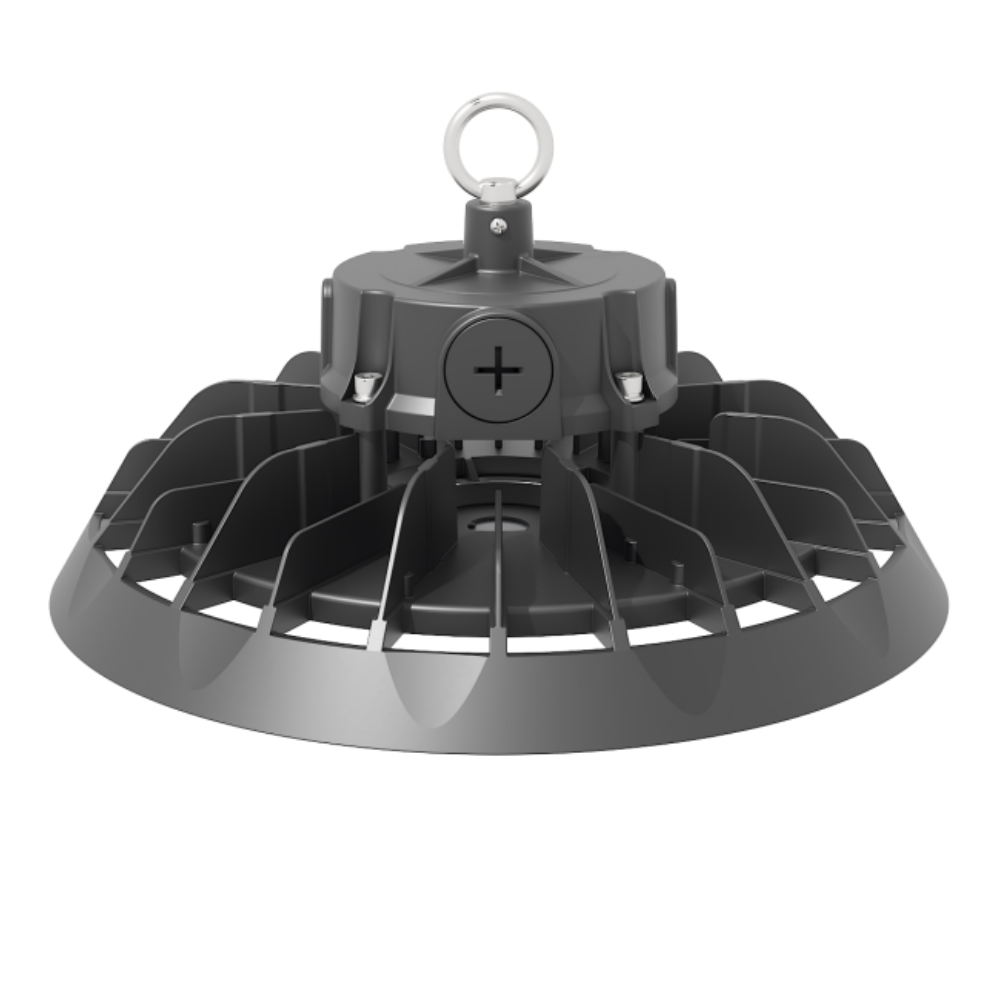

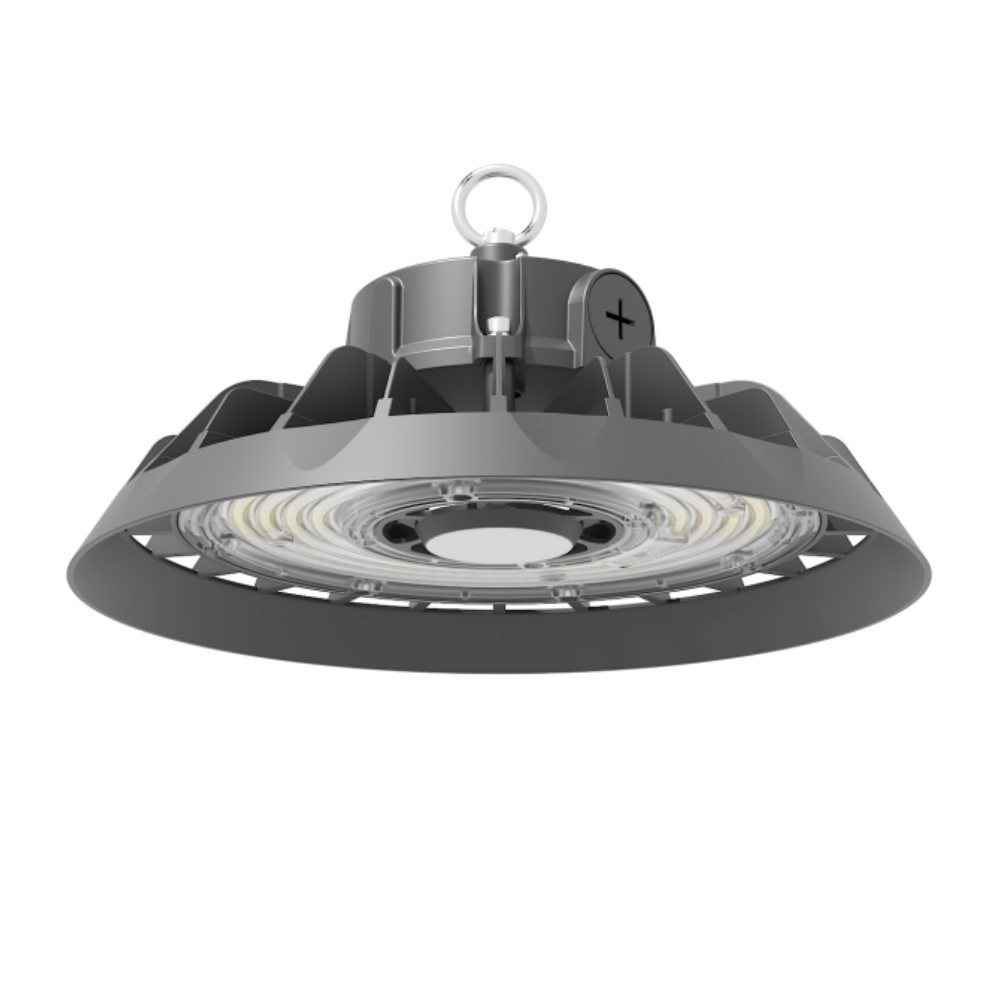

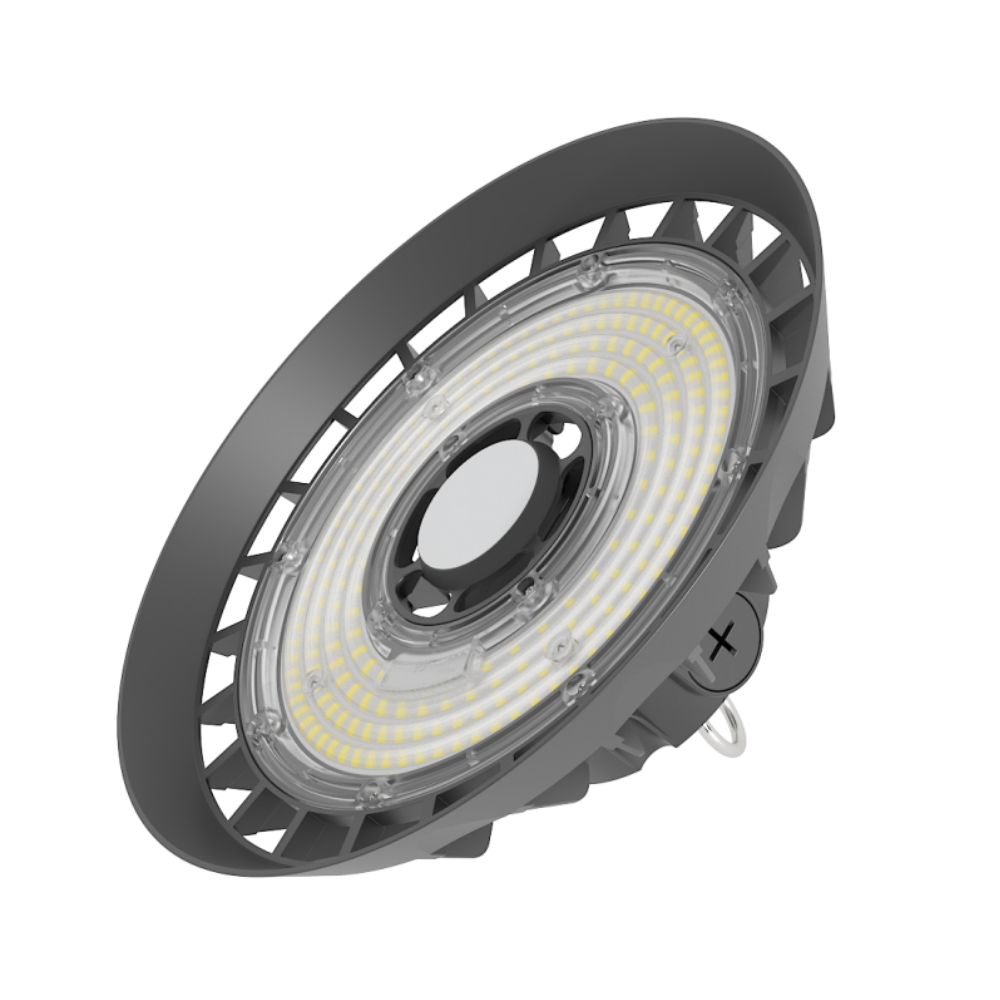

Elegant HB22 LED High Bay Light
HB22 High Bay Light with Tri‑Power & optional Motion Sensor
HB22 LED High Bay Light
Industrial Lighting for Warehouses & Manufacturing Facilities
Reliable LED high bay lighting engineered for demanding industrial environments.
The HB22 series delivers stable illumination, high efficiency, and long operational life for warehouses, factories, logistics centers, and production halls.
Designed for professional lighting projects and large-scale installations, the HB22 supports flexible power configurations and intelligent lighting control, helping reduce energy consumption and long-term maintenance costs.
● Standard Efficiency Configuration
Reliable Performance for Industrial Lighting Projects
The standard HB22 configuration is optimized for industrial warehouses and commercial facilities, offering balanced performance, energy efficiency, and installation flexibility.
Luminous Efficacy: 150 lm/W · 170 lm/W
Power Range: 100W – 240W
Power Adjustment: Selectable output for flexible installation
Lighting Control: 1–10V dimming
Protection Rating: IP65 ingress protection · IK08 impact resistance
This configuration is widely used for warehouse lighting upgrades, factory installations, and logistics facilities.

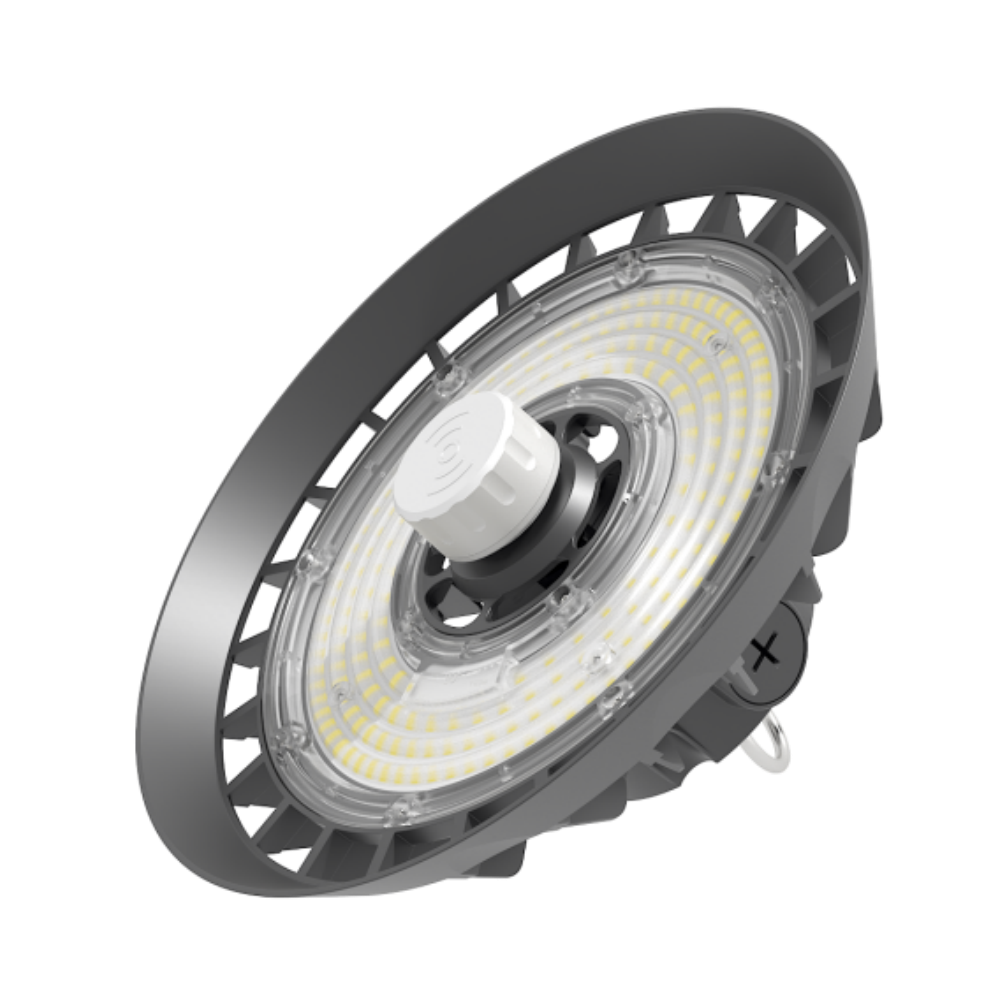

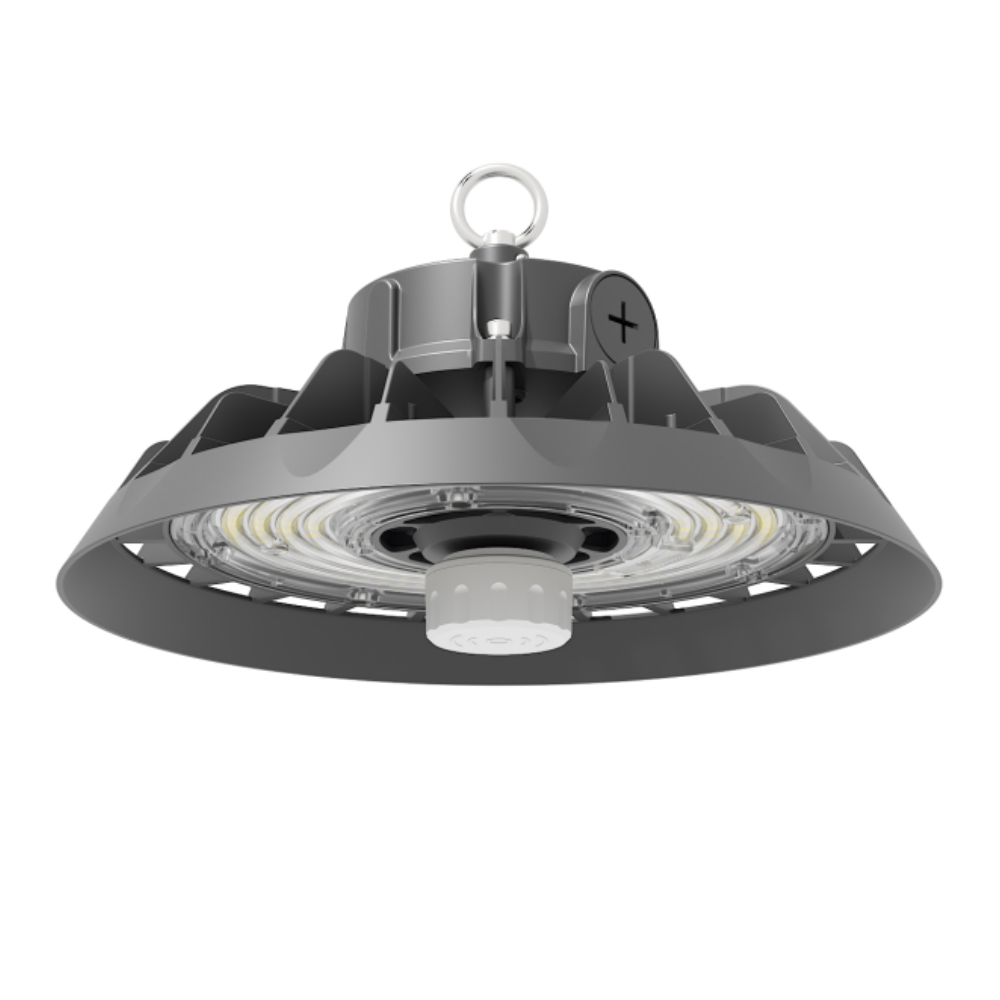

Equipped with a Zhaga base and 12V auxiliary power supply, allowing easy integration of optional sensors for smart and energy-efficient lighting control.
● High-Efficiency Configuration
Designed for EU Energy Retrofit Projects
For energy-efficient lighting upgrades in Europe, the HB22 LED High Bay is available in a high-efficacy configuration optimized for industrial retrofit projects and energy-saving programs.
Key Specifications
Power: 150W / 200W
Selectable Output: 100% / 80% / 60%
Luminous Efficacy: Up to 185 lm/W
Beam Angle: 90°
Control: 1–10V dimming · Zhaga scoket
Optional: Daylight sensor
Certifications: CE · RoHS · ERP compliant
This configuration is well suited for EU warehouse lighting retrofit projects and high-efficiency industrial lighting upgrades.
📩 Ready to Source LED High Bay Lights for Your Project or Wholesale Stock?
Contact iShineLux today for pricing, technical details, and bulk supply solutions.
⚙️ Why Choose iShineLux for LED High Bay Supply
Factory-Direct Pricing – No middlemen, better margins for distributors
Stable Project Supply – Reliable production for bulk orders and tenders
OEM Branding Support – Custom logo and packaging available
5-Year Warranty – Long-term reliability for industrial installations
Optional Accessories
Aluminum Reflector
Universal Bracket
Safety Steel Rope
Technical Specification
| Model No. | ISL-HB22-100W | ISL-HB22-150W | ISL-HB22-200W | ISL-HB22-240W |
| Power | 100W | 150W | 200W | 240W |
| Adjustable Power | 100W-80W-60W | 150W-120W-90W | 200W-160W-120W | 240W-200W-150W |
| Dimmension | ø270*158mm | ø270*158mm | ø295*162mm | ø315*165mm |
| Beam Angle | 60°/90°/120° | |||
| Input Voltage | 100-277VAC, 50/60Hz | |||
| Light Efficiency (±5%) | 150lm/W, 170lm/W | |||
| Color Temperature | 3000K/ 4000K/ 5000K/ 5700K/ 6500K | |||
| CRI | 70/ 80 | |||
| LED | Lumileds/ San’an | |||
| Driver | Philips/ Sosen/ ZH | |||
| Options | Microwave Sensor | |||
| Housing | Die-casting technology by ADC12 | |||
| IP Rating | IP65 | |||
| IK Rating | IK08 | |||
| Operation Temperature | ﹣35°C- +50°C | |||
| Lifespan | 50,000H | |||
| Warranty | 5Years | |||
