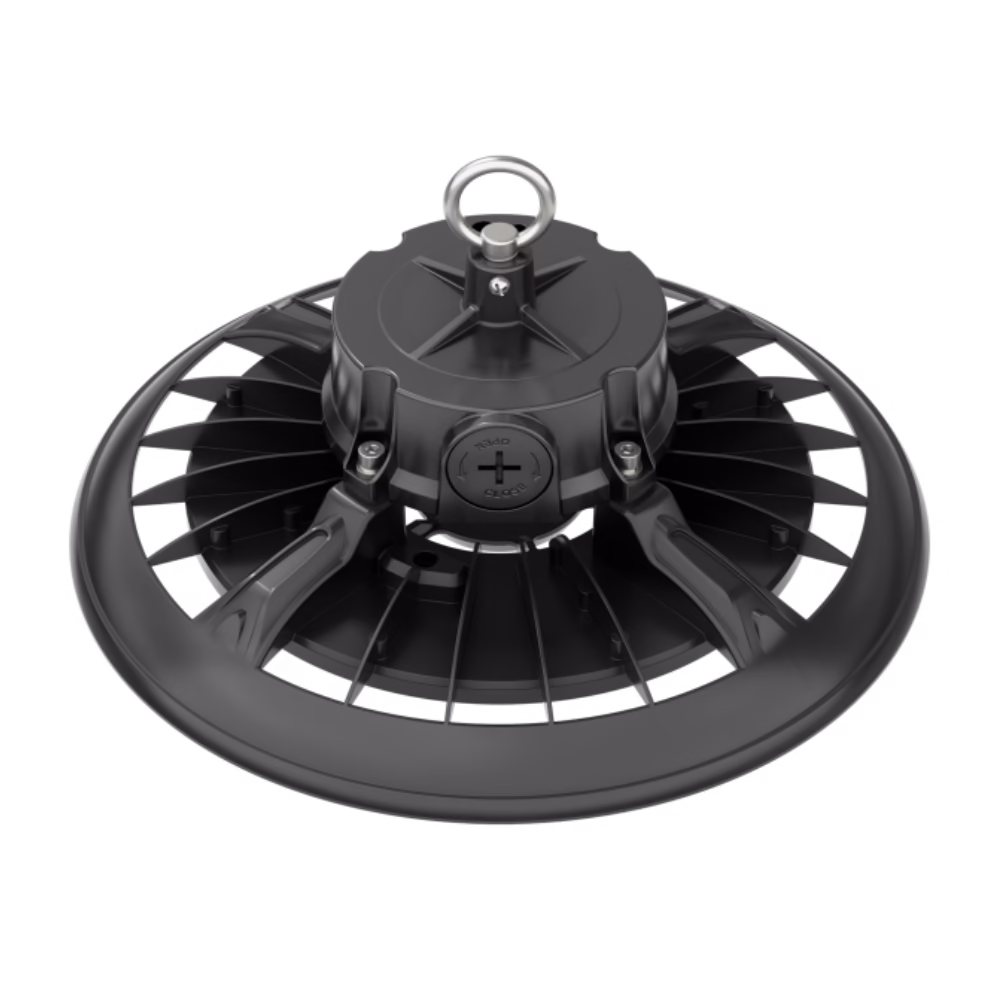

Elegant HB23 LED High Bay Light

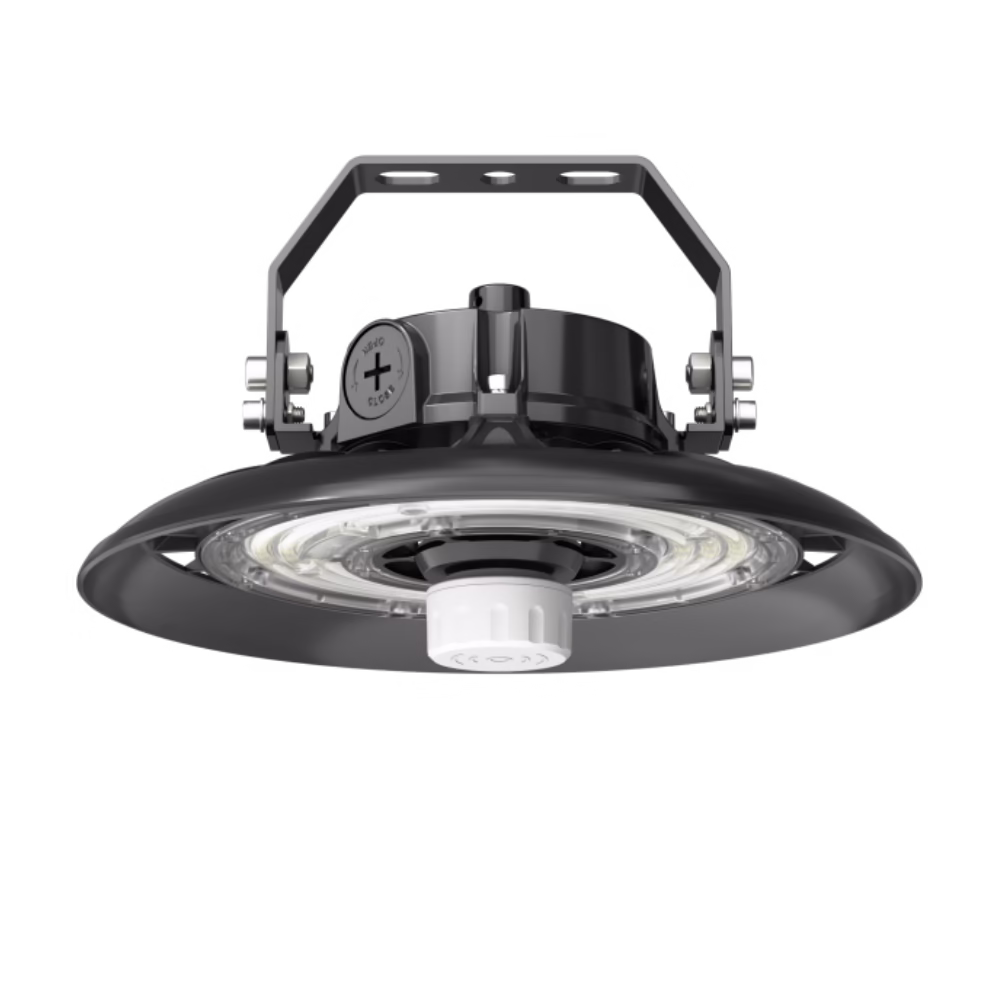

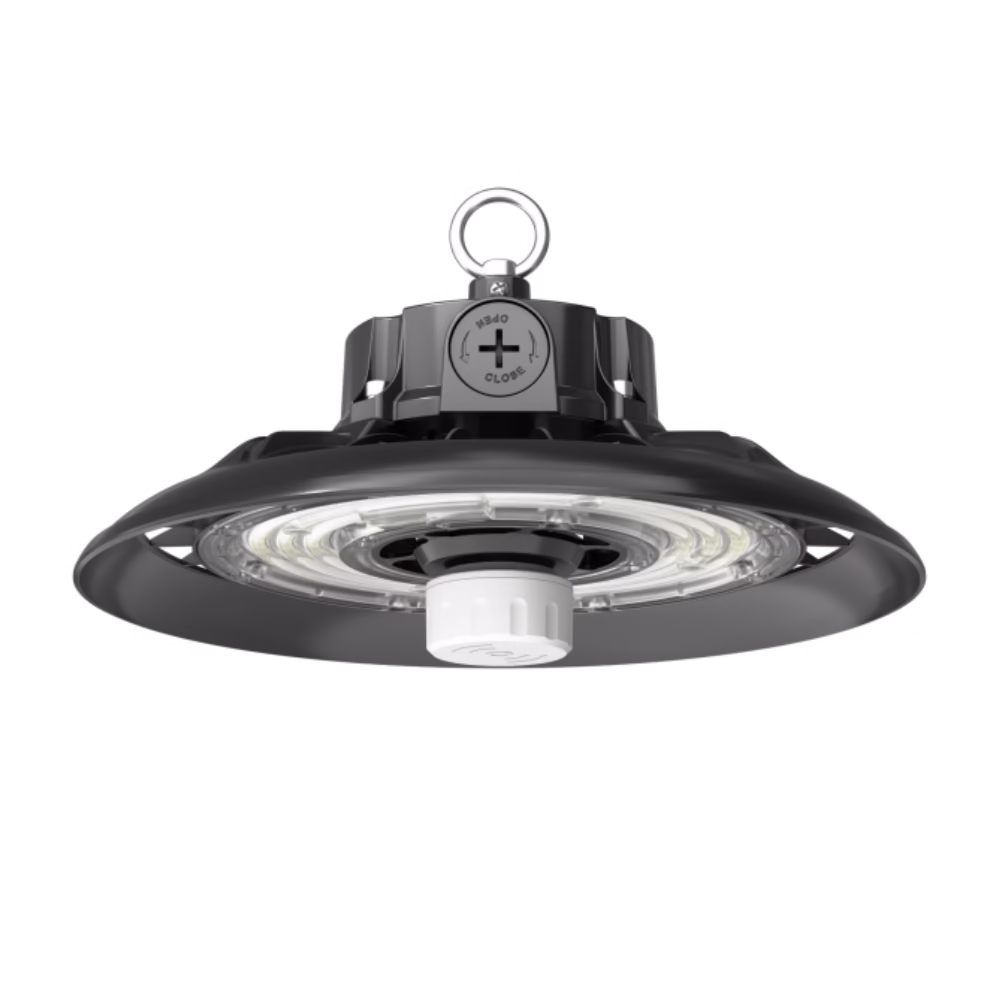

HB23 High Bay Light with Tri‑Power & optional Motion Sensor
HB23 LED High Bay Light for Industrial & Commercial Projects
Flexible Performance · Certified Quality · Built for Wholesale Supply
Designed for Warehouses & Industrial Facilities
The HB23 LED High Bay Light is engineered to deliver high brightness, energy efficiency, and stable performance for demanding indoor environments. Ideal for warehouses, factories, workshops, logistics centers, and commercial spaces, it provides uniform illumination and long service life — making it well suited for bulk procurement and project-based installations.
🔧 Performance Options
Solution 1: 130 lm/W · 3-Year Warranty
Solution 2: 150 lm/W · 5-Year Warranty
Solution 3: 170 lm/W · 5-Year Warranty
Solution 4: 185 lm/W · 5-Year Warranty
Multiple performance solutions allow distributors and contractors to balance cost, efficiency, and warranty requirements across different projects.
🔧 Key Features
Wide Power Range
Available in 100W–240W, suitable for various ceiling heights and lighting layouts.
High Luminous Efficiency
Delivers up to 185 lm/W, helping reduce energy consumption and operating costs.
Industrial-Grade Protection
Rated IP65 waterproof and IK08 impact-resistant, designed for harsh industrial conditions.
Custom Branding Support
Laser-engraved logo available to support distributor branding and OEM requirements.
Reliable Quality Assurance
Offered with 3-year or 5-year warranty options for long-term project reliability.

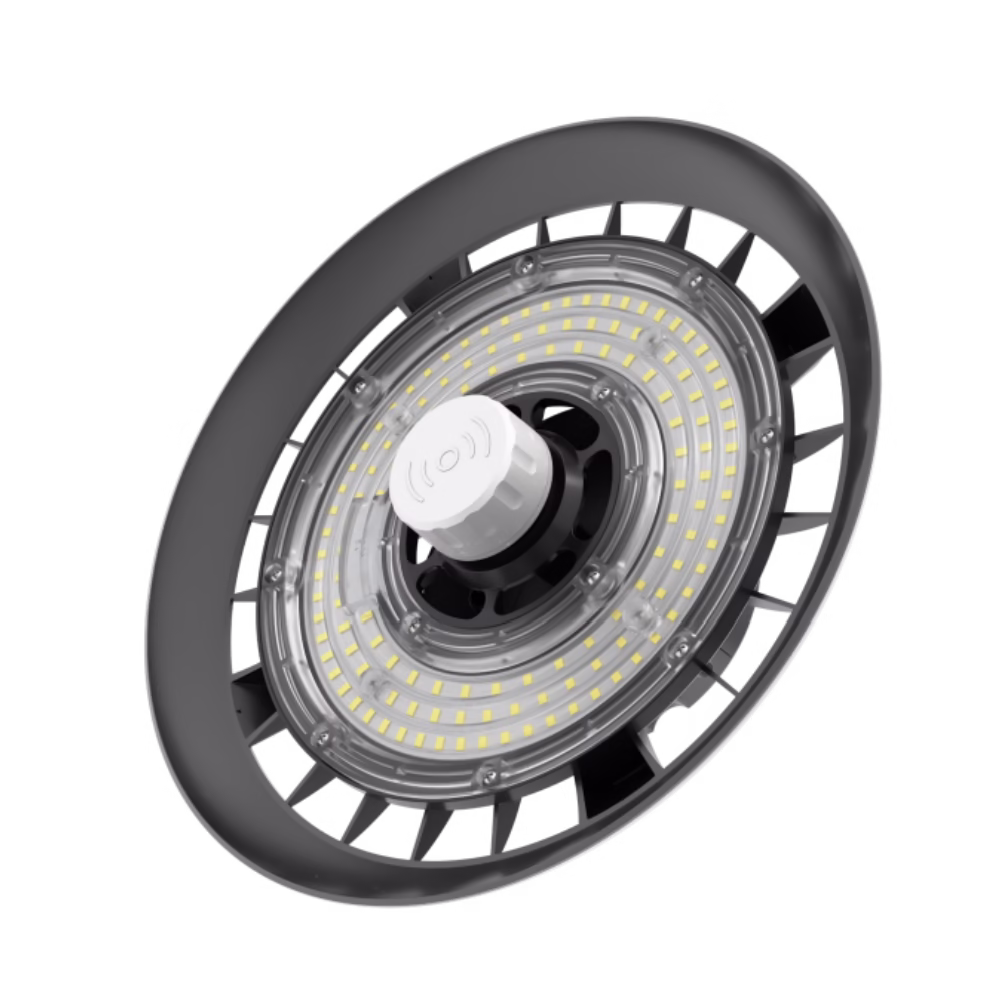

Equipped with a Zhaga base and 12V auxiliary power supply, allowing easy integration of optional sensors for smart and energy-efficient lighting control.
📩 Ready to Source LED High Bay Lights for Your Project or Wholesale Stock?
Contact iShineLux today for pricing, technical details, and bulk supply solutions.
⚙️ Why Choose iShineLux for Bulk LED High Bay Light Supply?
Factory-Direct Wholesale Pricing – No middlemen, better margins
Stable Supply for Projects – Reliable production for bulk and tender orders
OEM Branding Available – Custom logo and packaging support
3/5-Year Warranty – Long-term reliability for industrial installations
Optional Accessories

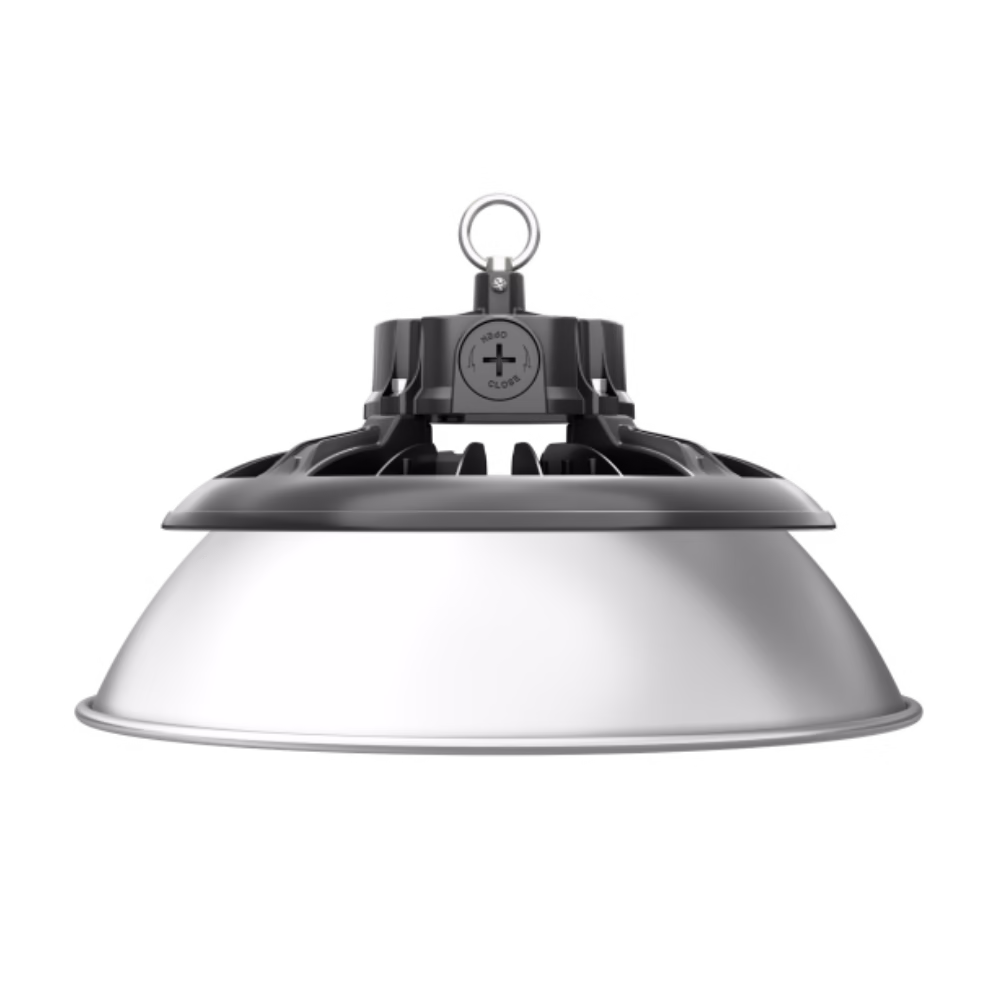

Aluminum Reflector

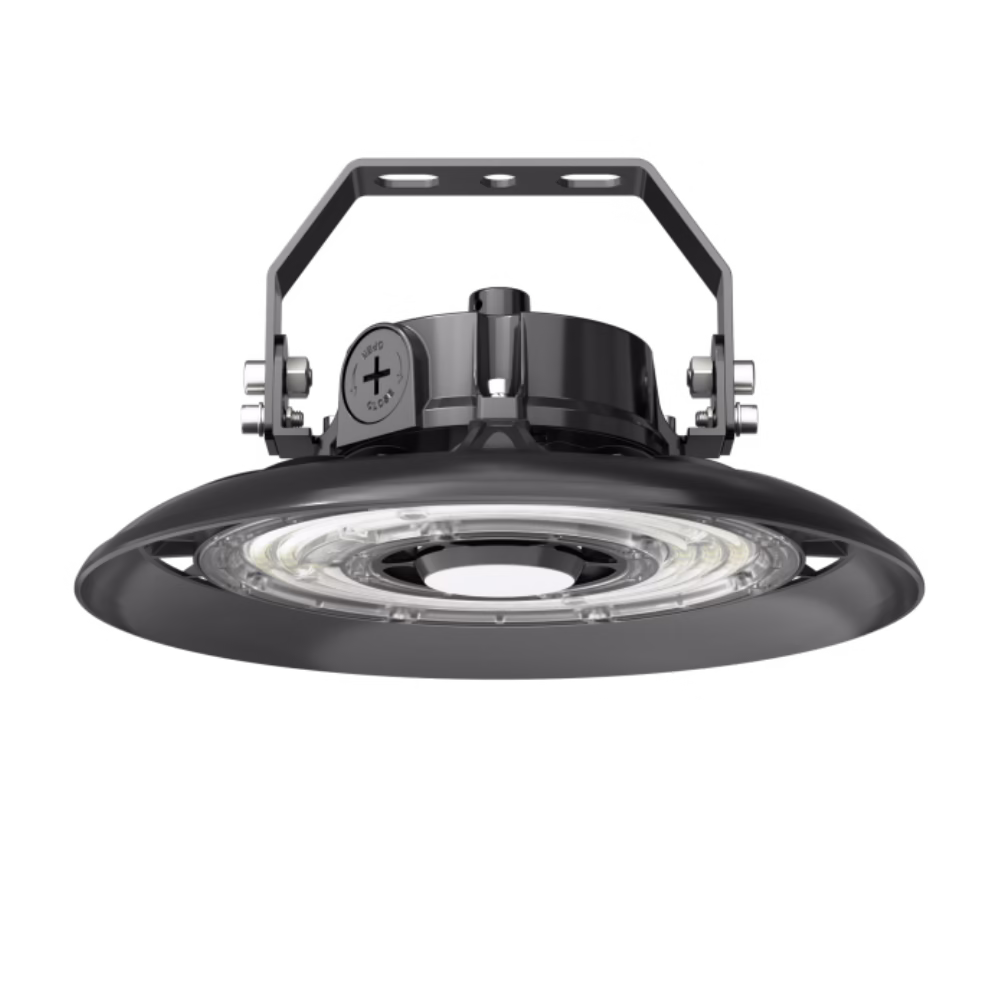

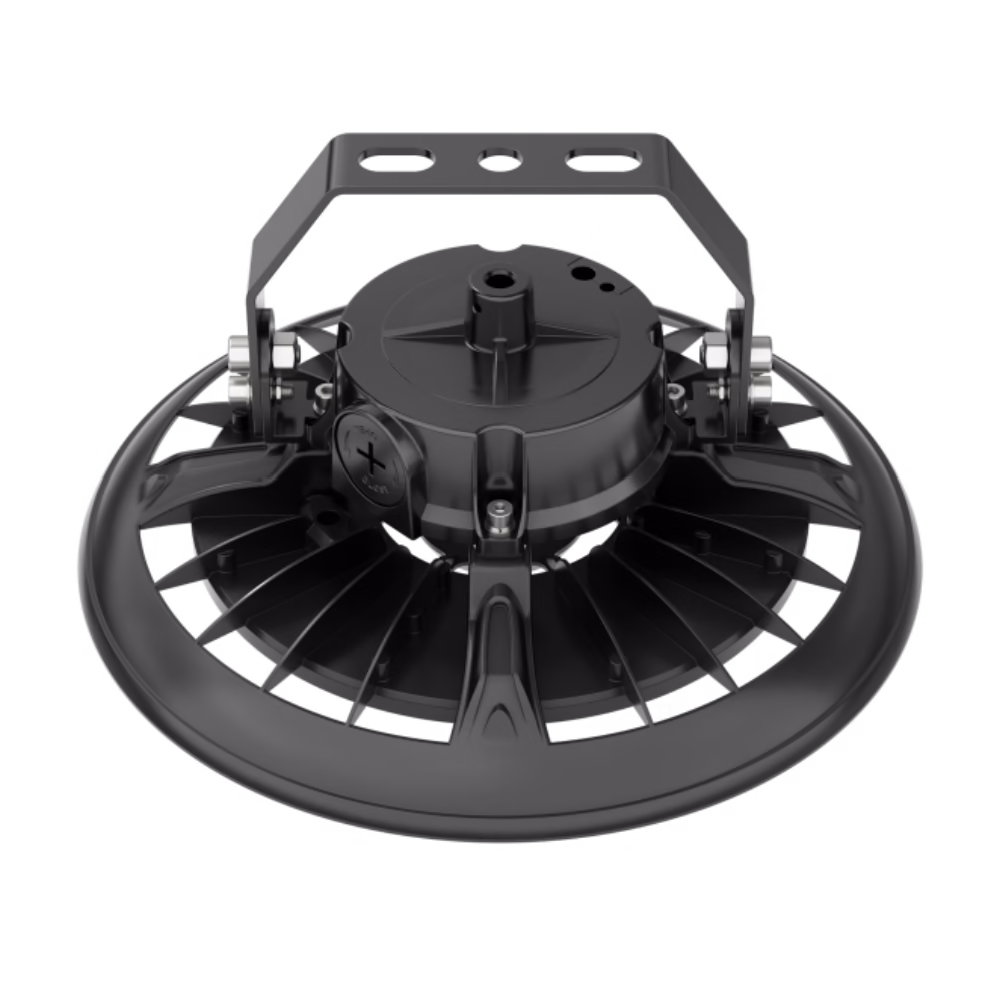

Universal Bracket
Safety Steel Rope
Technical Specification
| Model No. | ISL-HB23-100W | ISL-HB23-150W | ISL-HB23-200W | ISL-HB23-240W |
| Power | 100W | 150W | 200W | 240W |
| Dimmension | ø252*138mm | ø286*145mm | ø309*149mm | ø309*149mm |
| Input Voltage | AC220-240V, AC100-277V 50/60Hz | |||
| Light Efficiency (±5%) | 130lm/W, 150lm/W, 170lm/W, 185lm/W | |||
| Color Temperature | 3000K/ 4000K/ 5000K/ 5700K/ 6500K | |||
| CRI | 70/ 80 | |||
| Beam Angle | 60°/90°/120° | |||
| LED | Lumileds/ San’an | |||
| Driver | Philips/ Sosen/ ZH | |||
| Options | Microwave Sensor | |||
| Housing | Die-casting technology by ADC12 | |||
| IP Rating | IP65 | |||
| IK Rating | IK08 | |||
| Operation Temperature | ﹣35°C- +50°C | |||
| Lifespan | 50,000H | |||
| Warranty | 3/ 5Years | |||
