Elegant HB24 LED High Bay Light
Tri-Power, Tri-CCT & Motion Sensor Optional
LED High Bay Light 60W–240W | Industrial Warehouse Lighting
High Efficiency · Adjustable Options · Bulk Supply Ready
The HB24 LED High Bay Light is designed for warehouse lighting, factory lighting, workshop lighting, and logistics center applications. It provides bright, uniform illumination with stable performance for industrial and commercial use.
Suitable for B2B projects and wholesale supply, the HB24 offers flexible efficiency and configuration options to meet different project needs while helping reduce energy and operating costs.
Key Specifications
- Power Range: 60W–240W
- Efficiency: 150 / 170 / 190 lm/W
- Adjustable Option: Tri-Power & Tri-CCT available
- Warranty: 5 Years
Key Features
● High Efficiency Lighting
Up to 190 lm/W for lower energy consumption.
● Flexible Power & CCT Options
One model covers multiple wattages and color temperatures.
● Reliable Industrial Use
Stable performance for long working hours in warehouses and factories.
● Cost-Effective Solution
Reduces inventory, energy use, and maintenance costs.

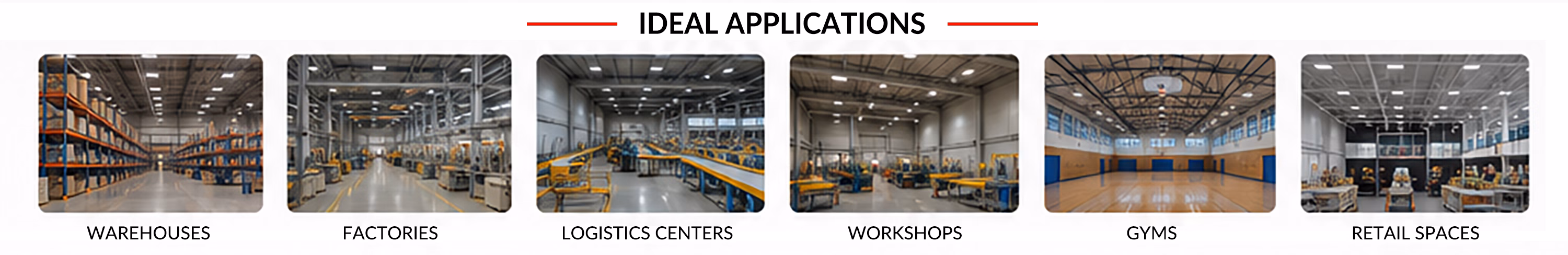

Applications
Warehouse Lighting · Factory Lighting · Workshop Lighting · Logistics Centers · Industrial Facilities
📩 Ready to Source LED High Bay Lights for Your Project or Wholesale Stock?
Contact iShineLux today for pricing, technical details, and bulk supply solutions.
Why Choose iShineLux for LED High Bay Supply
Factory-Direct Pricing – No middlemen, better margins for distributors
Stable Project Supply – Reliable production for bulk orders and tenders
OEM Branding Support – Custom logo and packaging available
5-Year Warranty – Long-term reliability for industrial installations
Optional Accessories
Aluminum Reflector
Universal Bracket
Safety Steel Rope
Technical Specification
| Model No. | ISL-HB24-60W | ISL-HB24-100W | ISL-HB24-150W | ISL-HB24-200W | ISL-HB24-240W |
| Power | 60W | 100W | 150W | 200W | 240W |
| Dimmension | ø245*156mm | ø270*162mm | ø302*167mm | ø332*173mm | ø332*173mm |
| Input Voltage | AC100-277V 50/60Hz | ||||
| Light Efficiency (±5%) | 150lm/W, 170lm/W, 190lm/W | ||||
| Color Temperature | 3000K/ 4000K/ 5000K/ 5700K/ 6500K, 3-CCT | ||||
| CRI | 80 | ||||
| Beam Angle | 60°/90°/120° | ||||
| LED | Lumileds/ San’an | ||||
| Driver | Philips/ Sosen/ ZH | ||||
| Options | Microwave Sensor | ||||
| Housing | Die-casting technology by ADC12 | ||||
| IP Rating | IP65 | ||||
| IK Rating | IK08 | ||||
| Operation Temperature | ﹣35°C- +50°C | ||||
| Lifespan | 50,000H | ||||
| Warranty | 5Years | ||||
