Legend SL02 LED Street Light
SL02 LED Street Light
Tool-Free Street Light for Road & Municipal Projects

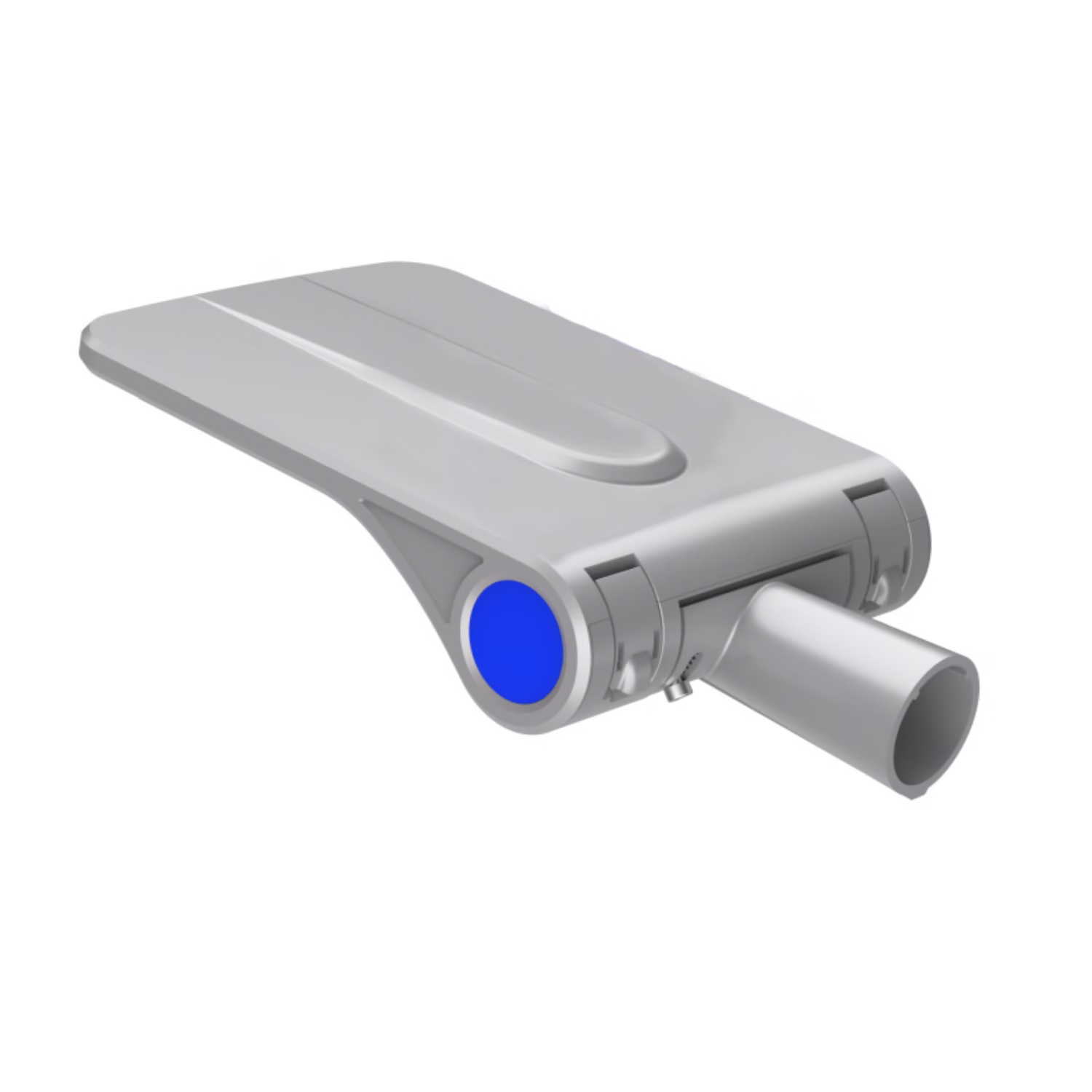

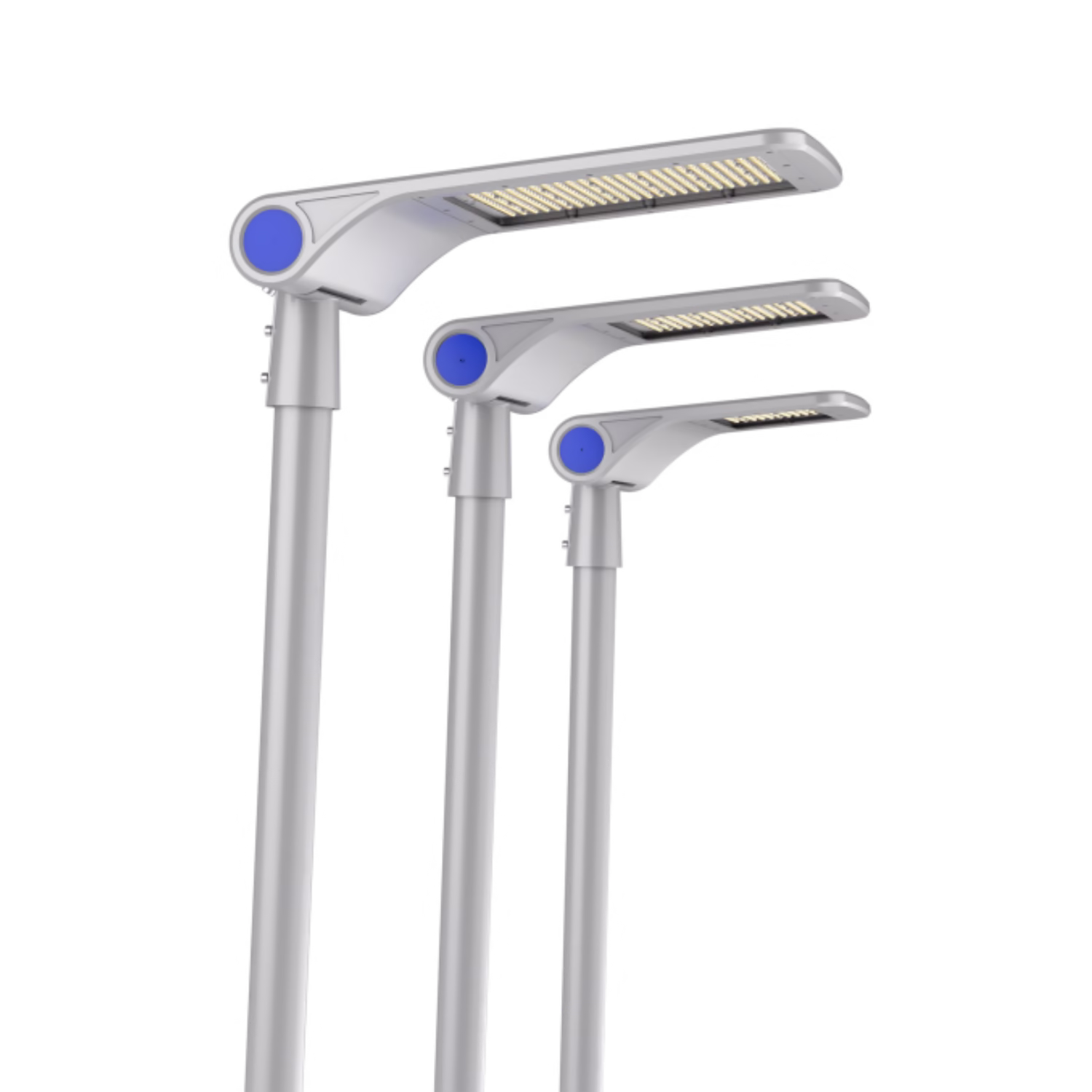

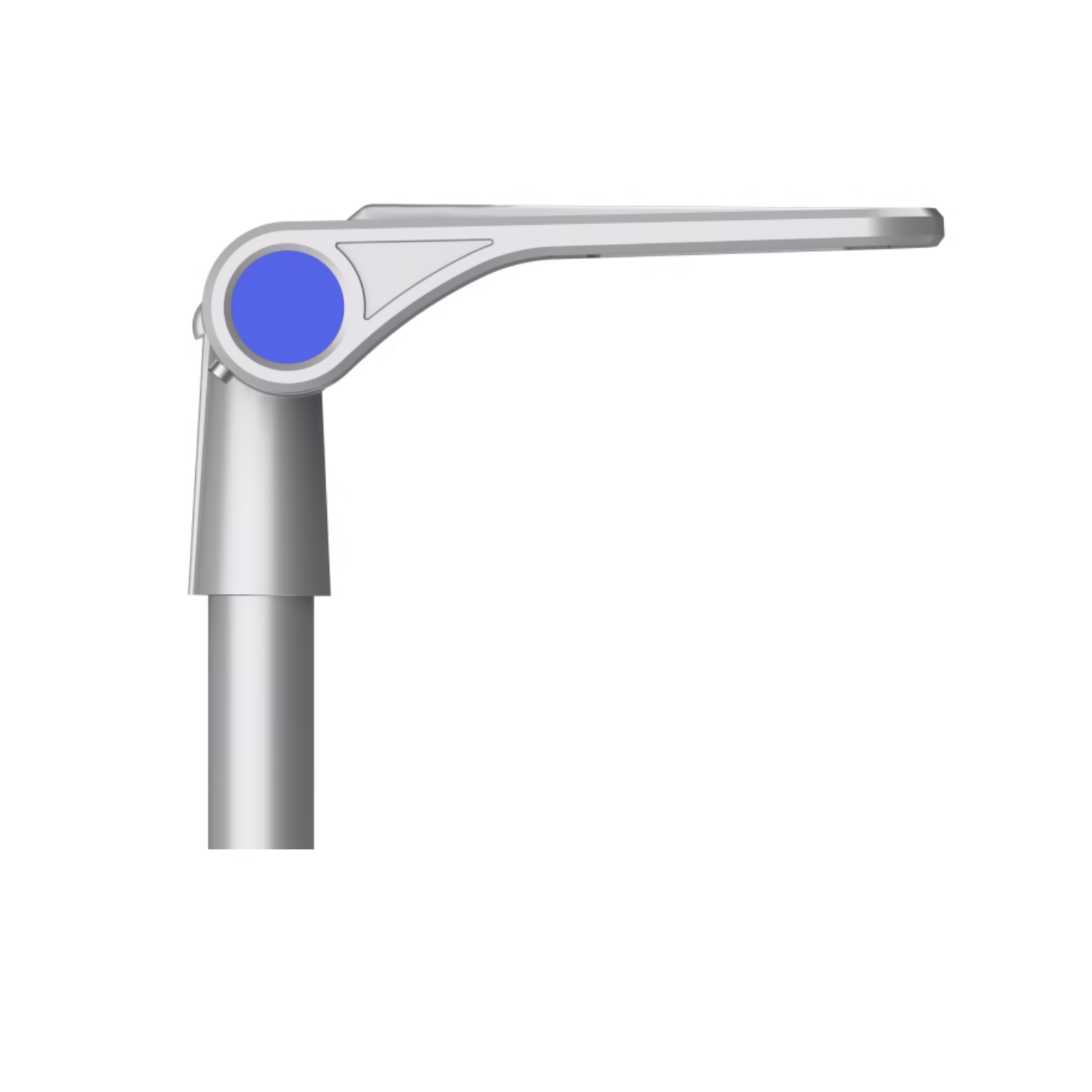

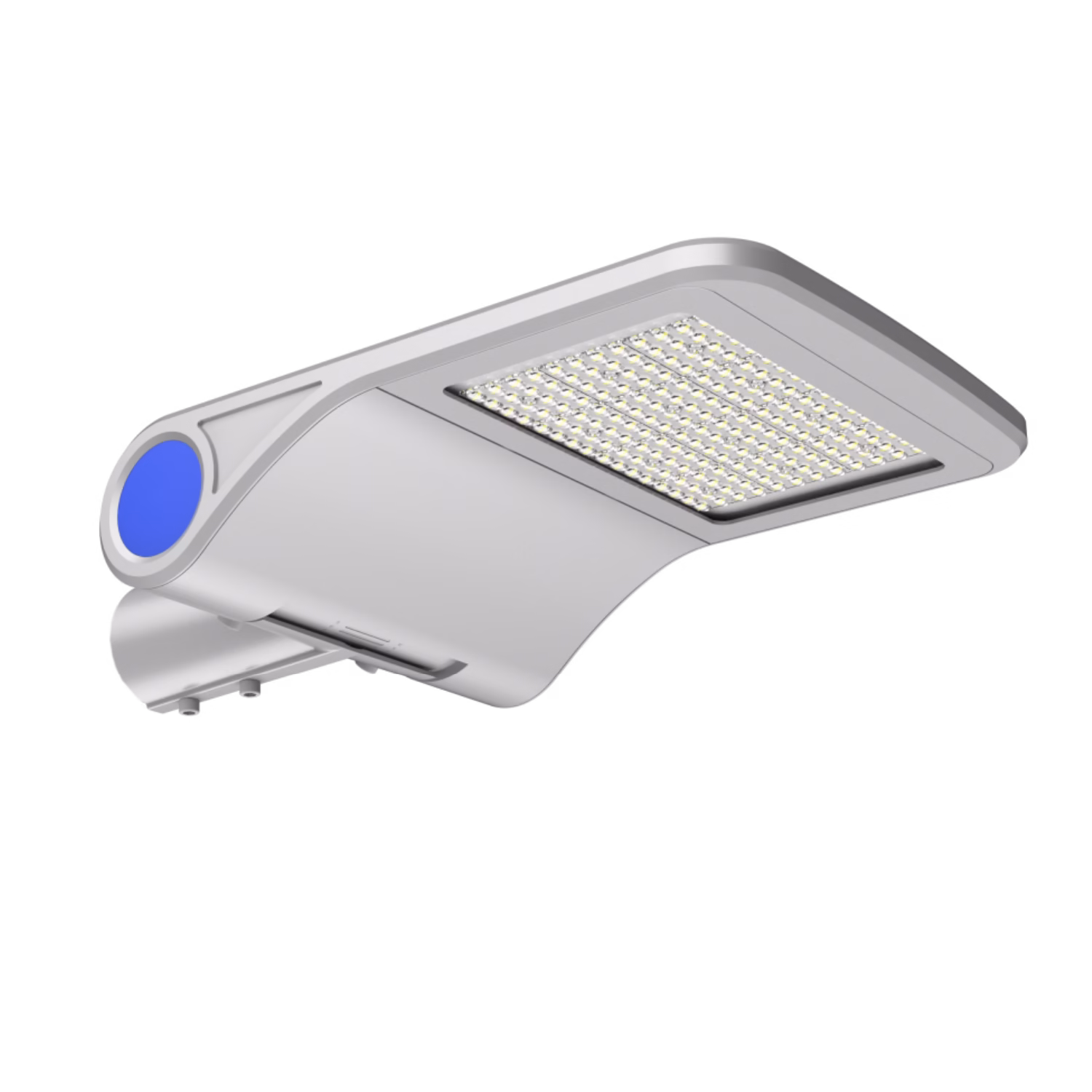

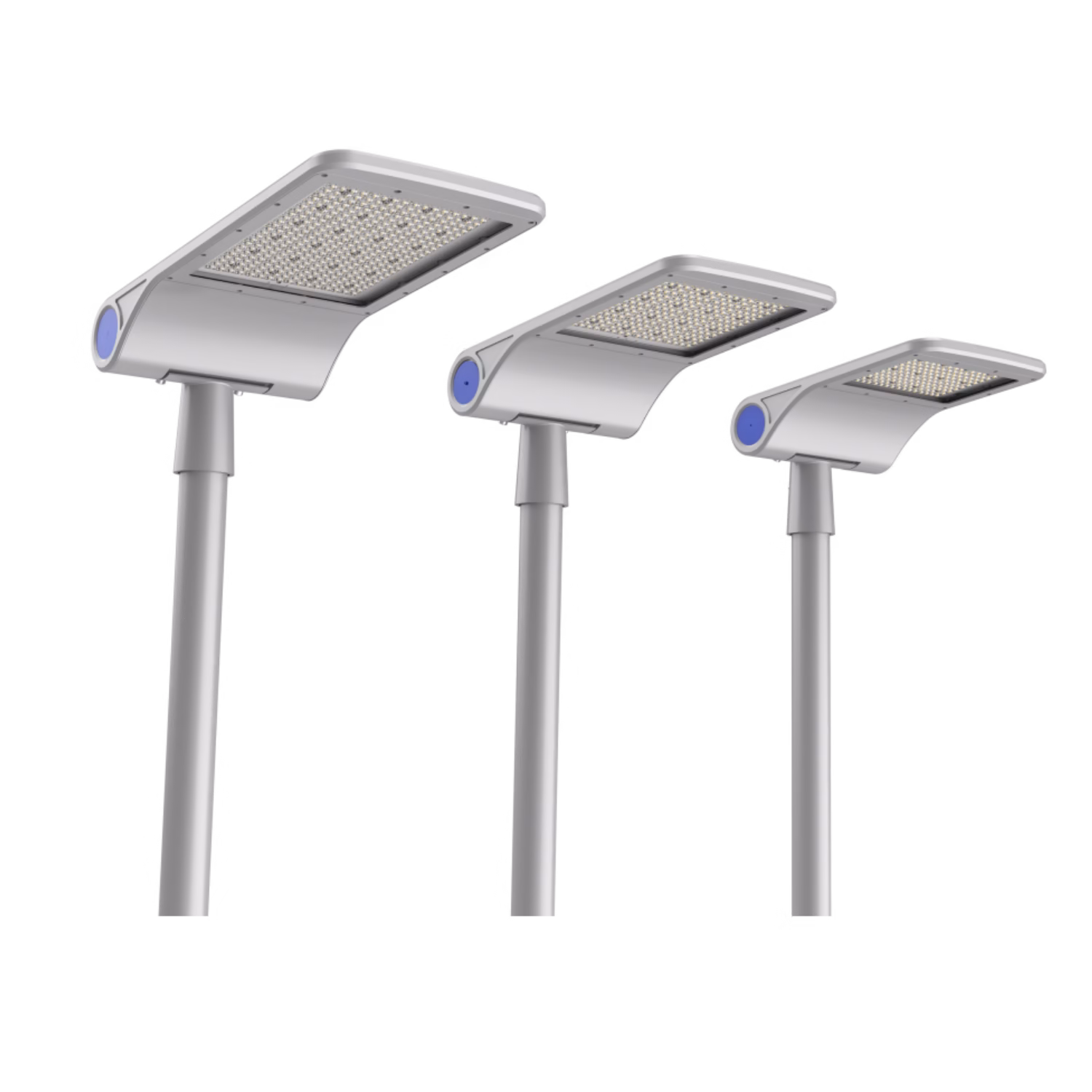

The SL02 LED Street Light is designed for roads, highways, parking lots, residential streets, and public lighting projects. With a smooth housing design, tempered glass cover, and tool-free opening structure, it provides reliable outdoor lighting with easy maintenance.
Key Specifications
● Power Range: 30W–240W
● Light Efficiency: Up to 140 lm/W
● Photocell Optional: Auto on/off control for better energy saving
● Installation: Post-top & Side-entry
● Maintenance: Tool-free opening with dual clips
● Protection: IP66 & IK08
● Warranty: 5 Years
Key Advantages
- Easy Maintenance. Tool-free design helps reduce maintenance time and labor cost.
- Suitable for Coastal Areas. Tempered glass cover offers better UV and corrosion resistance.
- Clean Housing Design. Smooth back cover helps reduce dust and water buildup.
- Flexible Installation. Adjustable angle supports different road lighting needs.
Applications
Urban Roads · Residential Streets · Parking Lots · Pathways · Public Areas · Municipal Lighting Projects
📩 Ready to Source LED Street Lights for Your Project or Wholesale Supply?
Contact iShineLux today for pricing, technical specifications, and bulk street lighting solutions.
Technical Specification
| Model No. | ISL-LD-B30W | ISL-LD-B50W | ISL-LD-B60W | ISL-LD-B80W | ISL-LD-B100W | ISL-LD-B120W | ISL-LD-B150W | ISL-LD-B180W | ISL-LD-B200W | ISL-LD-B240W |
| Power | 30W | 50W | 60W | 80W | 100W | 120W | 150W | 180W | 200W | 240W |
| Dimmension | 428*208*94mm | 519*297*111mm | 610*297*111mm | 700*297*111mm | ||||||
| Input Voltage | 100-277VAC, 50/60Hz | |||||||||
| Light Efficiency (±5%) | 140lm/W | |||||||||
| CCT | 3000K/ 4000K/ 5000K/ 5700K/ 6500K | |||||||||
| CRI | 80 | |||||||||
| Beam Angle | T2-M/ T3-M | |||||||||
| LED | Lumileds | |||||||||
| Driver | Meanwell/ Sosen | |||||||||
| Options | Photocell | |||||||||
| Housing | Die-casting technology by ADC12 | |||||||||
| IP Rating | IP66 | |||||||||
| IK Rating | IK08 | |||||||||
| Operation Temperature | ﹣35°C- +50°C | |||||||||
| Lifespan | 50,000H | |||||||||
| Warranty | 5Years | |||||||||
