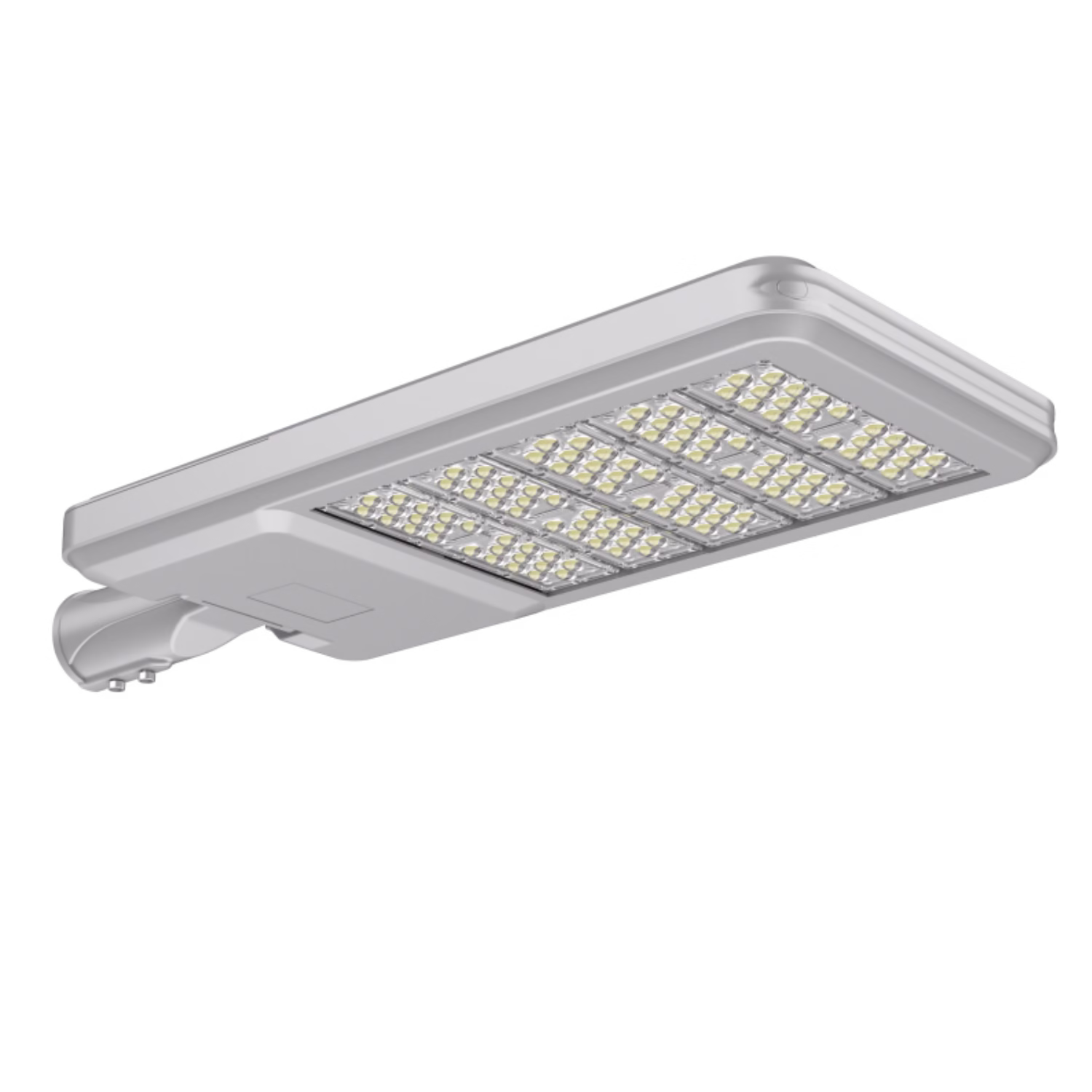

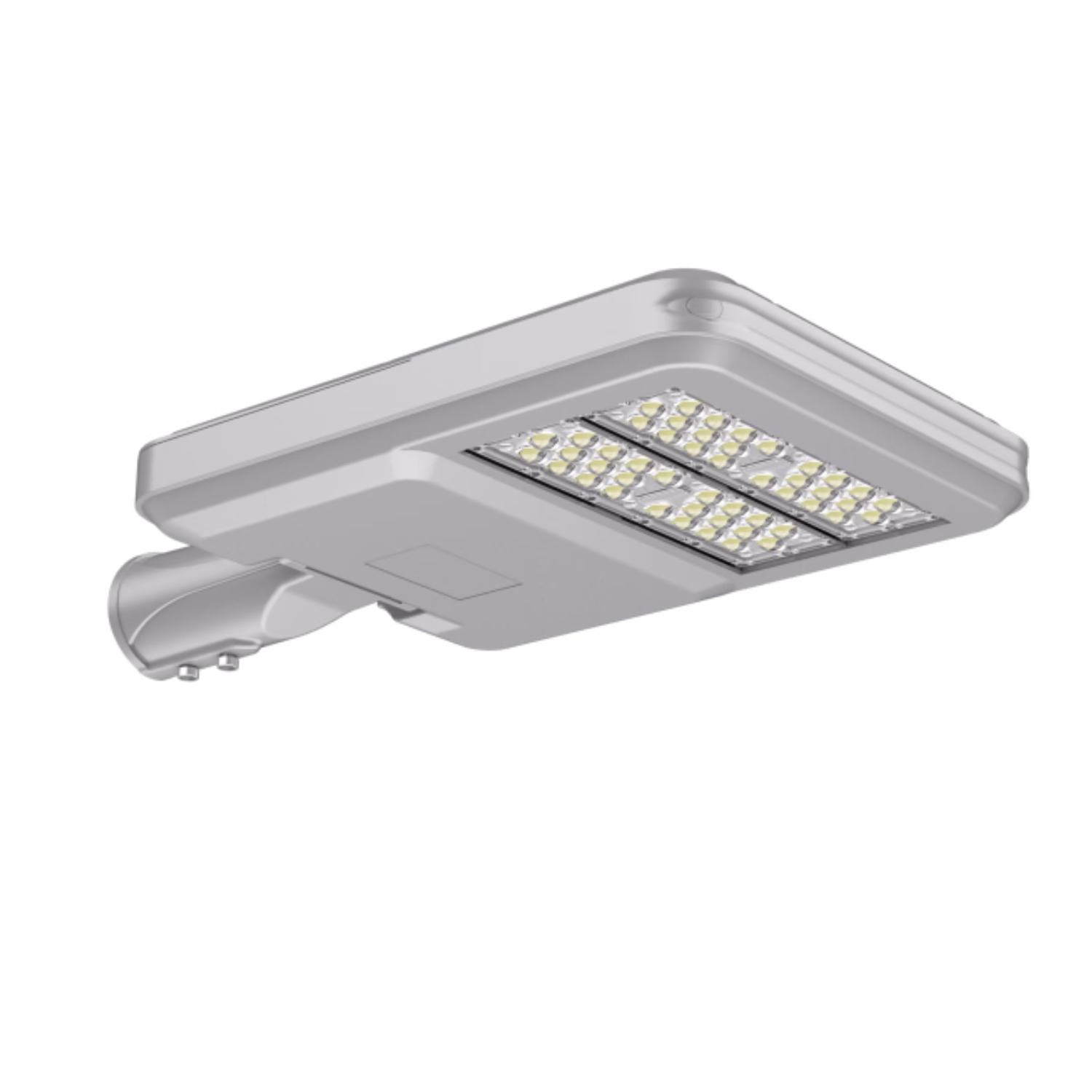

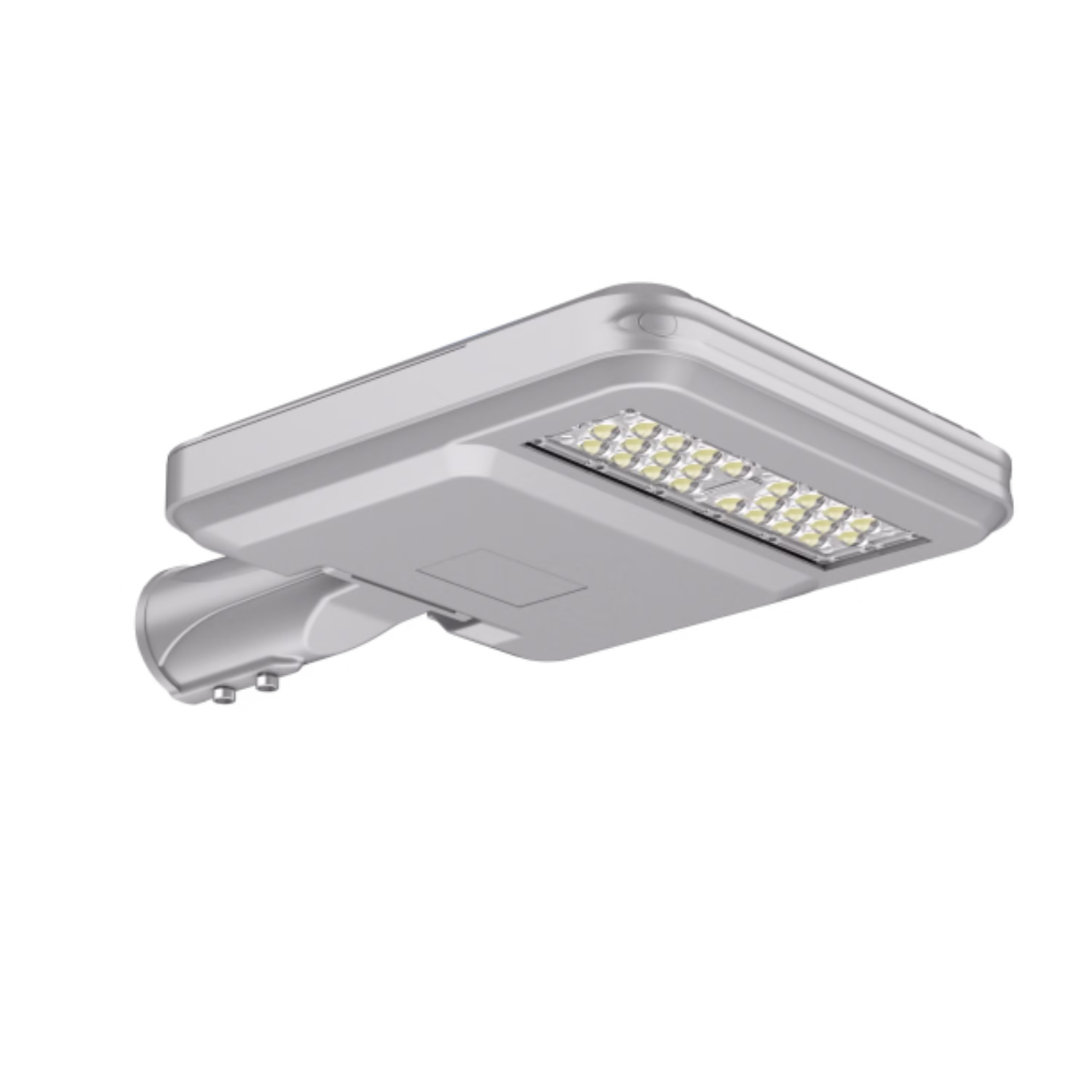

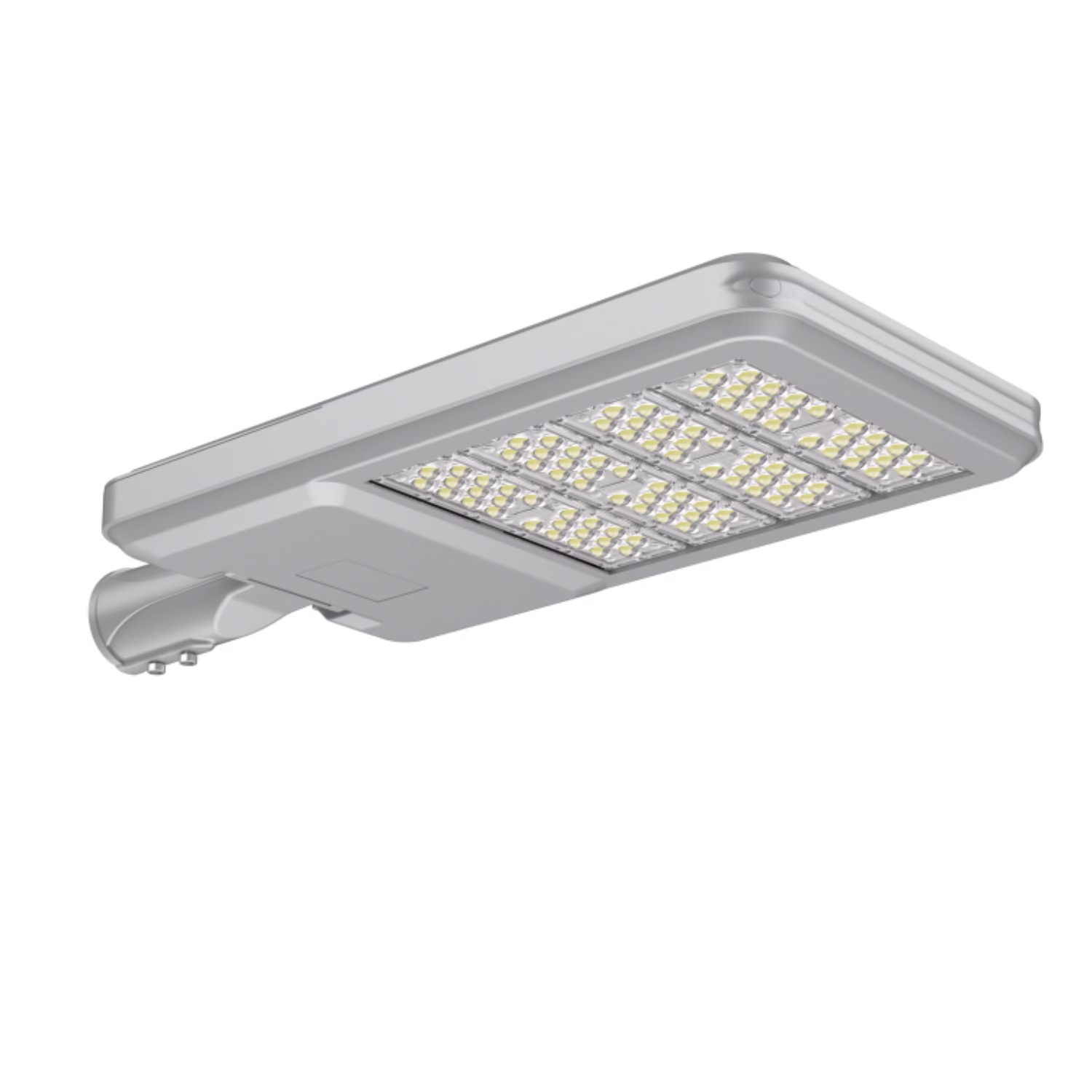

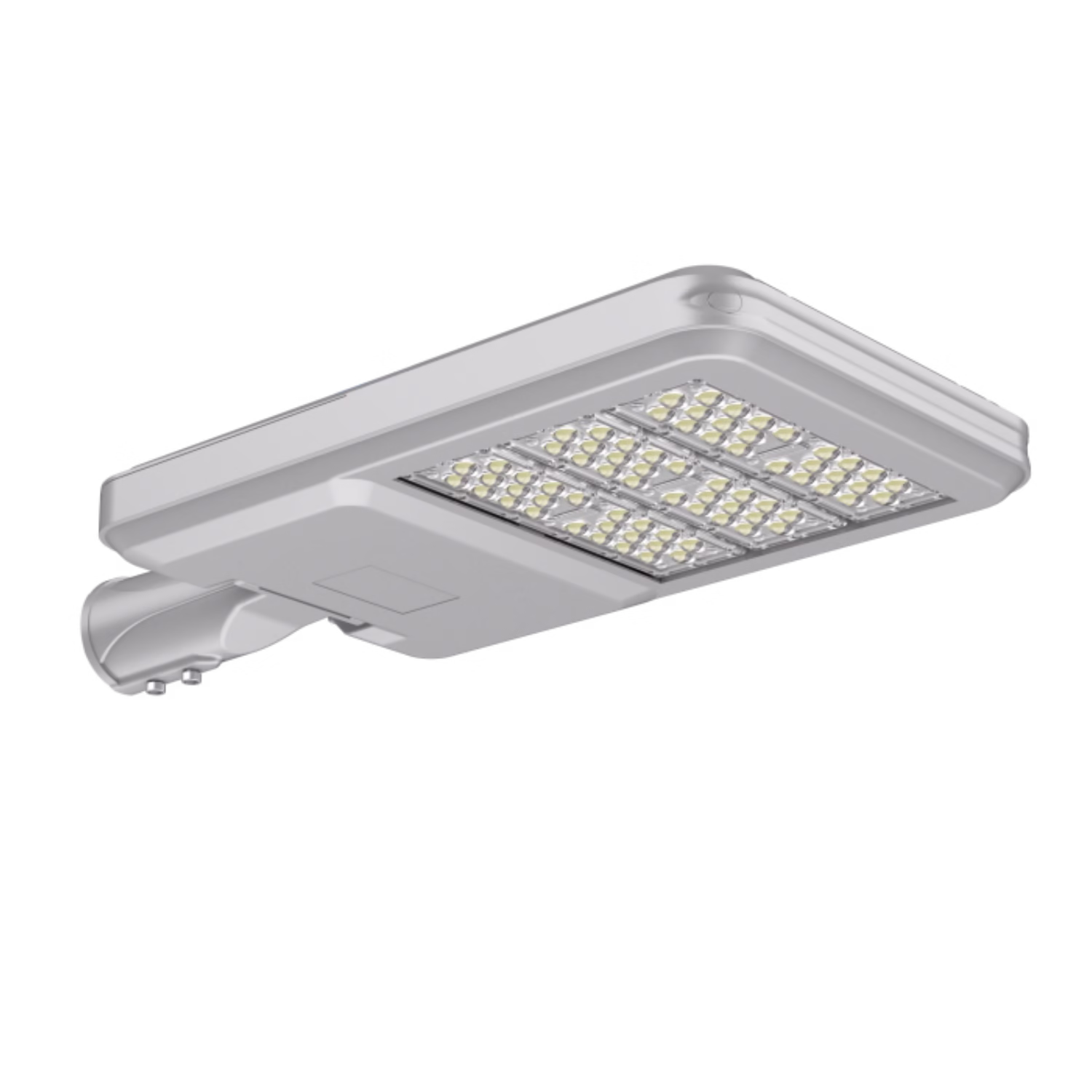

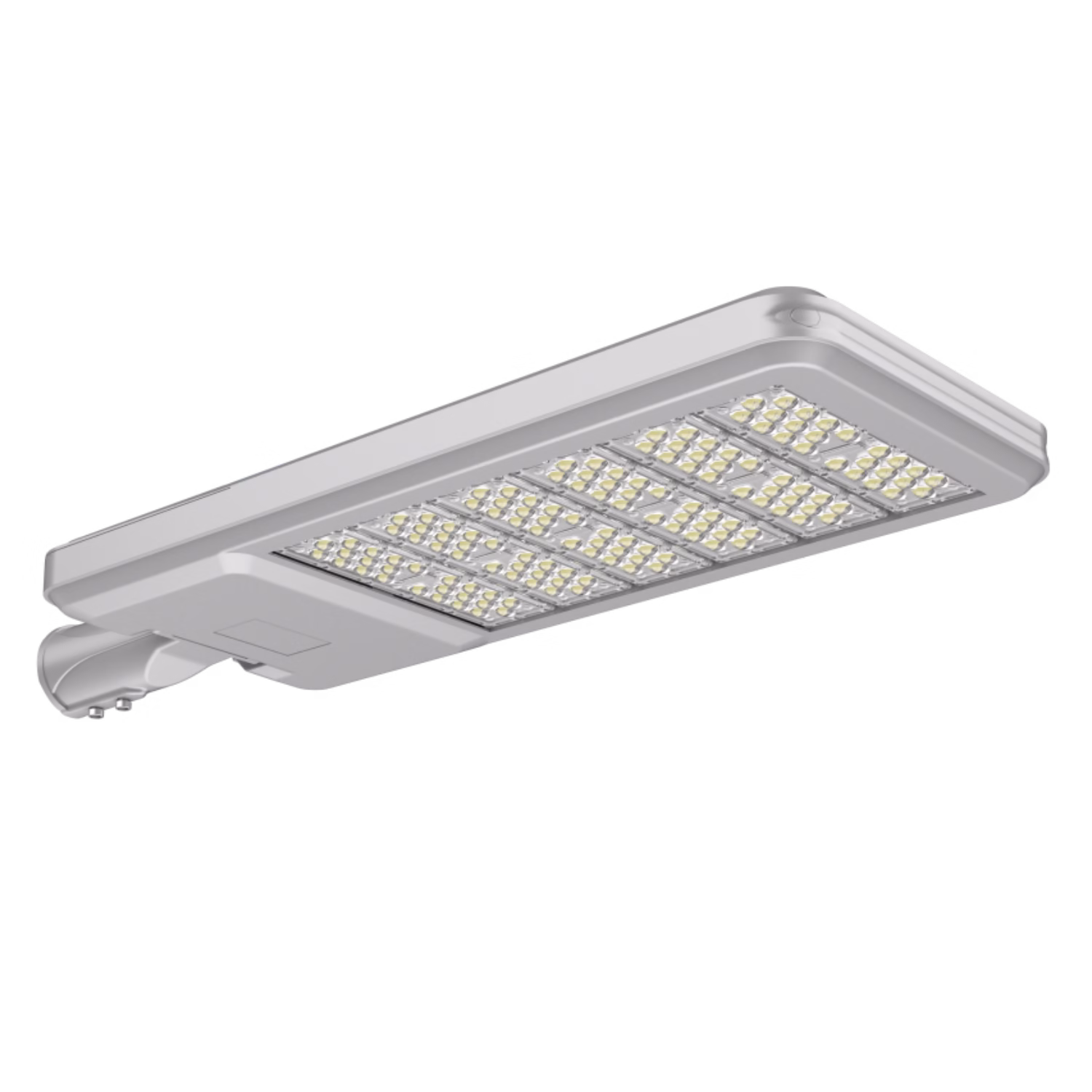

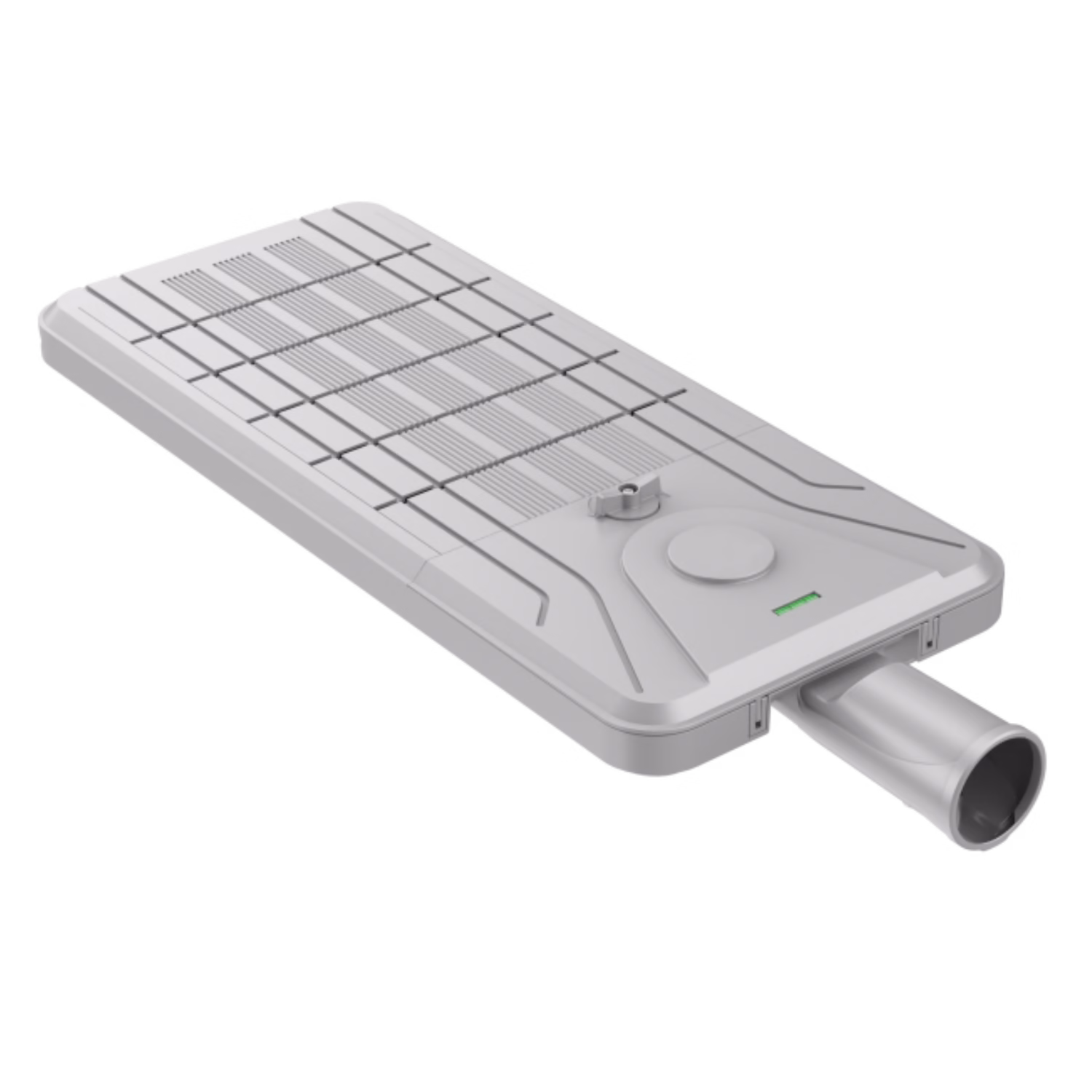

Legend SL03 LED Street Light
SL03 LED Street Light

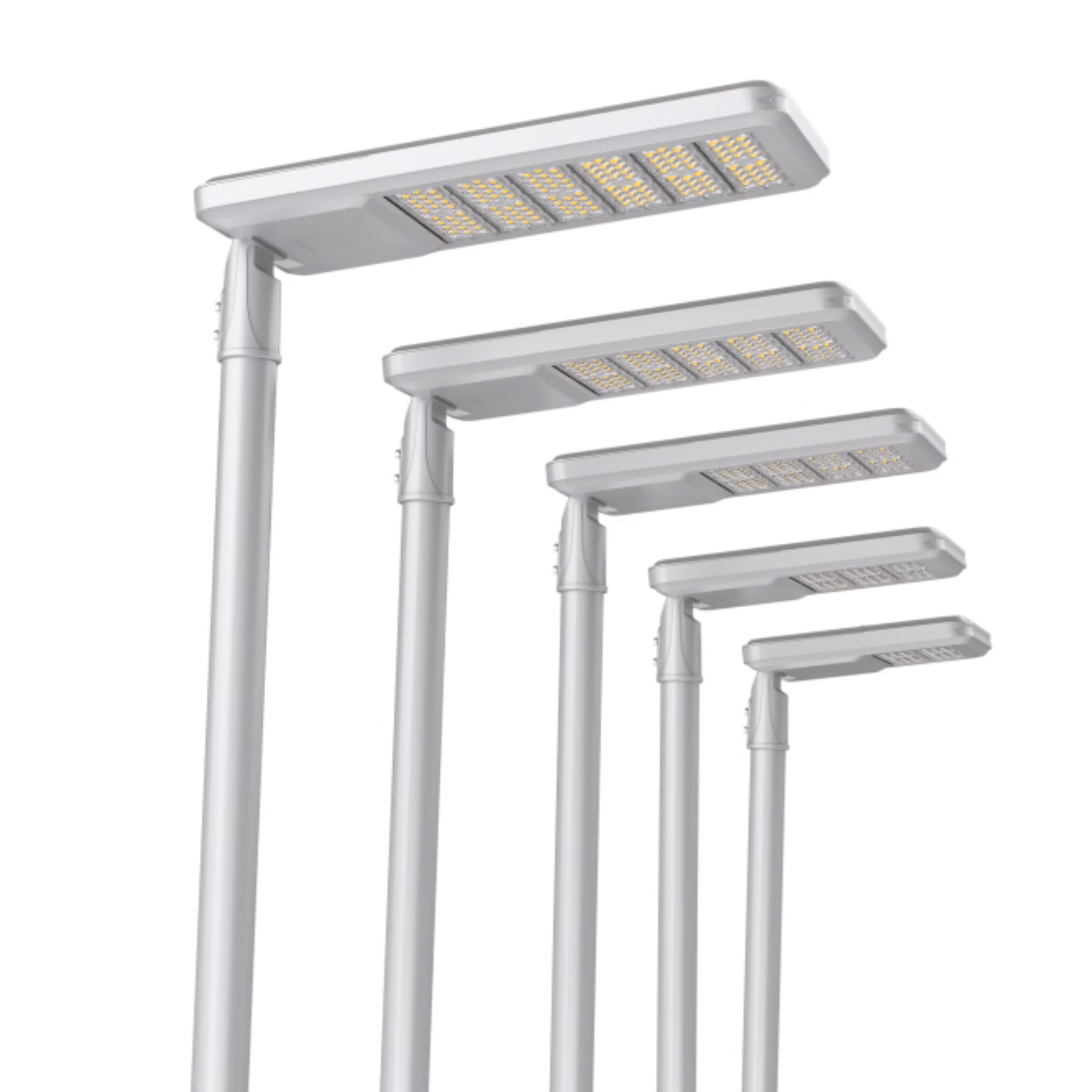

Modular Street Light for Easy Maintenance & Flexible Projects
The SL03 LED Street Light is designed for roads, highways, parking lots, urban streets, and municipal lighting projects. Featuring a modular structure and tool-less design, it provides easier maintenance, flexible configuration, and reliable outdoor performance for long-term roadway applications.
Available in 50W–360W with up to 140 lm/W efficiency, the SL03 is suitable for distributors, contractors, and city lighting upgrades requiring scalable and practical street lighting solutions.
Key Specifications
● Power Range: 50W–360W
● Light Efficiency: Up to 140 lm/W

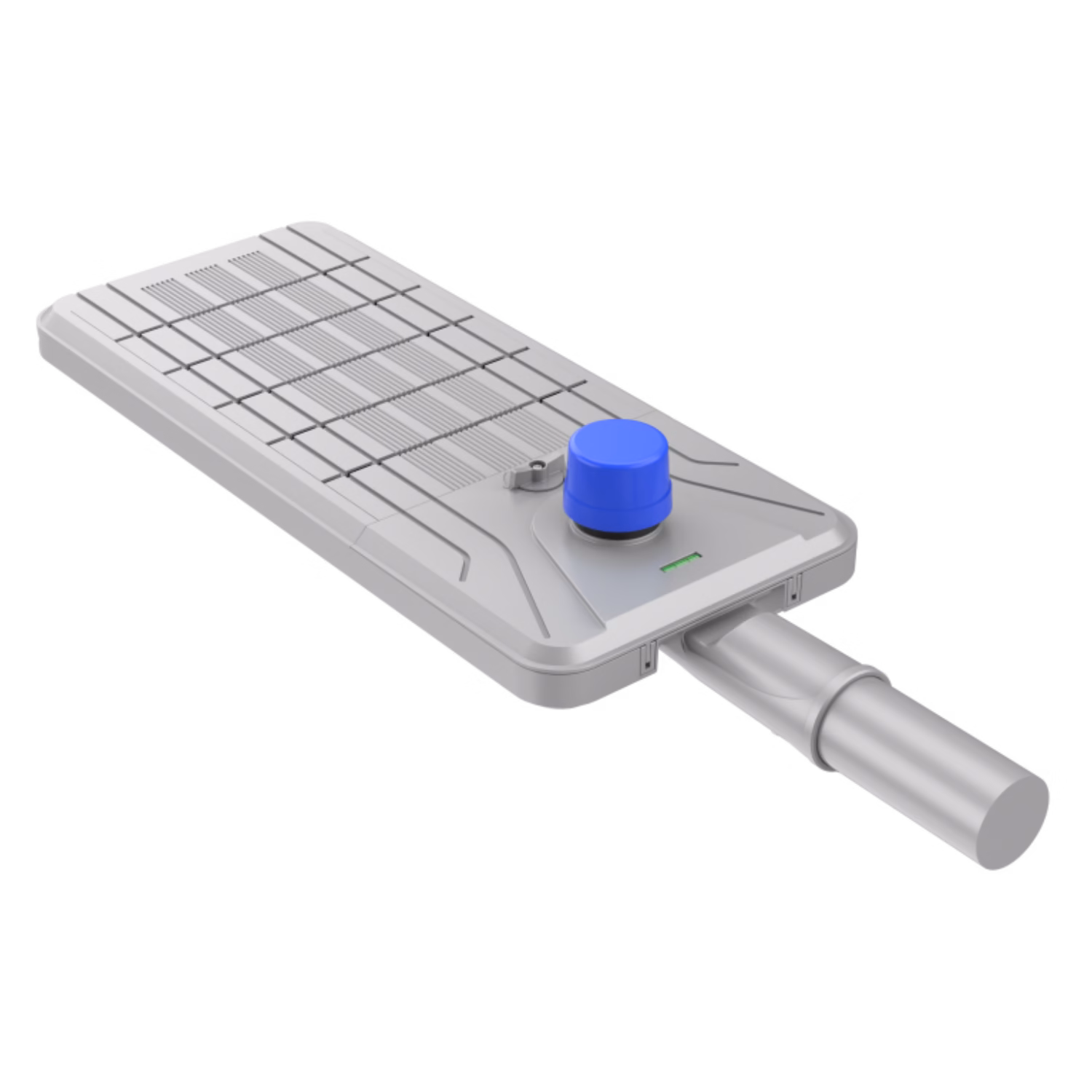

● Photocell Optional

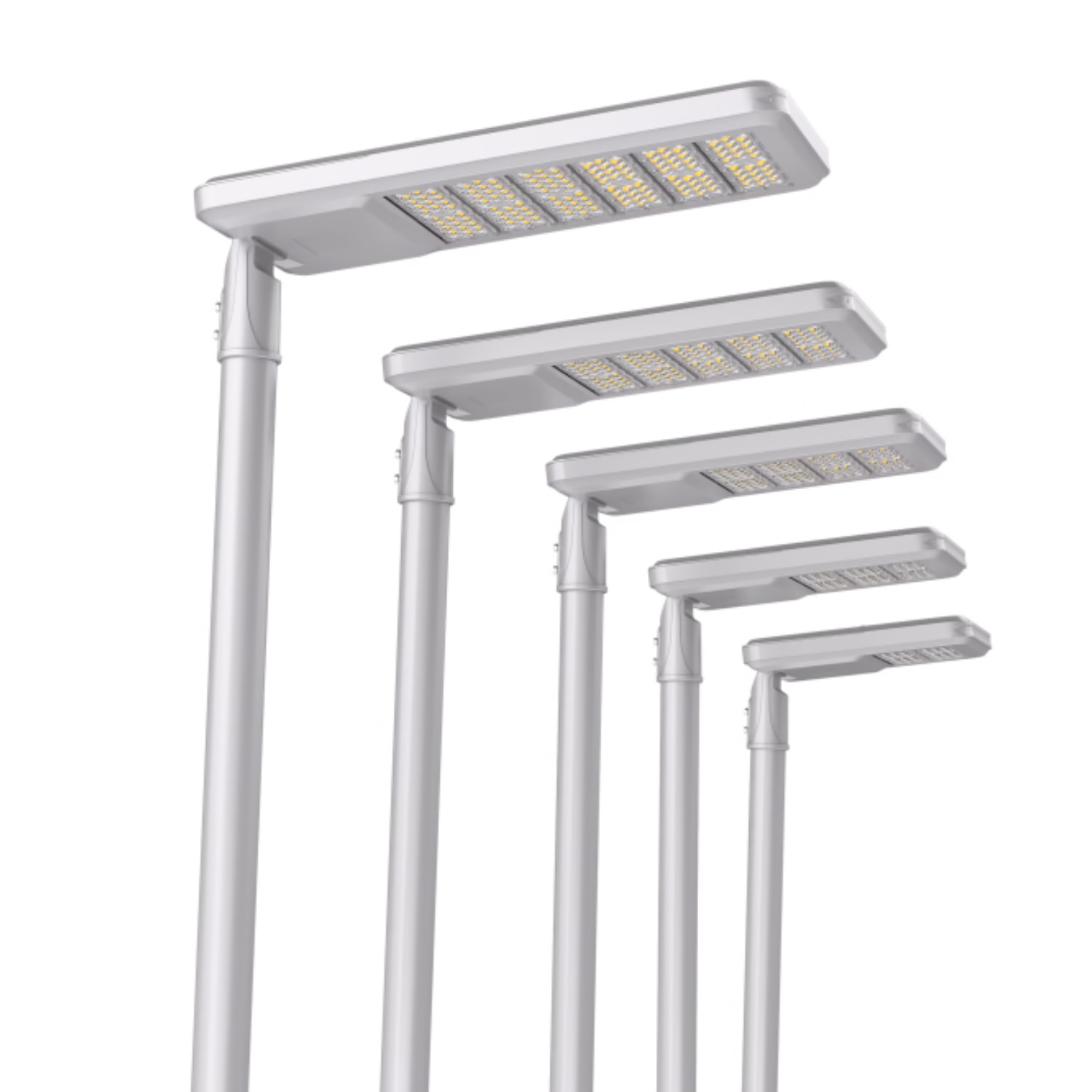

● Installation: Post-top & Side-entry
● Maintenance: Tool-less opening design
● Protection: IP66 waterproof & IK08 impact resistance
● Warranty: 5 Years
Key Advantages
- Modular Design. Flexible structure supports easier upgrades, component replacement, and project customization.
- Tool-Free Maintenance. Quick access design reduces maintenance time and labor costs.
- Reliable Outdoor Performance. Designed for stable operation in roads, highways, parking lots, and outdoor public environments.
- Practical for Municipal Projects. Suitable for large-scale roadway lighting and long-term public infrastructure applications.
Applications
Urban Roads · Residential Streets · Parking Lots · Pathways · Public Areas · Municipal Lighting Projects
📩 Ready to Source LED Street Lights for Your Project or Wholesale Supply?
Contact iShineLux today for pricing, technical specifications, and bulk street lighting solutions.
Technical Specification
| Model No. | ISL-LD-C50W | ISL-LD-C100W | ISL-LD-C150W | ISL-LD-C200W | ISL-LD-C250W | ISL-LD-C300W |
| Power | 50W | 100W | 150W | 200W | 250W | 300W |
| Light Efficiency (±5%) | 150lm/W | |||||
| Model No. | ISL-LD-C60W | ISL-LD-C120W | ISL-LD-C180W | ISL-LD-C240W | ISL-LD-C300W | ISL-LD-C360W |
| Power | 60W | 120W | 180W | 240W | 300W | 360W |
| Light Efficiency (±5%) | 140lm/W | |||||
| Dimmension | 483*313*93mm | 558*313*93mm | 634*313*93mm | 709*313*93mm | 785*313*93mm | 860*313*93mm |
| Input Voltage | 100-277VAC, 50/60Hz | |||||
| CCT | 3000K/ 4000K/ 5000K/ 5700K/ 6500K | |||||
| CRI | 80 | |||||
| Beam Angle | T2-M/ T3-M | |||||
| LED | Lumileds | |||||
| Driver | Meanwell/ Sosen | |||||
| Options | Photocell | |||||
| Housing | Die-casting technology by ADC12 | |||||
| IP Rating | IP66 | |||||
| IK Rating | IK08 | |||||
| Operation Temperature | ﹣35°C- +50°C | |||||
| Lifespan | 50,000H | |||||
| Warranty | 5Years | |||||
