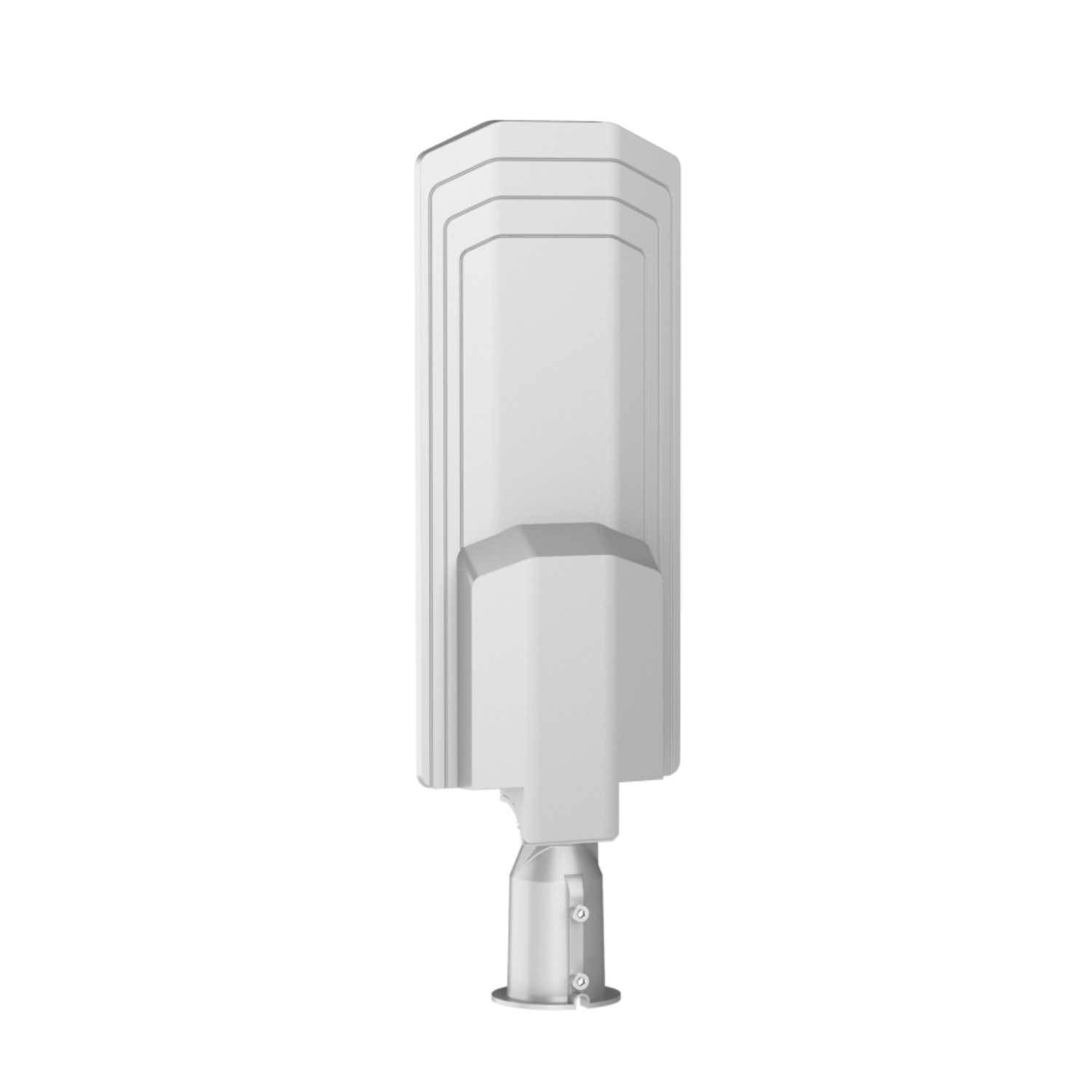

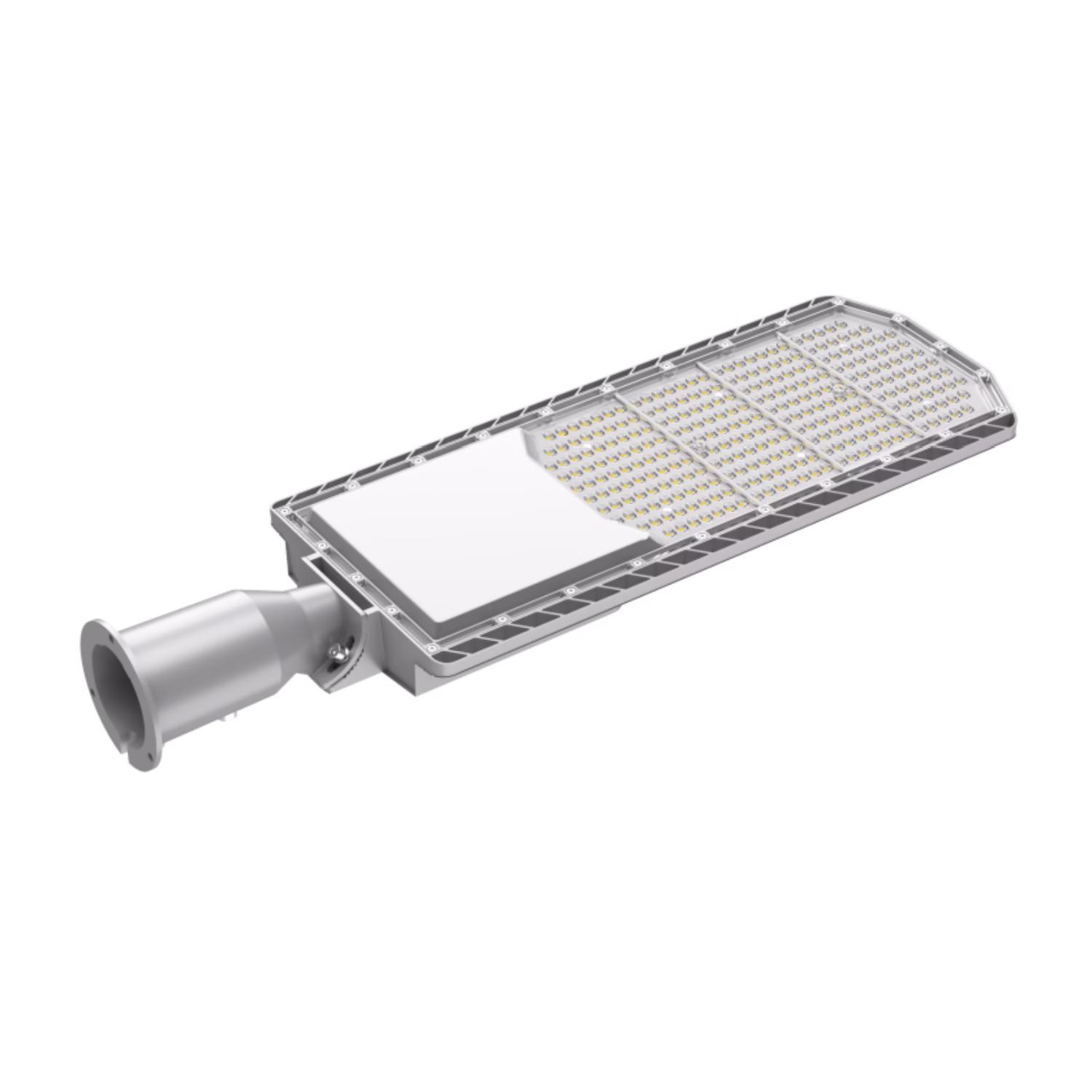

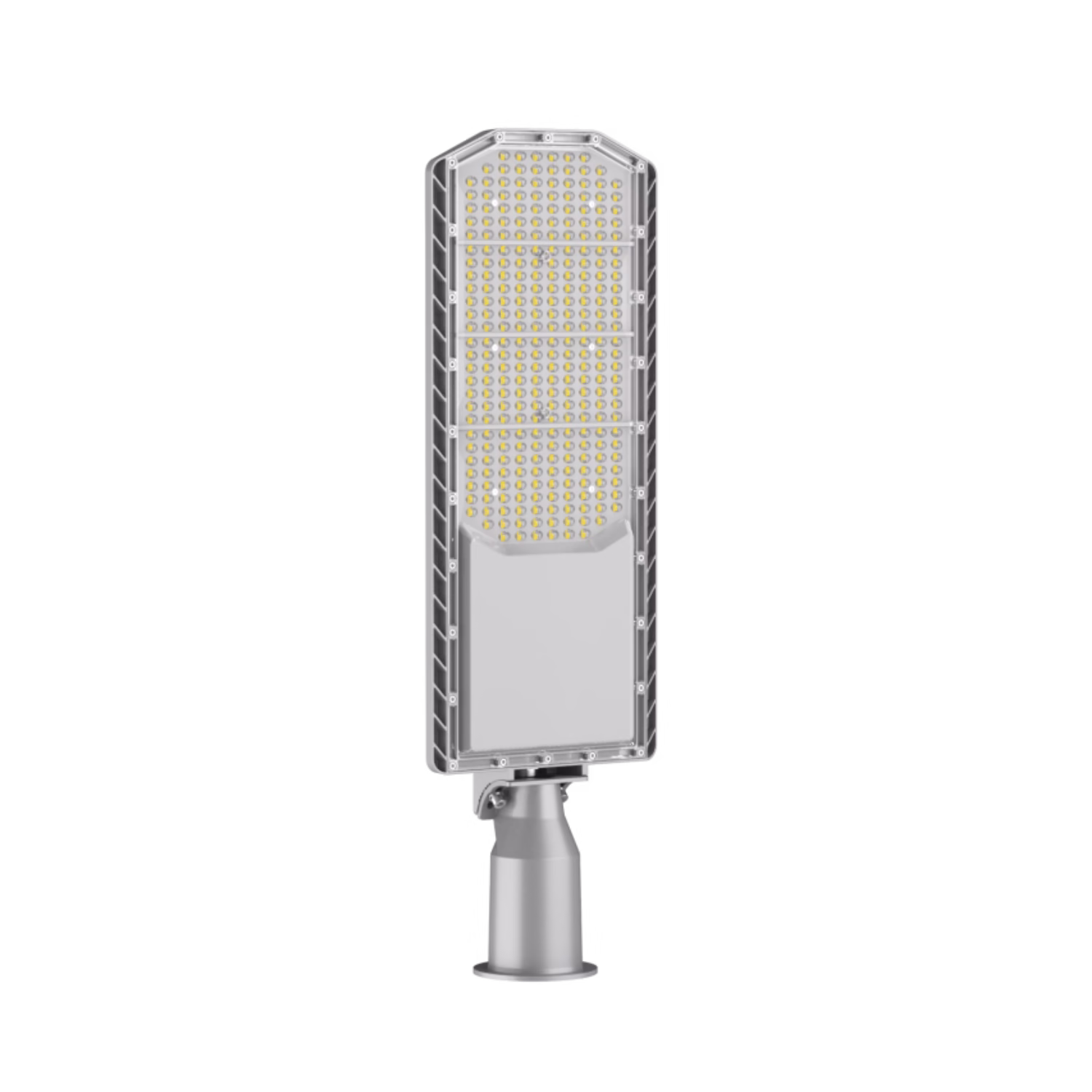

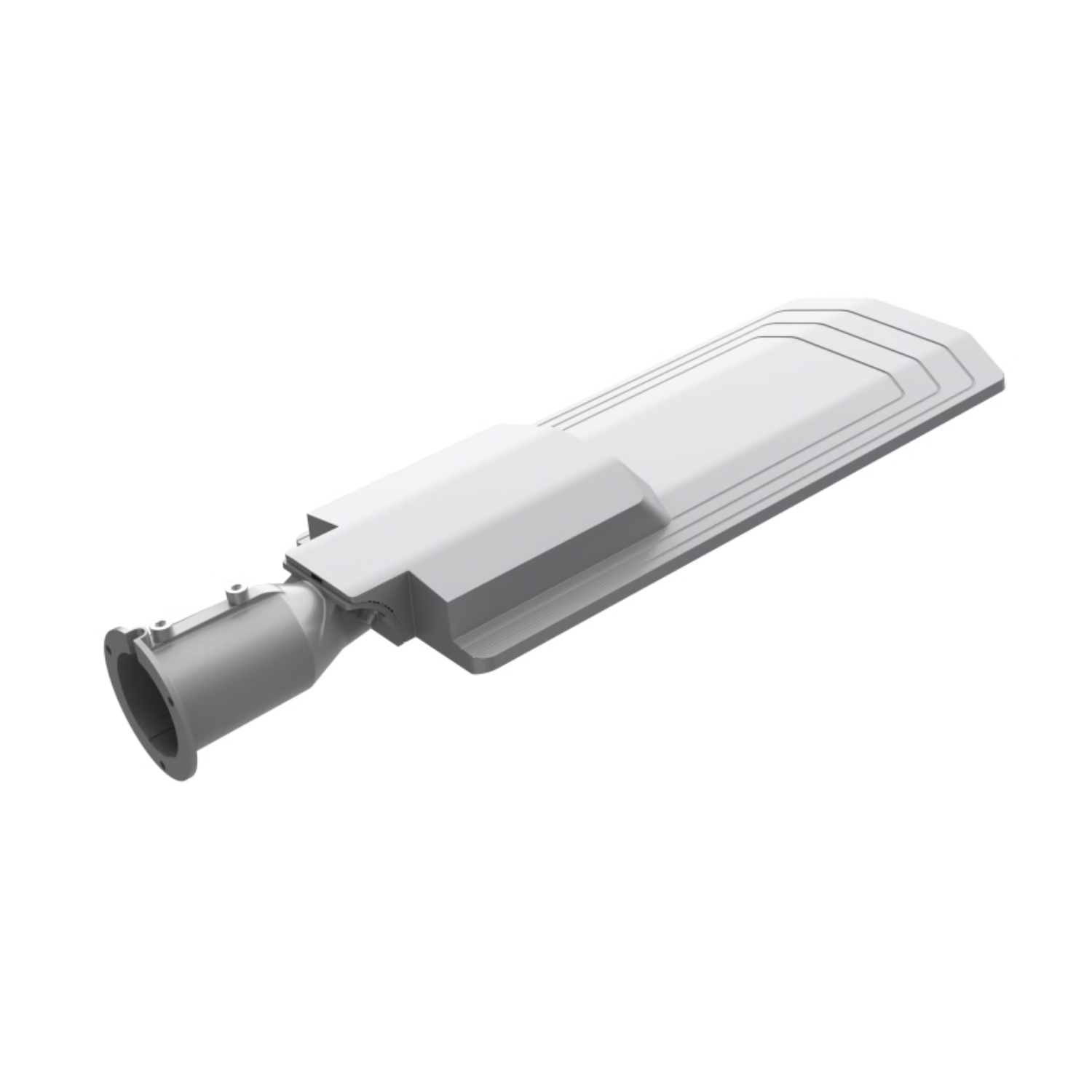

Legend SL06 LED Street Light
SL06 Street Light
- Power Range: 30W – 200W
- Light Efficacy: 140lm/W

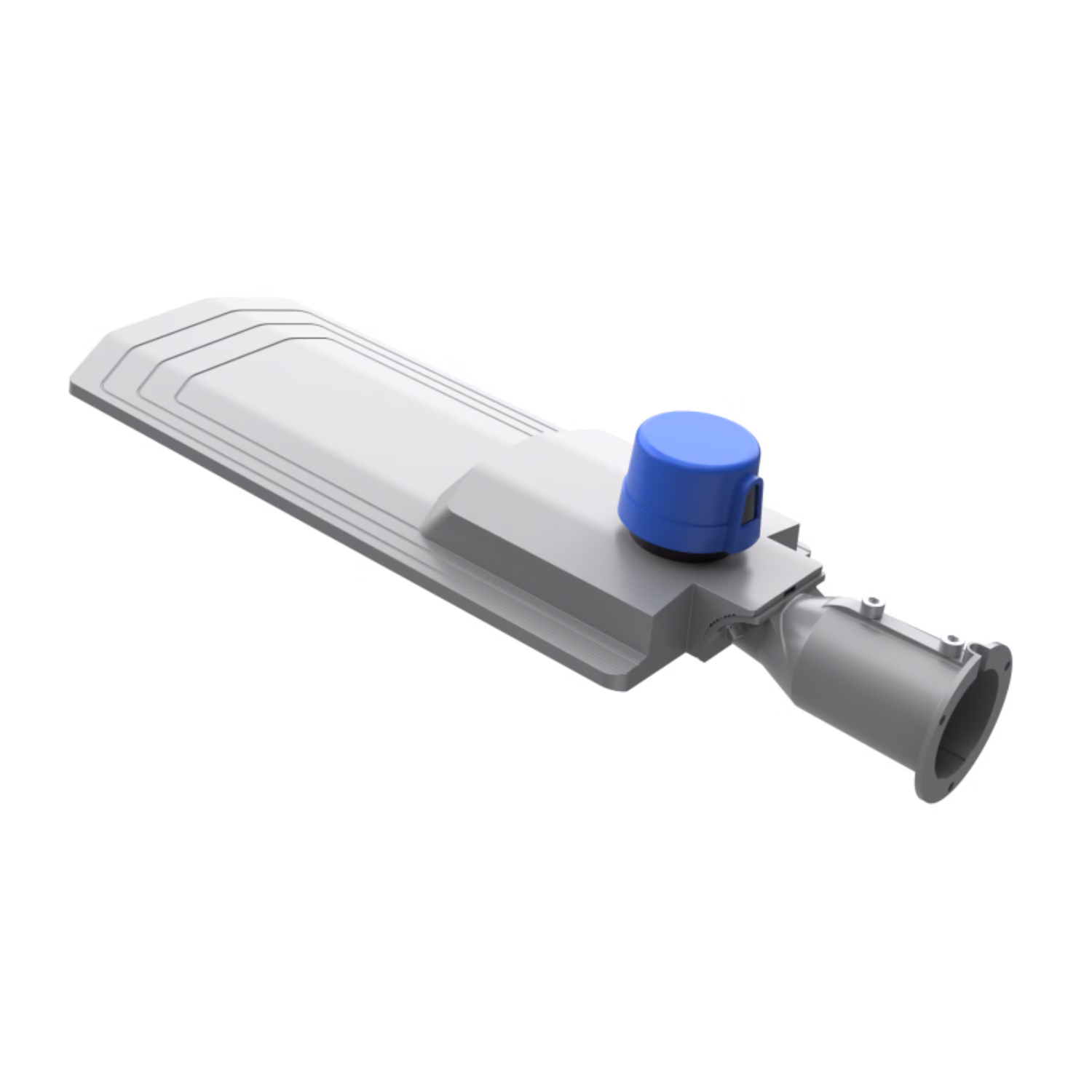

- Options: Photocell, allowing for automatic on/off control based on ambient light levels, optimizing energy savings and operational efficiency.

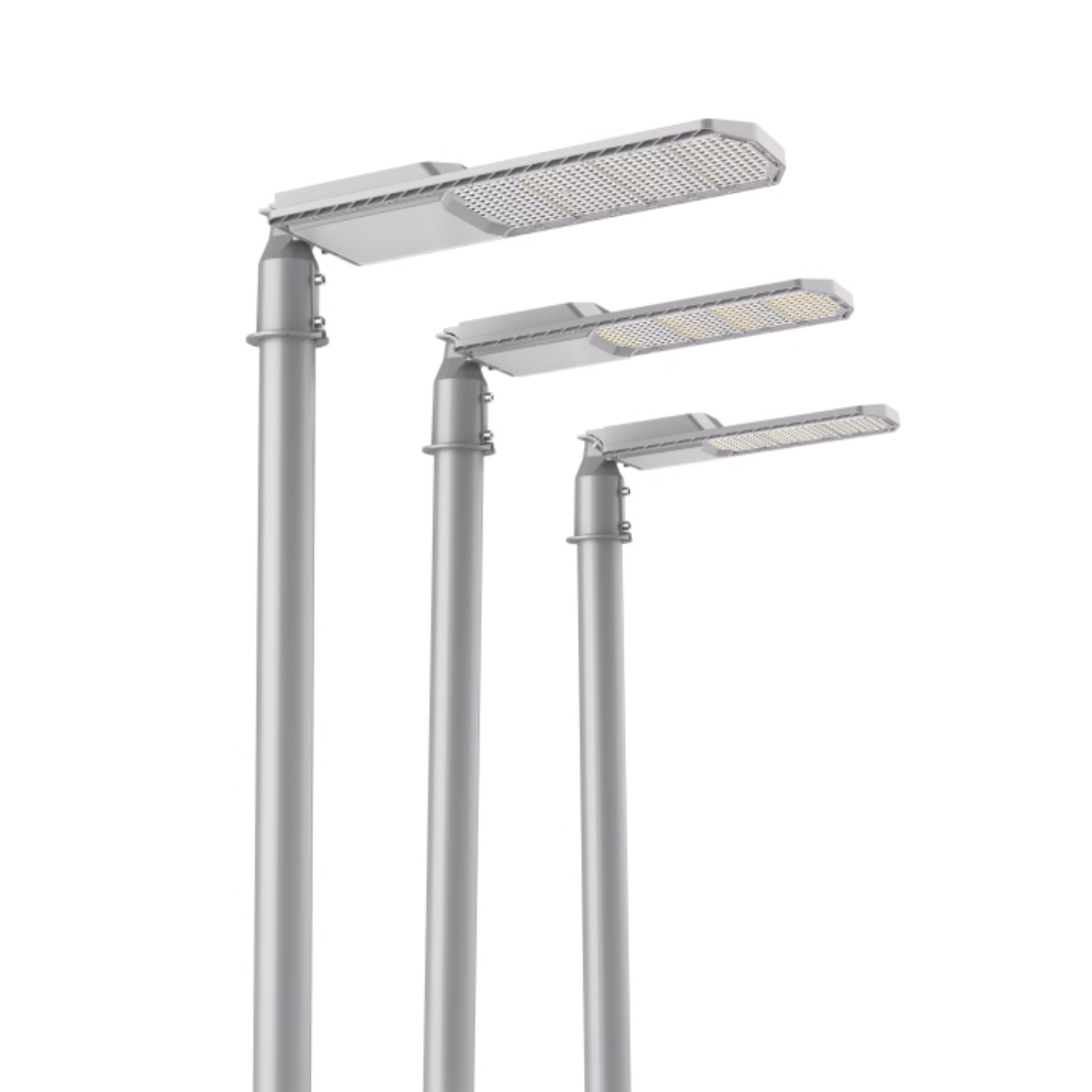

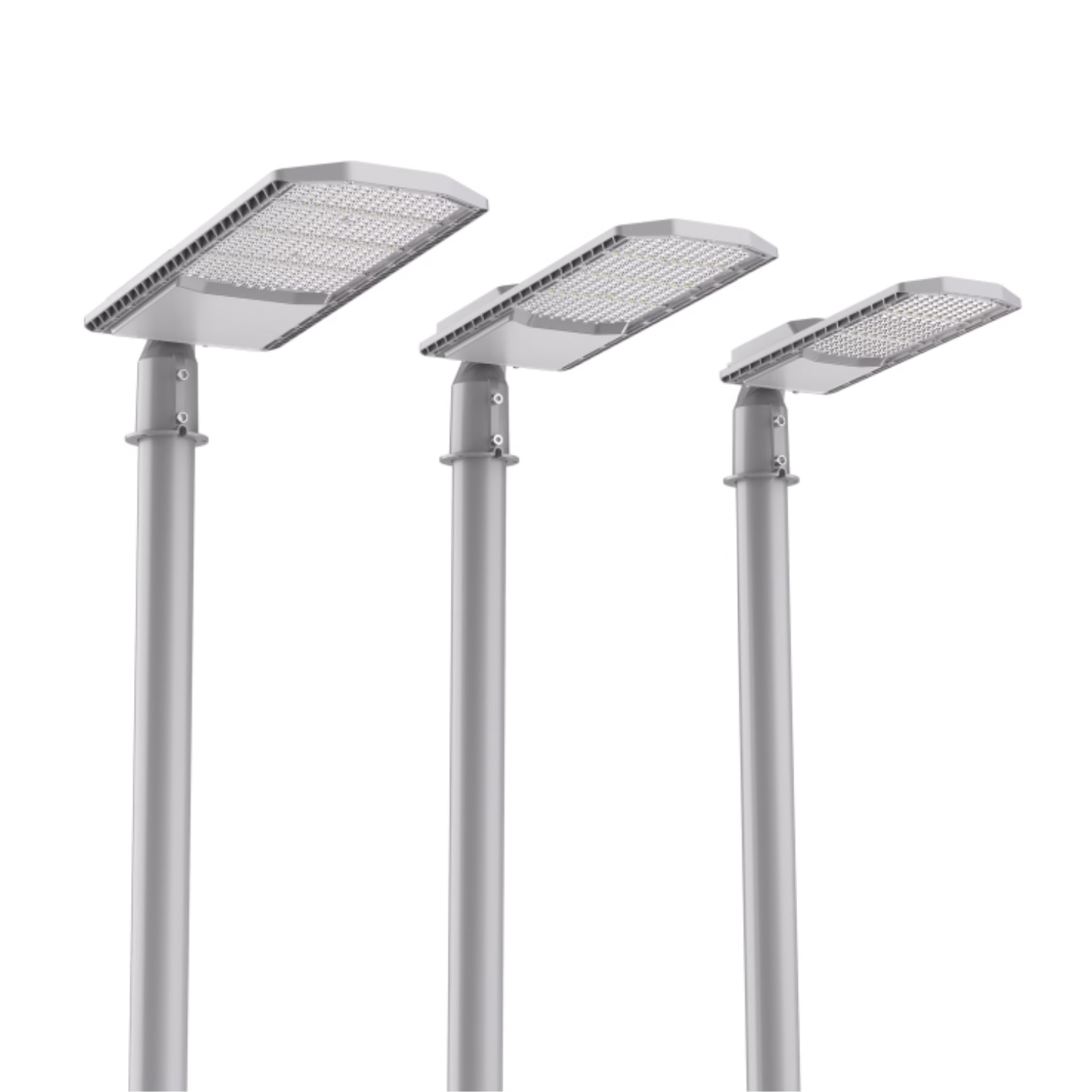

- Post-top or side-entry installation available.
- IP66 and IK08 rated for enhanced durability and reliability in harsh conditions.
- Warranty: 3/ 5 years
Versatile Applications
This street light is specifically engineered for a wide range of outdoor illumination needs, making it ideal for:
- Urban Roads and Highways: Ensures high visibility and safety for high-traffic areas.
- Residential Streets and Pathways: Provides uniform and comfortable lighting for residential communities.
- Parking Lots and Public Spaces: Offers reliable illumination for large open areas, enhancing security and accessibility.
Technical Specification
| Model No. | ISL-SL06-30W | ISL-SL06-50W | ISL-SL06-100W | ISL-SL06-150W | ISL-SL06-200W |
| Power | 30W | 50W | 100W | 150W | 200W |
| Dimmension | 425*108*96mm | 425*108*96mm | 566*177*96mm | 650*210*96mm | 719*244*96mm |
| Input Voltage | 100-277VAC, 50/60Hz | ||||
| Light Efficiency (±5%) | 140lm/W | ||||
| CCT | 3000K/ 4000K/ 5000K/ 5700K/ 6500K | ||||
| CRI | 80 | ||||
| Beam Angle | 70*140° | ||||
| LED | Lumileds/ San’an | ||||
| Driver | ZH | ||||
| Options | Photocell | ||||
| Housing | Die-casting technology by ADC12 | ||||
| IP Rating | IP66 | ||||
| IK Rating | IK08 | ||||
| Operation Temperature | ﹣35°C- +50°C | ||||
| Lifespan | 50,000H | ||||
| Warranty | 3/ 5Years | ||||
