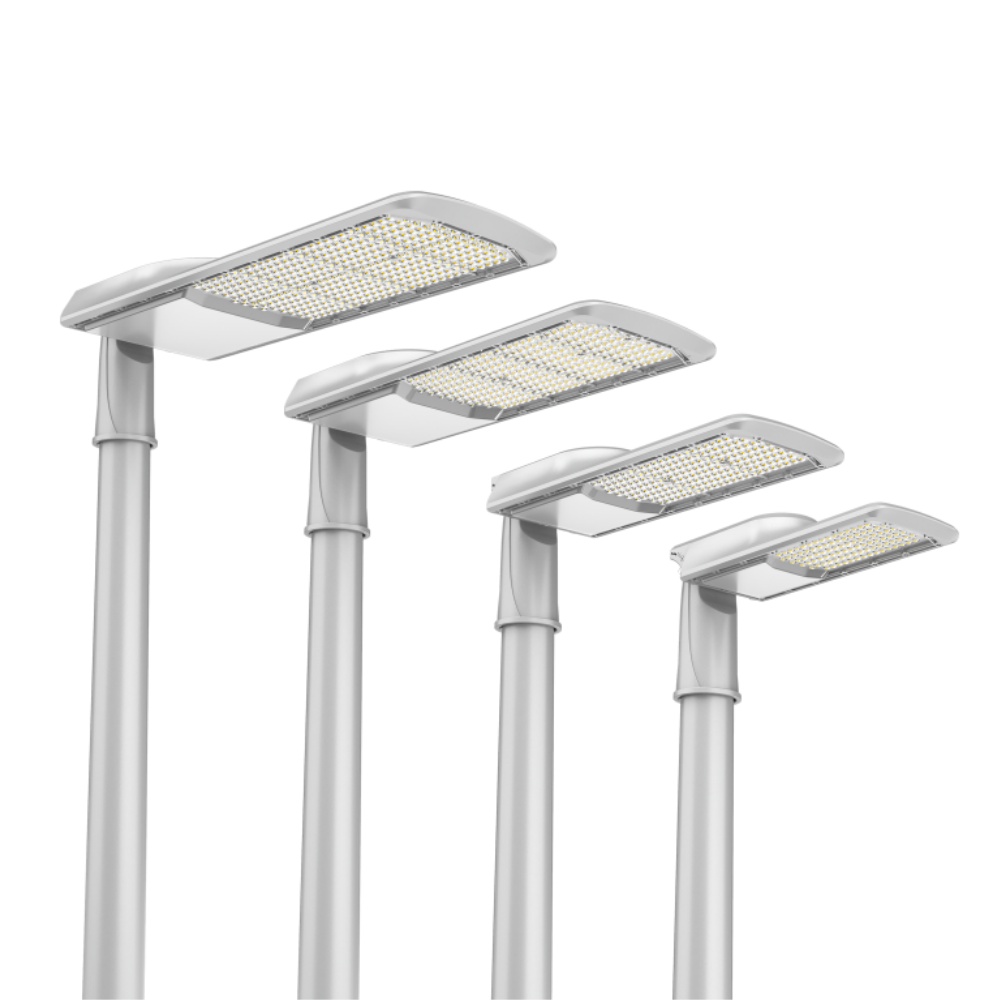

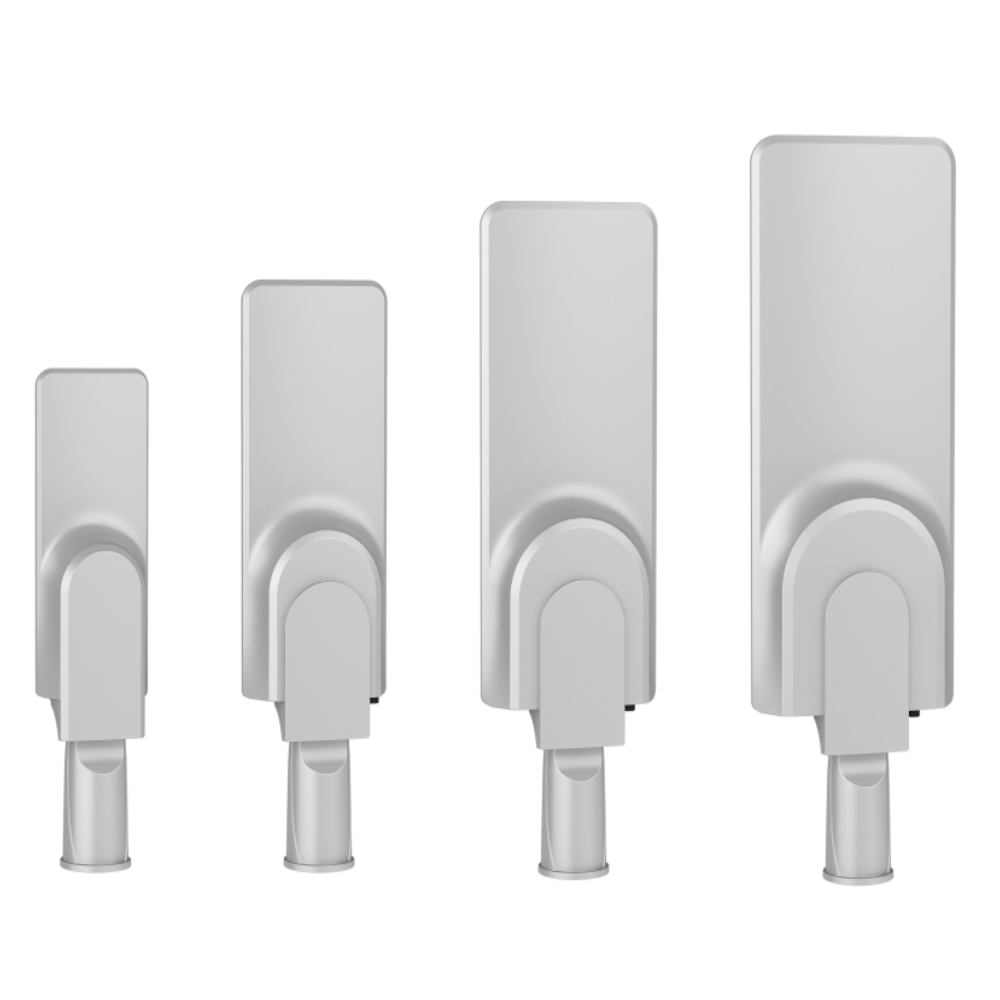

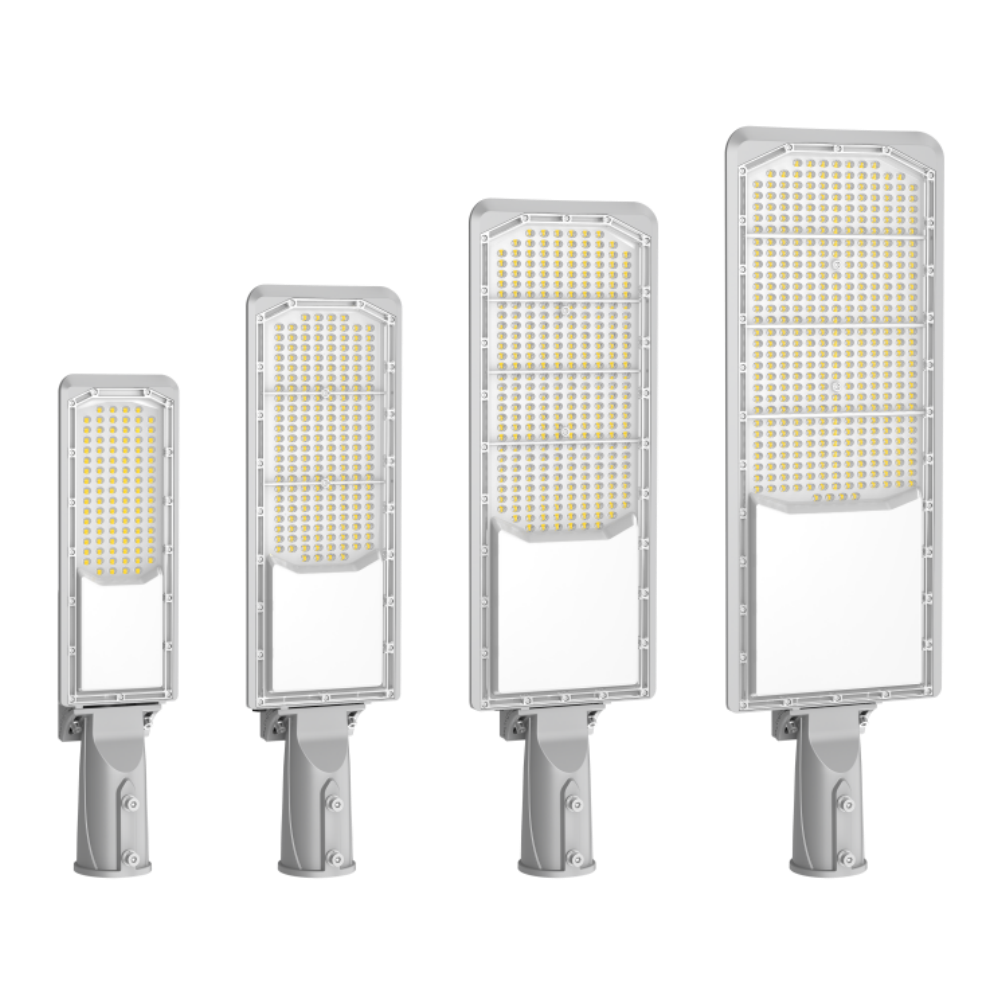

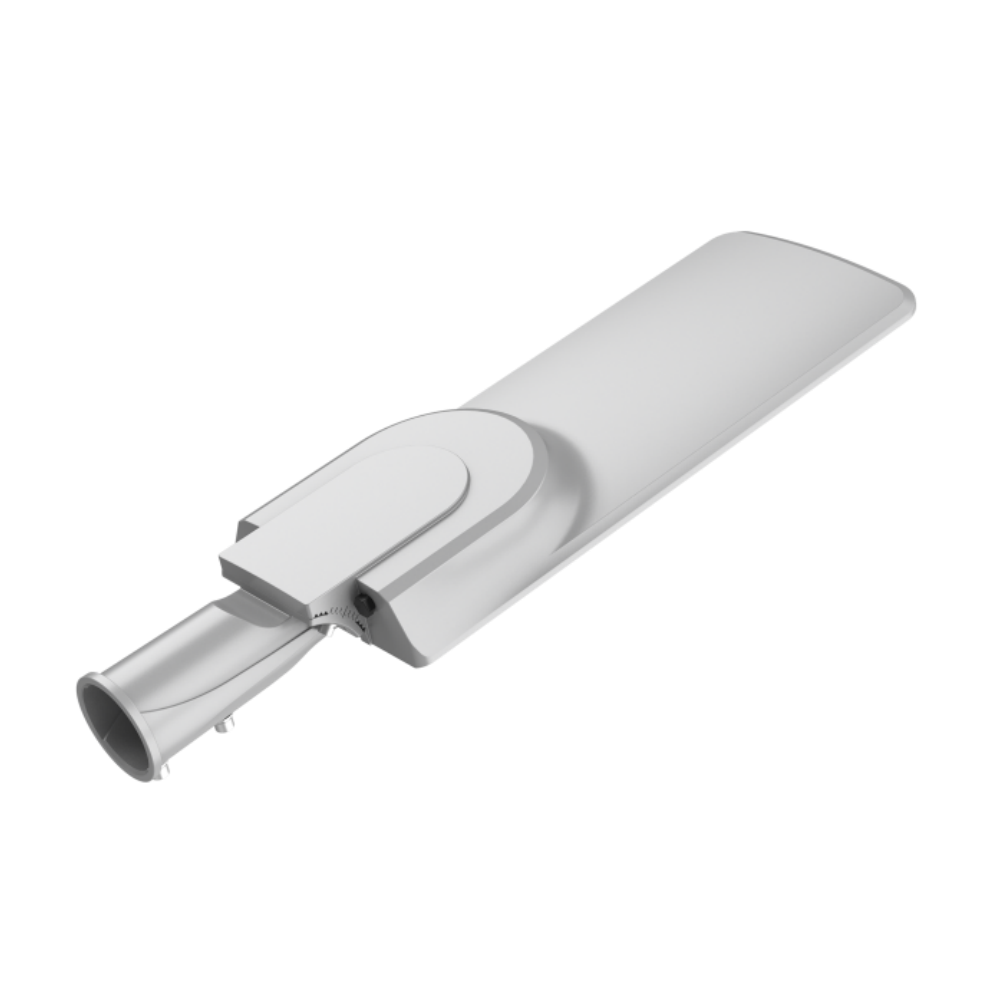

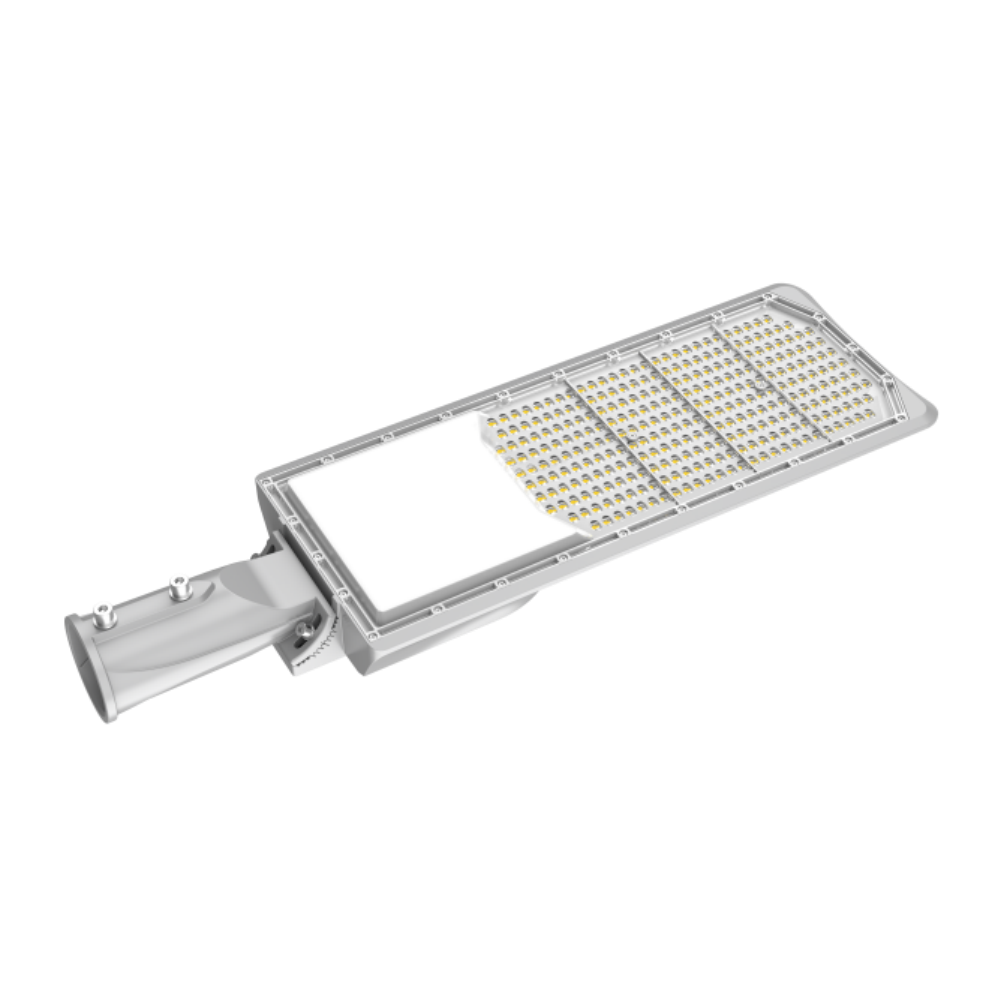

Legend SL08 LED Street Light

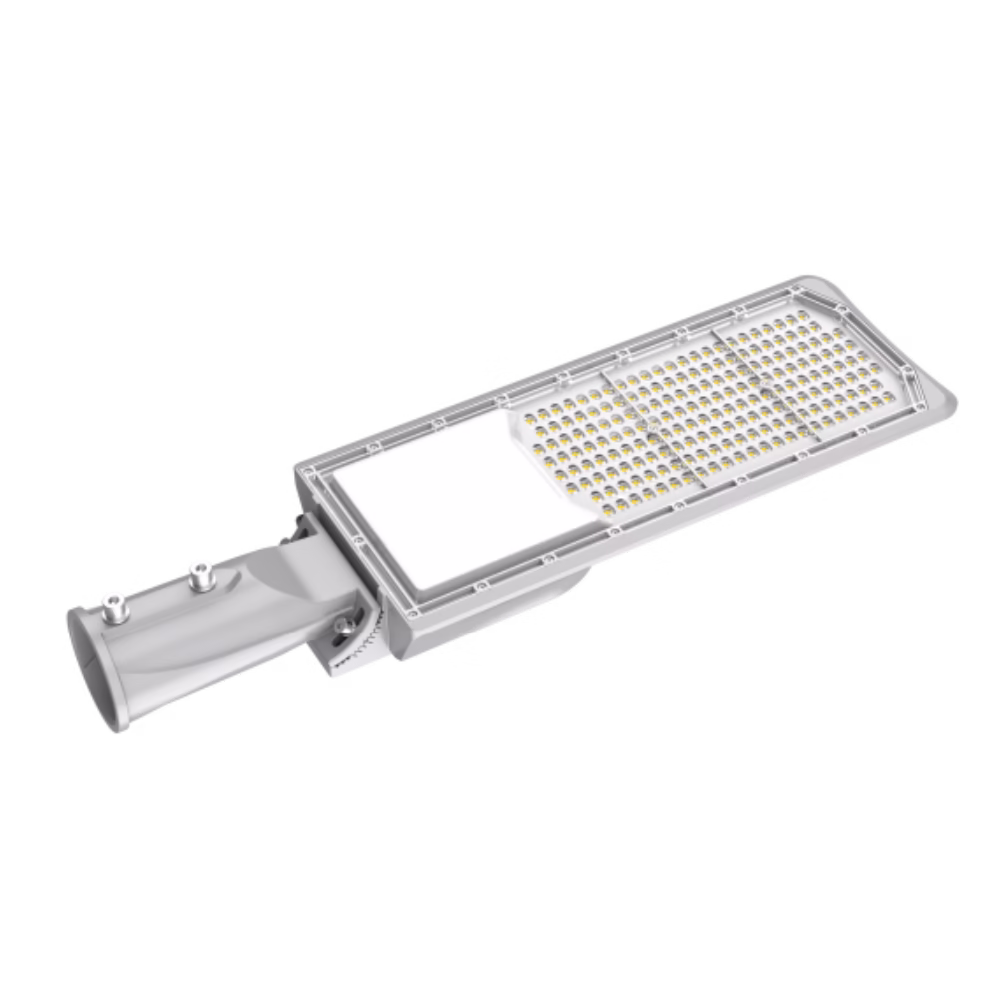

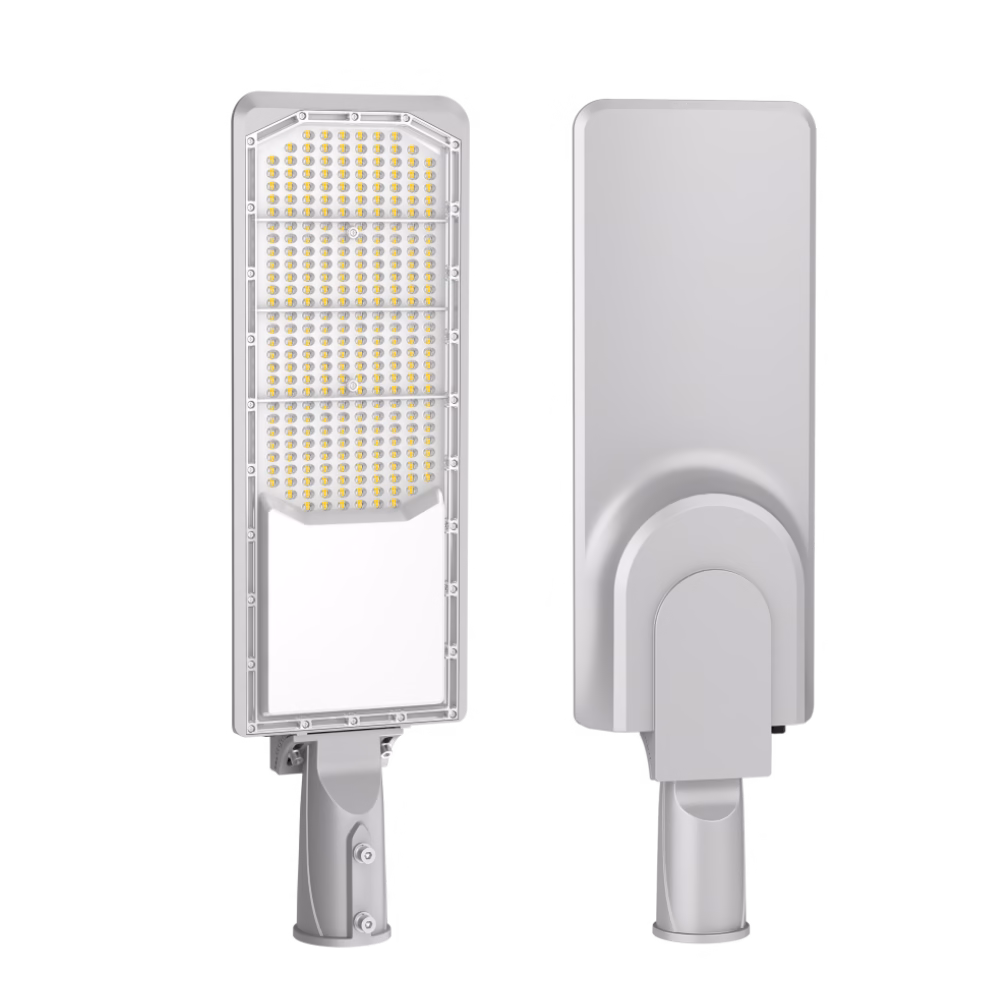

SL08 Street Light

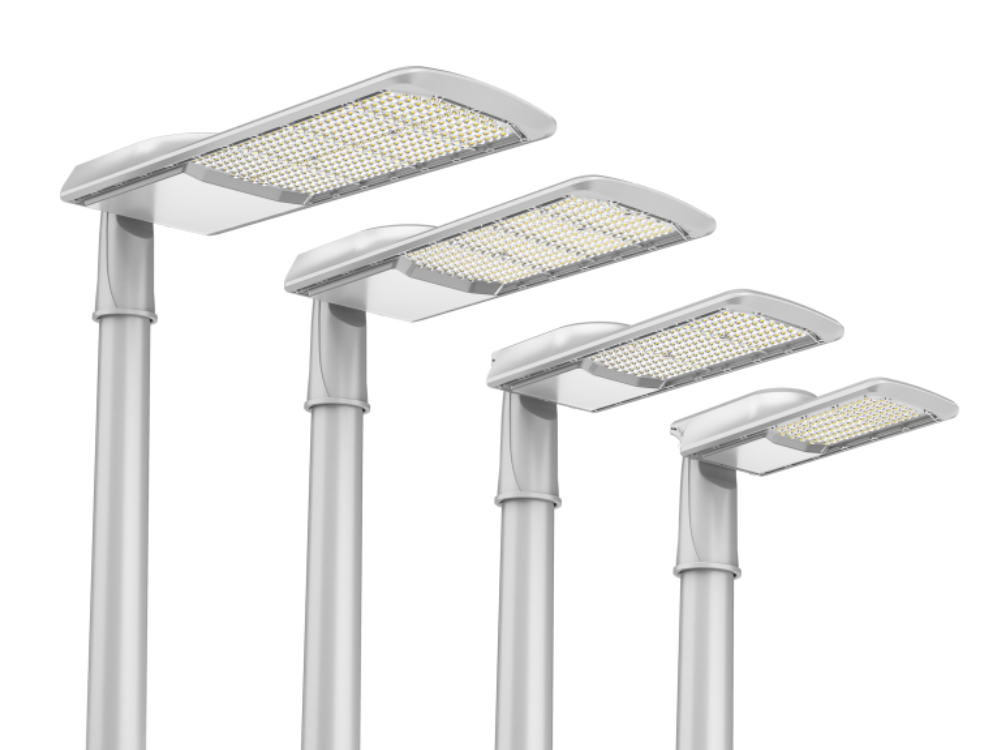

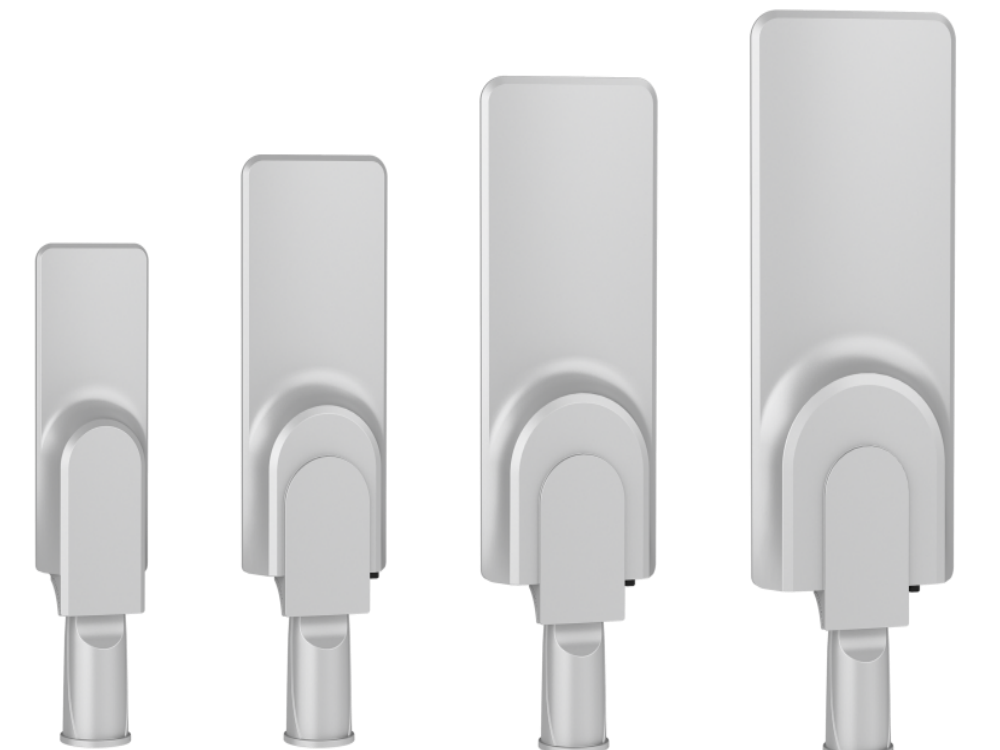

- Power Range: 50W – 200W
- Light Efficacy: 140lm/W

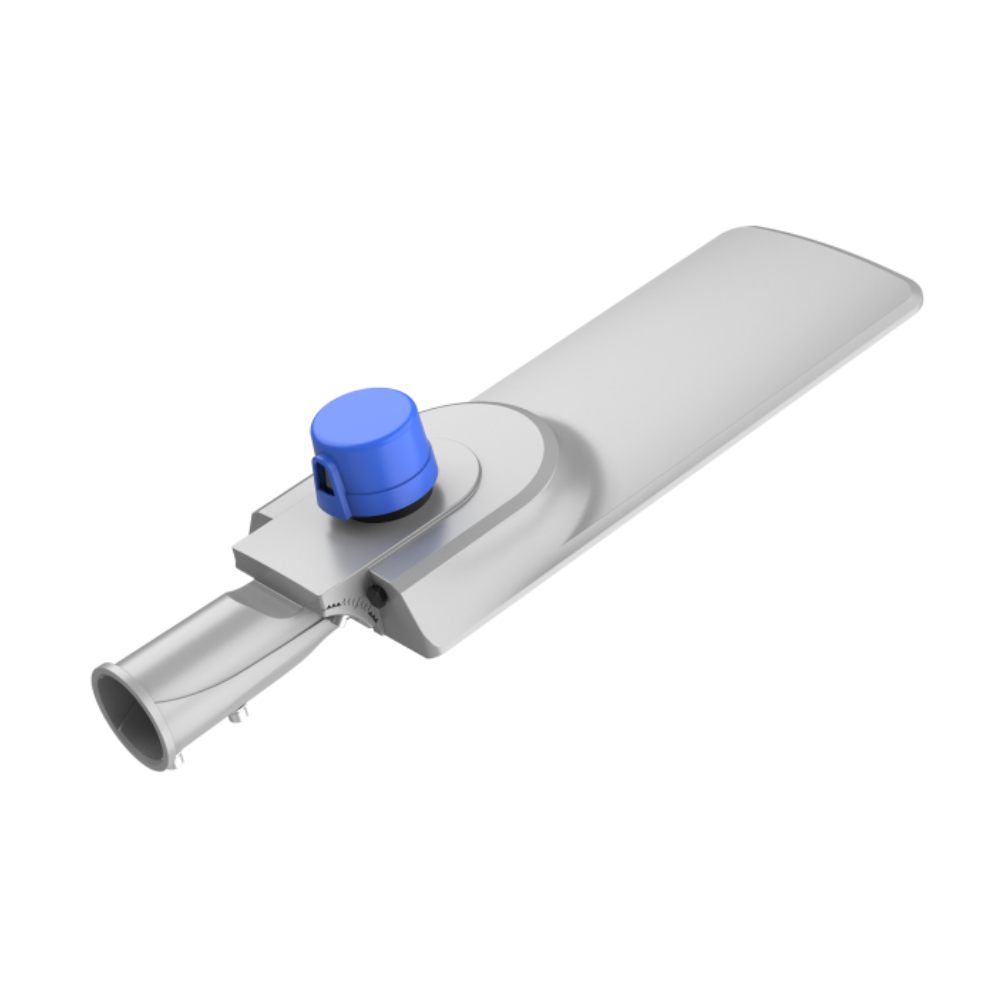

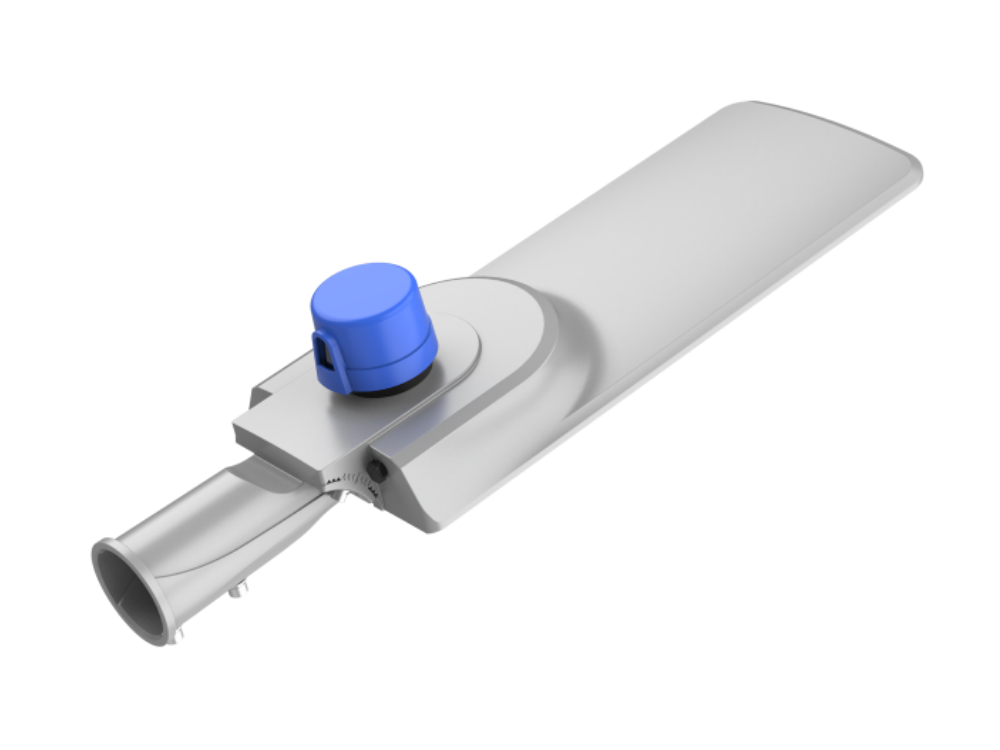

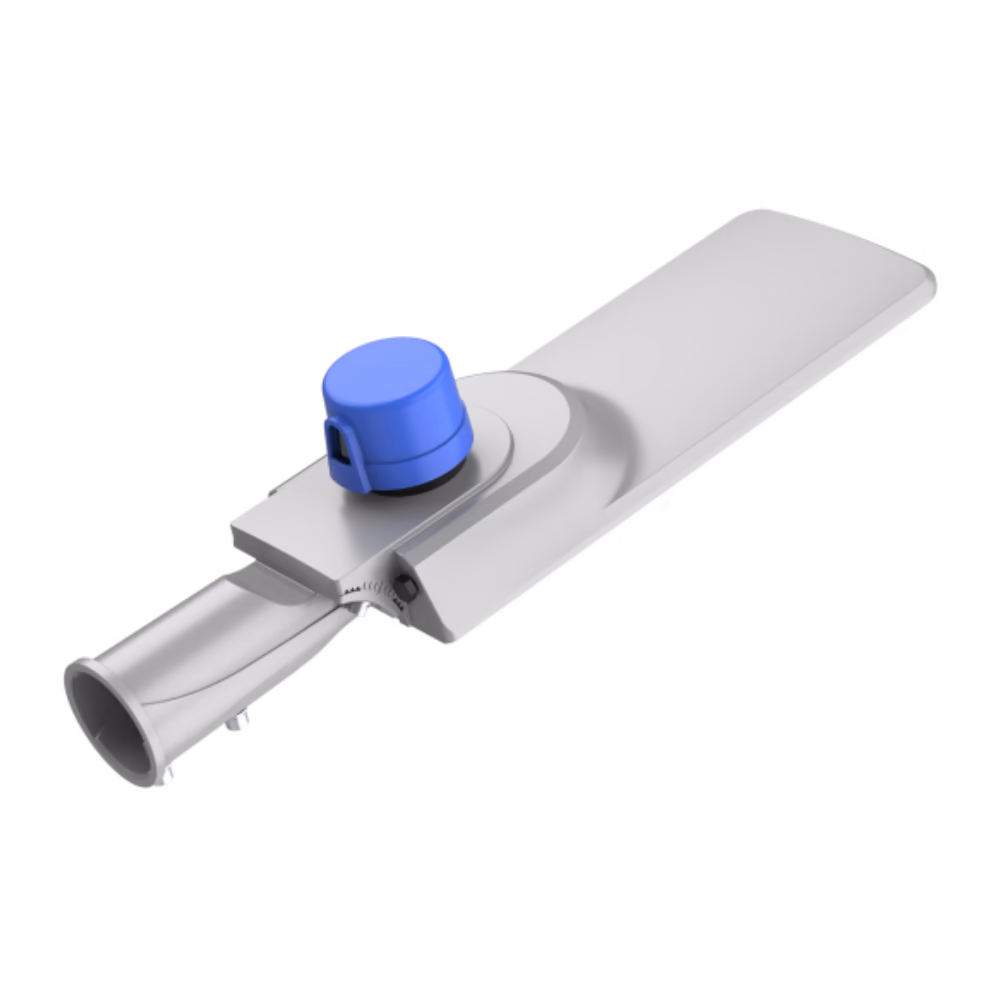

- Options: Photocell, allowing for automatic on/off control based on ambient light levels, optimizing energy savings and operational efficiency.

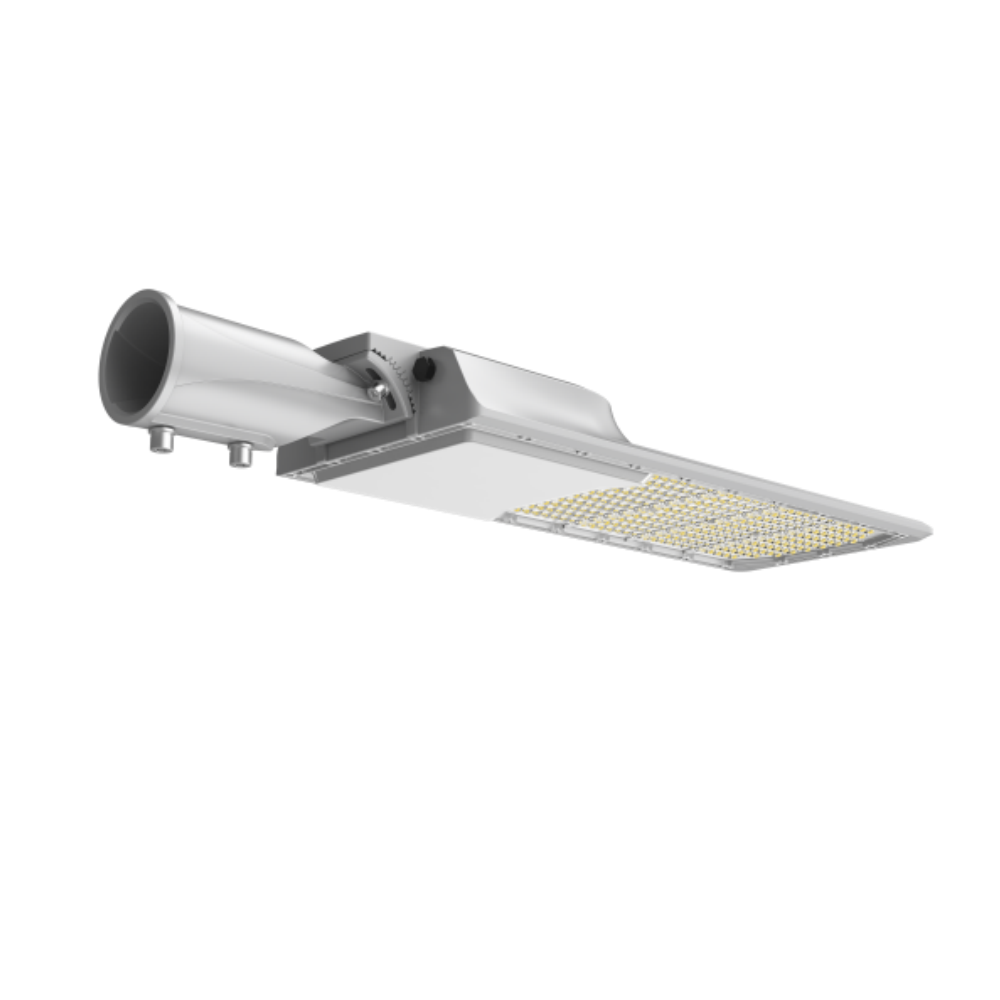

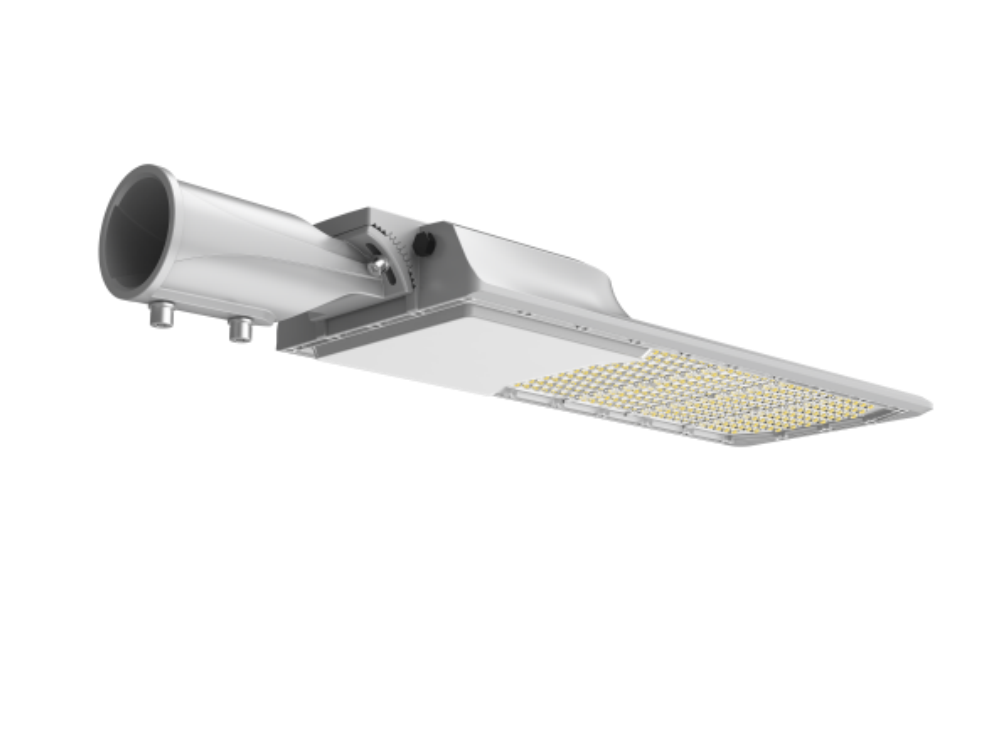

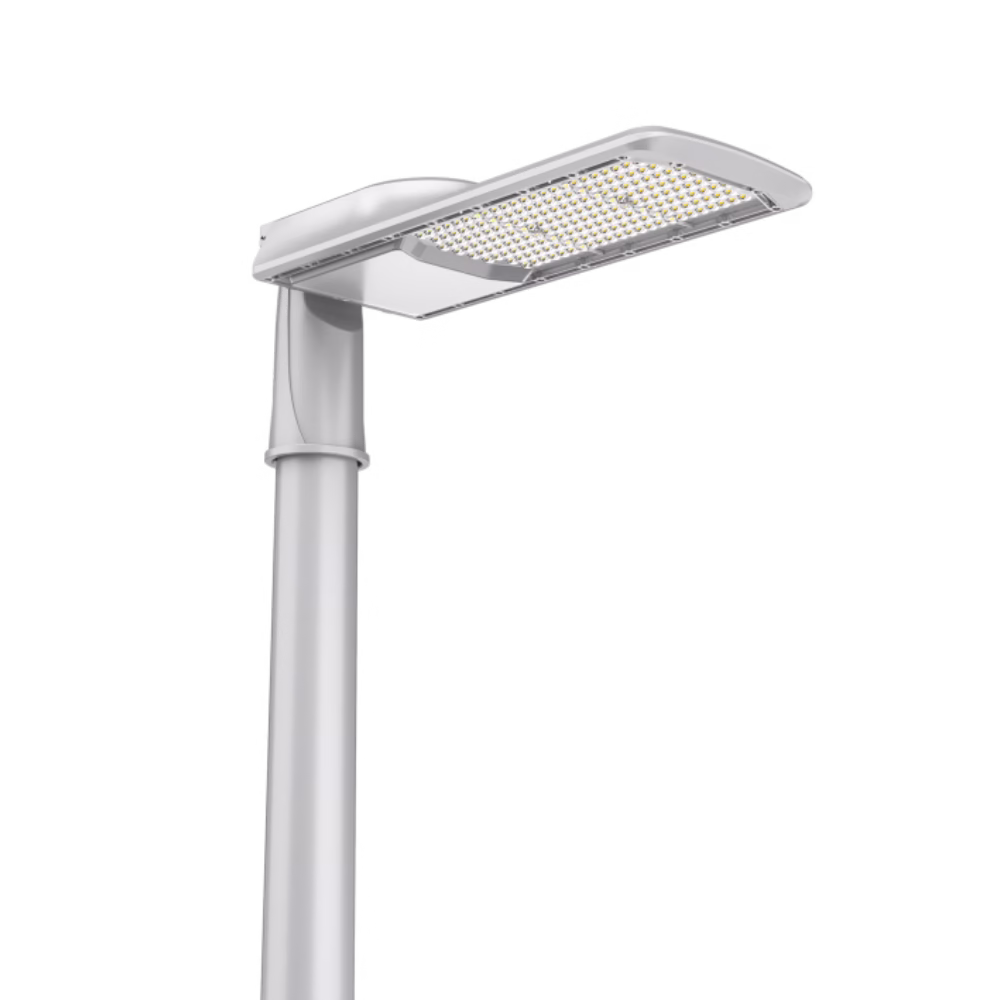

- Post-top or side-entry installation available.
- IP66 and IK08 rated for enhanced durability and reliability in harsh conditions.
- Warranty: 5 years
Versatile Applications
This street light is specifically engineered for a wide range of outdoor illumination needs, making it ideal for:
- Urban Roads and Highways: Ensures high visibility and safety for high-traffic areas.
- Residential Streets and Pathways: Provides uniform and comfortable lighting for residential communities.
- Parking Lots and Public Spaces: Offers reliable illumination for large open areas, enhancing security and accessibility.
Technical Specification
| Model No. | ISL-SL08-50W | ISL-SL08-100W | ISL-SL08-150W | ISL-SL08-200W |
| Power | 50W | 100W | 150W | 200W |
| Dimmension | 505*129*58mm | 587*167*62mm | 680*203*65mm | 743*235*65mm |
| Input Voltage | 100-277VAC, 50/60Hz | |||
| Light Efficiency (±5%) | 140lm/W | |||
| CCT | 3000K/ 4000K/ 5000K/ 5700K/ 6500K | |||
| CRI | 80 | |||
| Beam Angle | 70*140° | |||
| LED | Lumileds/ San’an | |||
| Driver | Sosen/ iShineLux | |||
| Options | Photocell | |||
| Housing | Die-casting technology by ADC12 | |||
| IP Rating | IP66 | |||
| IK Rating | IK08 | |||
| Operation Temperature | ﹣35°C- +50°C | |||
| Lifespan | 50,000H | |||
| Warranty | 3/ 5Years | |||

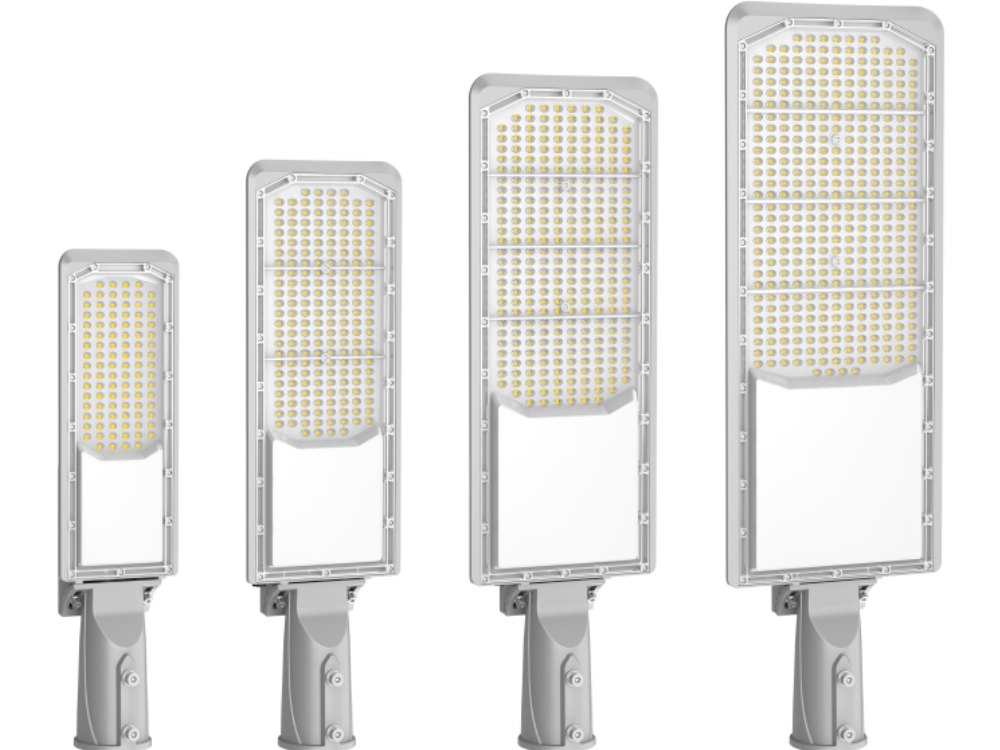

SL08 Street Light - 3CCT ● 3Power Adjustable
- Power Range: 50W – 200W
- Light Efficacy: 140lm/W
- 3-CCT & 3-Power: Easily stock one model that covers three color temperatures and three power levels.
- Options: Photocell
- IP66 and IK08
- Warranty: 5 years
The Street Light offers three power levels and three color temperature options, easily adjustable via built-in DIP switches. This all-in-one, field-adjustable design simplifies inventory management and reduces the need for multiple SKUs, making it ideal for distributors and installers. With flexible configuration on-site, it adapts effortlessly to diverse environments and application needs.
Technical Specification
| Model No. | ISL-SL08-50W | ISL-SL08-100W | ISL-SL08-150W | ISL-SL08-200W |
| 3-Power | 50W-40W-30W | 100W-80W-60W | 150W-120W-90W | 200W-160W-120W |
| Dimmension | 505*129*58mm | 587*167*62mm | 680*203*65mm | 743*235*65mm |
| Input Voltage | 100-277VAC, 50/60Hz | |||
| Light Efficiency (±5%) | 140lm/W | |||
| CCT | 3000K/ 4000K/ 5000K/ 5700K/ 6500K, 3CCT(4000K-5000K-5700K) ADJ | |||
| CRI | 80 | |||
| Beam Angle | 70*140° | |||
| LED | San’an | |||
| Driver | Sosen | |||
| Options | Photocell | |||
| Housing | Die-casting technology by ADC12 | |||
| IP Rating | IP66 | |||
| IK Rating | IK08 | |||
| Operation Temperature | ﹣35°C- +50°C | |||
| Lifespan | 50,000H | |||
| Warranty | 5Years | |||
