Legend SL09 Street Light - Stadium Lighting Manufacturer

Legend SL09 LED Street Light

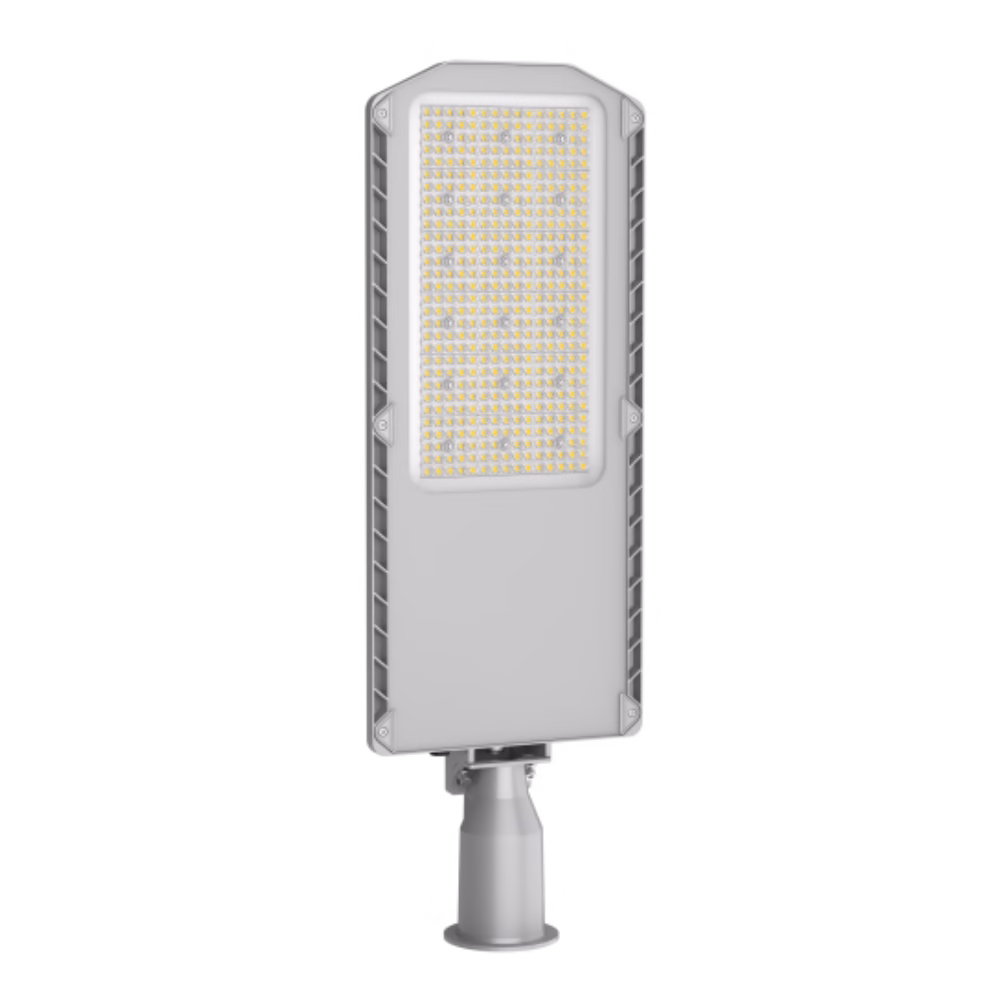

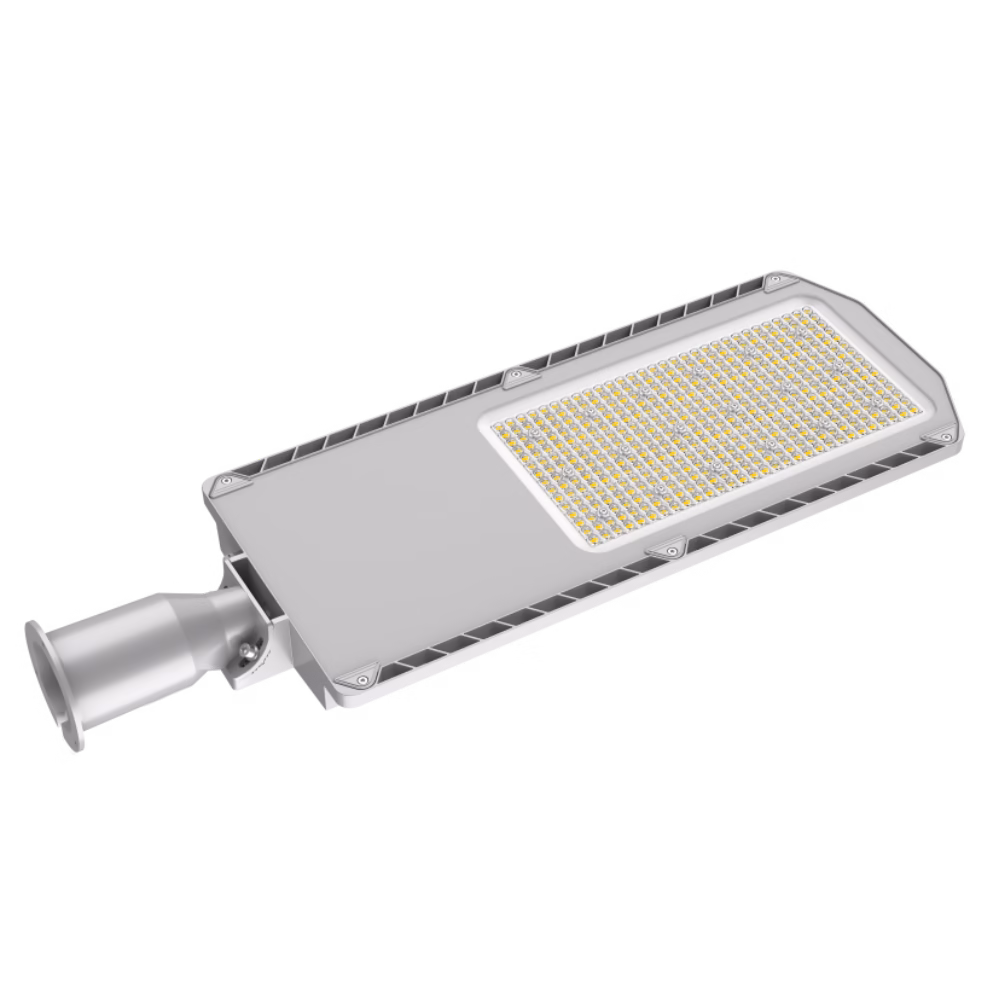

SL09 LED Street Light

Efficient Road Lighting for Municipal & Outdoor Projects

The SL09 LED Street Light is designed for urban roads, residential streets, parking lots, pathways, and public outdoor lighting. Combining reliable performance with energy-efficient output, it is suitable for municipal projects, contractors, and wholesale supply.

Key Specifications

Power Range: 50W–200W
High Luminous Efficiency: Up to 140 lm/W Standard, 180 lm/W Optional

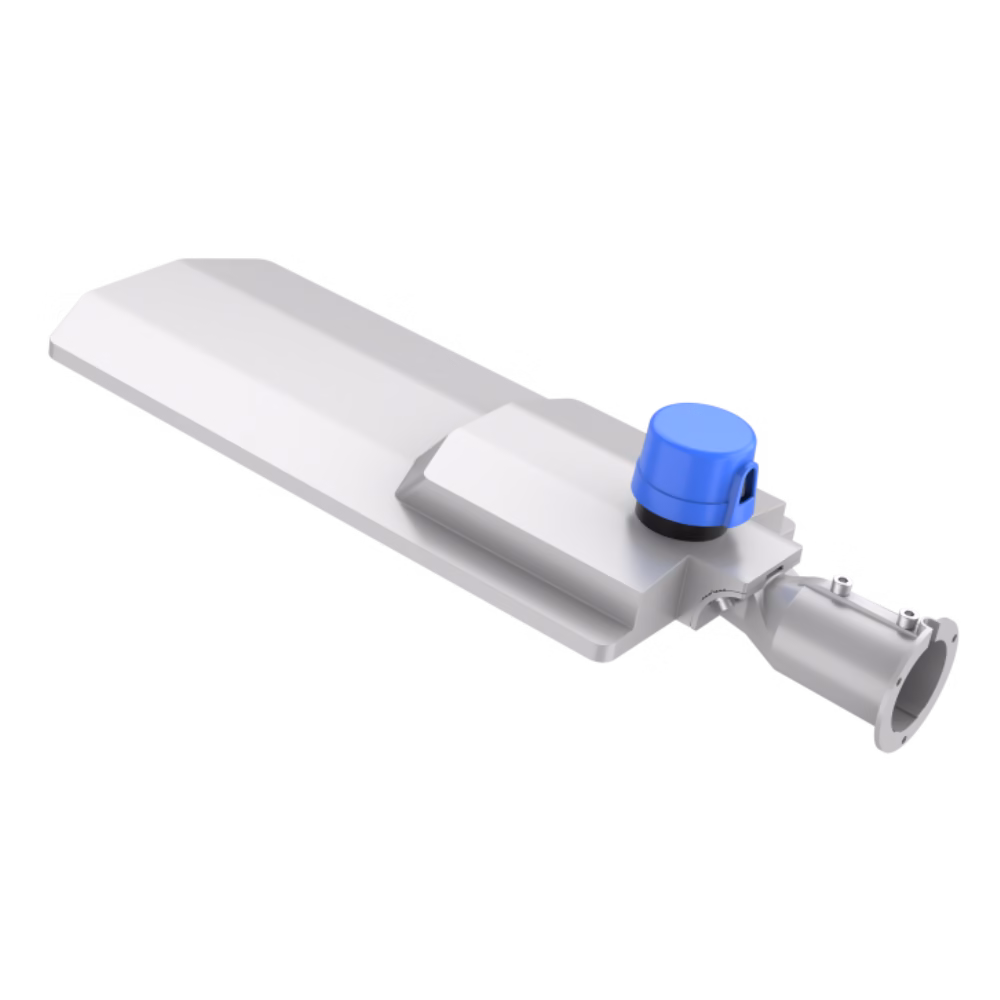

Optional Photocell Sensor: Automatic Dusk-to-Dawn Control for Enhanced Energy Savings
NEMA Socket Options: Available in 3-Pin, 5-Pin & 7-Pin Configurations
Flexible Installation: Suitable for Both Side-Entry and Post-Top Mounting
Adjustable Spigot: Fits Ø48–60 mm Poles with Up to +15° Tilt Adjustment for Precise Light Distribution
Tempered Glass Cover: High UV Resistance and Excellent Corrosion Protection for Coastal and Harsh Environments
Protection Rating: IP66 Waterproof & IK08 Impact Resistant
Warranty: 5-Year Warranty
Suitable for Large Projects. Practical solution for municipal lighting, distributors, and bulk supply projects.

Applications

Urban Roads · Residential Streets · Parking Lots · Pathways · Public Areas · Municipal Lighting Projects

📩 Ready to Source LED Street Lights for Your Project or Wholesale Supply?

Contact iShineLux today for pricing, technical specifications, and bulk street lighting solutions.

Technical Specification

Model No.	ISL-SL09-50W	ISL-SL09-100W	ISL-SL09-150W	ISL-SL09-200W
Power	50W	100W	150W	200W
Dimmension	48014798mm	56917798mm	65421098mm	72424498mm
Input Voltage	100-277VAC, 50/60Hz
Light Efficiency (±5%)	140lm/W, 180lm/W
CCT	3000K/ 4000K/ 5000K/ 5700K/ 6500K
CRI	80
Beam Angle	70*140°
LED	Lumileds/ San’an
Driver	Sosen/ iShineLux
Options	Photocell
Housing	Die-casting technology by ADC12
IP Rating	IP66
IK Rating	IK08
Operation Temperature	﹣35°C- +50°C
Lifespan	50,000H
Warranty	3/ 5Years
