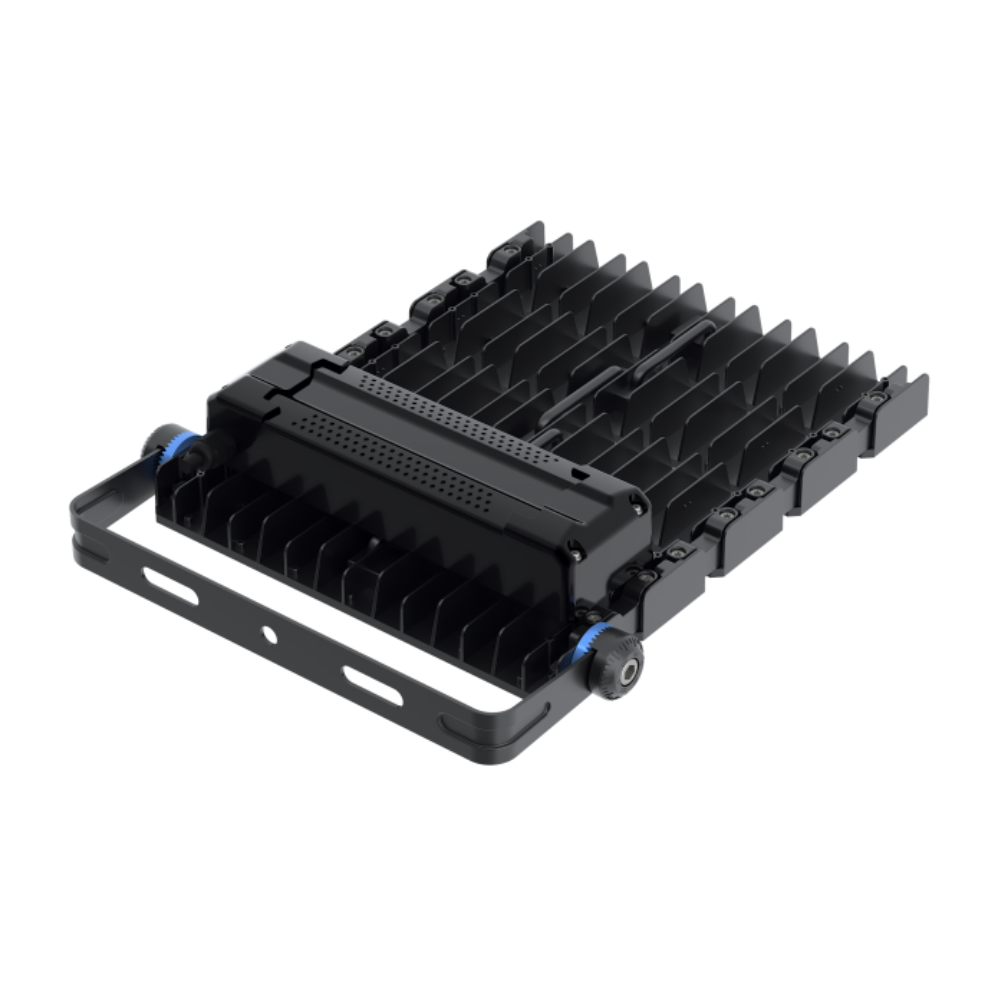

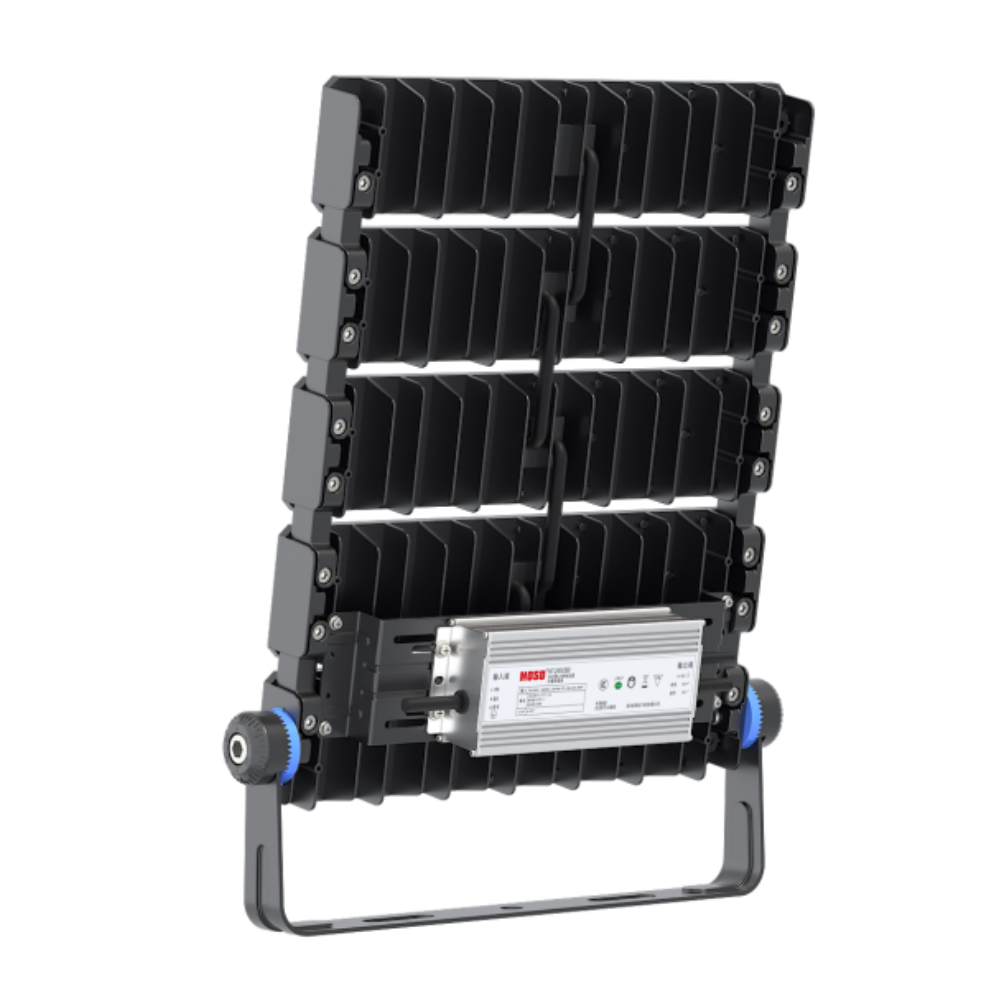

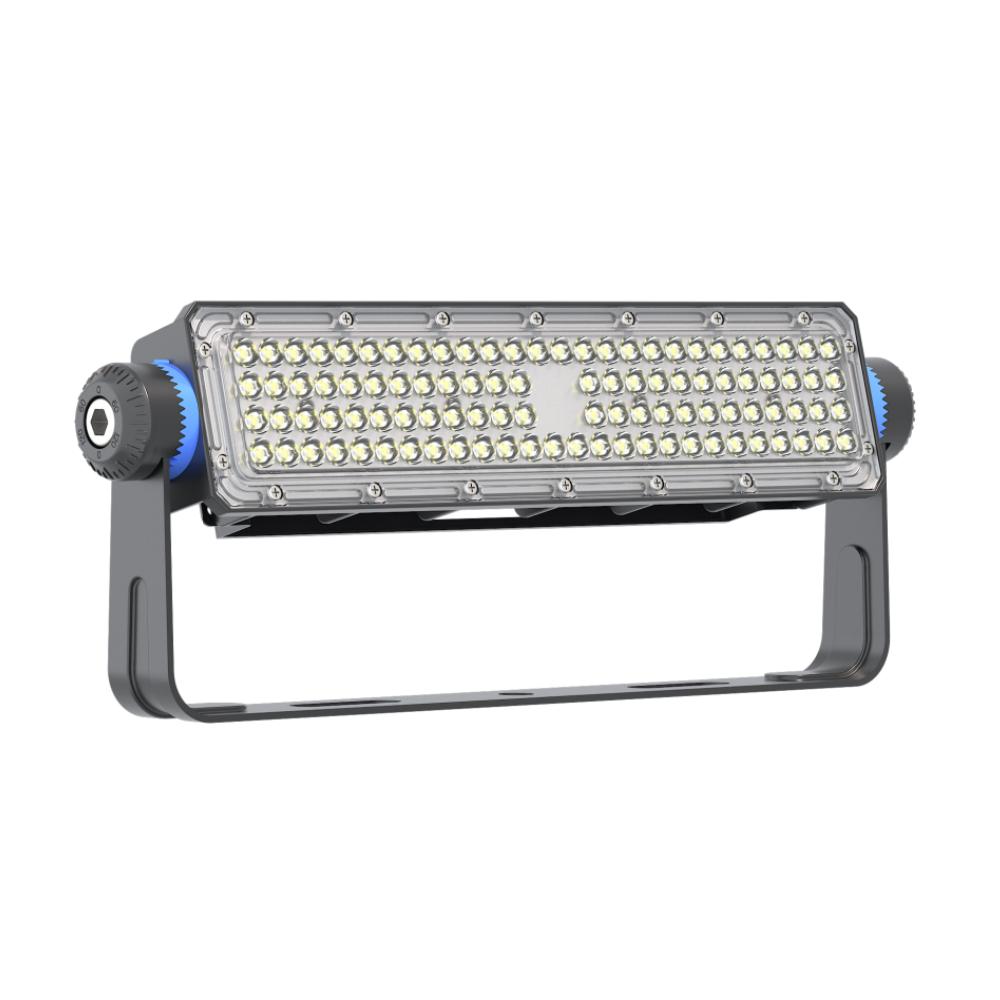

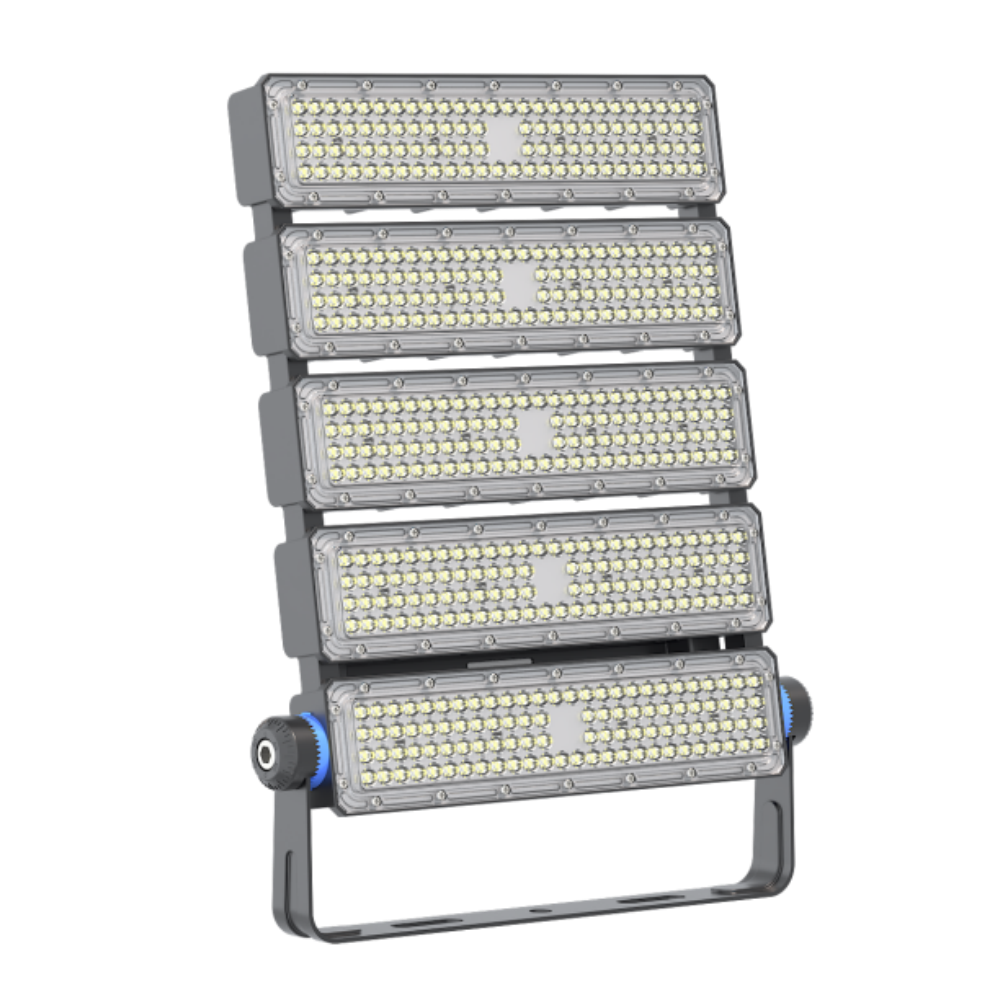

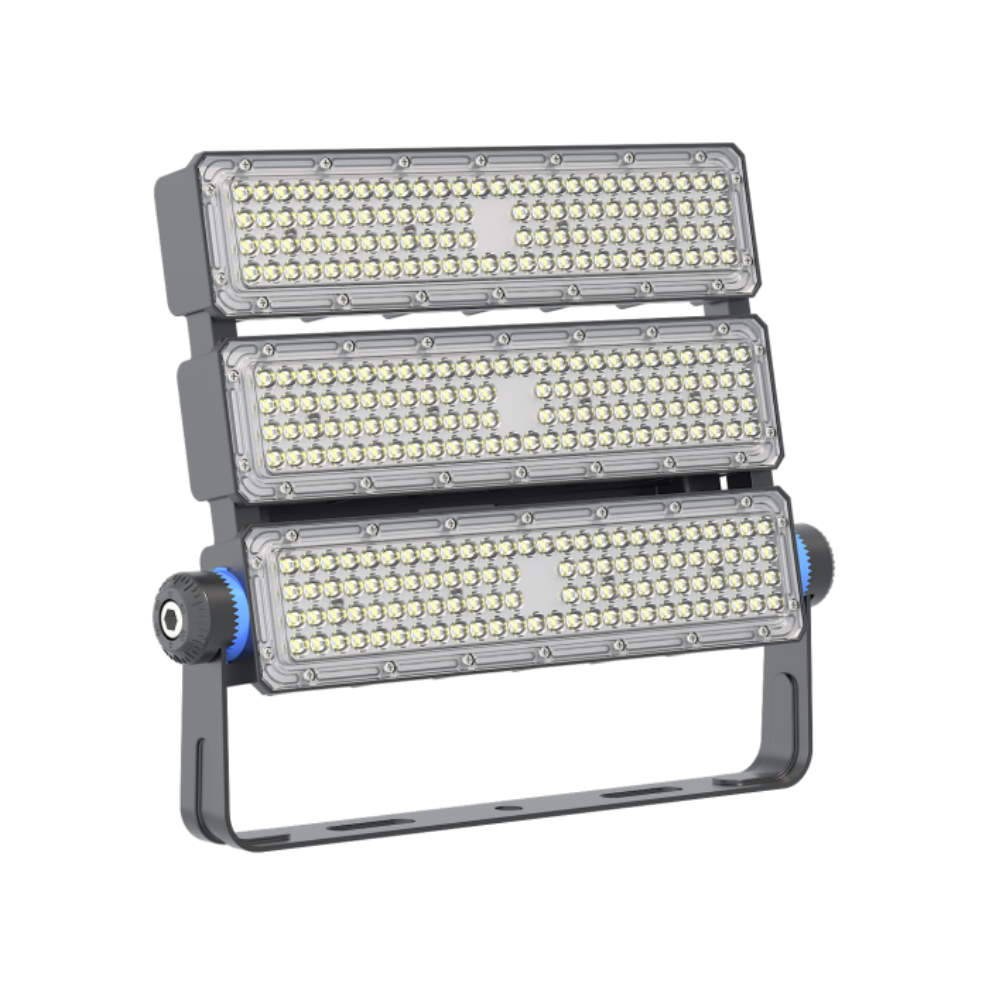

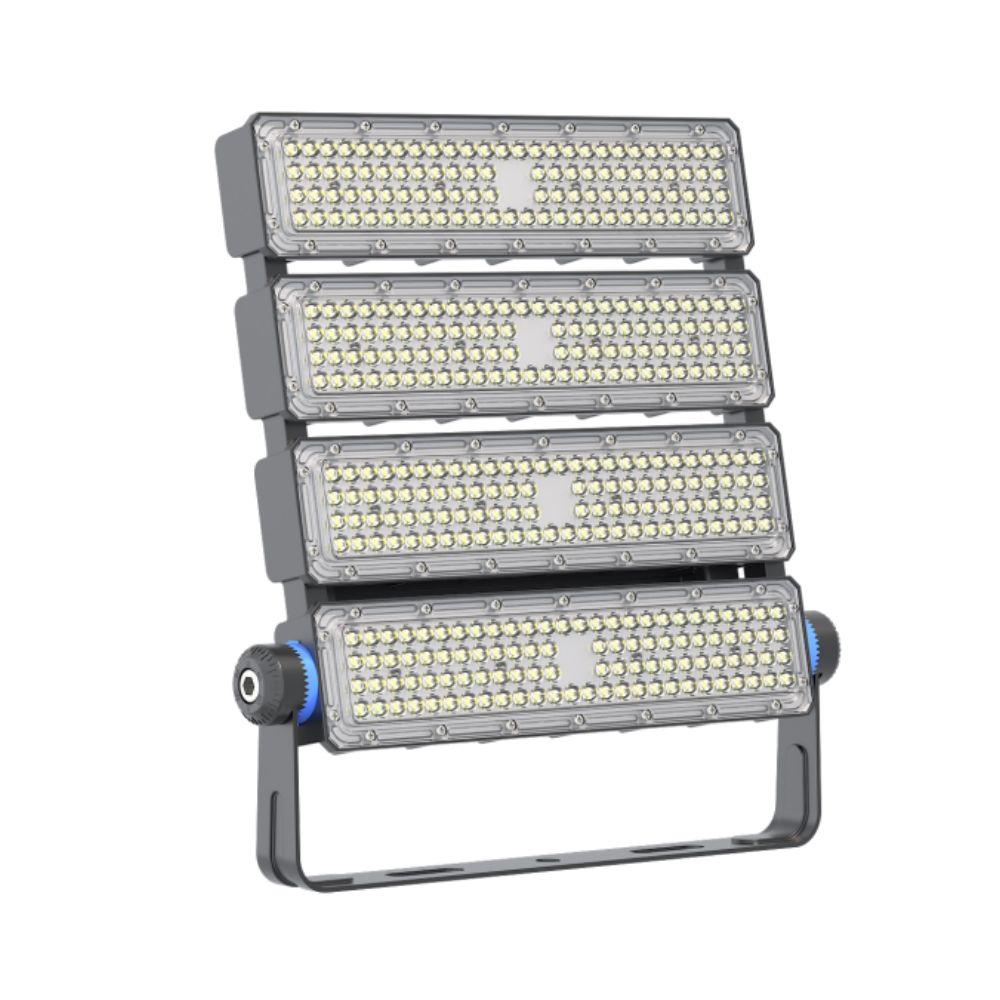

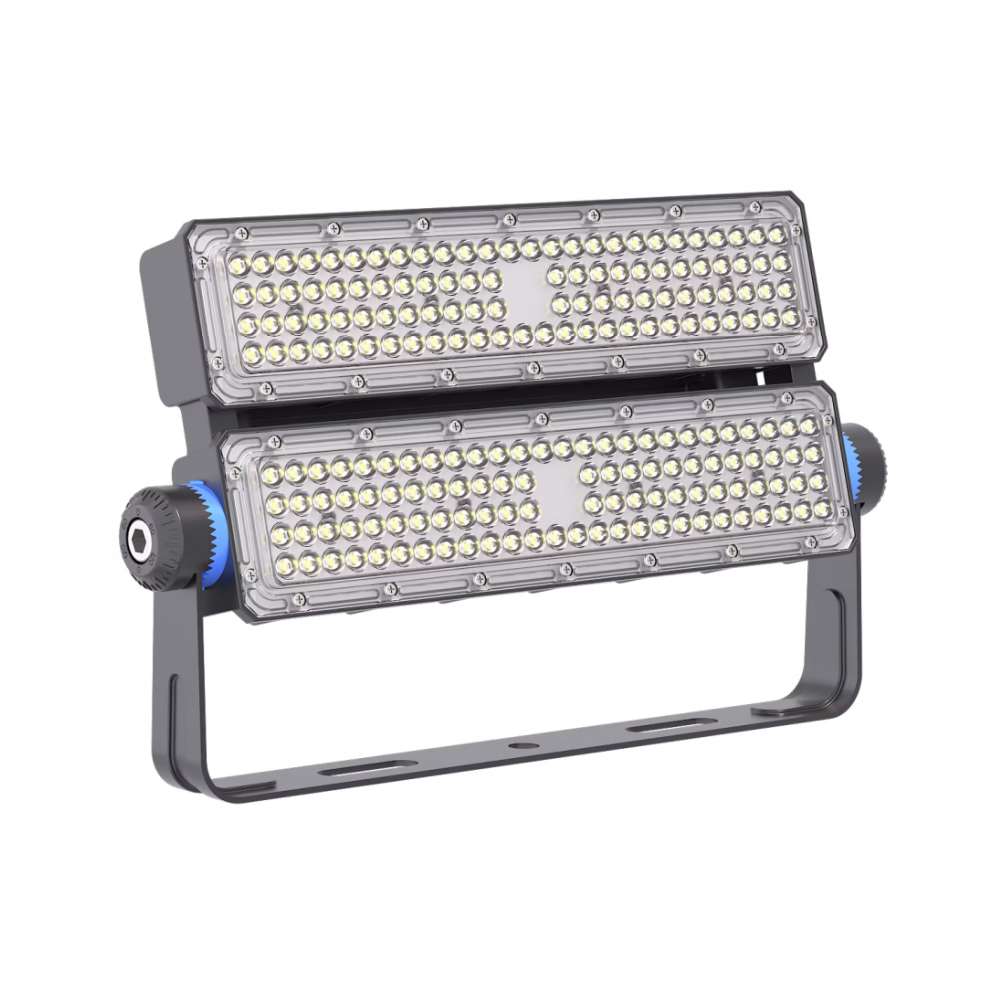

Nova MFL03 LED Module Flood Light







Nova MFL03 Module Flood Light
- Power Range: 50W – 300W
- Light Efficacy: 140lm/W
- Optical Lighting Distribution:
Medium beam (25° / 45°), Wide beam (60° / 90°), Asymmetric (90×120° / 80×150°) - Top brand LED chip and driver: Ensure product quality and extended lifetime
- IP66 and IK08 rated: Enhanced durability and reliability in harsh environments
- Warranty: 5 years
Versatile Applications
This Module Flood Light is designed for versatile illumination needs, suitable for:
Sports and Recreational Facilities
Tennis/Basketball Courts: 50W–150W for bright, even lighting
Small Soccer Fields / Practice Areas: 150W–300W for enhanced visibility
Community Sports Areas: Modular design for scalable outdoor coverage
Commercial and Industrial Applications
Parking Lots: 50W–150W for safety and perimeter illumination
Loading Zones / Workshops: 150W–300W for consistent task lighting
Construction Areas: Durable 50W–300W performance for demanding sites
Public and Landscape Lighting
Parks / Gardens: 50W–150W for soft, inviting ambiance
Roadways / Walkways: 150W–300W for safety and direction
Building Facades: 50W–300W for architectural and security lighting
Technical Specification
Model No. | ISL-MFL03-50W | ISL-MFL03-100W | ISL-MFL03-150W | ISL-MFL03-200W | ISL-MFL03-250W |
Power | 50W | 100W | 150W | 200W | 250W |
Model No. | ISL-MFL03-60W | ISL-MFL03-120W | ISL-MFL03-180W | ISL-MFL03-240W | ISL-MFL03-300W |
Power | 60W | 120W | 180W | 240W | 300W |
Dimmension | 352*72*88mm | 352*151*88mm | 352*230*88mm | 352*310*88mm | 352*390*88mm |
Input Voltage | 100-277VAC, 50/60Hz | ||||
Light Efficiency (±5%) | 135-140lm/W | ||||
CCT | 3000K/ 4000K/ 5000K/ 5700K/ 6500K | ||||
CRI | 80 | ||||
Beam Angle | 25°/ 45°/ 60°/ 90°/ 90*120°/ 80*150° | ||||
LED | Lumileds | ||||
Driver | Moso/ Meanwell | ||||
SPD | 10KV | ||||
Housing | Die-casting technology by ADC12 | ||||
IP Rating | IP66 | ||||
IK Rating | IK08 | ||||
Operation Temperature | ﹣35°C- +50°C | ||||
Lifespan | 50,000H | ||||
Warranty | 5 Years |
