EX02-A Explosion-Proof Flood Light

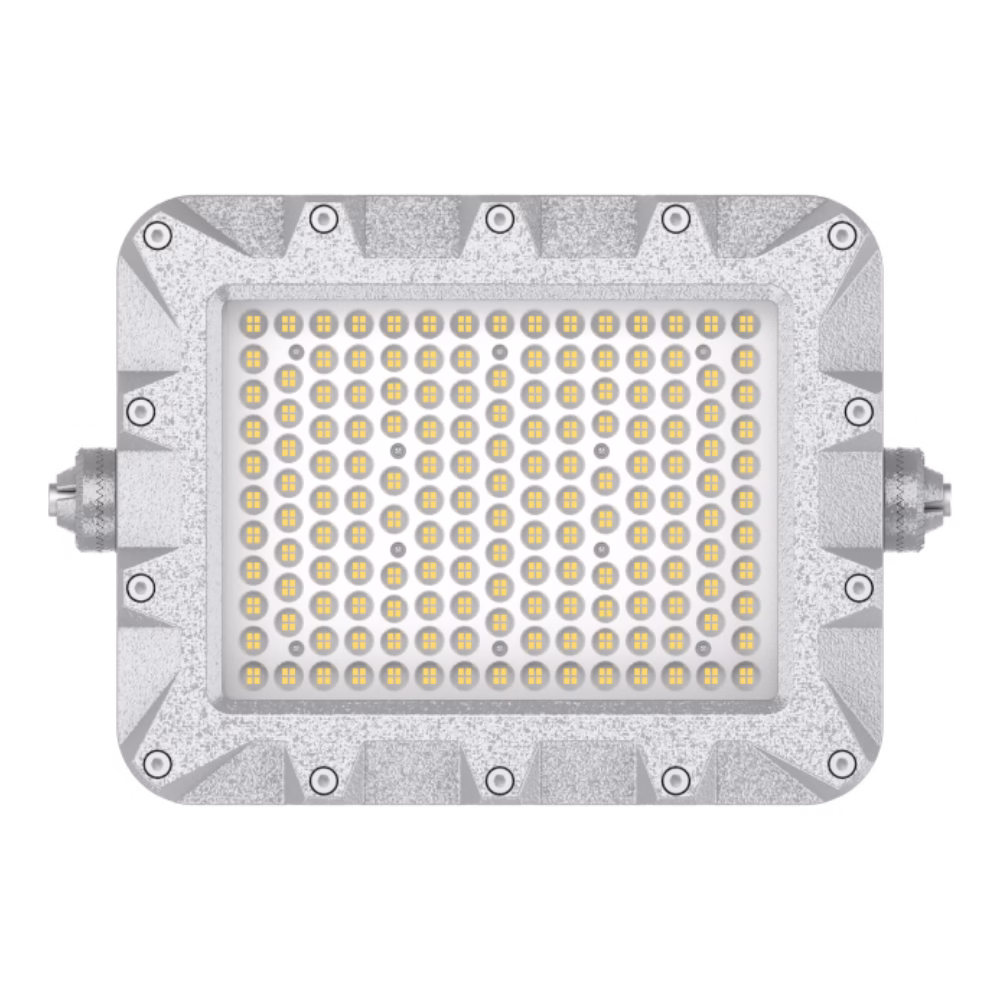

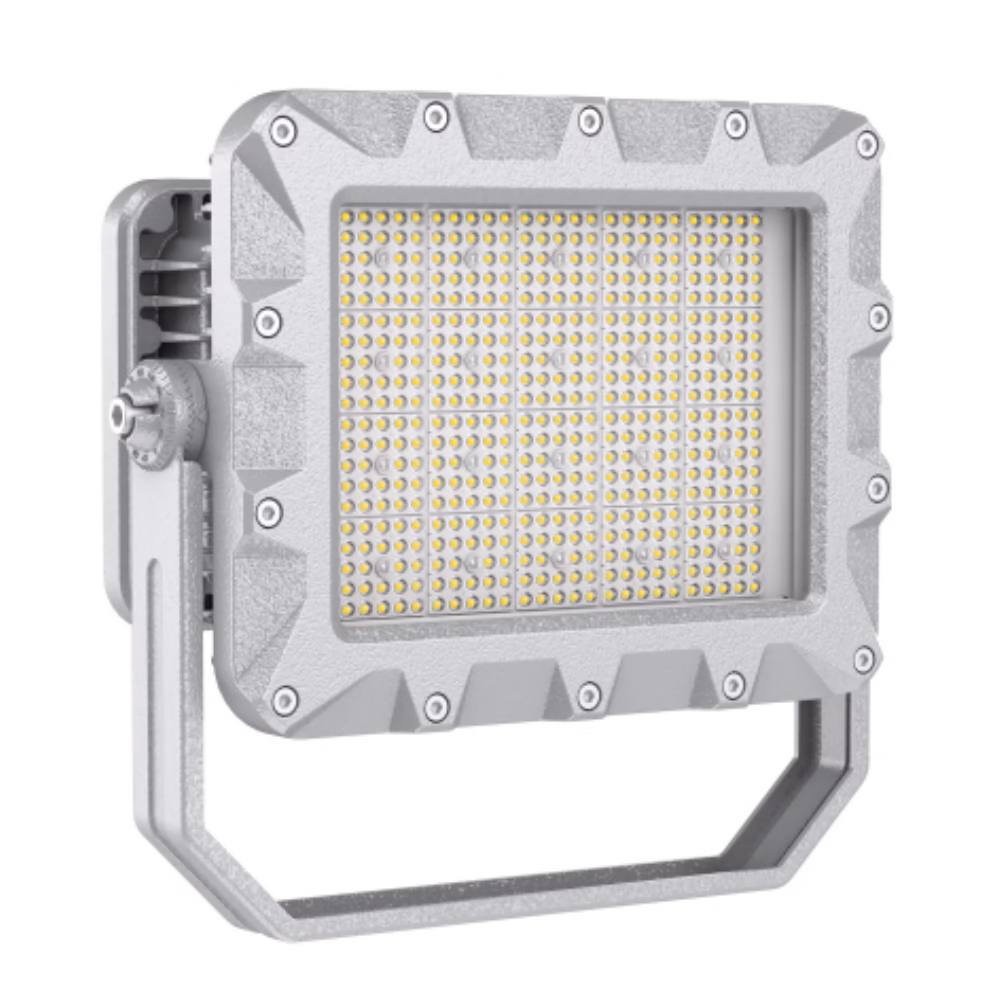

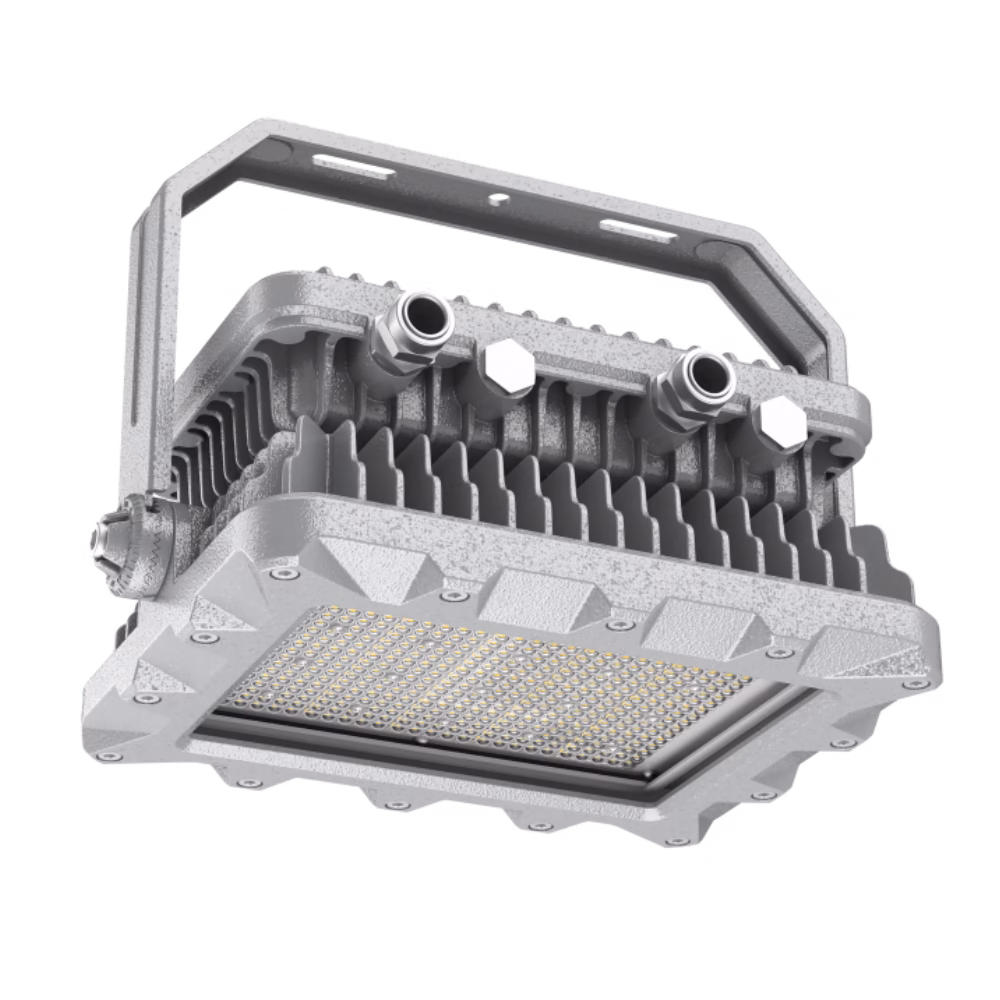

EX02-A LED Explosion-Proof Flood Light for Hazardous & Industrial Projects
The EX02-A LED Explosion-Proof Flood Light is engineered for hazardous outdoor and industrial areas requiring wide-area illumination. Suitable for oil & gas sites, chemical plants, marine facilities, storage yards, and mining zones. With high brightness, robust housing, and excellent weather resistance for long-term reliable operation.
• ExII 2G Ex db lIB+H₂ T6 Gb; ExII 2D Ex tb llIC T85°C Db
• High Temperature silicone gasketing.
• Safe and reliable heat transfer – Offering a T-rating of T6
• Anti-corrosion housing tested 1000hrs to standard lSO9227
• All exposed fasteners with quality stainless steel 304, 316 optional.
• Valid over the entire temperature range from -40°C~+65°C
• Diversifed optic solutions options 30°/45°/60°/90°/120° and other optional optics.
• Thermal shock and impact resistant tempered glass up to 10mm thickness
• Shock and vibration resistant-Durable LEDs with solderless board connection, 4mm thick mounting bracket wall thickness, M8 hexagon socket cap screws.
• Optional 15W; 20W; 25W, 30W (90 to 180 minutes duration) emergency lighting kit.
📩 Ready to Source LED Explosion-Proof Flood Lights for Your Industrial Project or Distribution Needs?
Contact iShineLux today for competitive pricing, technical support, and reliable bulk supply solutions.
Multiple Mounting Options
Technical Specification
| Model No. | ISL-EX02-A-50W | ISL-EX02-A-75W | ISL-EX02-A-100W | ISL-EX02-A-150W | ISL-EX02-A-200W | ISL-EX02-A-240W | ISL-EX02-A-300W | ISL-EX02-A-400W |
| Rated Power | 50W | 75W | 100W | 150W | 200W | 240W | 300W | 400W |
| Dimension | 329*217*166mm | 389*268*191mm | 462*312*205mm | |||||
| Light Efficiency | 140lm/W | |||||||
| Input Voltage | AC100-277V, 50/60Hz | |||||||
| CCT | 3000K/ 4000K/ 5000K/ 5700K/ 6500K | |||||||
| CRI | 80Ra | |||||||
| Beam Angle | 30°/ 45°/ 60°/ 90°/ 120° | |||||||
| LED Chip | Lumileds | |||||||
| Working Temperature | -40℃~+65℃ | |||||||
| IP Rating | IP66 | |||||||
| IK Rating | IK10 | |||||||
| Warranty | 5Years | |||||||
| Lifespan | 50,000Hrs | |||||||
