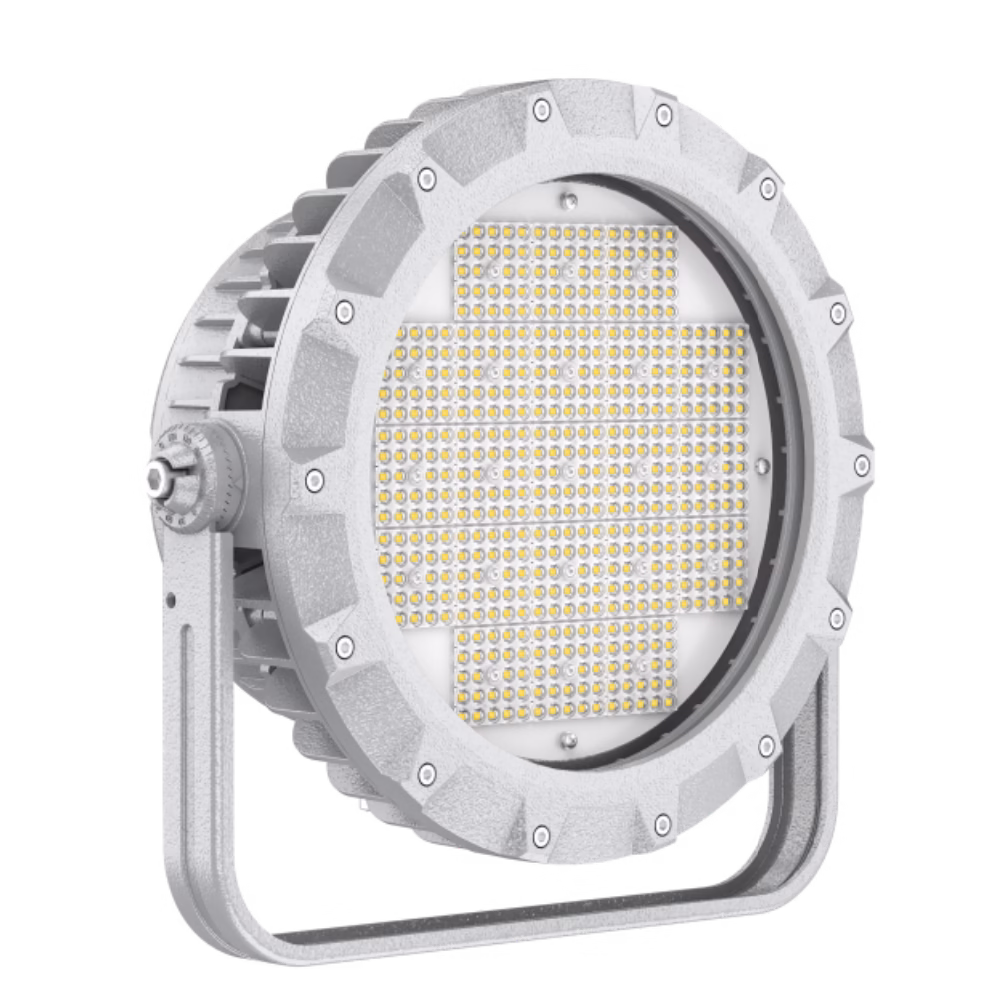

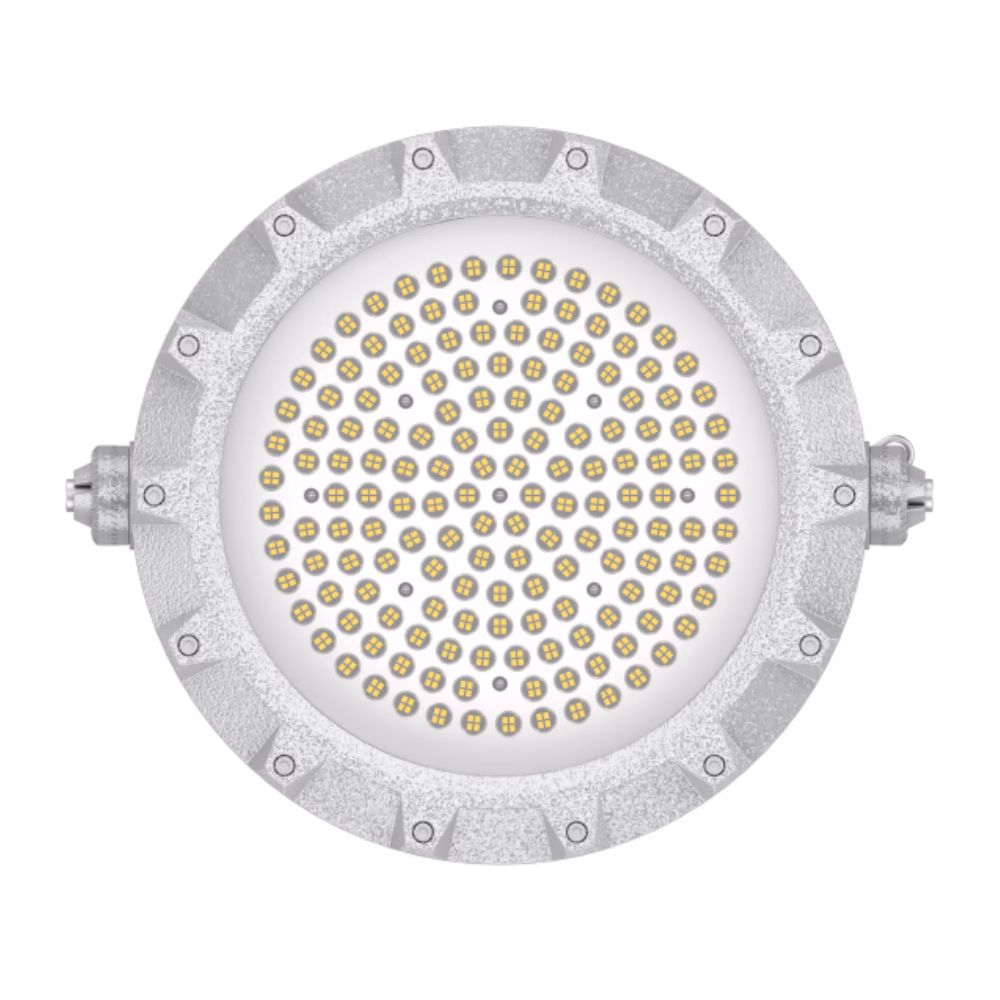

EX02-B Explosion-Proof High Bay Light





EX02-B LED Explosion-Proof High Bay Light for Hazardous & Industrial Projects
The EX02-B LED Explosion-Proof High Bay Light is designed for hazardous indoor areas requiring powerful and reliable high-bay illumination. Ideal for warehouses, workshops, factories, oil & gas plants, and chemical facilities. Featuring high efficiency, durable aluminum housing, and long lifespan performance for demanding industrial environments.
• Wide Power Range: 50W–400W
Available in multiple wattages for hazardous area lighting projects, from compact workshops to large industrial facilities.
• High Efficiency up to 140 lm/W
Provides bright and energy-saving high bay illumination for factories, warehouses, and hazardous indoor areas.
• Premium Lumileds LED Chips
Ensures high brightness, stable light output, low lumen depreciation, and long service life.
• Reliable Driver Performance
Equipped with high-quality driver featuring surge protection, overheat protection, and high power factor for dependable operation.
• Explosion Proof Durable Housing
ADC12 die-cast aluminum housing delivers excellent strength, corrosion resistance, and superior heat dissipation.
• Excellent Thermal Management
Optimized cooling structure reduces operating temperature and extends the lifespan of LEDs and driver components.
• Heavy-Duty Tempered Glass Lens
8–10mm tempered glass lens provides impact resistance and reliable protection in harsh industrial environments.
• Flexible Installation Options
Supports hook mount, pendant mount, ceiling mount, and bracket installation for different project needs.
• Ideal for Hazardous Areas
Widely used in oil & gas plants, chemical factories, warehouses, workshops, marine facilities, and mining sites.
📩 Ready to Source LED Explosion-Proof High Bay Lights for Your Industrial Project or Distribution Needs?
Contact iShineLux today for competitive pricing, technical support, and reliable bulk supply solutions.
Multiple Mounting Options
Technical Specification
| Model No. | ISL-EX02-B-50W | ISL-EX02-B-75W | ISL-EX02-B-100W | ISL-EX02-B-150W | ISL-EX02-B-200W | ISL-EX02-B-240W | ISL-EX02-B-300W | ISL-EX02-B-400W |
| Rated Power | 50W | 75W | 100W | 150W | 200W | 240W | 300W | 400W |
| Dimension | 250*194mm | 320*205mm | 400*202mm | |||||
| Light Efficiency | 140lm/W | |||||||
| Input Voltage | AC100-277V, 50/60Hz | |||||||
| CCT | 3000K/ 4000K/ 5000K/ 5700K/ 6500K | |||||||
| CRI | 80Ra | |||||||
| Beam Angle | 30°/ 45°/ 60°/ 90°/ 120° | |||||||
| LED Chip | Lumileds | |||||||
| Housing Material | Die-casting Aluminum | |||||||
| Cover Material | Tempered Glass | |||||||
| Working Temperature | -40℃~+55℃ | |||||||
| IP Rating | IP66 | |||||||
| IK Rating | IK08 | |||||||
| Warranty | 5Years | |||||||
| Lifespan | 50,000Hrs | |||||||
