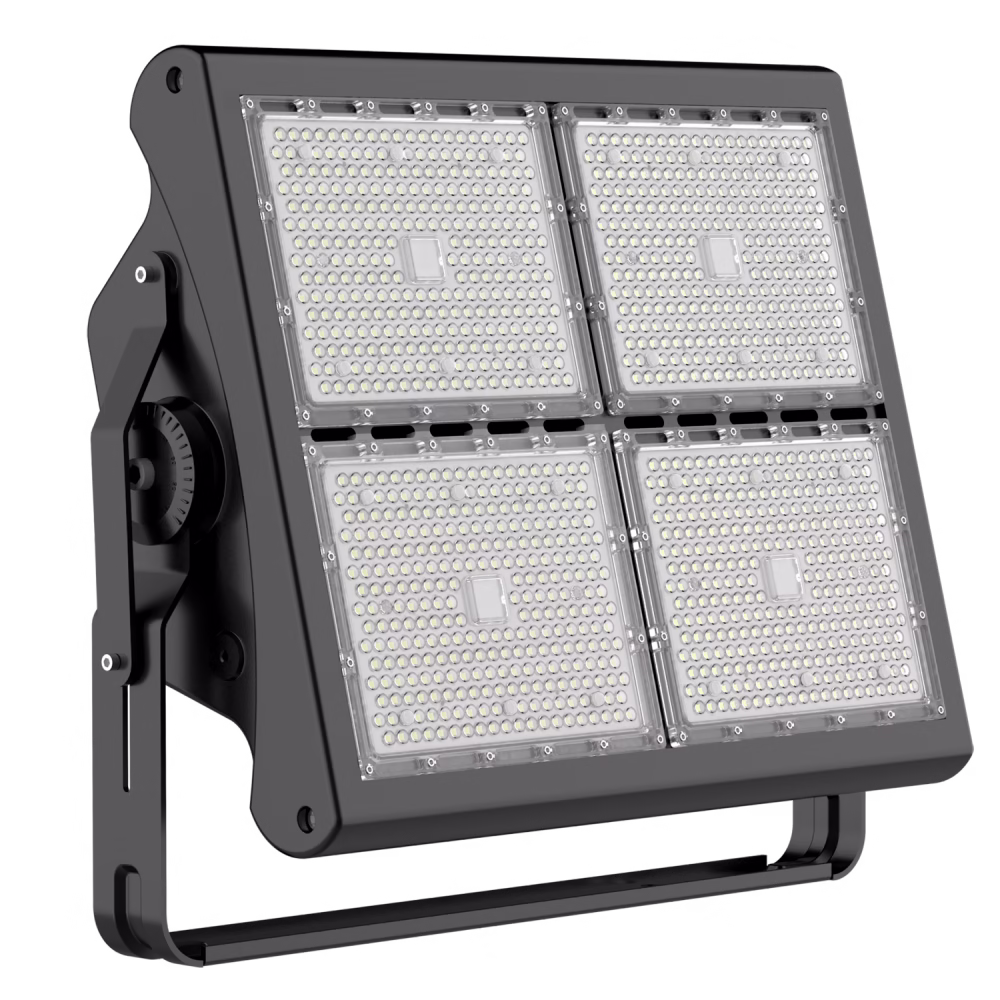

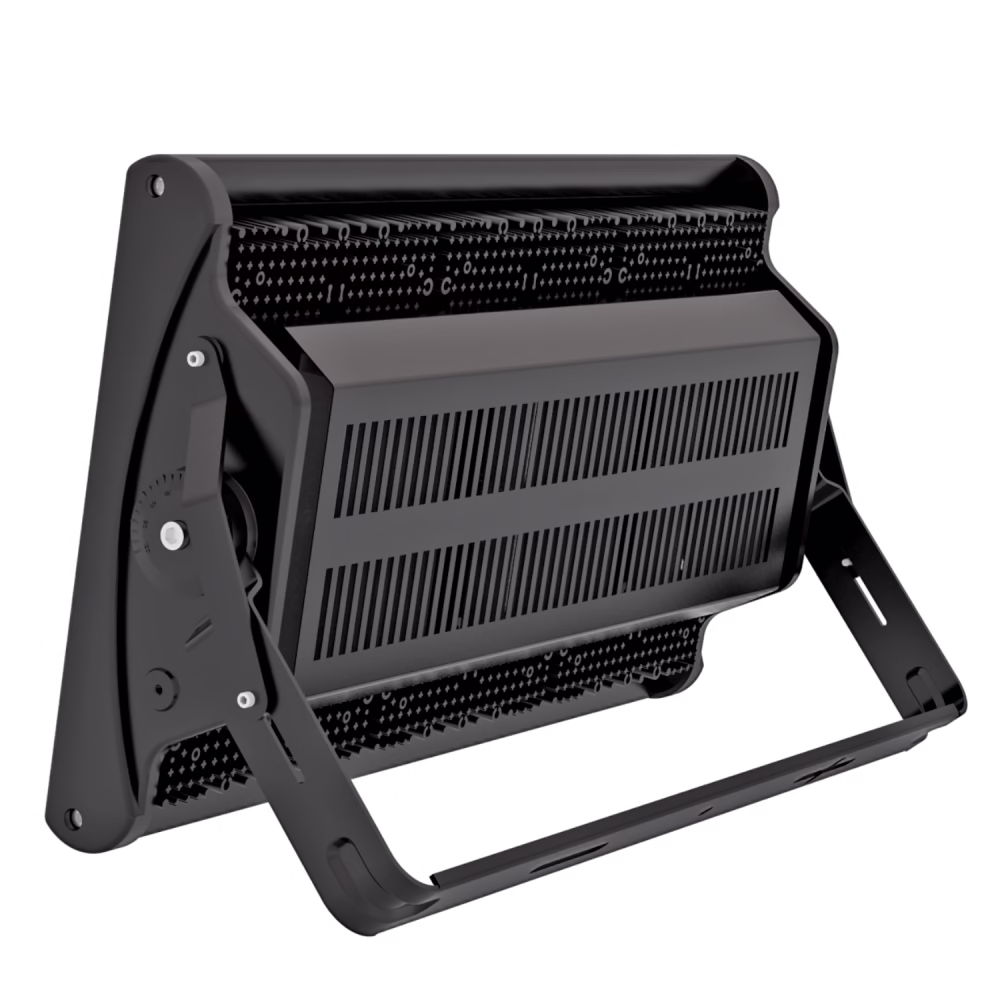

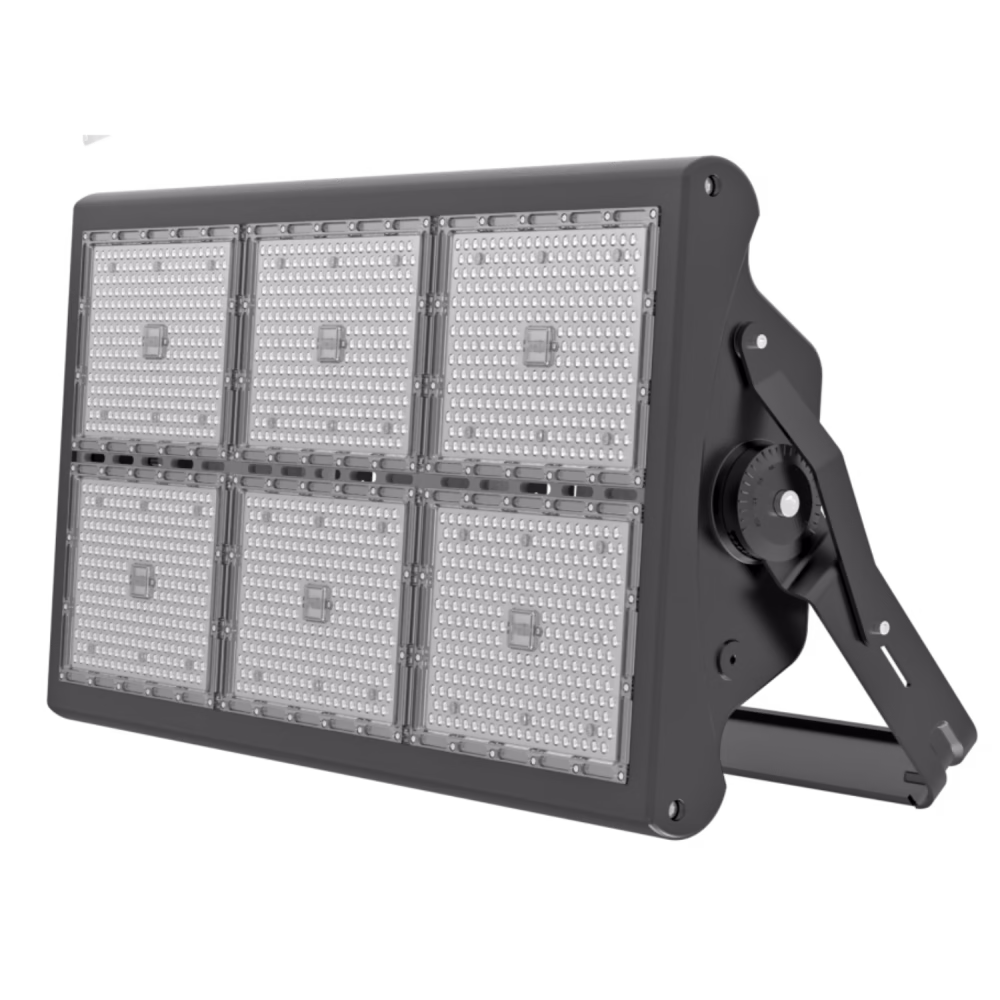

Skywing SF02 LED Sports Light
SF02 Sports Light
- Power Range: 400W – 1500W
- Light Efficacy: 140lm/W
- Optical Lighting Distribution: 25°/45°/60°/90°
- Cold forging technology with AL1070
- Extrusion aluminum frame, high mechanical strength and excellent thermal management
- 4mm thickness U shape bracket, special corrosion treatment to reach the WF2 standard.
- Racked angle allows for precise installation, up to 180°
- Integrated copper breather valve, balance internal and external temperature and humidity
- Double surge protection: Driver & extra 10KV SPD
- IP66 and IK08 rated for enhanced durability and reliability in harsh conditions.
- Warranty: 5 years
Versatile Applications
This Sports Light is specifically engineered for a wide range of outdoor sports and activity illumination needs, making it ideal for:
- Soccer Fields and Stadiums: Provides high-intensity, uniform lighting to ensure optimal visibility for players and spectators during night games.
- Tennis Courts and Basketball Courts: Delivers bright and even illumination, enhancing the playing experience and safety for athletes.
- University Sports Grounds and Athletic Facilities: Offers reliable lighting for training sessions, matches, and large-scale sports events.
- Community Sports Centers and Recreational Areas: Enhances the usability of outdoor sports facilities after dark, promoting community engagement and physical activity.
- Rugby Fields and Cricket Grounds: Ensures clear visibility for fast-paced games, supporting both competitive matches and casual play.
- Track and Field Arenas: Provides consistent lighting for running tracks, long jump pits, and other field events, ensuring safety and performance.
- Golf Courses: Illuminates key areas of the golf course, allowing golfers to enjoy the game even after sunset.
Baseball Diamonds: Delivers focused lighting for home plate, pitcher’s mound, and outfield, enhancing visibility for players and umpires.
Technical Specification
| Model No. | ISL-QCD-B400W | ISL-QCD-B500W | ISL-QCD-B800W | ISL-QCD-B1000W | ISL-QCD-B1200W | ISL-QCD-B1500W |
| Power | 400W | 500W | 800W | 1000W | 1200W | 1500W |
| Dimmension | 325*472*160mm | 325*472*160mm | 629*536*160mm | 629*536*160mm | 890*536*160mm | 890*536*160mm |
| Input Voltage | 100-277VAC, 50/60Hz | |||||
| Light Efficiency (±5%) | 140lm/W | |||||
| CCT | 3000K/ 4000K/ 5000K/ 5700K/ 6500K | |||||
| CRI | 80 | |||||
| Beam Angle | 25°/ 45°/ 60°/ 90° | |||||
| LED | Lumileds | |||||
| Driver | Meanwell/ Sosen | |||||
| SPD | 10KV | |||||
| Housing | Cold Forging technology with AL1070 | |||||
| IP Rating | IP66 | |||||
| IK Rating | IK08 | |||||
| Operation Temperature | ﹣35°C- +50°C | |||||
| Lifespan | 50,000H | |||||
| Warranty | 5Years | |||||
