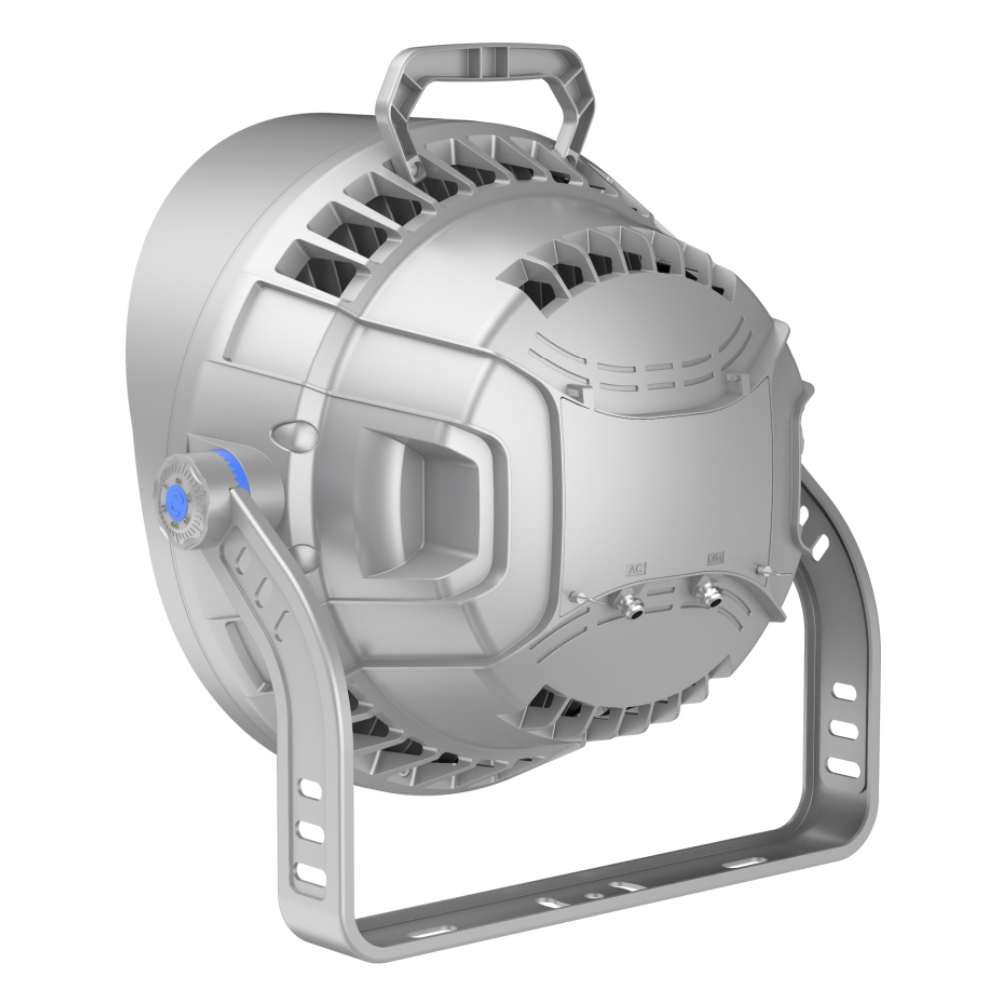

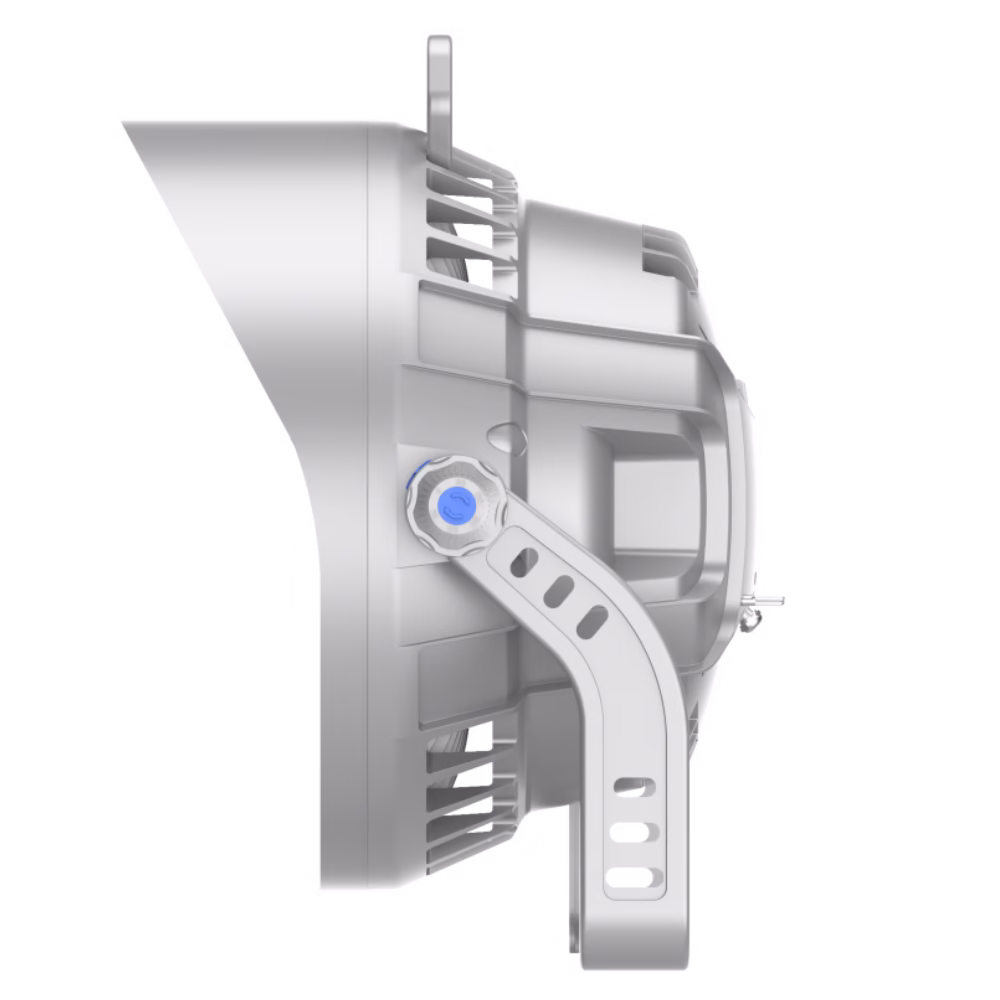

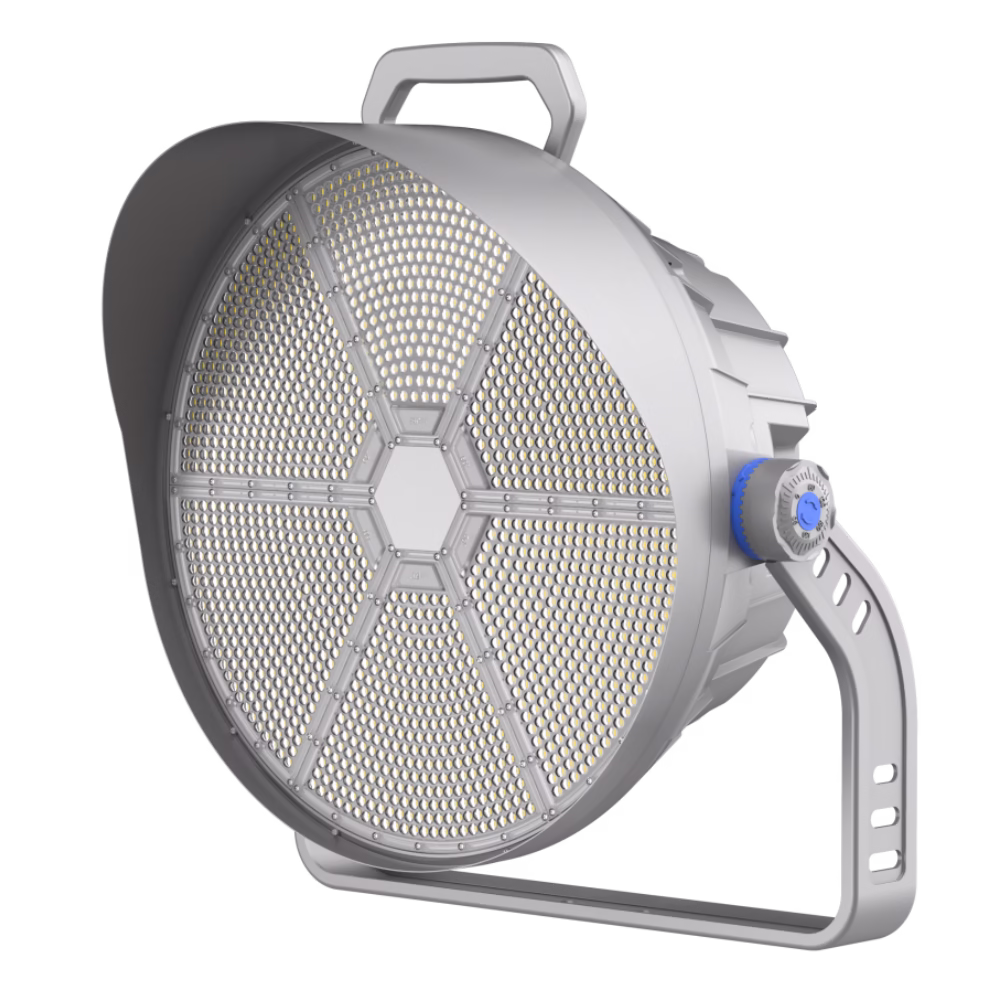

Skywing SF06 LED Sports Light
SF06 Sports Light
Our round-shape LED floodlights are specially designed for sports stadiums and large outdoor venues. With an extremely narrow beam angle, they deliver powerful long-distance illumination, making them ideal for professional sports lighting projects.
Equipped with a visor design, these floodlights effectively minimize glare and spill light, while the precise angle adjustment ensures accurate light direction and easier on-site debugging.
Key Features:
- Power Range: 400W-1200W
- High Efficiency: 150 lm/W
- Beam Options: Narrow (10°/15°), Medium (25°/45°), Wide (60°/90°)
- Die-Cast Heat Sink: Excellent thermal management with a large one-piece structure
- Copper Breather Valve: Balances internal temperature and humidity for longer lifespan
- Tempered Glass Cover Optional: Withstands harsh environmental conditions
- Double Surge Protection: Driver-level protection plus extra 10KV SPD
- Durability: lP66 waterproof and lK08 impact resistance
- Warranty: 5 years
This floodlight combines high efficiency, precise optics, and robust durability, making it a reliable solution for stadiums, arenas, airports, and other demanding outdoor projects
Versatile Applications
- Football Fields and Stadiums: Provides high-intensity, uniform lighting to ensure optimal visibility for players and spectators during night games.
- Tennis Courts and Basketball Courts: Delivers bright and even illumination, enhancing the playing experience and safety for athletes.
- University Sports Grounds and Athletic Facilities: Offers reliable lighting for training sessions, matches, and large-scale sports events.
- Community Sports Centers and Recreational Areas: Enhances the usability of outdoor sports facilities after dark, promoting community engagement and physical activity.
- Rugby Fields and Cricket Grounds: Ensures clear visibility for fast-paced games, supporting both competitive matches and casual play.
- Track and Field Arenas: Provides consistent lighting for running tracks, long jump pits, and other field events, ensuring safety and performance.
- Golf Courses: Illuminates key areas of the golf course, allowing golfers to enjoy the game even after sunset.
Baseball Diamonds: Delivers focused lighting for home plate, pitcher’s mound, and outfield, enhancing visibility for players and umpires.
Technical Specification
| Model No. | ISL-SF06-A-400W | ISL-SF06-A-500W | ISL-SF06-A-600W | ISL-SF06-A-800W | ISL-SF06-A-1000W | ISL-SF06-A-1200W |
| Power | 400W | 500W | 600W | 800W | 1000W | 1200W |
| Dimmension | 522*509*389mm | 522*509*389mm | 522*509*389mm | 681*660*497mm | 681*660*497mm | 681*660*497mm |
| Input Voltage | 100-277VAC, 50/60Hz | |||||
| Light Efficiency (±5%) | 150lm/W | |||||
| CCT | 3000K/ 4000K/ 5000K/ 5700K/ 6500K | |||||
| CRI | 80 | |||||
| Beam Angle | 10°/ 15°/ 25°/ 45°/ 60°/ 90° | |||||
| LED | Lumileds/ Osram | |||||
| Driver | Inventronics/ Meanwell/ Sosen | |||||
| SPD | 10KV | |||||
| Options | Tempering Glass Cover | |||||
| Housing | Die-casting technology by ADC12 | |||||
| IP Rating | IP66 | |||||
| IK Rating | IK08 | |||||
| Operation Temperature | ﹣35°C- +50°C | |||||
| Lifespan | 50,000H | |||||
| Warranty | 5Years | |||||
