Skywing SF08 LED Sports Light

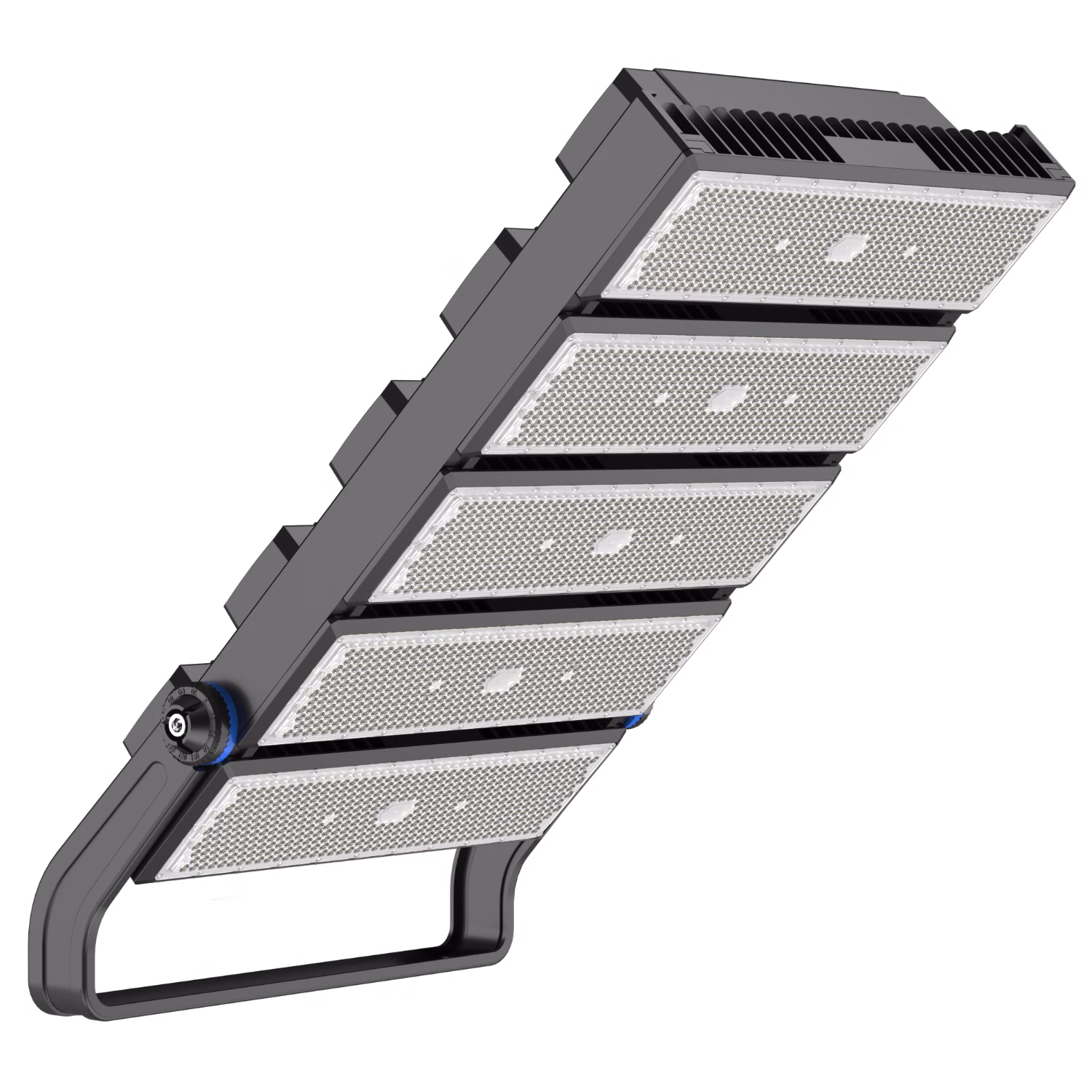

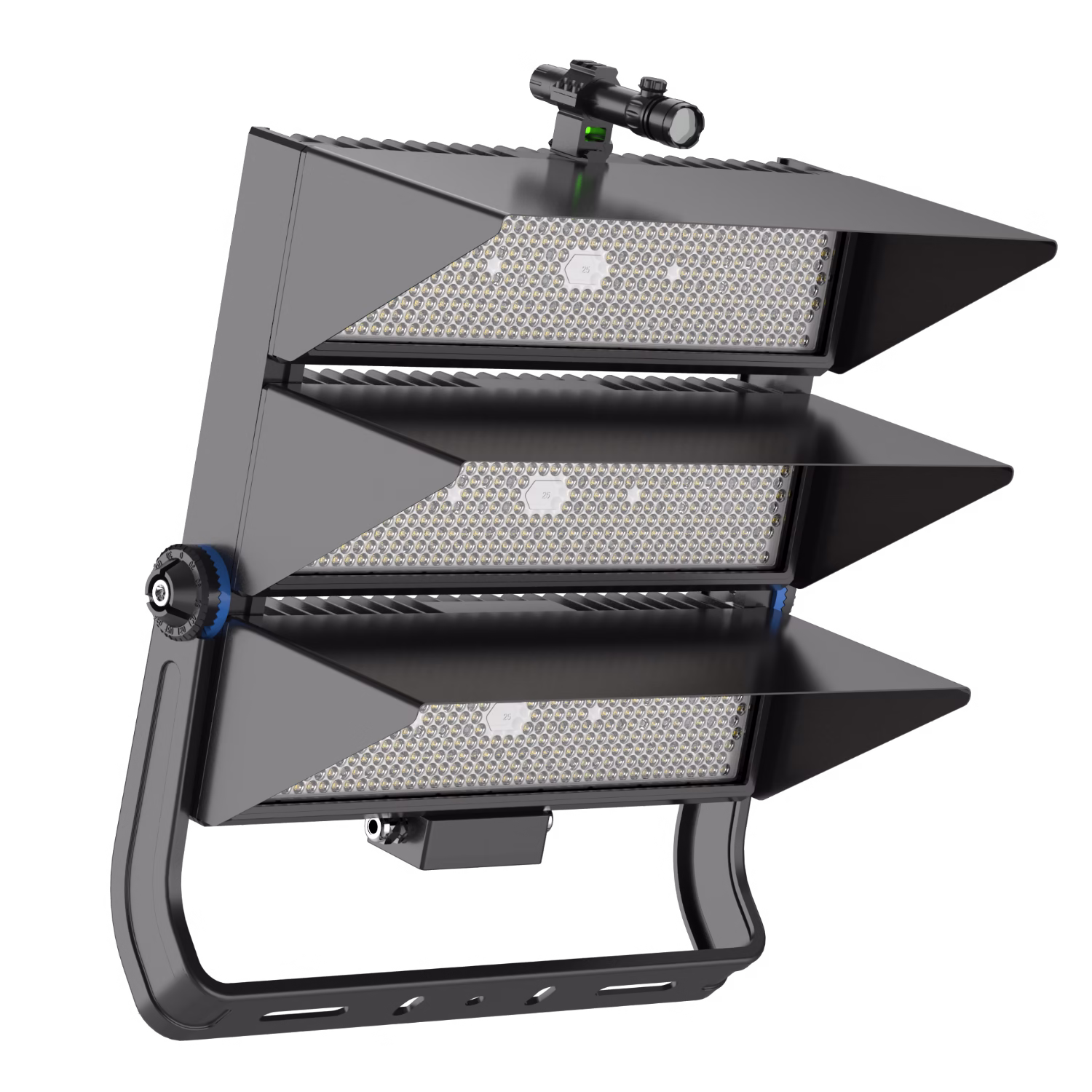

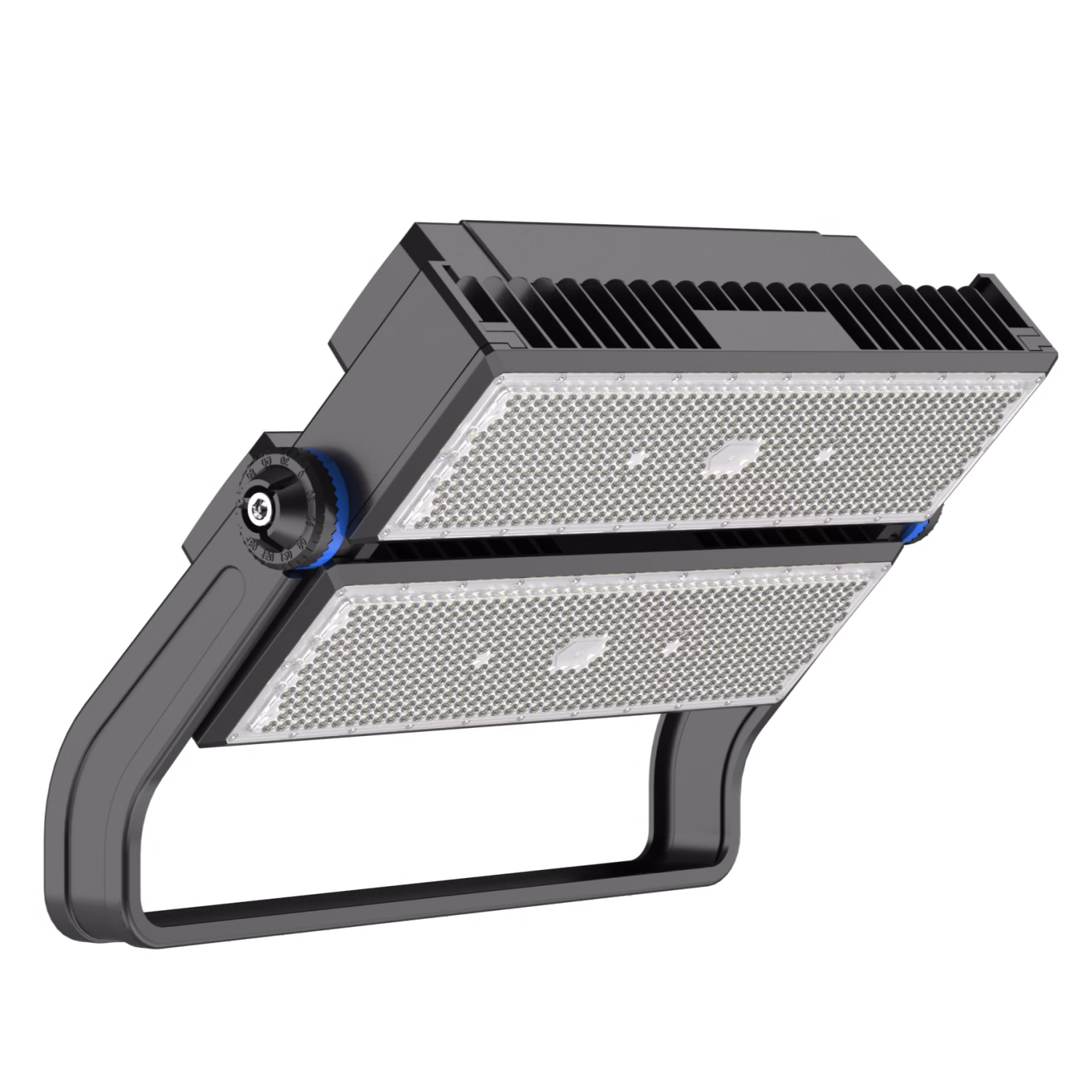

SF08 LED Stadium Floodlight
The Professional 1000W LED Floodlight is purpose-built for football fields, stadiums, and large outdoor venues. With a power range of 250W to 1500W and a high efficacy of 150 lm/W, it delivers bright, uniform illumination that meets the demanding standards of professional sports lighting.
Key Features:
- Power Range: 250W-1500W
- High Efficiency: 150 lm/W
- Optical Distribution: Narrow (10°/15°), Medium (25°/45°), Wide (60°/90°), Asymmetric (65°x25°x60°)

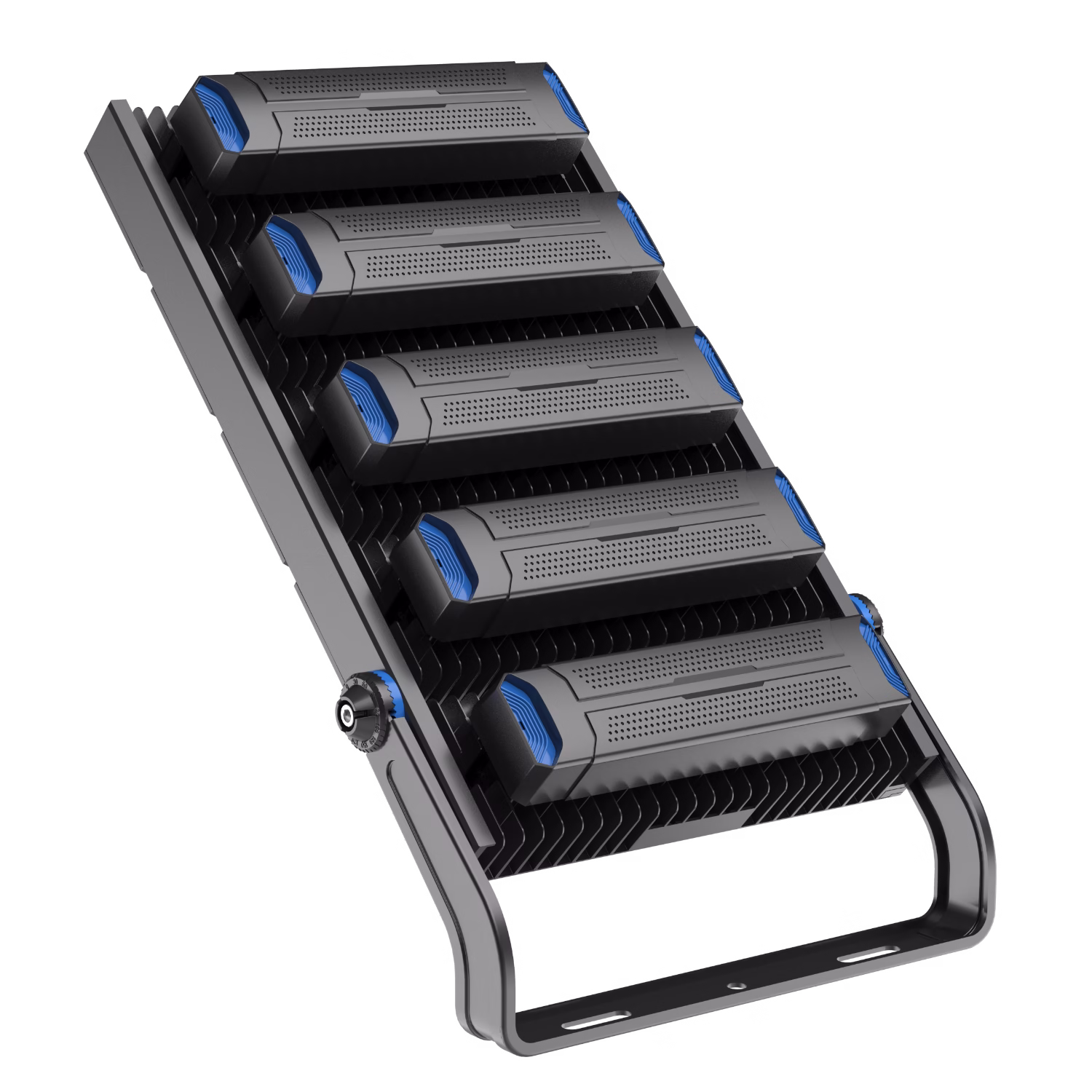

- Die-Cast Heat Sink: Large one-piece design provides superior thermal management and extends product lifespan
- Module Gap Design: Lowers wind resistance and improves heat dissipation efficiency
- Copper Breather Valve: Stabilizes internal pressure and prevents moisture accumulation
- Double Surge Protection: Driver-level protection plus extra 10KV SPD for reliable performance
- Durability: lP66 waterproof and lK08 impact-resistant for harsh outdoor enyironments
- Warranty: 5 years
This floodlight combines precision optics, modular flexibility, and rugged construction, making it an ideal choice for football stadiums, training grounds, and other large-scale sports projects
Versatile Applications
This Sports Light is specifically engineered for a wide range of outdoor sports and activity illumination needs, making it ideal for:
- Soccer Fields and Stadiums: Provides high-intensity, uniform lighting to ensure optimal visibility for players and spectators during night games.
- Tennis Courts and Basketball Courts: Delivers bright and even illumination, enhancing the playing experience and safety for athletes.
- University Sports Grounds and Athletic Facilities: Offers reliable lighting for training sessions, matches, and large-scale sports events.
- Community Sports Centers and Recreational Areas: Enhances the usability of outdoor sports facilities after dark, promoting community engagement and physical activity.
- Rugby Fields and Cricket Grounds: Ensures clear visibility for fast-paced games, supporting both competitive matches and casual play.
- Track and Field Arenas: Provides consistent lighting for running tracks, long jump pits, and other field events, ensuring safety and performance.
- Golf Courses: Illuminates key areas of the golf course, allowing golfers to enjoy the game even after sunset.
Baseball Diamonds: Delivers focused lighting for home plate, pitcher’s mound, and outfield, enhancing visibility for players and umpires.
Technical Specification
| Model No. | ISL-QCD-H250W | ISL-QCD-H500W | ISL-QCD-H750W | ISL-QCD-H1000W | ISL-QCD-H1250W |
| Power | 250W | 500W | 750W | 1000W | 1250W |
| Model No. | ISL-QCD-H300W | ISL-QCD-H600W | ISL-QCD-H900W | ISL-QCD-H1200W | ISL-QCD-H1500W |
| Rated Power | 300W | 600W | 900W | 1200W | 1500W |
| Dimmension | 560*250*148mm | 560*447*148mm | 560*604*148mm | 560*761*148mm | 560*918*148mm |
| Input Voltage | 100-277VAC, 50/60Hz | ||||
| Light Efficiency (±5%) | 150lm/W | ||||
| CCT | 3000K/ 4000K/ 5000K/ 5700K/ 6500K | ||||
| CRI | 80 | ||||
| Beam Angle | 10°/ 15°/ 25°/ 45°/ 60°/ 90°/ 65*25*60° | ||||
| LED | Lumileds/ Osram | ||||
| Driver | Sosen/ Meanwell | ||||
| SPD | 10KV | ||||
| Options | Tempering Glass Cover | ||||
| Housing | Die-casting technology by ADC12 | ||||
| IP Rating | IP66 | ||||
| IK Rating | IK08 | ||||
| Operation Temperature | ﹣35°C- +50°C | ||||
| Lifespan | 50,000H | ||||
| Warranty | 5Years | ||||
