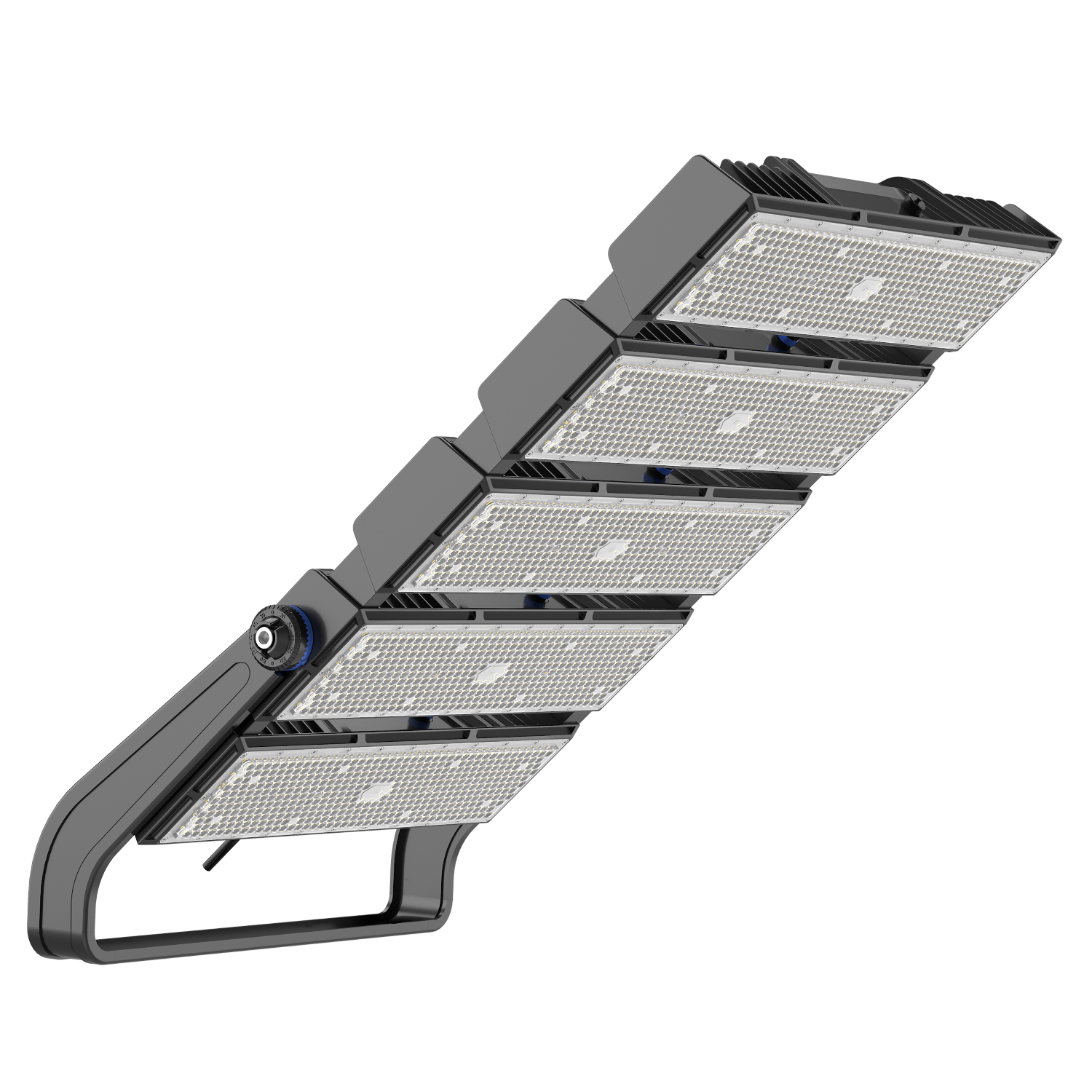

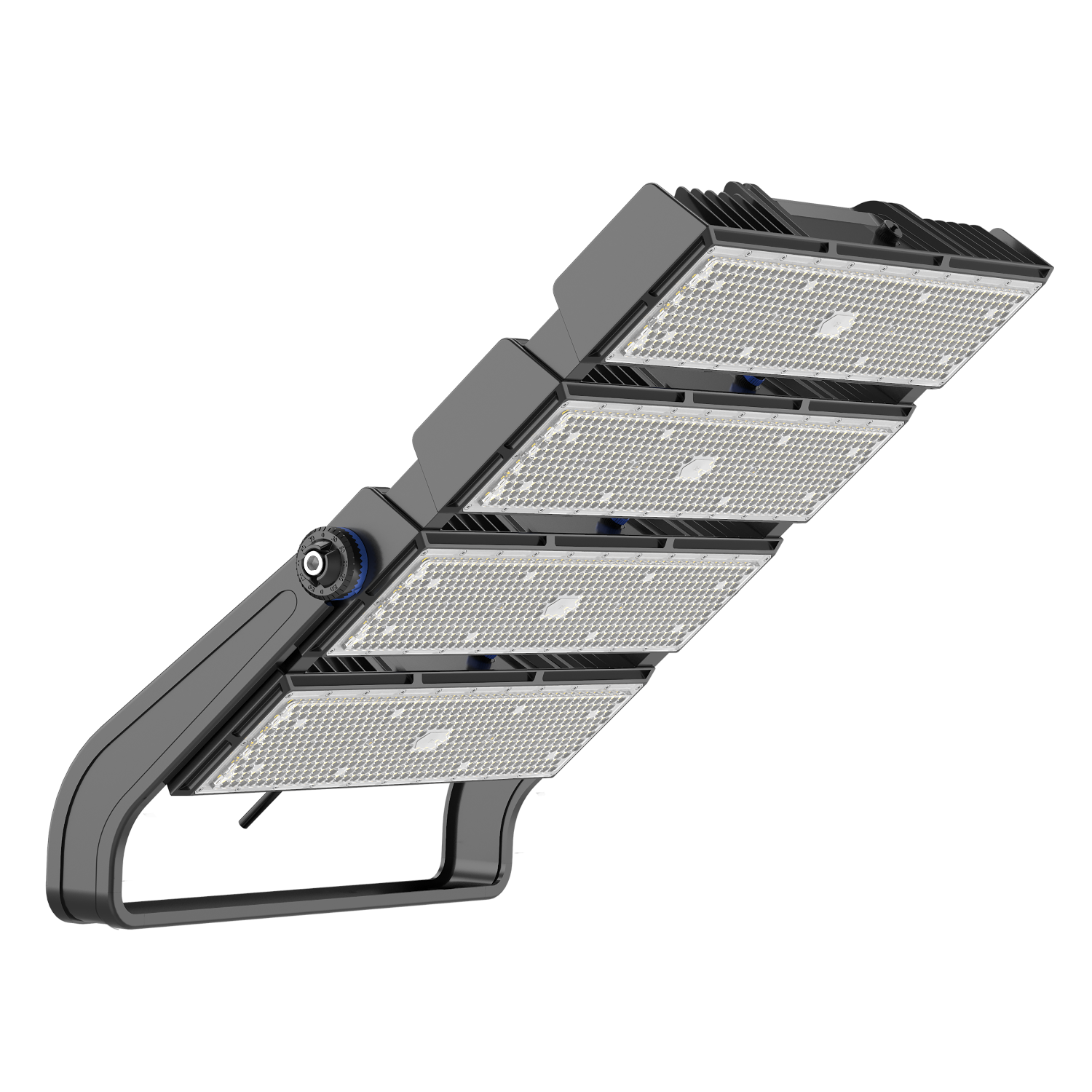

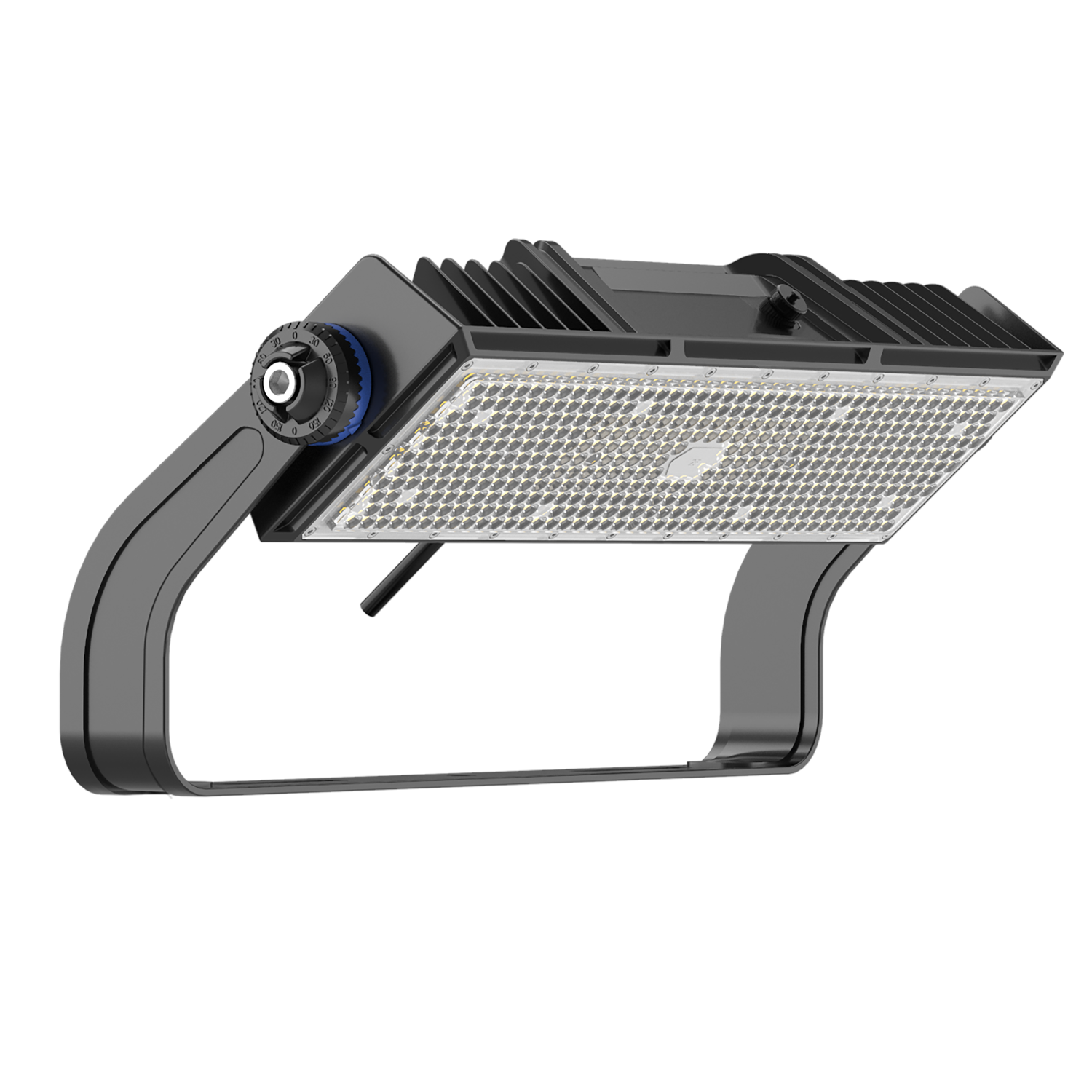

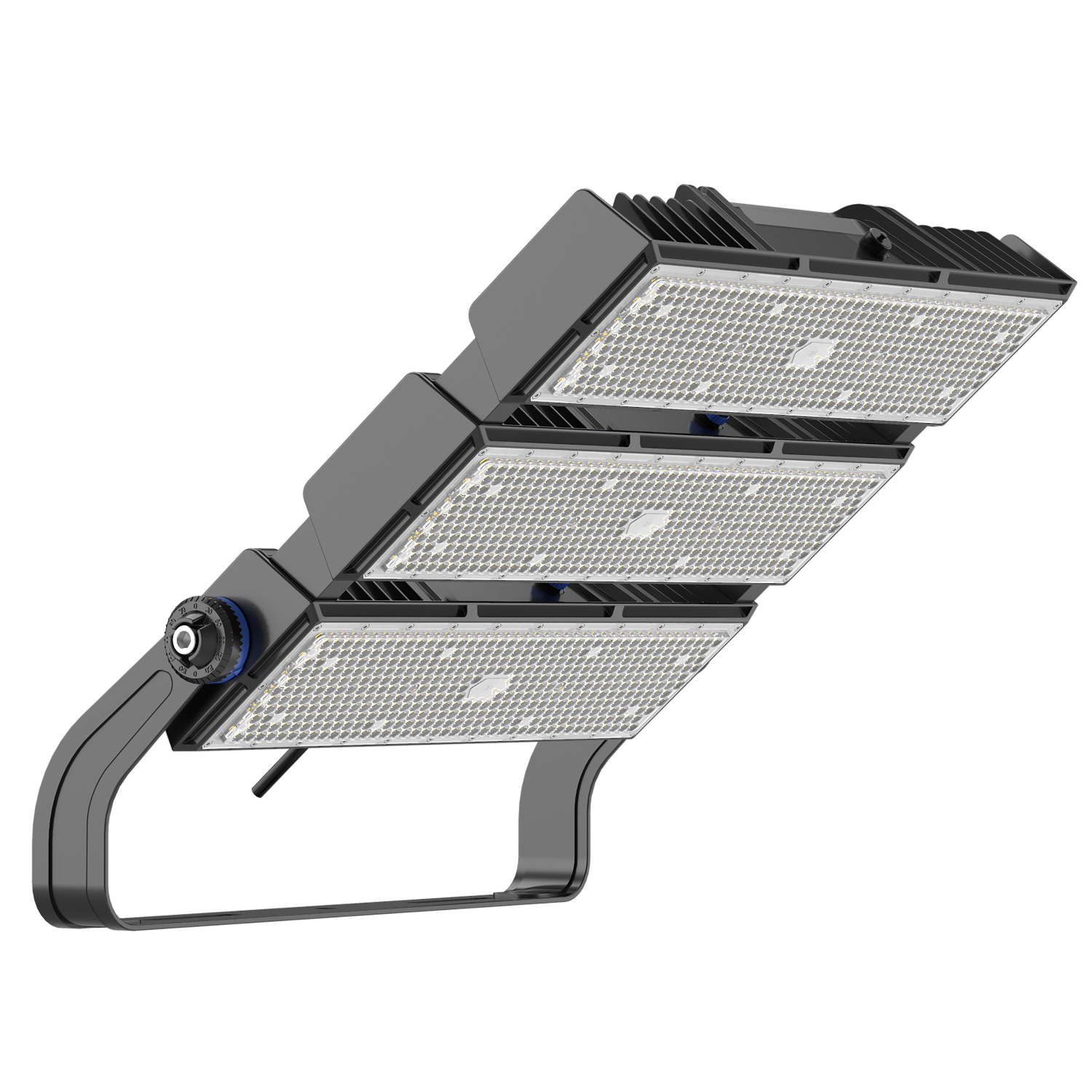

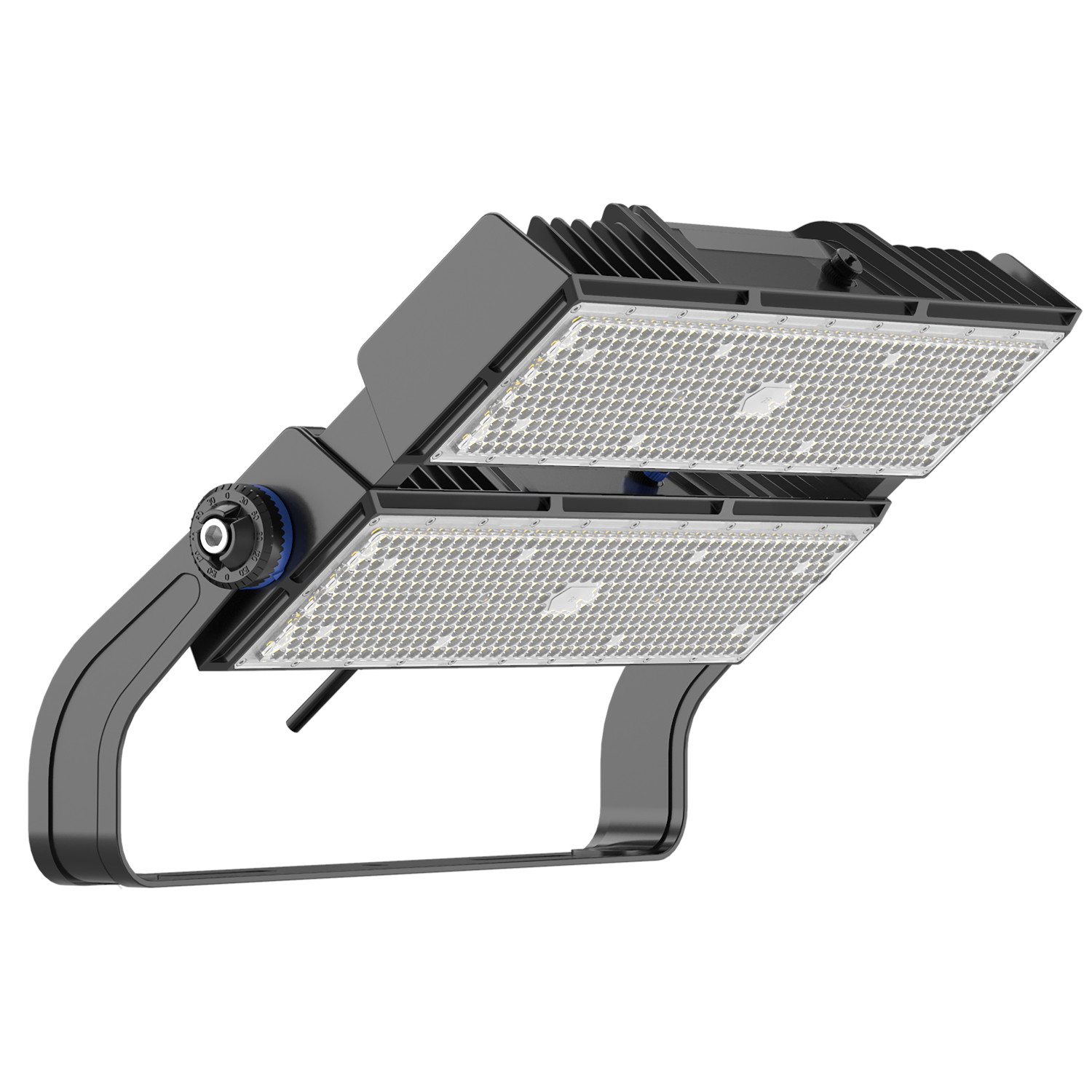

Skywing SF13 LED Sports Light
SF13 Sports Light
- Power Range: 250W – 1250W
- Light Efficacy: 150lm/W
- Optical Lighting Distribution:
Narrow beam (10°/ 15°), Medium beam (25°/ 45°), Wide beam (60°/ 90°), Asymmetric ( 65*25*60°) - Easy assembly & SKD solution available
- Power adjustable for each module

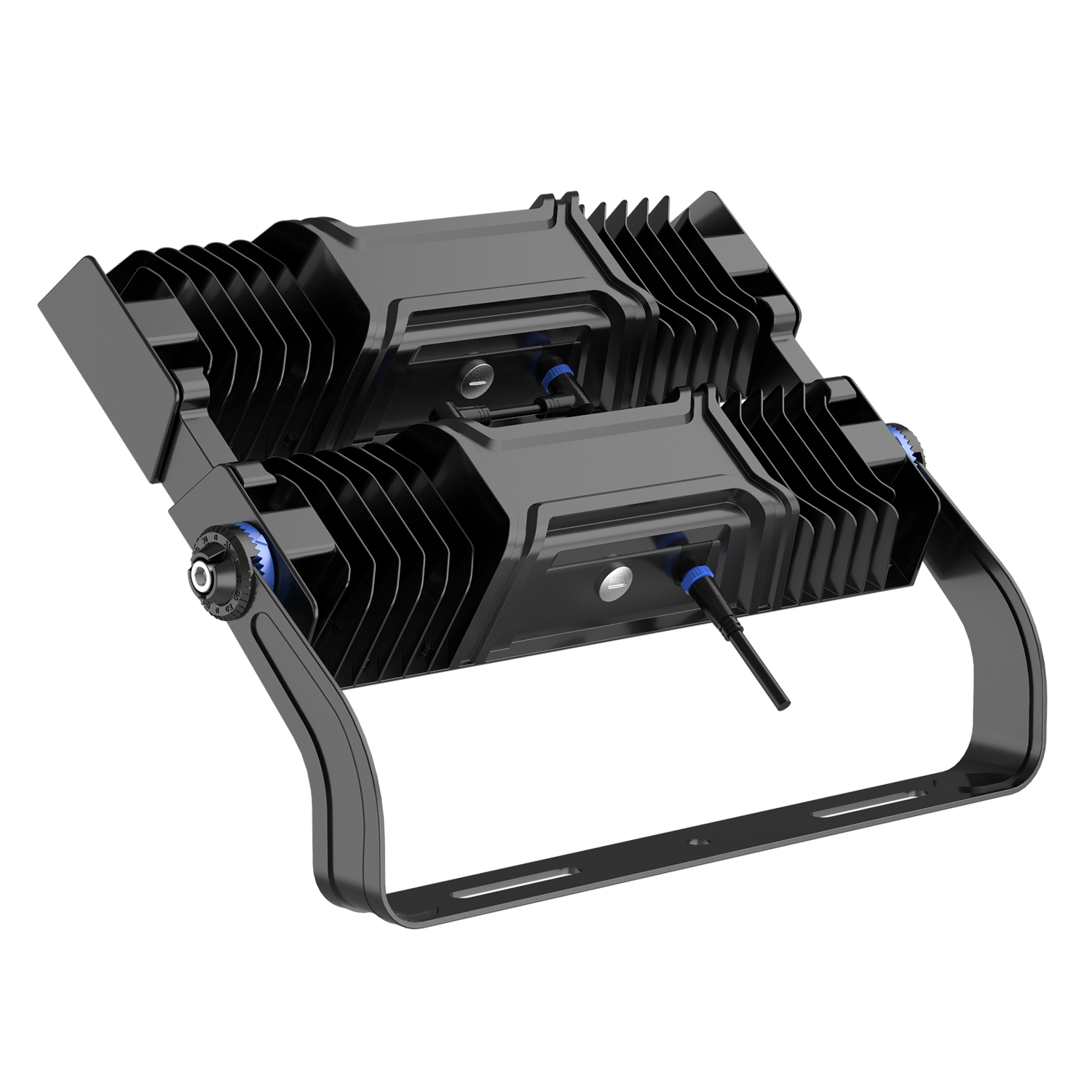

- Die-Cast Heat Sink: Ensures superior thermal management and a compact build.
- Module gap design: Reduces wind resistance area and increase heat dissipation performance
- Integrated Copper Breather Valve: Balances internal and external temperature and humidity levels.
- IP66 and IK08 rated for enhanced durability and reliability in harsh conditions.
- Warranty: 5 years
Versatile Applications
This Sports Light is specifically engineered for a wide range of outdoor sports and activity illumination needs, making it ideal for:
- Soccer Fields and Stadiums: Provides high-intensity, uniform lighting to ensure optimal visibility for players and spectators during night games.
- Tennis Courts and Basketball Courts: Delivers bright and even illumination, enhancing the playing experience and safety for athletes.
- University Sports Grounds and Athletic Facilities: Offers reliable lighting for training sessions, matches, and large-scale sports events.
- Community Sports Centers and Recreational Areas: Enhances the usability of outdoor sports facilities after dark, promoting community engagement and physical activity.
- Rugby Fields and Cricket Grounds: Ensures clear visibility for fast-paced games, supporting both competitive matches and casual play.
- Track and Field Arenas: Provides consistent lighting for running tracks, long jump pits, and other field events, ensuring safety and performance.
- Golf Courses: Illuminates key areas of the golf course, allowing golfers to enjoy the game even after sunset.
Baseball Diamonds: Delivers focused lighting for home plate, pitcher’s mound, and outfield, enhancing visibility for players and umpires.
Technical Specification
| Model No. | ISL-SF13-250W | ISL-SF13-500W | ISL-SF13-750W | ISL-SF13-1000W | ISL-SF13-1250W |
| Power | 500W | 600W | 1000W | 1200W | 1500W |
| 3-Power | 250W-200W-150W | 500W-400W-300W | 750W-600W-450W | 1000W-800W-600W | 1250W-1000W-750W |
| Dimmension | 558*293*93mm | 558*457*93mm | 558*621*93mm | 558*784*93mm | 558*948*93mm |
| Input Voltage | 100-277VAC, 50/60Hz | ||||
| Light Efficiency (±5%) | 150lm/W | ||||
| CCT | 3000K/ 4000K/ 5000K/ 5700K/ 6500K | ||||
| CRI | 80 | ||||
| Beam Angle | 10°/ 15°/ 25°/ 45°/ 60°/ 90°/ 65*25*60° | ||||
| LED | Lumileds/ Osram | ||||
| Driver | Sosen | ||||
| SPD | 10KV | ||||
| Housing | Die-casting technology by ADC12 | ||||
| IP Rating | IP66 | ||||
| IK Rating | IK08 | ||||
| Operation Temperature | ﹣35°C- +50°C | ||||
| Lifespan | 50,000H | ||||
| Warranty | 5Years | ||||
