Skywing SF17 LED Sports Light
SF17 Sports Light
SF17 Sports Light is engineered for professional sports lighting applications where visual comfort, lighting uniformity, and spill light control are critical. Featuring a 60° asymmetric optical and advanced anti-glare design, the SF17 delivers precise light distribution, reduced glare, and minimized light spill beyond the playing area. With high efficiency up to 140 lm/W, IP66 protection, and a tempered glass diffuser for enhanced durability, it provides reliable performance for football fields, tennis courts, sports arenas, and high mast lighting projects.
Performance Highlights
✔ 680W–1000W High-Power Sports Lighting
✔ Up to 140 lm/W High-Efficiency Performance
✔ 60° Asymmetric Optical Lens for Precise Light Distribution
✔ Anti-Glare Design for Enhanced Player & Spectator Comfort
✔ Excellent Lighting Uniformity Across Sports Venues
✔ Tempered Glass Diffuser for Added Protection & Long-Term Durability
✔ Heavy-Duty Die-Cast Aluminum Housing & U-Bracket for Superior Strength and Secure Installation
✔ IP66 Waterproof Protection for Harsh Outdoor Environments
✔ Ideal for Football Fields, Tennis Courts, Sports Arenas & High Mast Lighting Projects
Applications
Engineered for professional sports lighting and high mast applications, delivering uniform illumination for a wide range of outdoor sports venues.
- Football Fields & Stadiums
- Tennis & Padel Courts
- Sports Arenas & Athletic Facilities
- Rugby & Cricket Grounds
- Track & Field Stadiums
- Golf Courses & Driving Ranges
- Baseball & Softball Fields
- High Mast & Outdoor Area Lighting
ANTI-GLARE

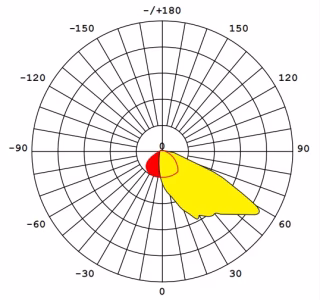

LIGHT DISTRIBUTION
MOUNTING (OPTIONS)

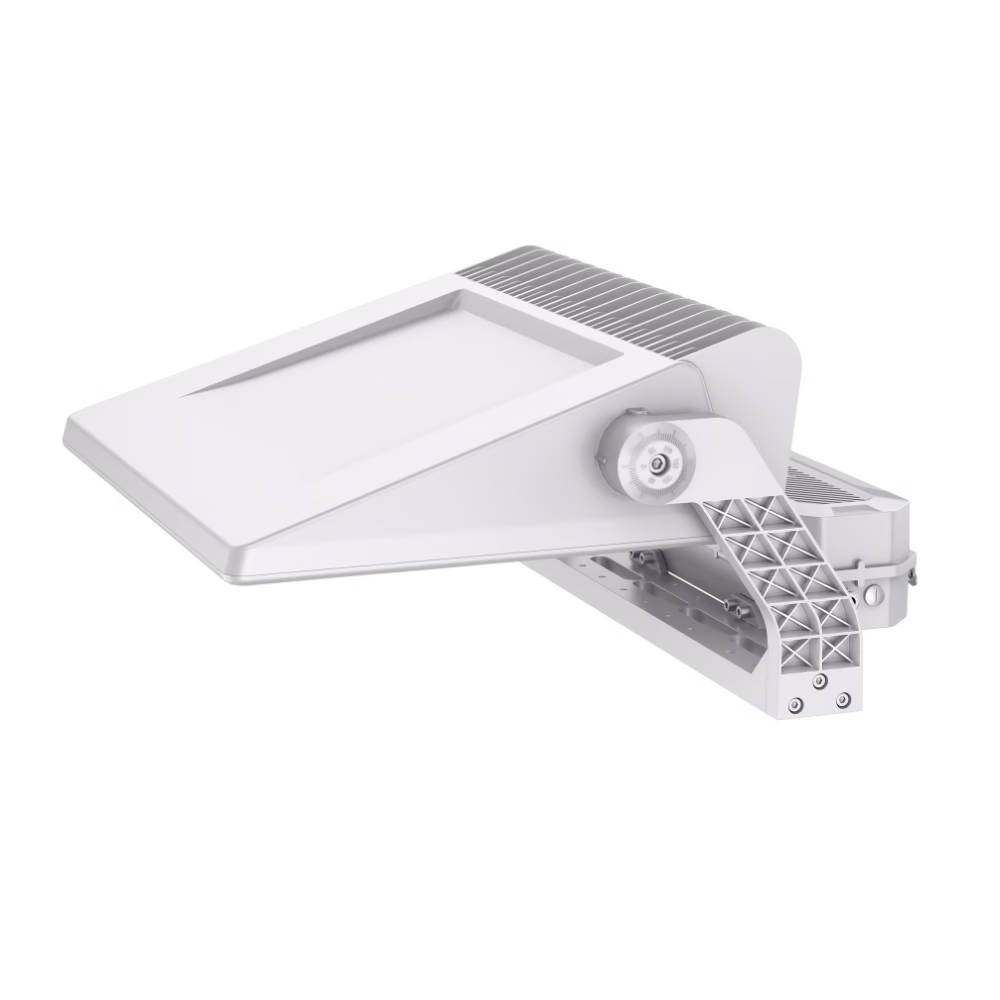

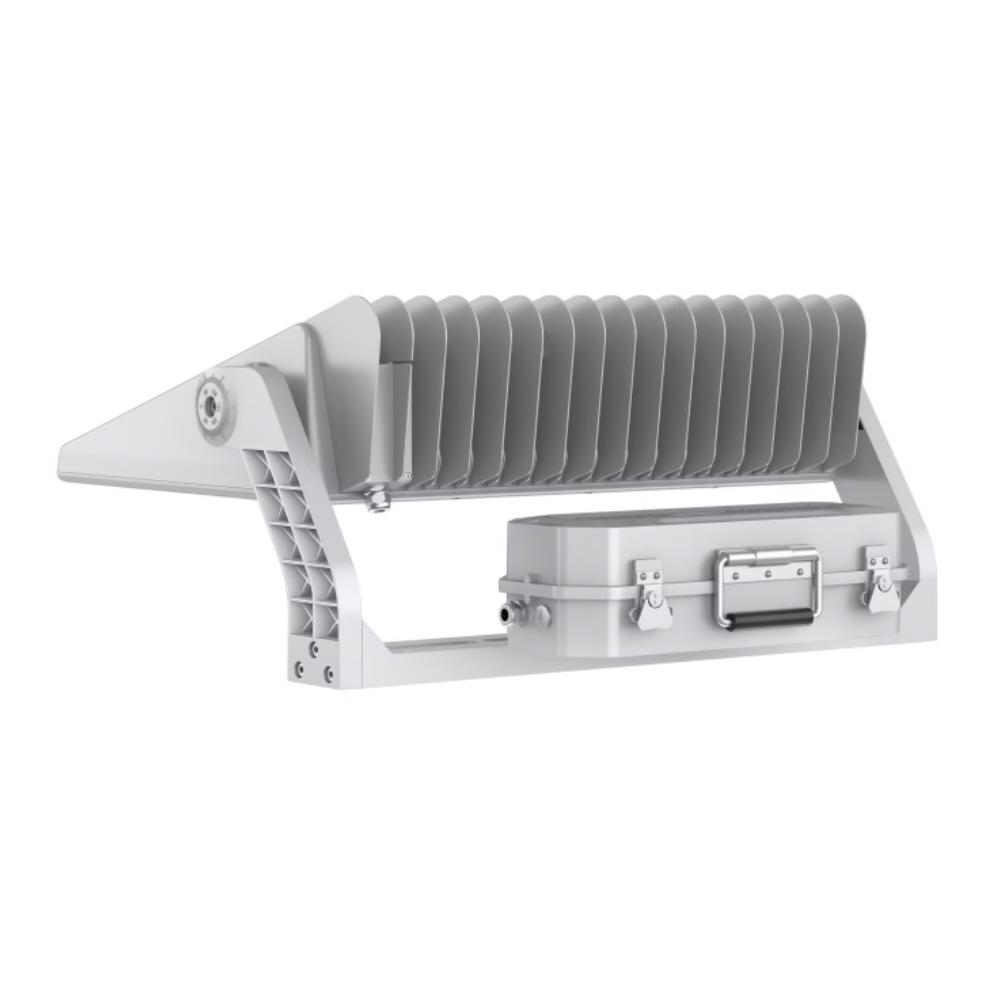

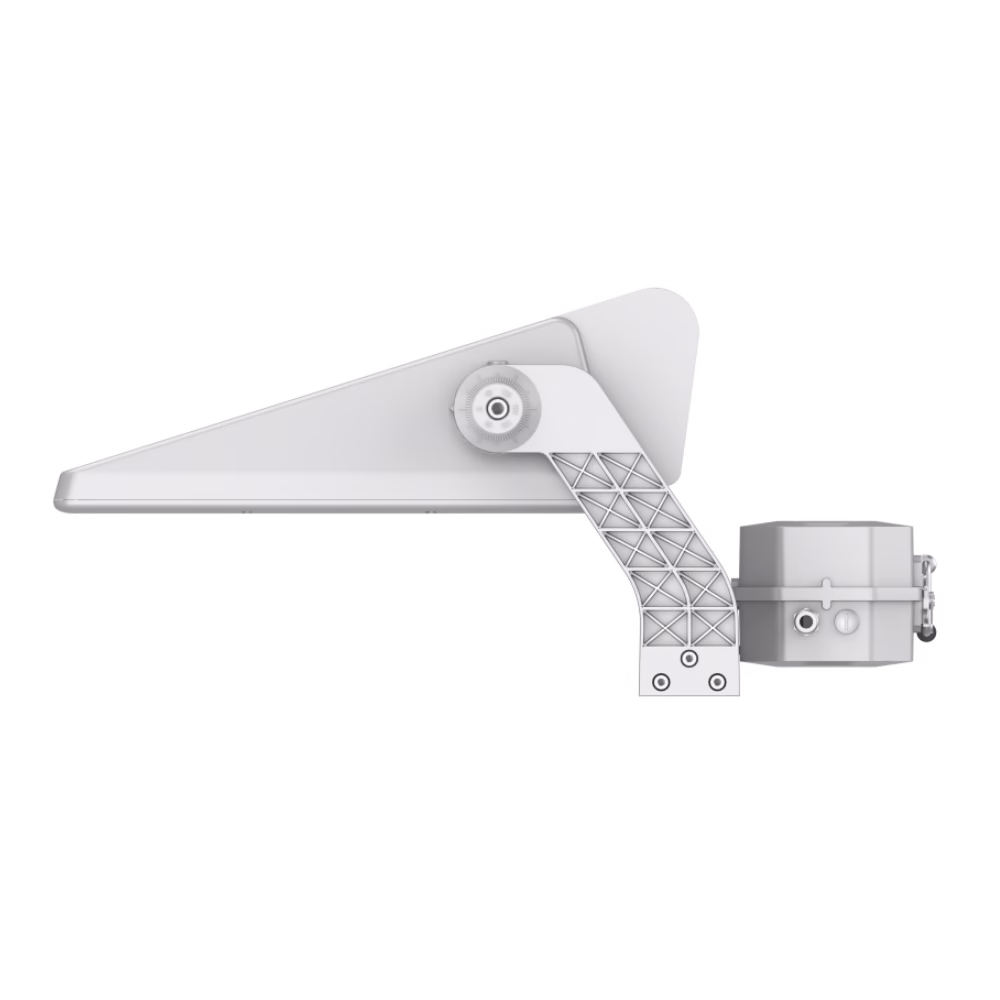

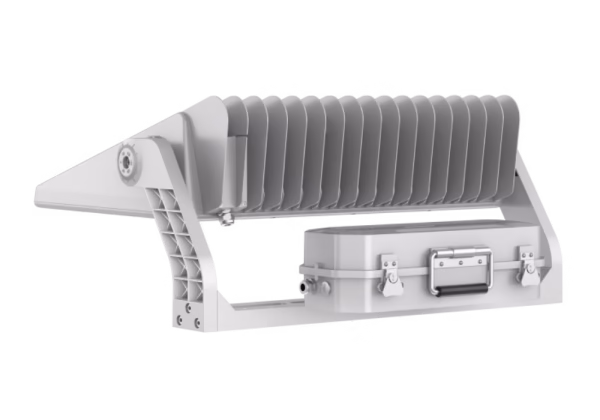

U-Bracket Mounting(Standard)

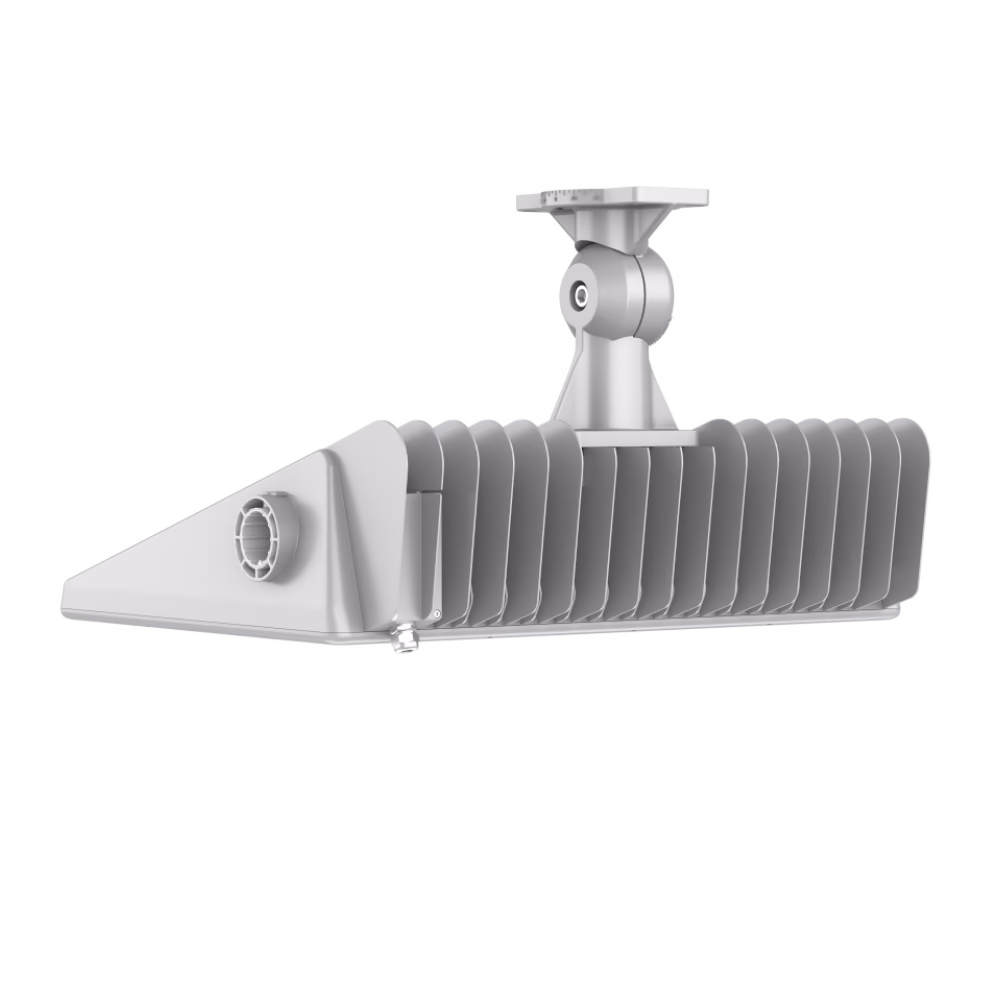

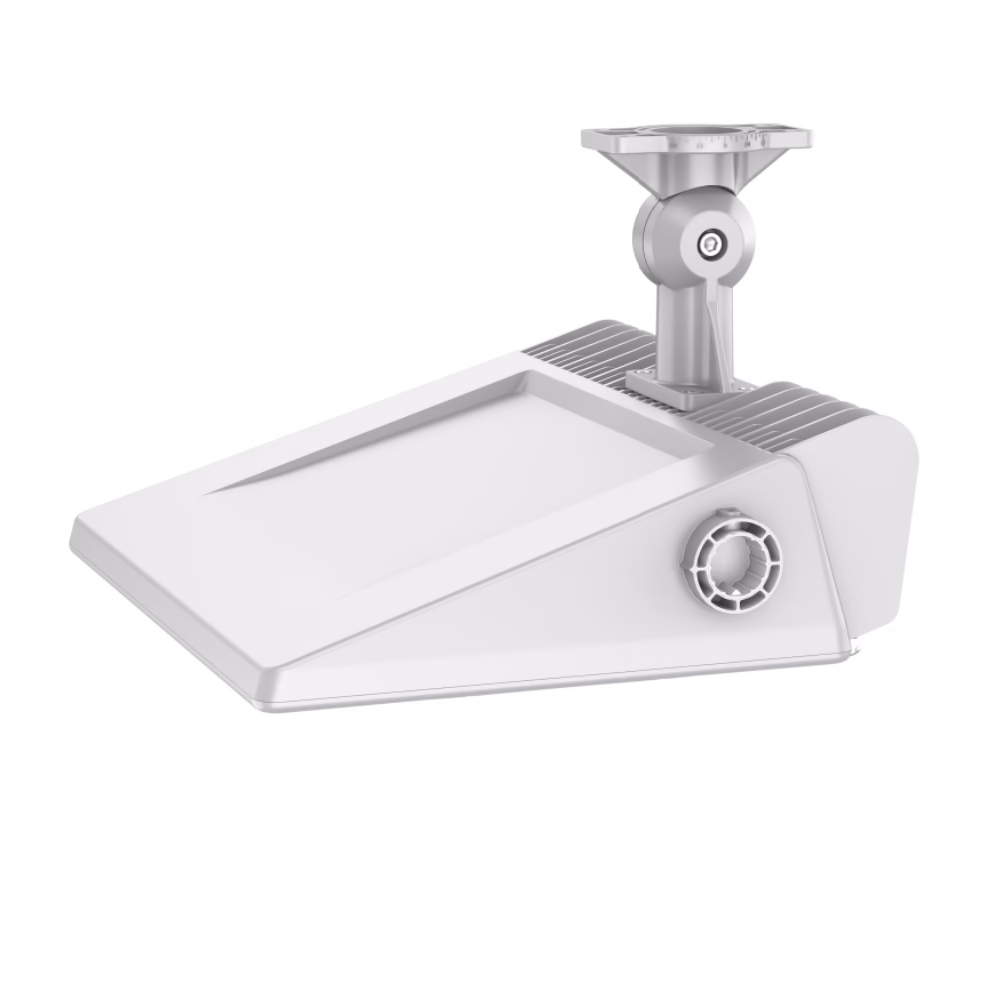

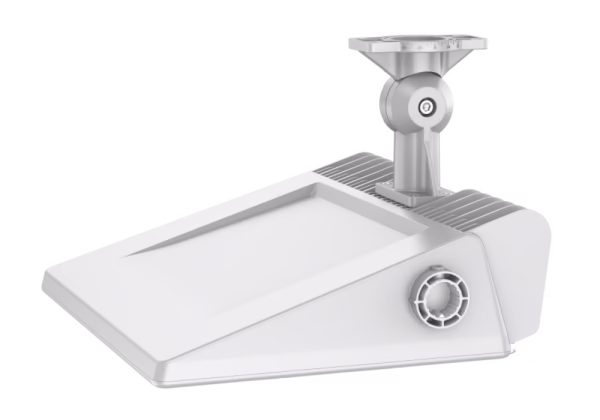

Top Mounting Arm Mounting (Optional)
Technical Specification
| Model No. | ISL-SF17-680W | ISL-SF17-880W | ISL-SF17-1000W |
| Power | 680W | 880W | 1000W |
| Dimmension | 771*610*363mm | 771*610*363mm | 771*610*363mm |
| Input Voltage | 100-277VAC/ 200-480VAC | ||
| Light Efficiency (±5%) | 140lm/W | ||
| CCT | 3000K/ 4000K/ 5000K/ 5700K/ 6500K | ||
| CRI | 80 | ||
| Beam Angle | ASY60° | ||
| LED | SMD 5050 | ||
| Driver | Sosen/ Moso | ||
| SPD | 10KV | ||
| Housing | Die-casting technology by ADC12 | ||
| IP Rating | IP66 | ||
| IK Rating | IK08 | ||
| Installation | Bracket Mounting/ Suspended Mounting | ||
| Operation Temperature | ﹣20°C- +50°C | ||
| Lifespan | 50,000H | ||
| Warranty | 5Years | ||
