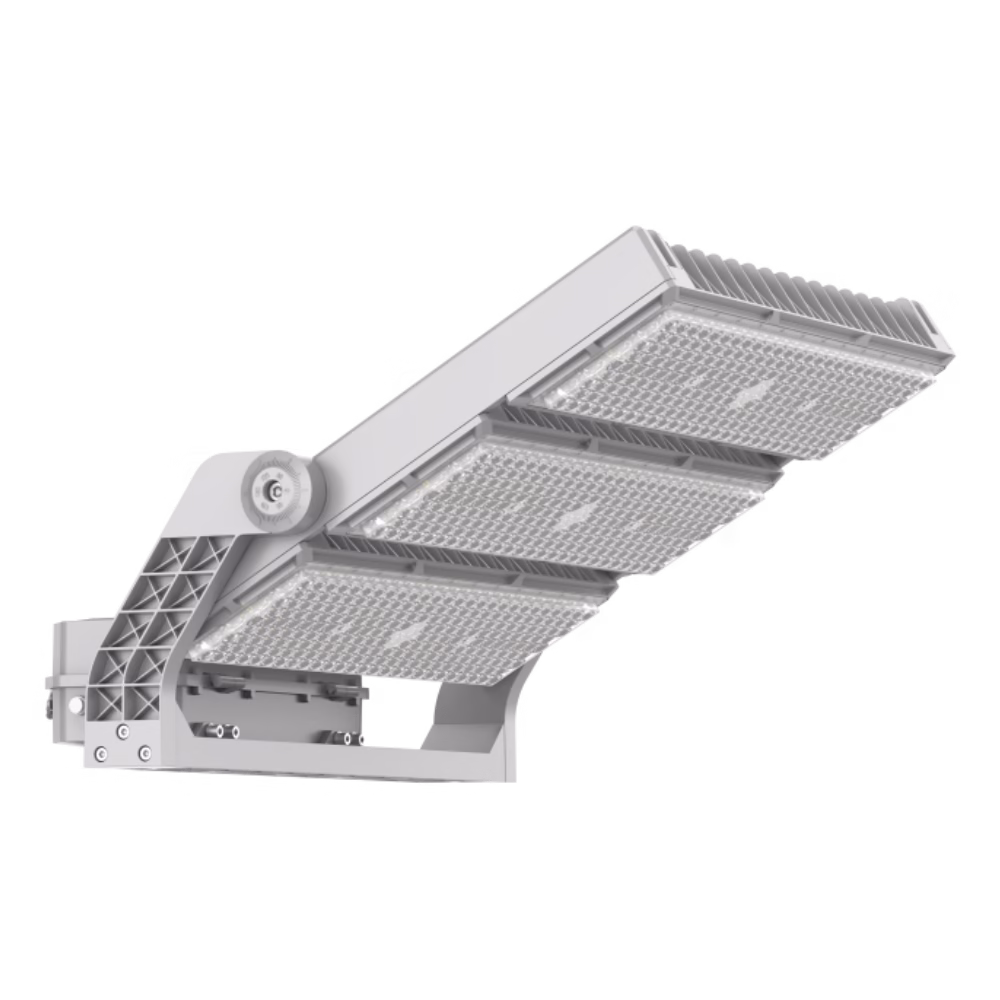

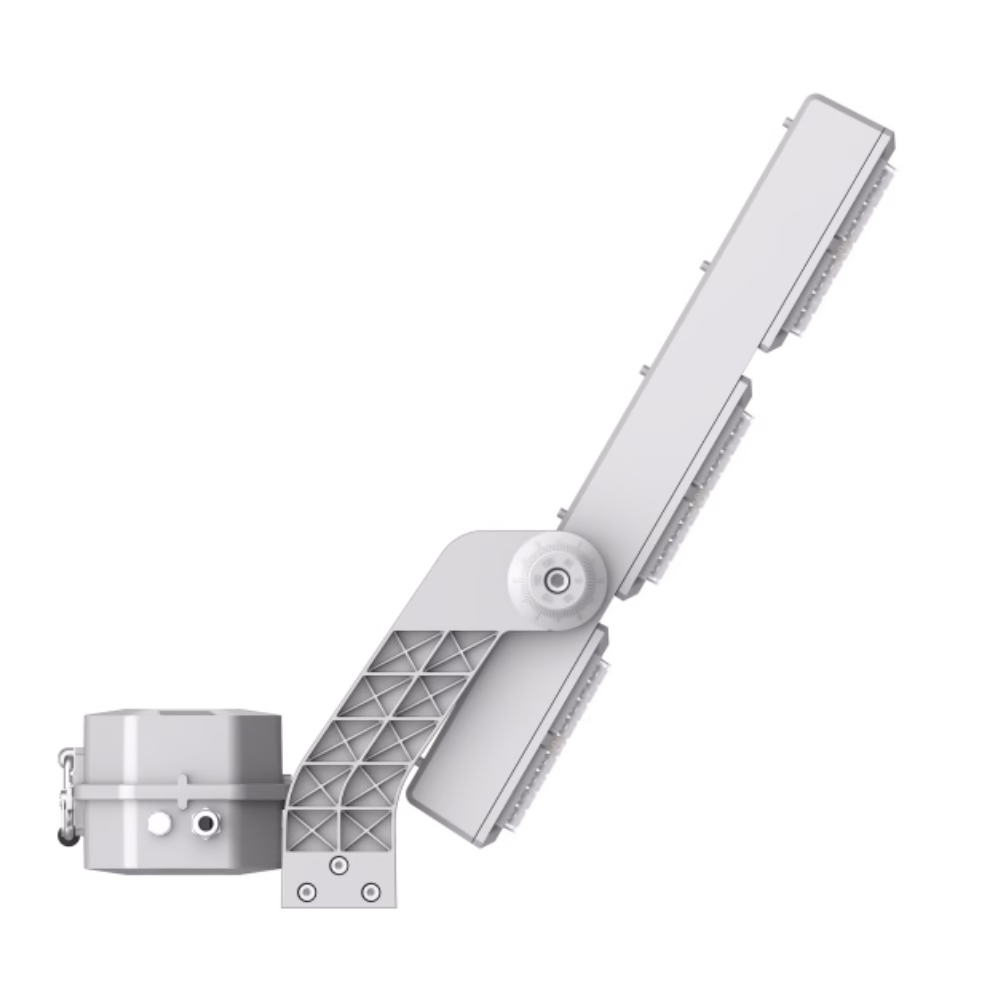

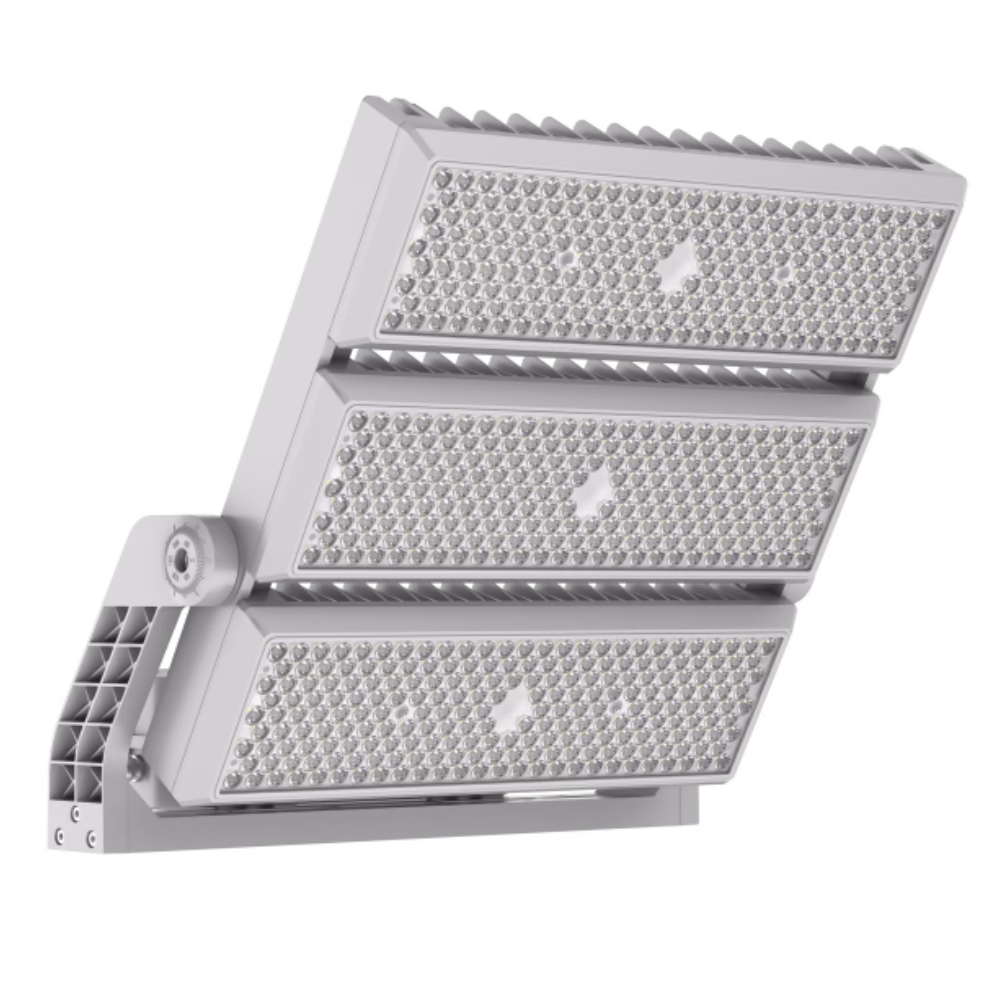

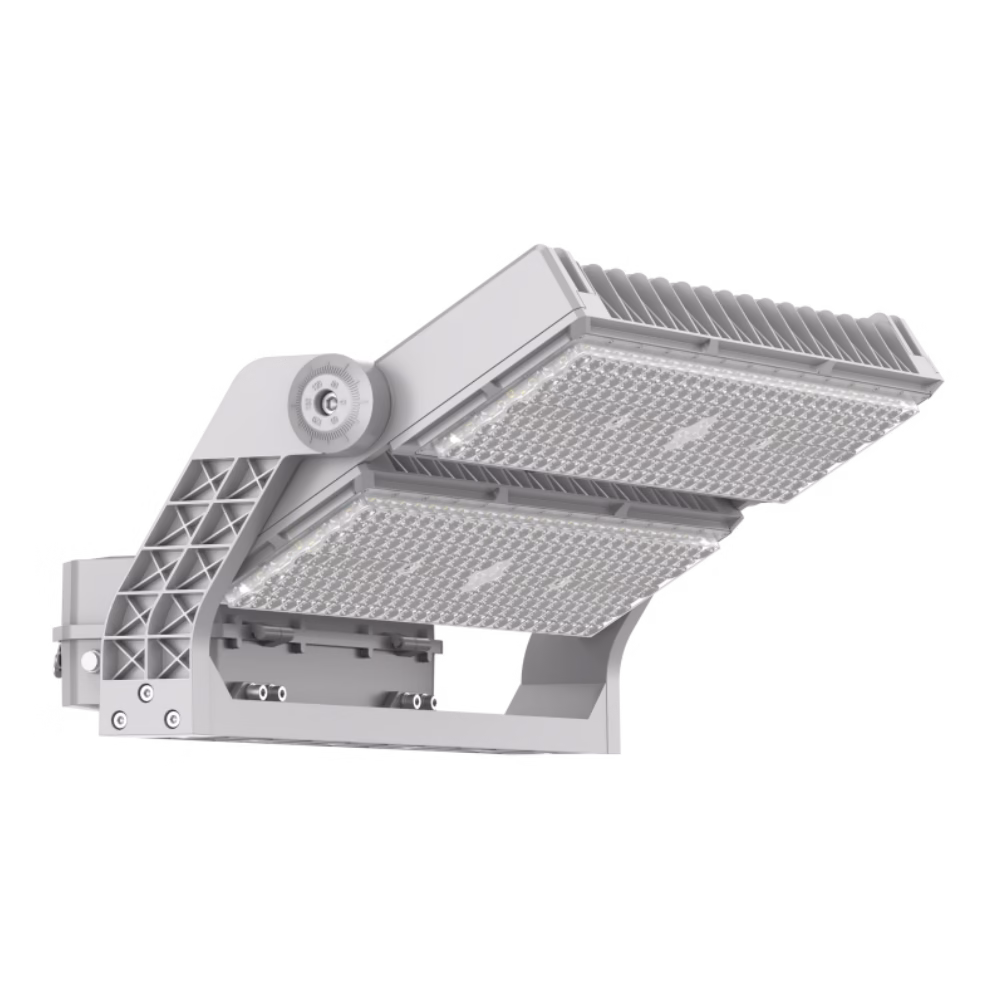

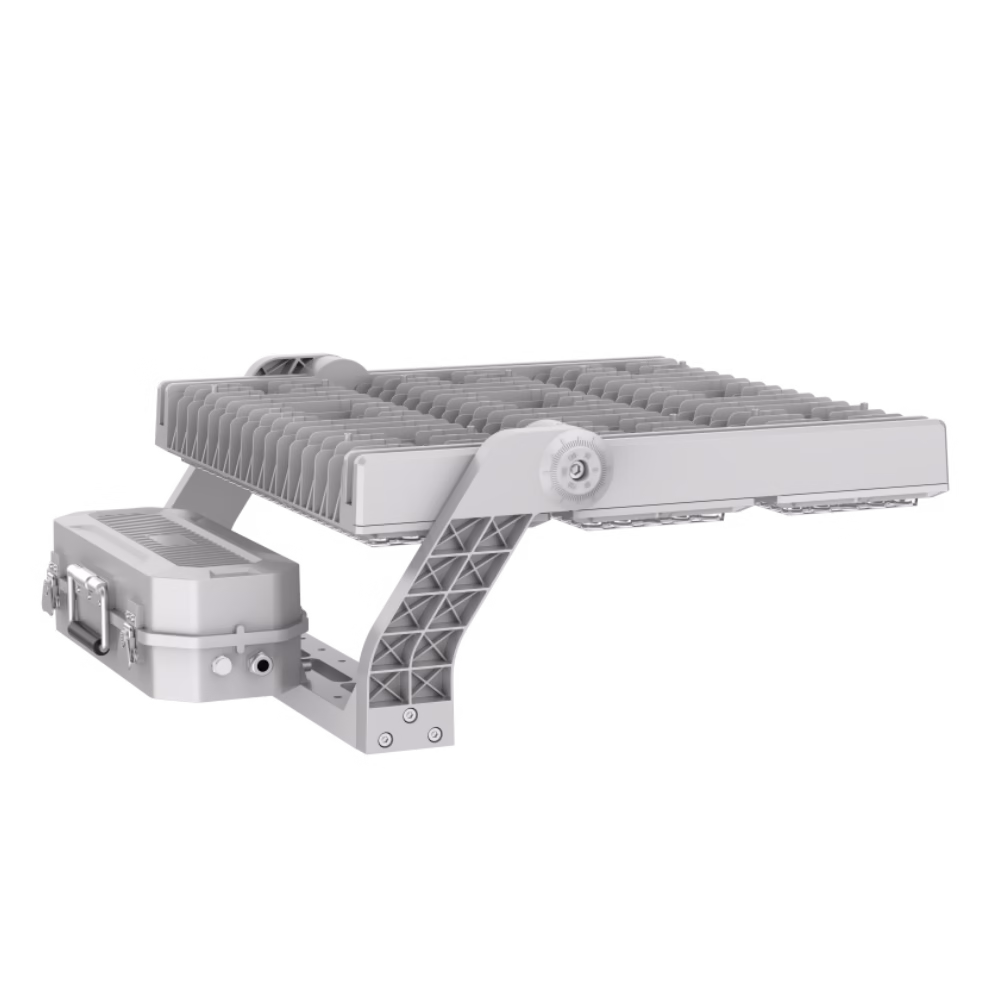

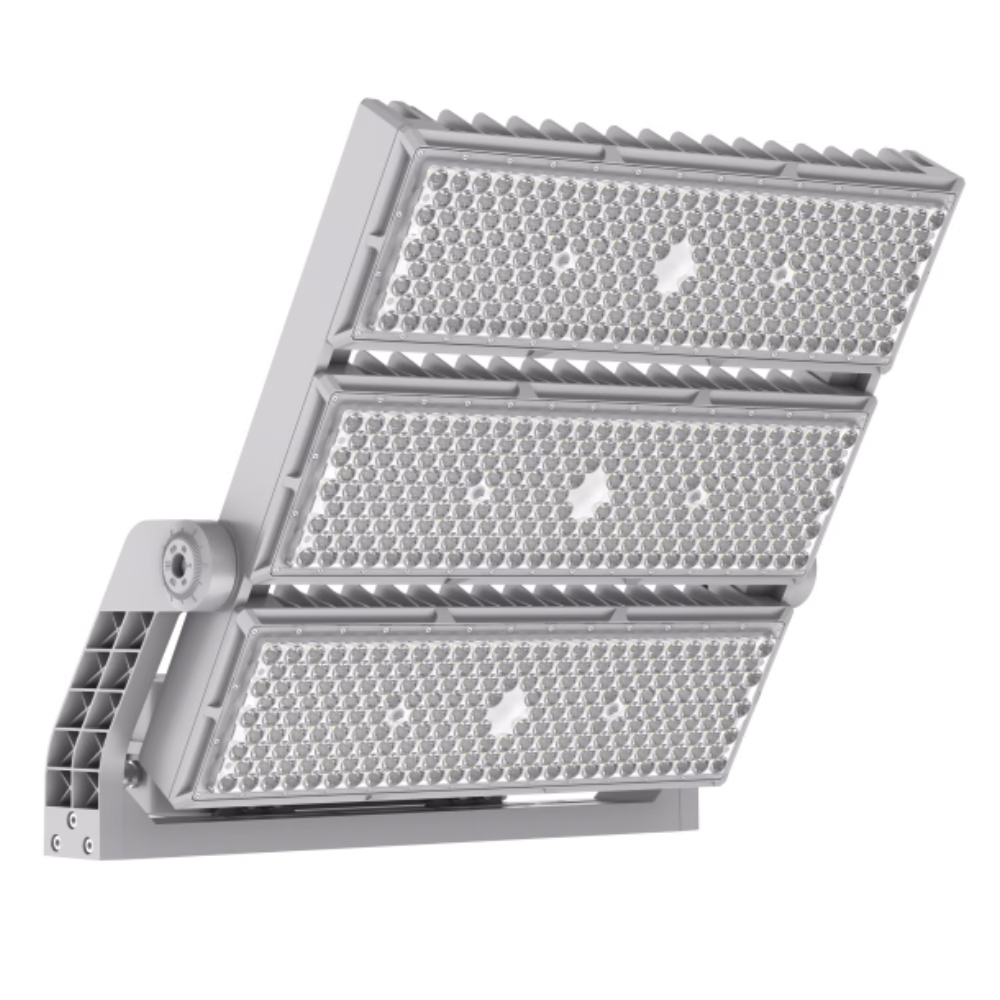

Skywing SF19 LED Sports Light
SF19 Sports Light
SF19 Sports Light is engineered for professional stadium lighting and large-scale sports field applications. With power options from 800W to 1800W, high luminous efficacy up to 180 lm/W, and advanced asymmetric optical distributions, the SF19 delivers outstanding lighting uniformity, reduced glare, and reliable performance for football fields, tennis courts, sports arenas, and high mast lighting projects.
Performance Highlights
✔ Available from 800W to 1800W for stadiums, sports fields, and large-area outdoor lighting projects.
✔ Up to 150 lm/W standard and 180 lm/W optional for maximum energy savings and lower operating costs.
✔ Multiple beam angles (10° / 15° / 25° / 45° / 60° / 90°) provide precise light distribution for different field layouts and mounting heights.
✔ Advanced Asymmetric Optics – Five specialized beam distributions improve lighting uniformity, reduce glare, and minimize light spill.
✔ Professional Sports Lighting Solution – Designed to deliver excellent visibility and consistent illumination for professional sports venues and competition facilities.
✔ Optional Tempered Glass Cover – Enhanced impact resistance, durability, and long-term weather protection.

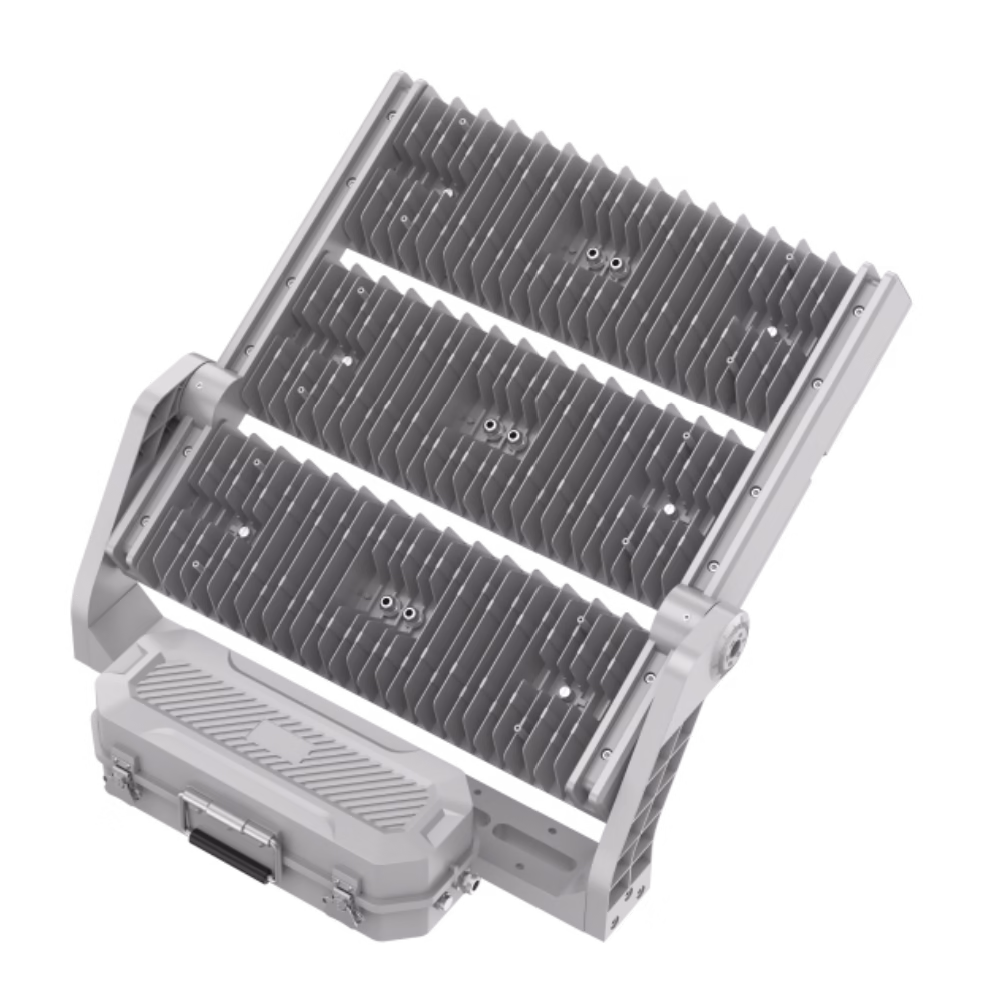

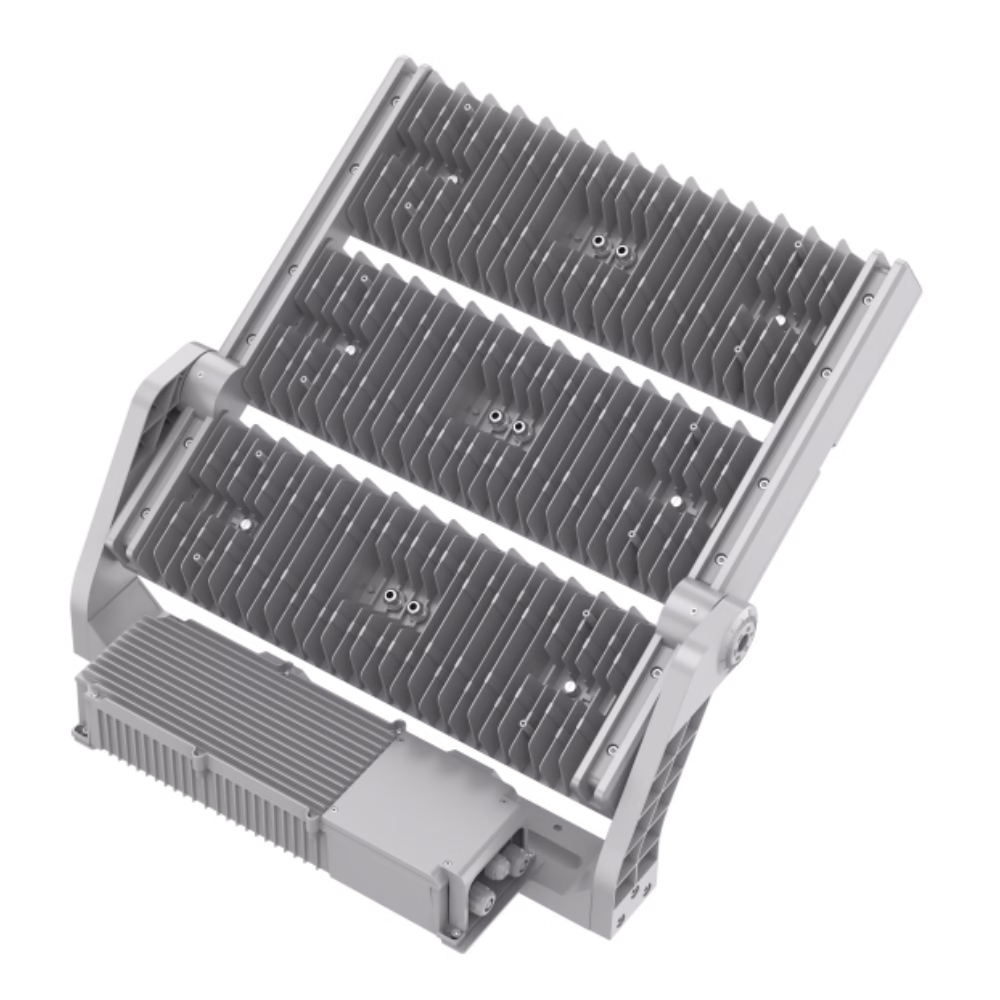

✔ Durable Die-Cast Aluminum Housing – Superior structural strength, corrosion resistance, and efficient thermal management.
✔ Ideal for Sports Lighting Projects – Suitable for football fields, tennis courts, sports arenas, cricket grounds, golf courses, and high mast lighting installations.

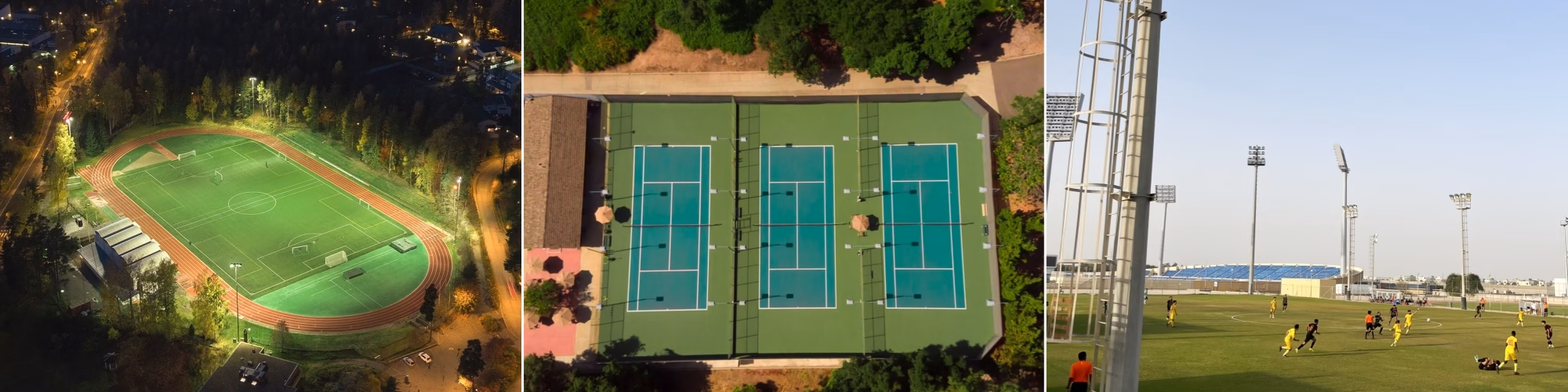

Applications
Engineered for professional sports lighting, stadium illumination, and high mast applications, this LED stadium light delivers powerful, uniform lighting for a wide range of outdoor sports venues.
✔ Football Fields & Stadiums
Professional lighting for football pitches, training grounds, and stadium projects.
✔ Tennis & Padel Courts
Uniform illumination with low glare for enhanced player performance and comfort.
✔ Sports Arenas & Athletic Facilities
Suitable for sports complexes, universities, and competition venues.
✔ Rugby & Cricket Grounds
Reliable lighting for large playing surfaces and professional sporting events.
✔ Track & Field Stadiums
Consistent illumination for running tracks and multi-sport facilities.
✔ Golf Courses & Driving Ranges
Optimized lighting for fairways, practice areas, and recreational facilities.
✔ Baseball & Softball Fields
Focused illumination for improved visibility across infield and outfield areas.
✔ High Mast & Outdoor Area Lighting
Ideal for ports, industrial zones, parking areas, and public spaces.
Technical Specification
| Model No. | ISL-SF19-800W | ISL-SF19-1000W | ISL-SF19-1200W | ISL-SF19-1500W | ISL-SF19-1800W |
| Power | 800W | 1000W | 1200W | 1500W | 1800W |
| Dimmension | 719*423*285mm | 719*691*285mm | |||
| Input Voltage | 100-277VAC/ 200-480VAC | ||||
| Light Efficiency (±5%) | 150lm/W (standard), 180lm/W (optional) | ||||
| CCT | 3000K/ 4000K/ 5000K/ 5700K/ 6500K | ||||
| CRI | 80 | ||||
| Beam Angle | 10°/ 15°/ 25°/ 45°/ 60°/ 90°/ ASY60° | ||||
| LED | SMD 5050 | ||||
| Driver | Sosen/ Moso | ||||
| SPD | 10KV | ||||
| Housing | Die-casting technology by ADC12 | ||||
| IP Rating | IP66 | ||||
| IK Rating | IK08 | ||||
| Operation Temperature | ﹣25°C- +50°C | ||||
| Lifespan | 50,000H | ||||
| Warranty | 5Years | ||||
