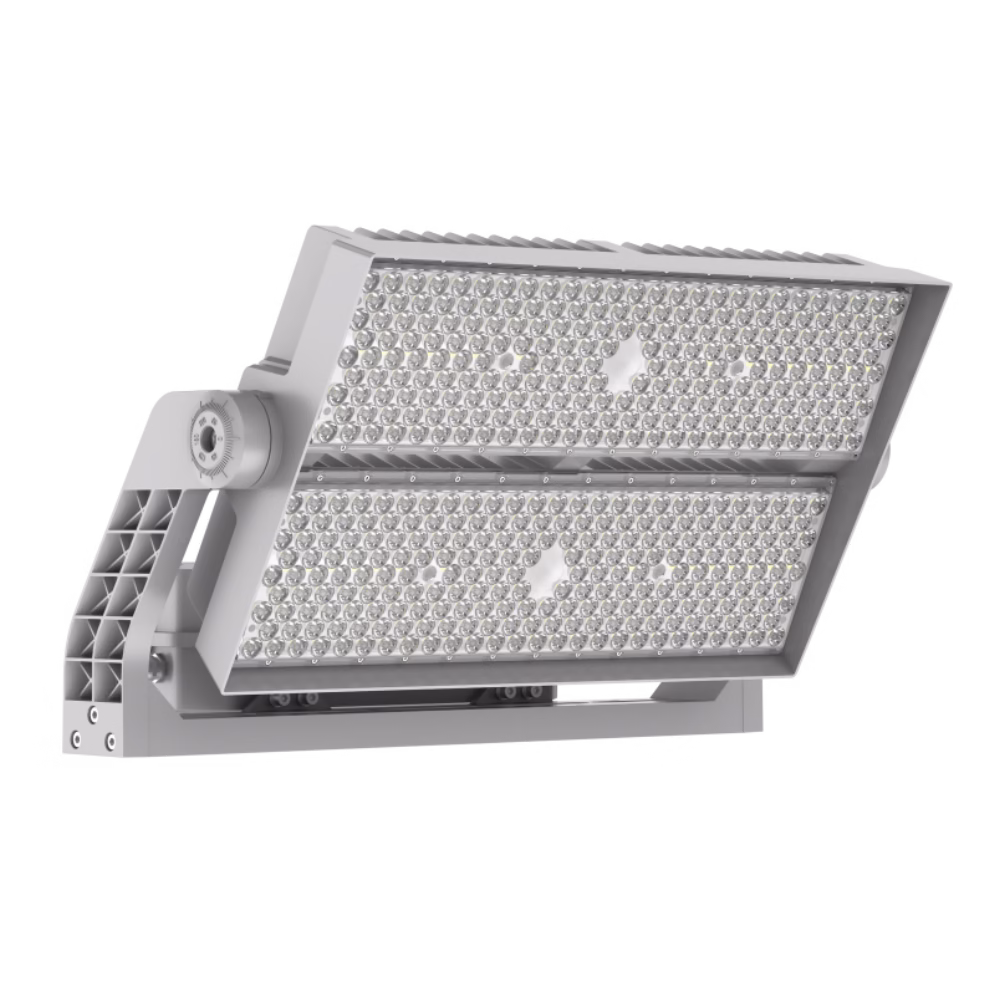

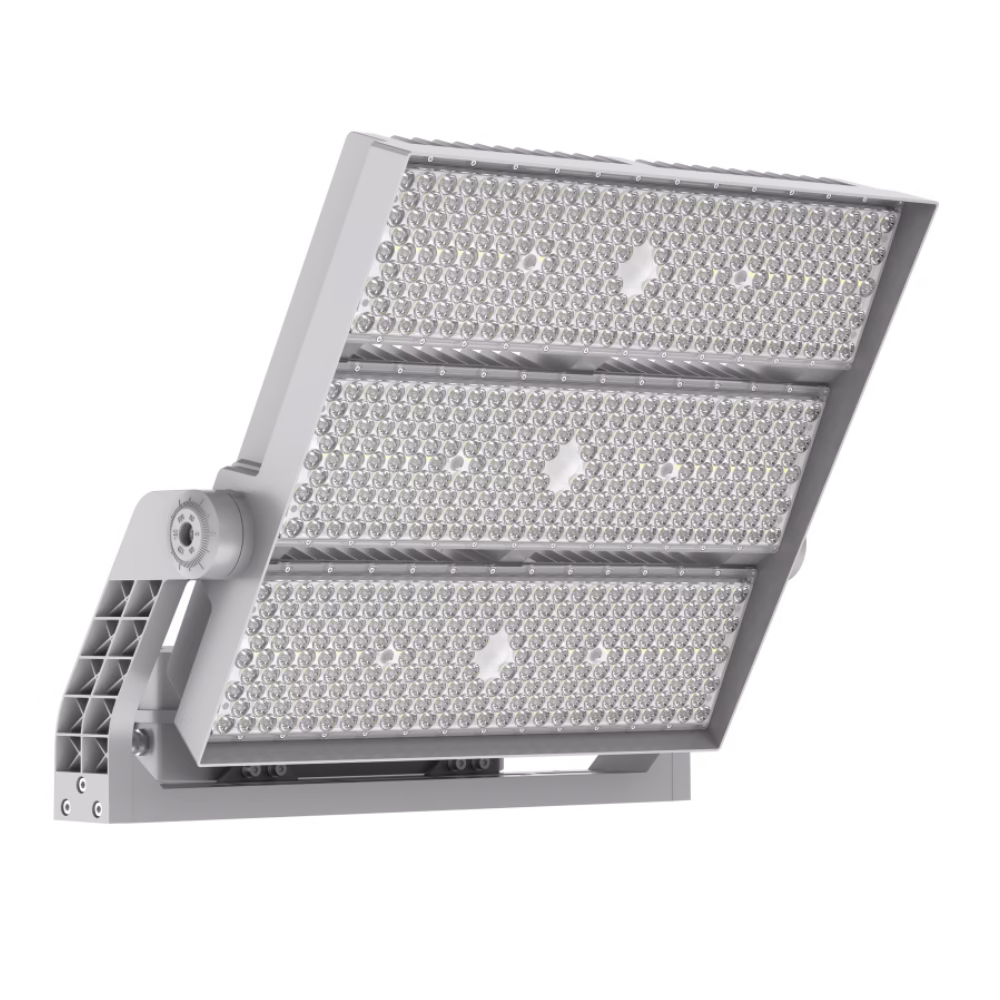

Skywing SF20 LED Sports Light
SF20 Sports Light
SF20 Sports Light is designed for professional sports lighting and large-scale outdoor illumination projects. Featuring power options from 800W to 1800W, high luminous efficacy up to 180 lm/W, and advanced asymmetric optical technology, the SF20 delivers exceptional lighting uniformity, glare control, and energy efficiency for stadiums, sports fields, and high mast lighting applications.
Performance Highlights
✔ High-Power Stadium Lighting – Available from 800W to 1800W for sports venues, stadiums, and large-area outdoor projects.
✔ High Luminous Efficiency – Up to 150 lm/W standard and 180 lm/W optional for lower energy consumption and operating costs.
✔ Precision Optical Control – Multiple beam angles (10° / 15° / 25° / 45° / 60° / 90°) ensure optimized light distribution for different field layouts and pole heights.
✔ Advanced Asymmetric Optics – Five specialized beam distributions improve visibility, enhance uniformity, and reduce glare and light spill.
✔ Professional Sports Lighting Solution – Engineered to meet the lighting requirements of football fields, tennis courts, sports arenas, and competition facilities.

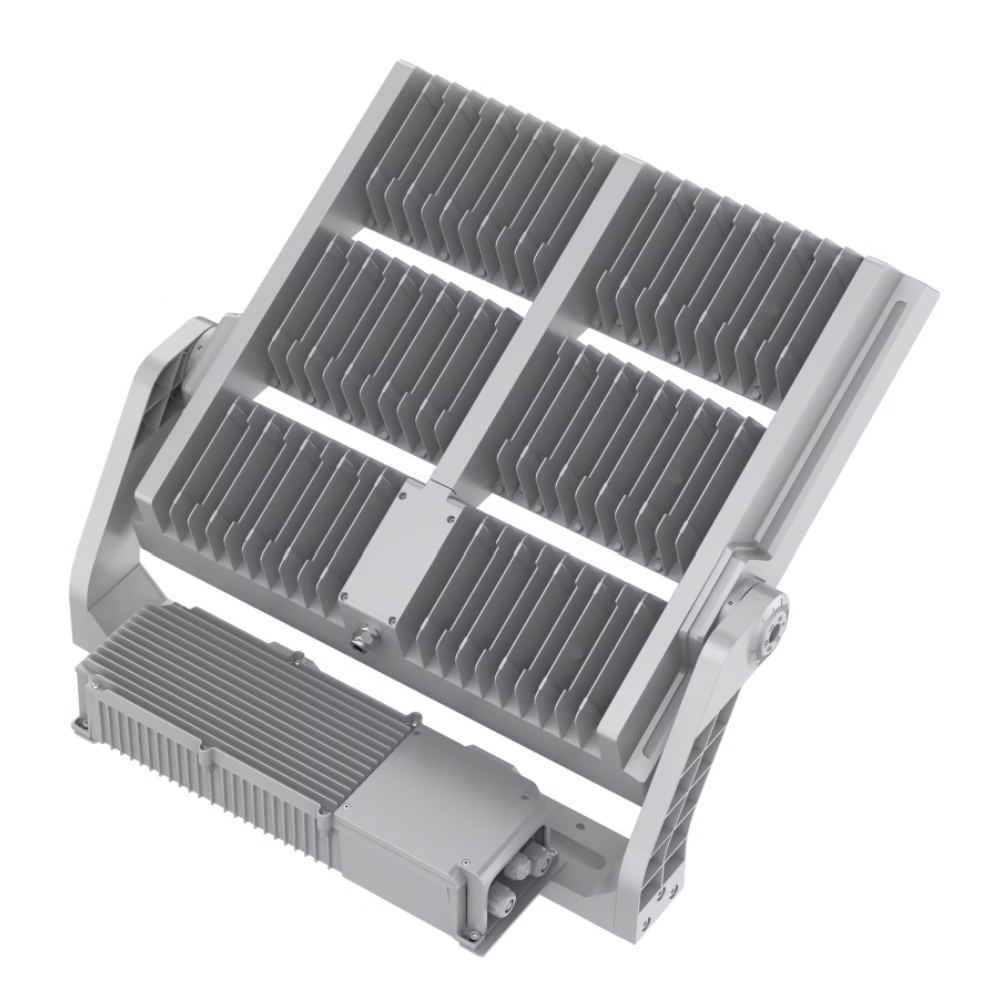

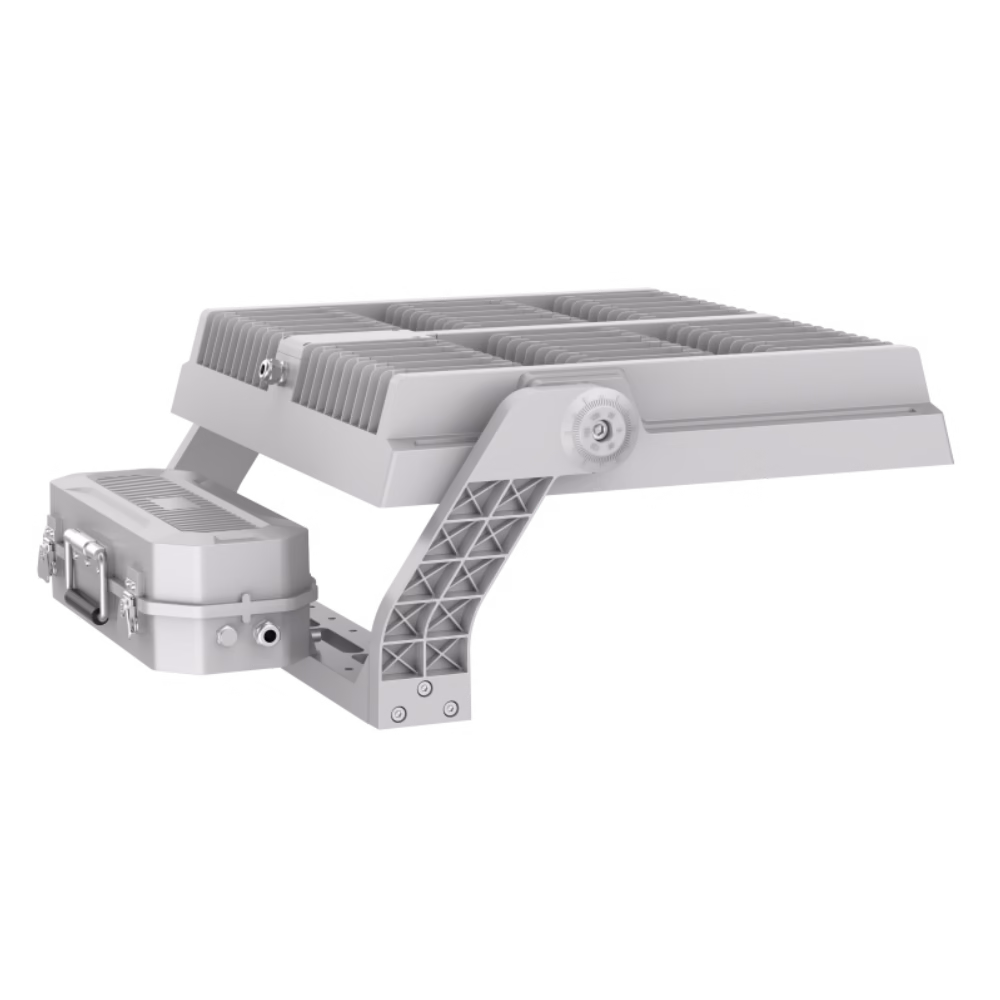

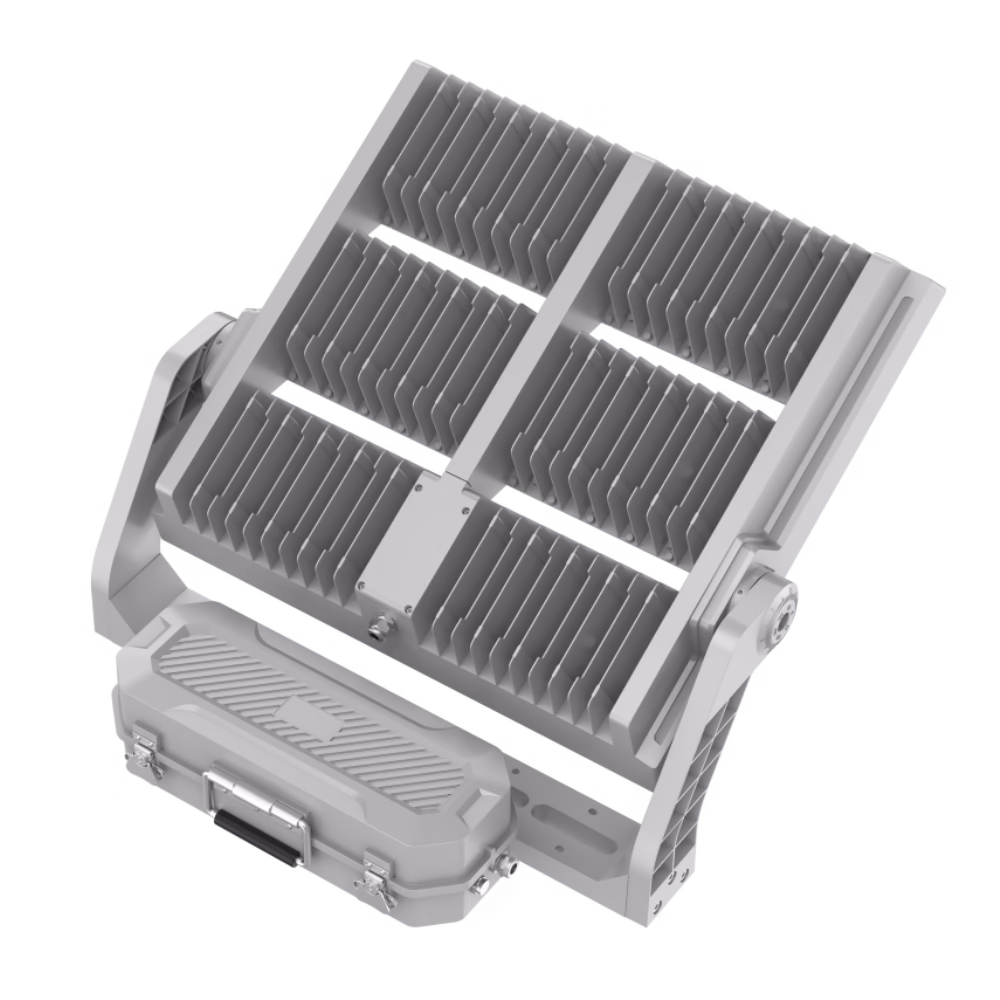

✔ Durable Die-Cast Aluminum Housing – Excellent corrosion resistance, structural strength, and thermal management for long-term outdoor performance.
✔ Reliable Outdoor Operation – Designed to withstand demanding environmental conditions and continuous operation.
✔ Ideal for Sports & High Mast Projects – Suitable for football fields, tennis courts, sports arenas, cricket grounds, golf courses, and high mast lighting installations.
Applications
Engineered for professional sports lighting, stadium illumination, and high mast applications, this LED stadium light delivers powerful, uniform lighting for a wide range of outdoor sports venues.
✔ Football Fields & Stadiums
Professional lighting for football pitches, training grounds, and stadium projects.
✔ Tennis & Padel Courts
Uniform illumination with low glare for enhanced player performance and comfort.
✔ Sports Arenas & Athletic Facilities
Suitable for sports complexes, universities, and competition venues.
✔ Rugby & Cricket Grounds
Reliable lighting for large playing surfaces and professional sporting events.
✔ Track & Field Stadiums
Consistent illumination for running tracks and multi-sport facilities.
✔ Golf Courses & Driving Ranges
Optimized lighting for fairways, practice areas, and recreational facilities.
✔ Baseball & Softball Fields
Focused illumination for improved visibility across infield and outfield areas.
✔ High Mast & Outdoor Area Lighting
Ideal for ports, industrial zones, parking areas, and public spaces.
Technical Specification
| Model No. | ISL-SF20-800W | ISL-SF20-1000W | ISL-SF20-1200W | ISL-SF20-1500W | ISL-SF20-1800W |
| Power | 800W | 1000W | 1200W | 1500W | 1800W |
| Dimmension | 719*398*278mm | 719*653*278mm | |||
| Input Voltage | 100-277VAC/ 200-480VAC | ||||
| Light Efficiency (±5%) | 150lm/W (standard), 180lm/W (optional) | ||||
| CCT | 3000K/ 4000K/ 5000K/ 5700K/ 6500K | ||||
| CRI | 80 | ||||
| Beam Angle | 10°/ 15°/ 25°/ 45°/ 60°/ 90°/ ASY60° | ||||
| LED | SMD 5050 | ||||
| Driver | Sosen/ Moso | ||||
| SPD | 10KV | ||||
| Housing | Die-casting technology by ADC12 | ||||
| IP Rating | IP66 | ||||
| IK Rating | IK08 | ||||
| Operation Temperature | ﹣25°C- +50°C | ||||
| Lifespan | 50,000H | ||||
| Warranty | 5Years | ||||
