Smily LHB02 Linear High Bay Light
optional: 3-Power, 3-CCT, 3-Beam Angle, Motion Sensor

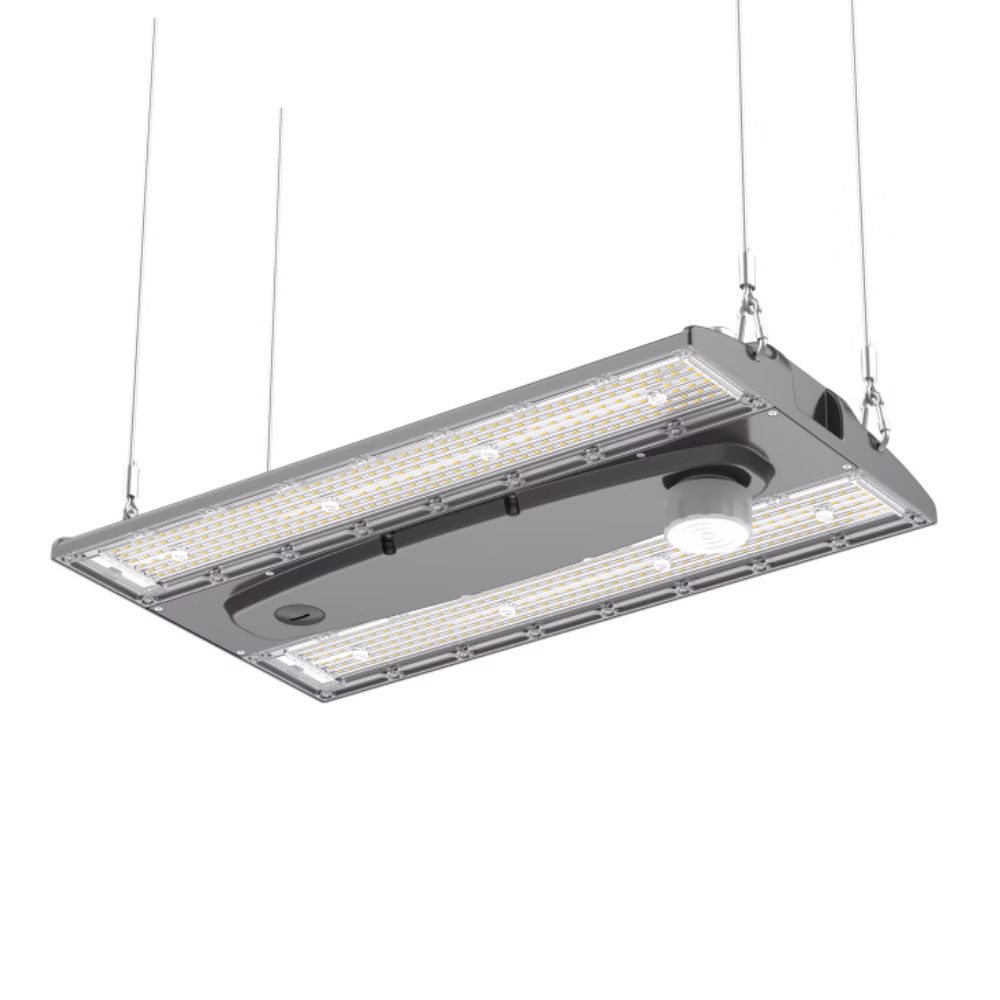

Smily LHB02 Linear High Bay Light
Designed for Warehouses & High-Ceiling Industrial Spaces
The Smily LHB02 Linear High Bay Light is a rectangular high bay lighting solution developed for large indoor areas that require powerful, uniform, and energy-efficient illumination.
Its linear form factor makes it especially suitable for warehouses, factories, logistics centers, production facilities, and commercial buildings.
Built for project-based installations and wholesale supply, LHB02 delivers stable performance, flexible configuration, and long-term reliability.
🔧 Performance Specifications
Power Range: 200W–480W
Luminous Efficacy: up to 150 lm/W，170lm/W, 190lm/W
High output combined with efficient optics ensures consistent brightness, uniform illumination, and reduced operating costs across large spaces.
🔧 Configurable Options for Project Flexibility
3-Power Selectable
One fixture supports three power settings, allowing installers to adjust output based on ceiling height and layout while reducing SKU complexity.
3-CCT Selectable
Switchable color temperatures enable easy adaptation to different working environments and visual comfort requirements.
3 Beam Angle Selectable
Multiple beam angles provide optimized light distribution for wide areas, aisles, or high-bay layouts.
Optional Motion Sensor
Motion sensor compatibility helps reduce energy consumption in low-traffic zones and supports intelligent lighting control strategies.
🔧 Typical Applications
Warehouses
Logistics centers
Manufacturing plants
Industrial workshops
Commercial high-ceiling spaces
📩 Ready to Source LED High Bay Lights for Your Project or Wholesale Stock?
Contact iShineLux today for pricing, technical details, and bulk supply solutions.
Technical Specification
| Model No. | ISL-LHB02-A-200W | ISL-LHB02-A-240W | ISL-LHB02-A-400W | ISL-LHB02-A-480W |
| Rated Power | 200W | 240W | 400W | 480W |
| Dimension | 450*260*62mm | 450*260*62mm | 900*260*62mm | 900*260*62mm |
| Input Voltage | AC100-277V, 50/60Hz | |||
| Light Efficiency | 150lm/W, 170lm/W, 190lm/W | |||
| Color Temperature | 3000K/ 4000K/ 5000K/ 5700K/ 6500K | |||
| Beam Angle | 60°/ 90° | |||
| CRI | 80Ra | |||
| LED Chip | Lumileds/ San’an | |||
| LED Driver | Sosen | |||
| Options | Motion Sensor | |||
| IP Rating | IP65 | |||
| IK Rating | IK08 | |||
| Operation Temperature | ﹣25°C- +50°C | |||
| Lifespan | 50,000H | |||
| Warranty | 5Years | |||
| Version 1 | Single Power, Single CCT @150lm/W | |||
| Version 2 | Single Power, Single CCT @170lm/W | |||
| Version 3 | Single Power, Single CCT @190lm/W | |||
| Version 4 | 3-Power, 3-CCT @150lm/W | |||
| Version 5 | 3-Power, 3-CCT & 3-Beam Angle @150lm/W | |||
