Why Are Elliptical Beam LED High Bay Lights the Best Choice for Warehouse Aisles?
Many warehouses still use traditional UFO high bay lights with 90° or 120° beam angles. These lights waste energy, create dark aisle areas, and need too many fixtures.
Elliptical beam LED high bay lights are designed for warehouse aisle lighting. They improve lighting efficiency1, reduce fixture quantity2, lower project cost3, and create better visibility4 for warehouse workers and forklift drivers.
Most buyers compare only wattage and lumen output. But in warehouse lighting projects, beam angle design is often more important than power itself.
Why Are Elliptical Beam LED High Bay Lights Better for Warehouse Aisles?
Traditional warehouse high bay lights use round beam patterns. These beams spread light everywhere, including the top of racks and unused areas.
Elliptical beam LED high bay lights create a long and narrow light pattern that follows warehouse aisles more accurately. This improves aisle lighting efficiency and reduces wasted light.
The iShineLux HiRack UFO LED High Bay Light uses special elliptical beam angles like 32×73° and 35×108°. These optics are specially designed for:
- Narrow aisle warehouses
- High rack storage
- Logistics centers
- Distribution centers
- Industrial warehouses
Problems with Traditional Warehouse High Bay Lighting
Many warehouses still use standard 90° or 120° LED high bay lights.
But traditional round beam optics often create several problems:
| Traditional Beam Problems | Result |
|---|---|
| Light wasted on rack tops | Lower lighting efficiency |
| Heavy beam overlap | More energy waste |
| Dark aisle zones | Poor visibility |
| More fixtures needed | Higher project cost |
This is very common in high rack warehouse lighting projects.
How Elliptical Beam Warehouse Lighting Solves the Problem
Elliptical beam optics direct light along the aisle instead of across the warehouse.
This creates several advantages:
| Elliptical Beam Benefits | Result |
|---|---|
| Focused aisle lighting | Better visibility |
| Less wasted light | Higher efficiency |
| Fewer fixtures required | Lower installation cost |
| Better light distribution | Higher uniformity |
The 32×73° beam creates a tighter and more focused warehouse aisle beam.
The 35×108° beam creates longer aisle coverage and works well for medium-width warehouse aisles.
Better Lighting for Forklift Drivers
Low glare is very important in warehouse environments.
The low glare optical design helps:
- Reduce eye fatigue
- Improve worker comfort
- Improve forklift driving safety
- Reduce harsh bright spots
This is especially important in logistics warehouses where operators work long shifts.
My View
I think many warehouse projects still waste too much money because buyers focus only on fixture prices. Good warehouse lighting optics can reduce fixture quantity and improve lighting performance at the same time.
How Can Elliptical Beam LED High Bay Lights Reduce Fixture Quantity?
Many warehouse owners want lower installation costs and lower maintenance costs. Fixture quantity directly affects both.
Elliptical beam warehouse high bay lights can reduce fixture quantity significantly because the light pattern follows the warehouse aisle shape more efficiently.
This is one of the biggest advantages of warehouse elliptical beam lighting.

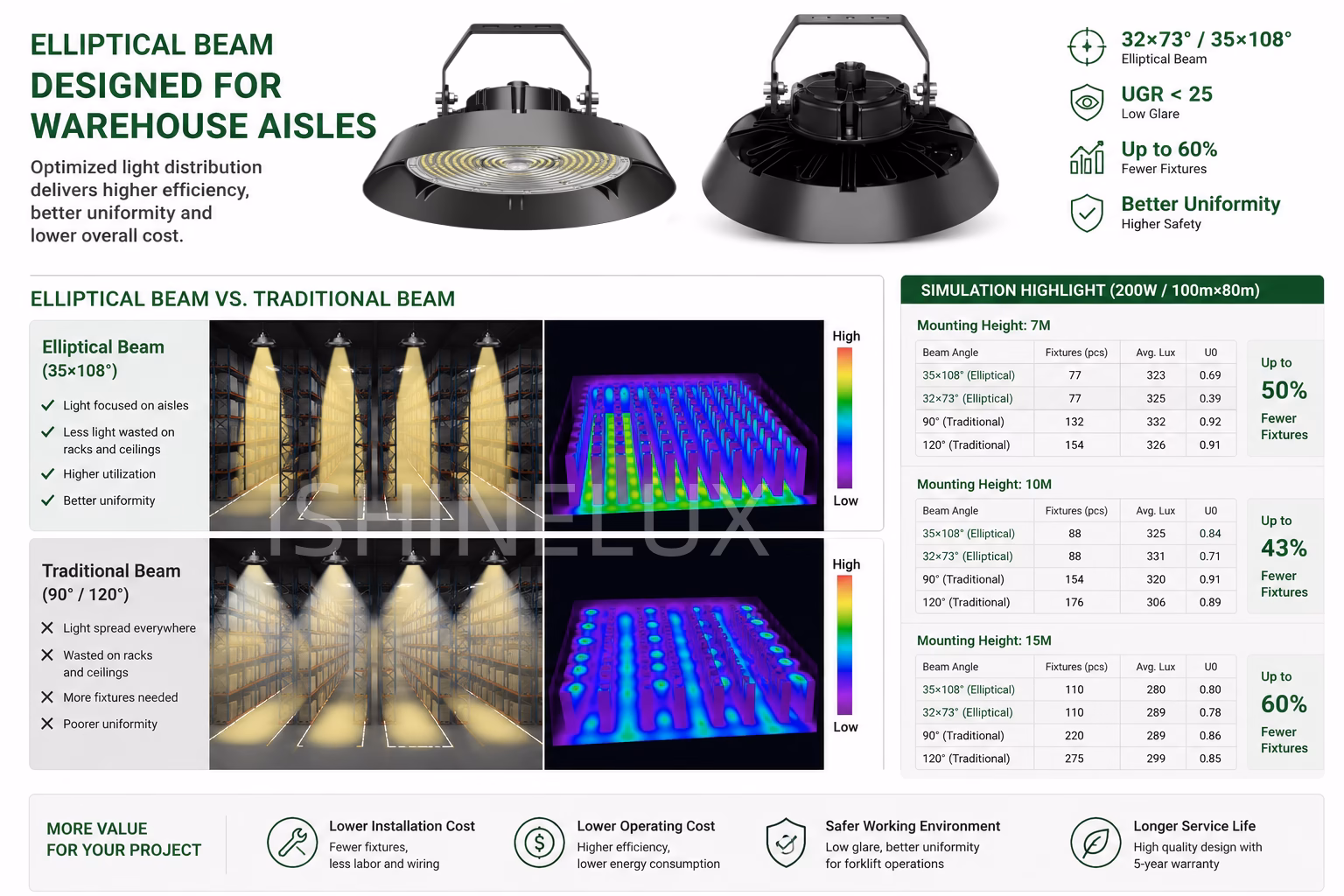

7M Warehouse Lighting Comparison
At 7-meter mounting height:
| Beam Angle | Fixture Quantity | Average Lux | Uniformity U0 |
|---|---|---|---|
| 35×108° | 77 PCS | 323 lx | 0.69 |
| 32×73° | 77 PCS | 325 lx | 0.39 |
| 90° | 132 PCS | 332 lx | 0.92 |
| 120° | 154 PCS | 326 lx | 0.91 |
The elliptical beam layout uses far fewer fixtures while keeping similar brightness levels.
10M Warehouse Lighting Comparison
At 10-meter ceiling height:
| Beam Angle | Fixture Quantity | Average Lux | Uniformity U0 |
|---|---|---|---|
| 35×108° | 88 PCS | 325 lx | 0.84 |
| 32×73° | 88 PCS | 331 lx | 0.71 |
| 90° | 154 PCS | 320 lx | 0.91 |
| 120° | 176 PCS | 306 lx | 0.89 |
The higher the warehouse ceiling, the larger the advantage becomes.
15M High Rack Warehouse Lighting Comparison
At 15-meter mounting height:
| Beam Angle | Fixture Quantity | Average Lux | Uniformity U0 |
|---|---|---|---|
| 35×108° | 110 PCS | 280 lx | 0.80 |
| 32×73° | 110 PCS | 289 lx | 0.78 |
| 90° | 220 PCS | 289 lx | 0.86 |
| 120° | 275 PCS | 299 lx | 0.85 |
This shows a very important result.
The elliptical beam warehouse lighting layout reduces fixture quantity by almost 50% compared with traditional 90° beam layouts.
Compared with 120° layouts, the reduction is even larger.
Why Fewer Fixtures Matter
Reducing warehouse LED high bay fixture quantity helps lower total project cost.
| Cost Item | Traditional Layout | Elliptical Beam Layout |
|---|---|---|
| Fixture Cost | Higher | Lower |
| Wiring Cost | Higher | Lower |
| Installation Labor | Higher | Lower |
| Maintenance Cost | Higher | Lower |
This improves warehouse lighting ROI greatly.
Better Lighting Uniformity
Warehouse lighting is not only about brightness.
Uniformity is also very important.
Good lighting uniformity helps reduce:
- Dark aisle areas
- Hot spots
- Uneven lighting
- Worker visual fatigue
The 35×108° beam achieves strong lighting uniformity performance even in high ceiling warehouse projects.
My View
I believe many buyers focus too much on the initial fixture price. But the total warehouse lighting system cost is much more important. Good optical design can save money for many years.
Why Is the iShineLux HiRack LED High Bay Light a Good Choice for B2B Warehouse Projects?
Industrial buyers need reliable products, stable performance, and long-term support5.
A professional warehouse LED high bay light should combine high lumen efficiency6, reliable components, strong protection, and optimized warehouse optics.
The iShineLux HiRack UFO LED High Bay Light is available in:
- 100W LED high bay light
- 150W LED high bay light
- 200W LED high bay light
- 240W LED high bay light
The efficiency reaches up to 160 lm/W.
Reliable Components for Industrial Warehouse Lighting
The fixture uses high quality components:
| Component | Brand |
|---|---|
| LED Chip | Lumileds |
| Driver | SOSEN |
Reliable drivers are very important for long-term warehouse lighting stability.
Strong Protection for Industrial Applications
Warehouses can be dusty and difficult environments.
This warehouse LED high bay light supports:
- IP65 waterproof protection
- IK08 impact protection
- 5-year warranty
- High power factor
These features improve reliability in industrial warehouse applications.
Flexible Installation Options
Different warehouse projects require different installation methods.
The fixture supports:
- Suspended mounting
- Wall mounting
This gives contractors more flexibility during installation.
Multiple Color Temperature Options
The fixture supports:
- 3000K
- 4000K
- 5000K
- 5700K
- 6500K
Most warehouse lighting projects prefer 5000K because it creates a bright and clean working environment.
OEM and Warehouse Lighting Project Support
At iShineLux, we support customers with:
- Dialux warehouse lighting simulation
- OEM LED high bay service
- Custom logo support
- Warehouse lighting project guidance
- One-to-one technical support
Many distributors want to build their own warehouse lighting brand. OEM support helps them grow faster in local markets.
My View
I think warehouse lighting buyers are becoming more professional. They now compare optics, fixture quantity, ROI, and lighting performance instead of only comparing prices.
Conclusion
Elliptical beam LED high bay lights are a smarter warehouse lighting solution because they improve aisle lighting, reduce fixture quantity, lower energy costs, and create better lighting performance for high rack warehouses.
-
