How to Design a Deeply Optimized FIFA-Compliant Football Stadium Lighting System?
Lighting is not just about making things bright — it’s about helping players perform, making games fair, and letting fans and cameras see everything clearly. In football today, good lighting makes a big difference for the match, the replay, and the whole experience.
To meet FIFA standards1, stadium lighting must provide uniform, high-quality illumination with strict control over glare, flicker, and vertical brightness.
Let’s explore the key requirements and how iShineLux approaches them with proven strategies.
What Are the FIFA Lighting Standards for Football Stadiums?
FIFA defines strict technical standards for stadium lighting to ensure optimal visibility for players and high-quality broadcasting for global audiences.
The standards cover horizontal and vertical illuminance2, uniformity, color rendering, and flicker control—tailored to different match levels.
FIFA Lighting Requirements Summary (for Match Stadiums)
| FIFA Lighting Standard | Horizontal Illuminance (Eh ave) | Vertical Illuminance (Ev ave) | Uniformity (U1) | CRI (Ra) | CCT (K) | Flicker Factor | Application Level |
|---|---|---|---|---|---|---|---|
| Standard A | ≥ 2,000 lux | ≥ 2,400 lux | ≥ 0.7 | ≥ 80 | 5,000–6,200 | ≤ 1% | International matches (HD/4K broadcast) |
| Standard B | ≥ 1,500 lux | ≥ 2,000 lux | ≥ 0.65 | ≥ 80 | 5,000–6,200 | ≤ 1% | National competitions |
| Standard C | ≥ 1,000 lux | ≥ 1,500 lux | ≥ 0.6 | ≥ 70 | 4,200–6,200 | ≤ 1% | Regional events and basic broadcast |
| Standard D | ≥ 750 lux | ≥ 1,000 lux | ≥ 0.5 | ≥ 70 | 4,200–6,200 | ≤ 1% | Non-broadcast and training |
FIFA Training Pitch Standards
| Grade | Eh ave (lux) | Uniformity (U1) | CRI (Ra) | CCT (K) | Application |
|---|---|---|---|---|---|
| Grade 1 | ≥ 750 | ≥ 0.6 | ≥ 80 | 5,000–6,200 | FIFA World Cup Training Pitch |
| Grade 2 | ≥ 500 | ≥ 0.6 | ≥ 70 | 5,000–6,200 | FIFA Match Practice Field |
| Grade 3 | ≥ 300 | ≥ 0.6 | ≥ 70 | 4,200–6,200 | FIFA Standard Training Pitch |
Note: Uniformity (U1) = minimum ÷ average illuminance. Flicker must be ≤1% for smooth camera capture.
Definitions (from FIFA Guide):
- Horizontal Illuminance (Eh): the amount of light measured on a horizontal plane (e.g., the pitch surface). This affects how well the ball and field lines are seen.
- Vertical Illuminance (Ev): the amount of light measured on a vertical plane (e.g., player faces). This is critical for player visibility and high-quality TV broadcasting.
Personal Insight:
We use these official FIFA specifications as the foundation for every project, from top-tier match arenas to local practice fields. Whether it's a 3,500-lux stadium or a 500-lux training field, the goal is the same: safe, clear, and professional lighting.
👉 View our sports light product page

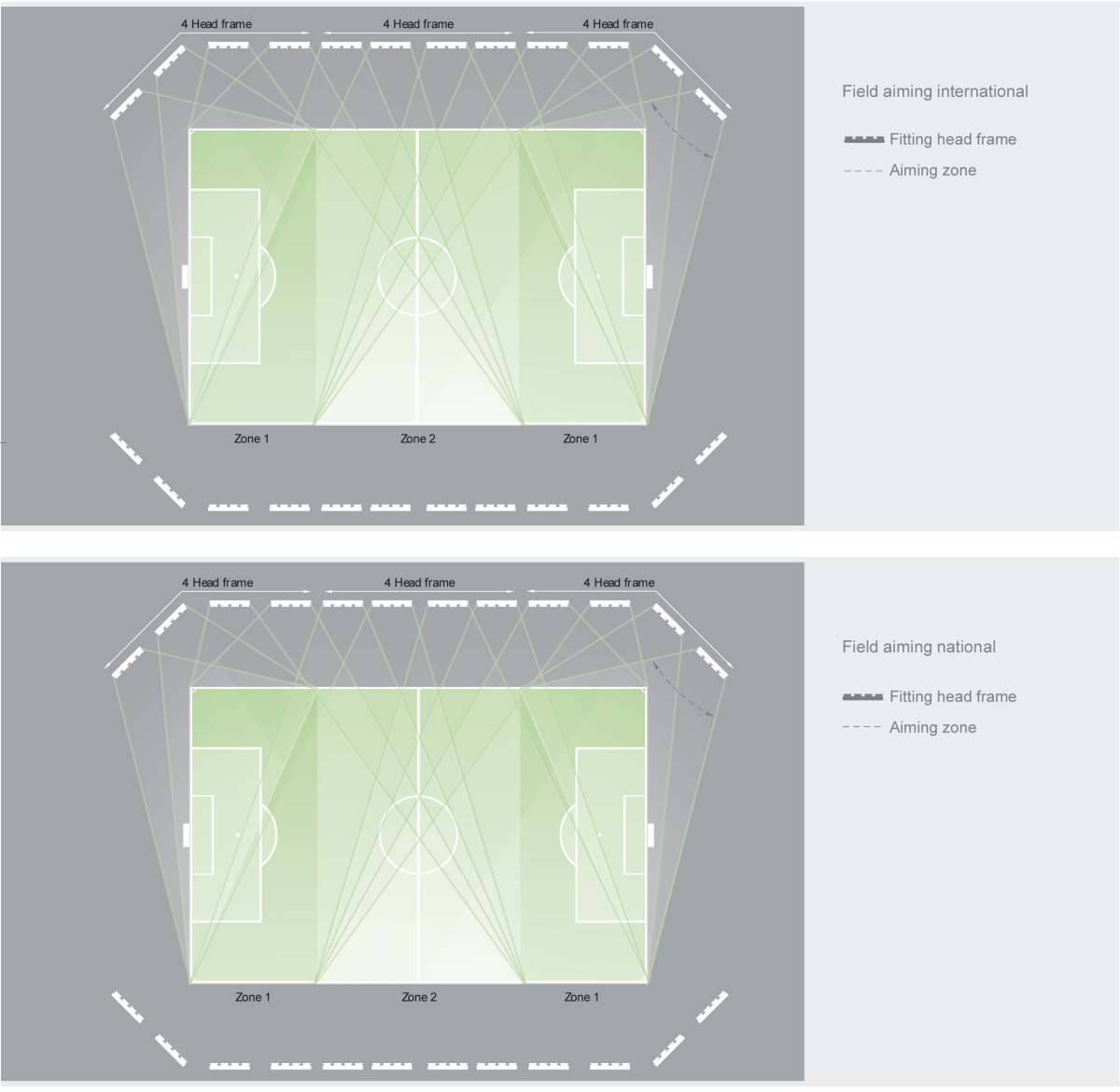

What Are the Pole Height, Quantity, and Position Guidelines Based on FIFA Standards?
The FIFA Lighting Guide 2020 outlines clear recommendations for pole height, number, and placement to achieve consistent, high-quality illumination suitable for professional football and broadcast needs.
Instead of corner-mounted poles, FIFA strongly recommends side-mounted lighting arrays to meet uniformity, glare control3, and vertical illuminance requirements.
FIFA Lighting Pole Guidelines
| Parameter | FIFA Recommendation |
|---|---|

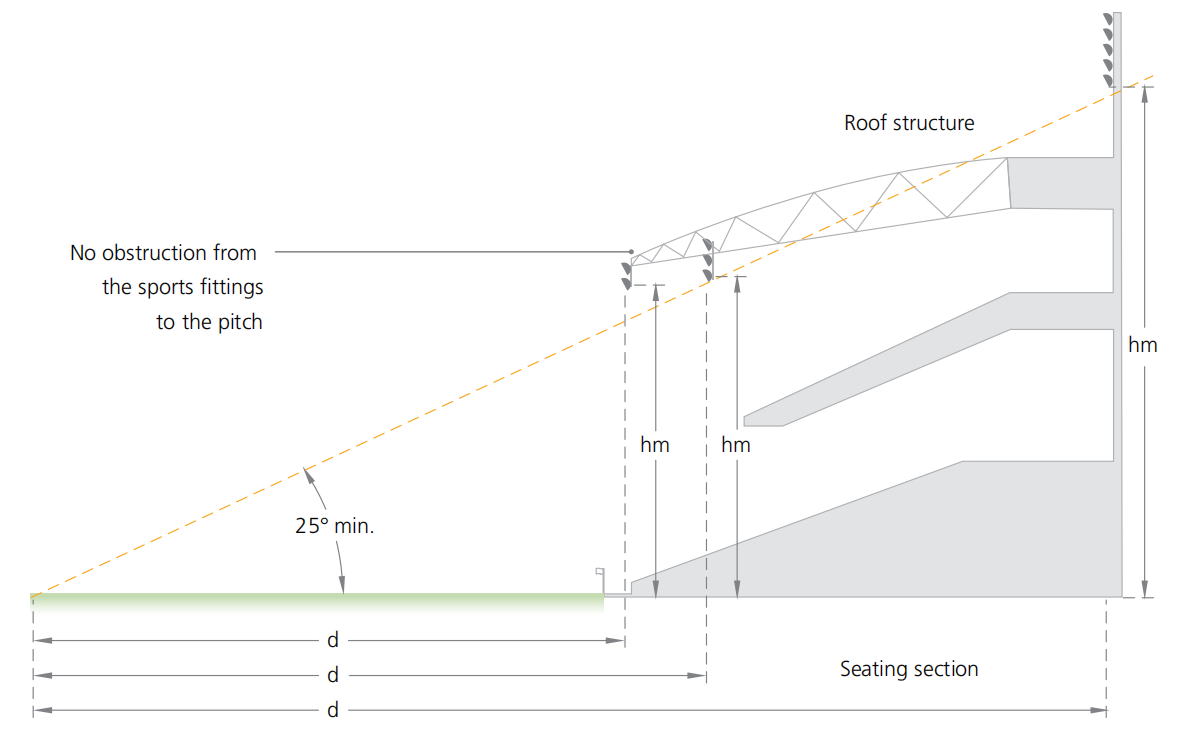

| Pole Height | 20–25 meters above pitch level |
| Tilt Angle | 25°–45°, depending on the stadium structure and beam shape |
| Preferred Lighting Setup | Side-mounted fixtures along long sides or roof-integrated systems for large arenas |
| Discouraged Layout | Corner pole installations for match-level standards (Standard A & B) |

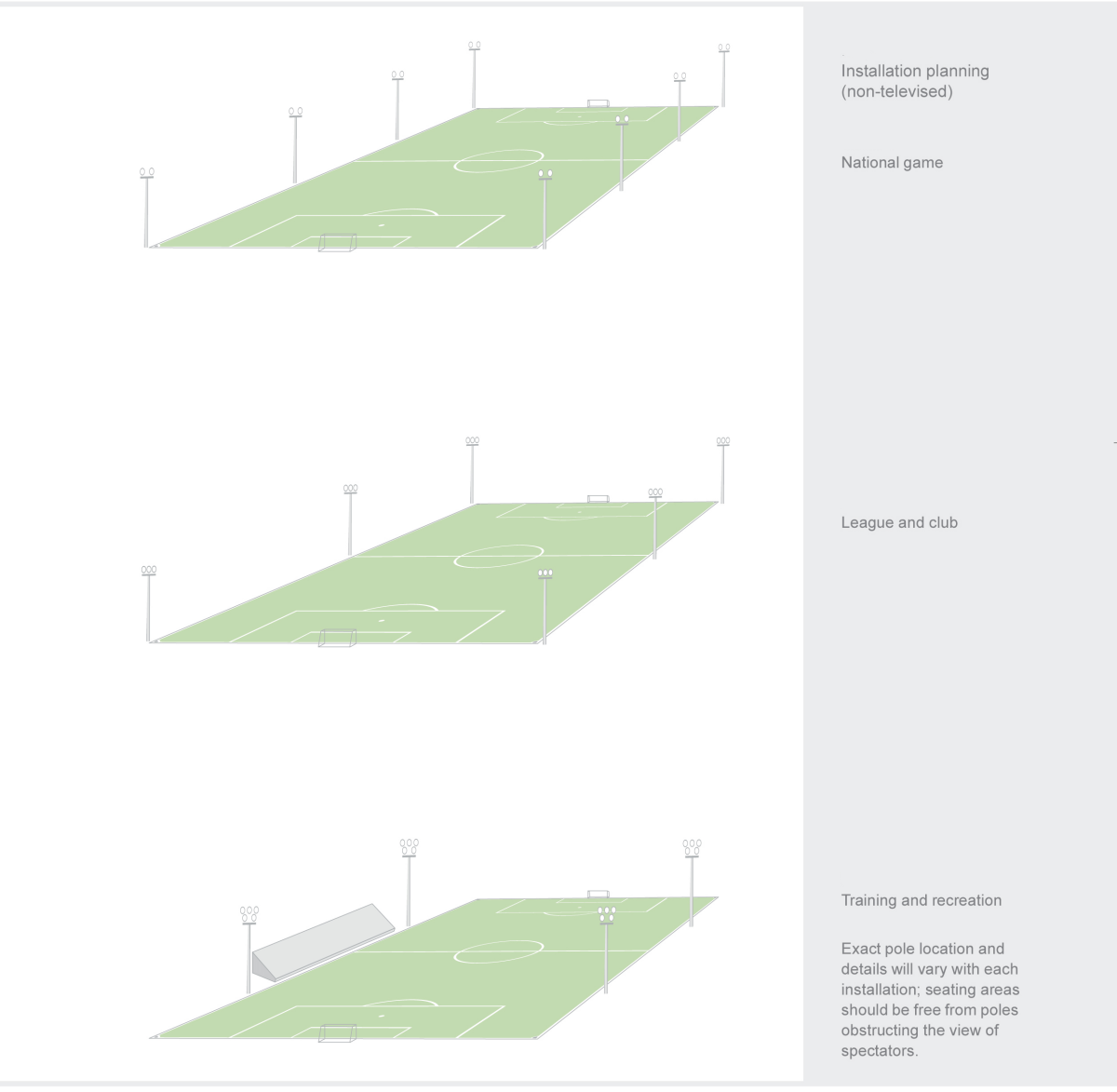

| Training Fields | 4 to 8 poles may be used, positioned to achieve uniform coverage |
| Sideline Clearance | Minimum 5 meters from the pitch boundary |
| Broadcasting Consideration | Lights must avoid interfering with main and mobile camera sightlines |
Personal Insight:
Based on our project experience, especially for FIFA-compliant stadiums, side-mounted poles offer the best balance between high vertical lighting and low glare. Corner-only configurations often fail to meet vertical lux or uniformity. We always use simulation to find the right pole quantity and elevation that match FIFA standards and local construction realities.
How Do Lighting Requirements Vary by Football Stadium Type?
Not all stadiums demand the same lighting performance. Requirements vary based on event level, camera use, and stadium capacity.
Main variations include vertical lighting targets, CRI values, and system controllability—especially critical for HD broadcasting.
Comparison: Football Venue Lighting Needs
| Stadium Type | Typical Application | Required Features |
|---|---|---|
| Community Fields | Training, Recreational Use | Basic floodlights, minimal glare control |
| Regional Venues | Amateur & Semi-Pro Matches | Balanced horizontal/vertical lux, CRI ≥ 70 |
| National Stadiums | HD Broadcast, League Games | CRI ≥ 80, advanced glare suppression, uniformity ≥ 0.65 |
| FIFA-Level Arenas | 4K Global Broadcast, VAR Use | Ultra-uniform light, Ev ≥ 2,400 lux, flicker ≤ 1% |
Personal Insight:
In one national-level installation, we achieved 2,800 lux (Eh) and 2,400 lux (Ev) using a combination of DIALux simulation and on-site calibration support. The client reported a visible improvement in both player clarity and camera response.
How Does iShineLux Achieve FIFA-Compliant Lighting Performance?
iShineLux doesn’t just provide lights—we provide engineered lighting systems optimized for competitive football use.
From photometric simulation to product customization, our solutions help meet FIFA criteria efficiently, with minimized energy consumption and installation effort.
What We Deliver
| Key Factor | iShineLux Approach |
|---|---|
| Vertical & Horizontal Lux | Precision beam angles, verified by simulation |
| Glare Suppression | Narrow optics + anti-glare housing |
| Uniformity U1/U2 | Multi-zone layout strategy |
| Flicker-Free Broadcast | High-frequency drivers with flicker ≤ 1% |
| System Controls | DALI/KNX-based adjustable lighting scenes |
👉 View our sports light product page
Personal Insight:
Clients often tell us they appreciate our full-cycle support—we handle lighting design, photometric documentation, and pre-shipment QC. It’s this all-in approach that helps them save time and meet FIFA requirements without iteration delays.
What Makes FIFA Lighting Standards Challenging to Meet?
Designing stadium lighting to reach 2,400 lux vertically—while ensuring player comfort and uniformity—is technically demanding.
Most systems struggle to balance power, directionality, and broadcast quality in one package.
Personal Insight:
We've seen many competitors push brightness at the cost of glare. At iShineLux, we optimize layout based on simulation results, fixture elevation, and stadium structure. This gives clients the brightness they need—without sacrificing the game experience.
Conclusion
FIFA-compliant football lighting is not just a specification—it’s a performance promise.
At iShineLux, we combine lighting engineering with match-day precision. Our mission is to help clients deliver lighting systems that meet global standards and elevate the football experience for everyone.
-
Understanding FIFA standards is crucial for designing compliant lighting systems that enhance player performance and viewer experience. ↩
-
Learn about vertical illuminance to ensure optimal visibility for players and enhance broadcast quality in stadiums. ↩
-
Explore effective glare control techniques to improve player comfort and viewing experience during matches. ↩
